1. Bubuka
The iSpring SF2S 33-Stage High Output Universal Shower Filter is designed to enhance your shower experience by improving water quality. This filter system utilizes multiple filtration media to reduce common water impurities, contributing to healthier skin, softer hair, and stronger nails. It is compatible with standard 1/2-inch shower connections and is designed for tool-free installation.
2. Produk Langkungview jeung Komponén
The SF2S shower filter features a multi-stage filtration system to effectively treat shower water. The system includes various layers of filtration media, such as stainless steel mesh, polypropylene cotton, activated carbon, KDF, calcium sulfite, and mineral balls, designed to target different contaminants.

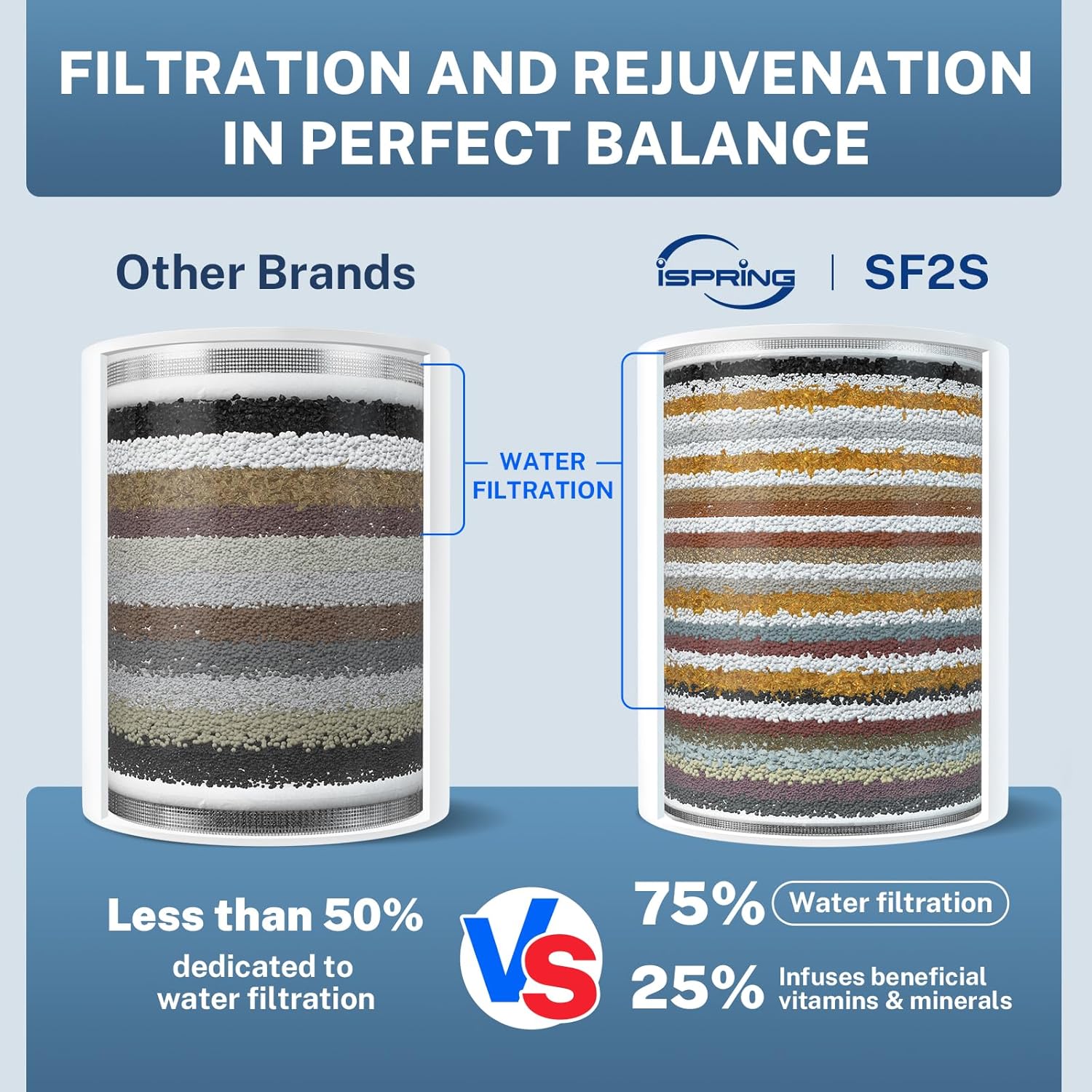

Figure 2.1: Filtration and Rejuvenation Balance. The iSpring SF2S dedicates 75% to water filtration and 25% to infusing beneficial vitamins and minerals.
Figure 2.2: Upgraded Effective Multi-Layer Filter. This diagram illustrates the various media layers within the filter cartridge, including stainless steel mesh, polypropylene, activated carbon, KDF, mineral stones, and Vitamin C.
The filter is designed to address issues such as dry and itchy skin, limp hair, and soap scum buildup by providing cleaner, softer water.
Figure 2.3: Benefits of the SF2S Filter. The filter aims to reduce issues like dry skin, limp hair, and soap scum.
3. Setup jeung Instalasi
The iSpring SF2S shower filter is designed for easy, tool-free installation and fits all standard 1/2-inch shower types, including fixed, handheld, and rainfall showerheads.

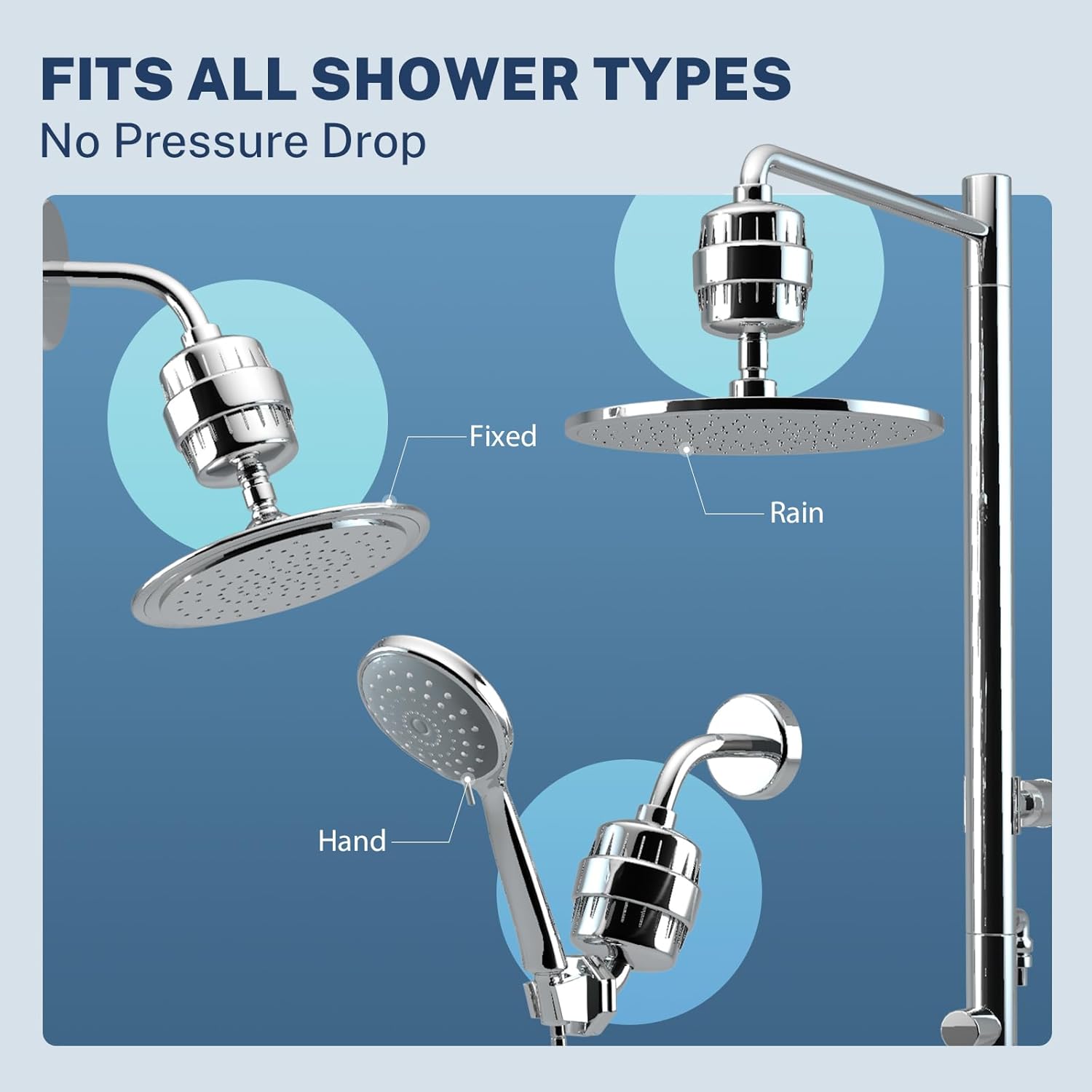

Figure 3.1: Universal Fit. The SF2S filter is compatible with various shower setups.
Léngkah-léngkah pamasangan:
- Step 1: Detach Showerhead
Unscrew and detach your existing showerhead from the shower arm. If you have a handheld shower, remove the shower mount. - Step 2: Apply Plumber's Tape to Shower Arm
Wrap 4-6 layers of plumber's tape (included) around the threads of the shower arm. - Step 3: Install Filter to Shower Arm
Place one of the included washers into the top connection of the shower filter. Hand-tighten the shower filter onto the shower arm by turning it clockwise until snug. - Step 4: Apply Plumber's Tape to Filter Threads
Wrap 4-6 layers of plumber's tape around the bottom threads of the shower filter. - Step 5: Attach Showerhead to Filter
Place the remaining washer between the bottom of the shower filter and your showerhead. Hand-tighten your showerhead onto the filter by turning it clockwise. - Step 6: Flush the Filter
Before first use, turn on the shower and flush the filter with water for approximately 20-30 seconds to remove any carbon particles.
Figure 3.2: 5-Minute Installation Guide. This image provides a visual walkthrough of the installation process.
Video 3.1: iSpring Shower Filters SF1S SF2S SF3S Installation Guide. This video demonstrates the installation process for iSpring shower filters, including the SF2S model.
Video 3.2: iSpring High Capacity Shower Filter Overview. video ieu nyadiakeun leuwihview of the iSpring high-capacity shower filter, including its features and benefits.
4. Parentah Operasi
Once installed, the iSpring SF2S shower filter operates automatically. Simply turn on your shower as usual to receive filtered water. The filter's design ensures that water pressure is maintained, providing a comfortable shower experience without significant flow reduction.
5. Pangropéa
Ngagantian Cartridge Filter:
The SF2S model is designed for use with FSF2 replacement cartridges. The filter cartridge should be replaced every 6 to 9 months, or after approximately 12,000 gallons of use, depending on your water quality and usage frequency. Regular replacement ensures optimal filtration performance.
Figure 5.1: High Performance and Lifespan. The filter cartridge provides up to 12,000 gallons of filtered water.
Ngabersihan Cartridge:
For water sources with high sediment content, you may occasionally flip and rinse the filter cartridge with hot water to clean it. This can help extend the cartridge's effective lifespan between replacements.
6. Cara ngungkulan
- Bocor dina sambungan: Ensure that plumber's tape was applied correctly and generously (4-6 wraps) to all threaded connections. Hand-tighten all connections firmly. Avoid overtightening with tools, which can damage threads.
- Ngurangan Aliran Cai: If water flow significantly decreases, the filter cartridge may be clogged with sediment or has reached the end of its lifespan. Try cleaning the cartridge as described in the Maintenance section, or replace it with a new FSF2 cartridge.
7. Spésifikasi
| Fitur | Spésifikasi |
|---|---|
| Nomer modél | SF2S |
| Bahan | High Density Stainless Steel, PP Cotton |
| Dimensi produk | 3.75 "D x 3.75" W x 4.25" H |
| Item Beurat | 354 Gram (12.5 ons) |
| Métode Pamasangan | Tembok dipasang |
| Komponén Kaasup | Filter cartridge, Plumber's tape, Shower Filter housing |
| Cartridge cocog | FSF2 |
Figure 7.1: Universal Shower Filter Dimensions. This image provides the physical measurements of the filter and its cartridge.
8. Garansi jeung Rojongan
The iSpring SF2S Universal Shower Filter comes with a 3-month warranty. For any questions, technical assistance, or warranty claims, please contact iSpring Water Systems, LLC directly. Refer to the contact information provided in your product packaging or on the official iSpring websitus.
