1. Produk Langkungview
The Wallbox Copper SB is a compact and intelligent electric vehicle charging station designed for home or office parking. It offers adjustable power output from 1.4 kW to 22 kW, supporting both single-phase and three-phase installations. Equipped with Bluetooth, Wi-Fi, and RFID capabilities, it provides flexible and secure charging solutions.

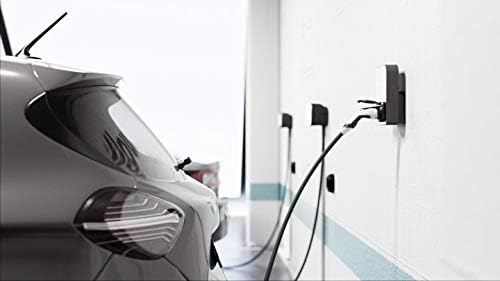

Gambar 1: Hareupeun view of the Wallbox Copper SB charger, showcasing desain kompak na.
Fitur konci:
- Kakuatan anu tiasa disaluyukeun: Instantly adjustable charging current from 6A to 32A (1.4 kW to 22 kW) via the Wallbox app.
- Konektipitas: Bluetooth and Wi-Fi for remote management and control.
- Kontrol Aksés: Supports both Plug & Play and RFID card activation for secure charging.
- Desain kompak: Dimensions of L191 x H259 x P88.5 mm, making it one of the smallest chargers on the market.
- Daya tahan: Robust construction with IK08 impact resistance and IP55 weather protection, suitable for outdoor installation.
- Komponén Kaasup: Electric cable, RFID cards, lockable T2S front handle.
2. Setup jeung Instalasi
The Wallbox Copper SB charger should be installed by a qualified electrician to ensure compliance with local electrical codes and safety standards. Its compact size and robust design allow for flexible installation options, including outdoor environments without additional rain protection.

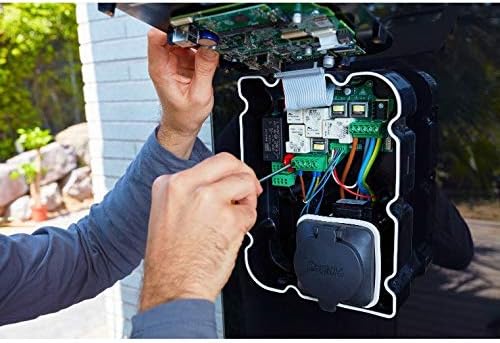

Gambar 2: Internal view of the Wallbox Copper SB, showing wiring during professional installation.
Pertimbangan instalasi:
- lokasi: Choose a location that is convenient for vehicle parking and has access to the electrical supply.
- Pamasangan: Securely mount the charger to a solid surface using appropriate fasteners.
- Sambungan listrik: Ensure proper wiring for single-phase or three-phase power, adhering to the charger's specifications and local regulations.
- Grounding: Verify that the charger is properly grounded for safety.
3. Parentah Operasi
Mode ngecas:
- Plug & Play: Once activated, simply connect the charging cable to your vehicle and the Wallbox charger to initiate charging.
- RFID Card Activation: If the RFID mode is enabled via the Wallbox Web portal, only the RFID cards included with your Wallbox can activate charging. Present an authorized RFID card to the charger to begin.
Figure 3: An electric vehicle connected to a Wallbox charger for charging.
Using the Wallbox Application:
The Wallbox app allows you to connect to your charger via Bluetooth or Wi-Fi, providing comprehensive control and monitoring features.
Figure 4: Wallbox app interface displayed on both desktop and mobile, showing charging statistics and controls.
- Kadali jauh: Activate or deactivate charging remotely.
- adjustment kakuatan: Adjust the charging power between 1.4 kW and 22 kW to suit your home's available power.
- Jadwal: Program charging sessions for specific times, such as off-peak hours, to optimize energy costs.
- Consumption History: Review your charging history and the total cost of electricity consumed.
- Statistik: Access detailed statistics about your charging sessions.
Gambar 5: Detil view of the Wallbox mobile application, displaying real-time charging status and energy consumption graphs.
4. Pangropéa
The Wallbox Copper SB is designed for minimal maintenance. Regular care will help ensure its longevity and optimal performance.
- beberesih: Ngusap périodik bagian luar carjer ku lemes, damp lawon. Ulah make cleaners abrasive atawa pangleyur.
- Pamariksaan kabel: Regularly inspect the charging cable and connector for any signs of wear, damage, or fraying. Do not use if damaged.
- Perlindungan Lingkungan: While designed for outdoor use, ensure the charger is not exposed to extreme conditions beyond its specified operating range.
- Pembaruan firmware: Keep the charger's firmware updated through the Wallbox app to benefit from the latest features and improvements.
5. Cara ngungkulan
If you encounter issues with your Wallbox Copper SB charger, refer to the following common troubleshooting steps. For more complex problems, contact Wallbox customer support.
- Charger Not Responding:
- Check the power supply to the charger.
- Ensure the charger is properly connected to the electrical circuit.
- Restart the charger by cycling its power.
- Ngecas Teu Dimimitian:
- Verify that the charging cable is securely connected to both the vehicle and the charger.
- If using RFID, ensure you are using an authorized card and it is properly scanned.
- Check the Wallbox app for any error messages or charging schedule conflicts.
- Ensure your vehicle is ready to accept a charge.
- Masalah Konéktivitas (Bluetooth/Wi-Fi):
- Pastikeun Bluetooth alat sélulér anjeun diaktipkeun sareng aya dina jangkauan.
- For Wi-Fi, check your home network's signal strength and ensure the charger is connected to the correct network.
- Balikan deui router Wi-Fi anjeun upami diperyogikeun.
6. Spésifikasi Téknis
| Spésifikasi | Nilai |
|---|---|
| Nomer modél | WBX-RFID-22kw |
| Produsén Serial Number | CPB1-W-2-4-4-002-A |
| Diménsi (L x H x P) | 191 x 259 x 88.5 mm |
| Beurat | 4.8 kg |
| Ampumur | 32 A |
| Kaluaran kakuatan | 1.4 kW nepi ka 22 kW |
| Téhnologi konektipitas | Bluetooth, WiFi |
| Tipe Panyambung | Tipe 2 |
| Protéksi Ingress (IP) Peunteun | IP55 |
| Rating Protéksi Dampak (IK) | IK08 |
| Warna | Hideung |
| Alat nu cocog | Mobile phones (e.g., Apple iPhone SE) |
7. Garansi jeung Rojongan
The Wallbox Copper SB charger comes with a manufacturer's warranty. For detailed information regarding warranty terms, coverage, and duration, please refer to the warranty card included with your product or visit the official Wallbox websitus.
For technical assistance, troubleshooting beyond the scope of this manual, or to report any issues, please contact Wallbox customer support. Ensure you have your product's model number and serial number ready when contacting support.
Kaasup dina Box:
- Wallbox Copper SB Charger Unit
- Kabel Listrik
- Kartu RFID
- Lockable T2S Front Handle
