Manual pamaké Sistim vakum OVO Tengah

Produk Leuwihview

The OVO Heavy Duty Powerful Central Vacuum System offers hybrid filtration, allowing operation with or without disposable bags. This system is designed for robust cleaning performance in large areas, featuring a 700 Airwatts power unit and a comprehensive 35 ft Deluxe Plus Accessory Kit.

Figure 1: OVO Central Vacuum System and included accessories.

Fitur konci

• Kinerja anu kuat: Equipped with a 700 Airwatts, 5.7-inch 2-stage motor, providing 140 inches of water-lift suction and 140.2 CFM.
• Hybrid Filtration: Operates with or without disposable bags. Includes one permanent, machine-washable filter.
• Soft Start/Stop Technology: Extends motor life by 20% and ensures quiet operation with an integrated muffler and noise-blocking foam.
• Kapasitas ageung: Features a 9.25-gallon (35-liter) rolled steel bottom-load canister, suitable for areas up to 9000 square feet with 8 or more inlets.
• Kit aksésori: Includes a 35 ft low-voltage hose with an on-off switch at the handle, a 12-inch floor brush, telescopic wands, dusting brush, upholstery brush, crevice tool, chrome hose hanger, and an accessory holder bag.
• Desain anu ramah-pamaké: LED status indicator for system status, operates on a 15-amp non-dedicated breaker, and features 3-second delay technology to clear debris from the hose.

Gambar 2: Leuwihview of the OVO Central Vacuum System's key specifications.

Gambar 3: Detil view of the 700 AirWatts motor, highlighting Soft-Start/Stop technology and the LED indicator.

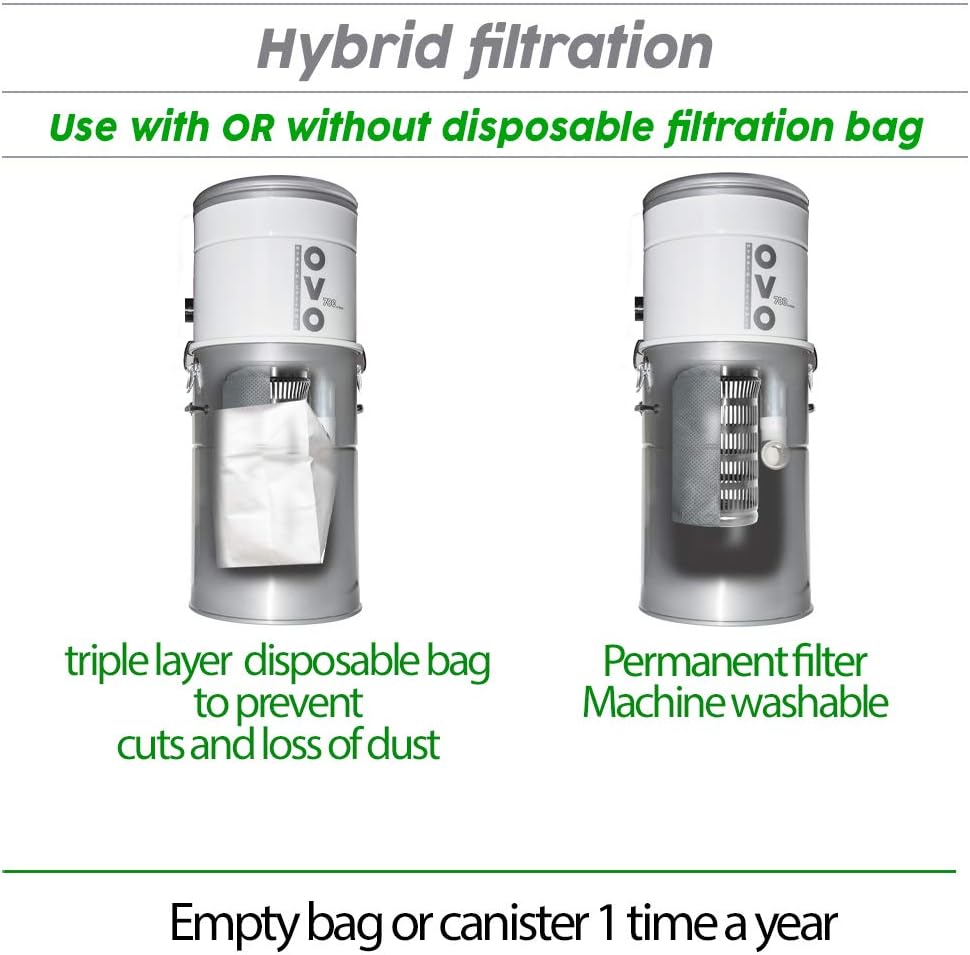

Figure 4: Illustration of the hybrid filtration system, showing options for disposable bags or the permanent washable filter.

Setup sareng Instalasi

This central vacuum system is designed for straightforward installation. Ensure you have the necessary tools and follow local electrical and building codes.

Kasaluyuan

The system is compatible with most existing central vacuum inlets that have a 1.5-inch inner diameter and two low-voltage metal pins inside.

Figure 5: Guide to checking compatibility with existing central vacuum inlets, showing the required 1.5-inch inner diameter and two internal pins.

Power Unit Placement

Place the central vacuum unit in a suitable location, typically a utility room, garage, or basement, ensuring proper ventilation and access for maintenance. The unit operates on a standard 15-amp pemutus sirkuit.

Parentah Operasi

Connecting the Hose and Accessories

1. Insert the low-voltage hose into any compatible central vacuum inlet. The hose features a swivel at the handle to prevent kinking during use.
2. Attach the desired cleaning tool (e.g., floor brush, crevice tool, dusting brush, upholstery brush) to the telescopic wand. The telescopic wand adjusts from 25.5 inches to 38 inches with a button lock for various cleaning heights.
3. Sambungkeun tongkat teleskopik kana gagang selang.

Figure 6: Features of the low-voltage hose, including the swivel handle and on-off switch, along with available lengths and their coverage areas. Note: Not for use with electrical carpet beater (powerhead).

Figure 7: The 12-inch Pivoting Neck Floor Brush, made with soft horsehair bristles suitable for all hard surfaces, and the adjustable telescopic wand.

Gambar 8: Leuwihview of the additional cleaning tools provided, including the dusting brush, upholstery brush, crevice tool, chrome hose hanger, and accessory bag.

Ngahurungkeun/Pareuman

The system is activated by the ON-OFF switch located on the hose handle. Once activated, the 3-second delay technology ensures all debris is cleared from the hose before the system shuts down.

Tips beberesih

• Use the 12-inch floor brush for hard surfaces like hardwood, tile, stone, concrete, vinyl, and linoleum. Its horsehair bristles prevent scratching.
• The crevice tool is ideal for cleaning tight spaces, cracks, and corners.
• The dusting brush is designed for delicate surfaces and leaves no marks on furniture or walls.
• The upholstery brush provides soft cleaning for furniture and fabrics.

Pangropéa

Sistim filtrasi

The OVO Central Vacuum System features hybrid filtration. You can choose to use disposable bags or operate without them, utilizing the permanent, machine-washable filter.

• Disposable Bags: Recommended for optimal dust containment. Replace bags when full.
• Filter Permanén: If not using disposable bags, regularly clean the permanent filter. It is machine washable.

It is recommended to empty the canister or replace the disposable bag at least once a year, or more frequently depending on usage.

Perawatan Motor

The Soft Start/Stop Technology helps prolong the life of the motor. No specific user maintenance is required for the motor itself beyond ensuring proper filtration.

beberesih umum

Wipe down the exterior of the central vacuum unit and accessories with a damp cloth as needed. Ensure all components are dry before reassembly or storage.

For convenient storage, utilize the included chrome hose hanger and accessory bag.

Figure 9: The complete accessory kit, including the hose, various cleaning tools, and storage solutions like the chrome hose hanger and accessory bag.

Pamérésan masalah

This section provides solutions to common issues you might encounter with your OVO Central Vacuum System.

For issues not listed here, or if troubleshooting steps do not resolve the problem, please contact OVO customer service.

spésifikasi

Garansi sareng Rojongan

OVO provides a 10-year warranty for this central vacuum system, ensuring long-term peace of mind.

For technical support, compatibility information, or any other inquiries, please contact OVO customer service:

• Telepon: 1.800.776.7891
• Surélék: info@myovo.net

Additional resources, including the official User Manual in PDF format, may be available on the OVO website or through the provided Amazon product page documents section.

Link to PDF User Manual: Manual Pamaké (PDF)
