Bubuka
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Hisense WSA1102PD Semi-Automatic Washing Machine. Please read these instructions thoroughly before using the appliance and retain them for future reference.
Émbaran Kasalametan penting
Pikeun ngirangan résiko kahuruan, sengatan listrik, atanapi tatu, perhatoskeun tindakan pencegahan dasar ieu:
- Pastikeun yén mesin cuci geus bener grounded.
- Entong ngajalankeun mesin nganggo kabel listrik atanapi colokan anu ruksak.
- Jauhkeun barudak tina alat salami operasi.
- Entong ngumbah barang anu kotor ku cairan anu gampang kaduruk.
- Cabut colokan mesin sateuacan ngabersihkeun atanapi ngalakukeun perawatan naon waé.
- Ulah masang atawa nyimpen alat dimana eta bakal kakeunaan cuaca atawa hawa katirisan.
Komponén produk
Familiarize yourself with the main parts of your Hisense WSA1102PD washing machine.

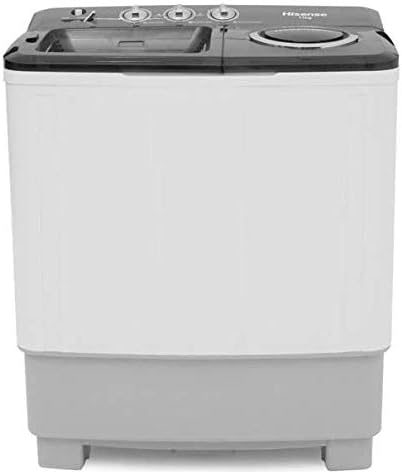

Gambar 1: Pinuh view of the Hisense WSA1102PD Semi-Automatic Washing Machine, showcasing its dual-tub design.
Gambar 2: Close-up of the control panel with wash timer, wash selector, and spin timer dials.

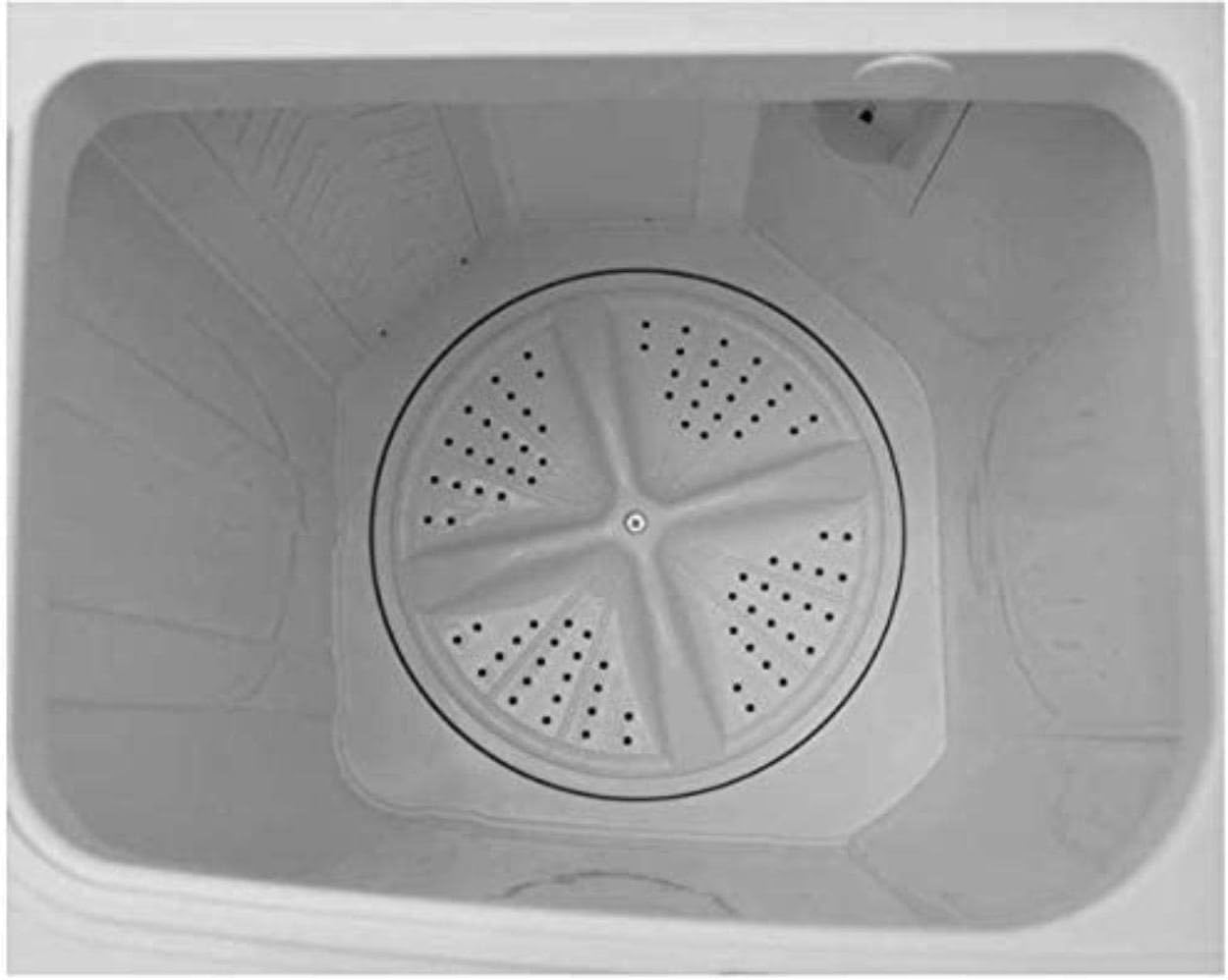

Gambar 3: Interior view of the wash tub, featuring the pulsator at the bottom.
Gambar 4: Interior view of the spin tub, designed for efficient water extraction.
Setup sareng Instalasi
1. Ngabongkar bungkusan
Taliti miceun sadaya bahan bungkusan. Mariksa mesin pikeun sagala karuksakan ditanggung salila transit. Tetep bahan bungkusan jauh ti barudak.
2. Panempatan
- Tempatkeun mesin cuci dina permukaan anu teuas sareng rata pikeun nyegah geter sareng bising nalika dioperasikeun.
- Ensure adequate ventilation around the machine. Do not block air vents.
- Avoid direct sunlight or locations with high humidity.
3. Cai Inlet Connection
Connect the water inlet hose to a suitable water tap. Ensure the connection is secure to prevent leaks. The machine uses a single water inlet for both tubs.
4. Drain Hose Placement
Position the drain hose to allow for proper water drainage. Ensure it is not kinked or obstructed. The drain hose should be placed lower than the machine's base for gravity drainage.
5. Sambungan Daya
Colokkeun kabel listrik kana stop kontak listrik grounded. Pastikeun voltage matches the specifications of the washing machine.
Parentah Operasi
1. Nyiapkeun laundry
- Urutkeun cucian dumasar kana jinis lawon, warna, sareng tingkat kekotoran.
- Kantong kosong sareng tutup seleting atanapi kait pikeun nyegah karusakan.
2. Washing Process
- Beban laundry: Place sorted laundry into the wash tub, ensuring not to exceed the 11 kg capacity.
- Tambahkeun cai: Eusian bak cuci ku cai ka tingkat anu dipikahoyong.
- Tambahkeun detergent: Add the appropriate amount of detergent according to the manufacturer's instructions and load size.
- Select Wash Program: Turn the "Wash Selector" dial to choose the desired wash setting (e.g., Gentle, Normal, Strong).
- Setel Timer Nyeuseuh: Turn the "Wash Timer" dial to set the washing duration (maximum 15 minutes). The machine will start automatically.
- Cai solokan: Once the wash cycle is complete, set the "Wash Selector" dial to "Drain" to empty the water from the wash tub.
3. Rinsing Process
After draining the wash water, you can rinse clothes in the wash tub by refilling with clean water and running a short wash cycle, or transfer them to the spin tub for rinse spinning.
4. Spin Drying Process
- Muat Bak Putar: Transfer washed and rinsed laundry to the spin tub, ensuring even distribution and not exceeding the 5.5 kg capacity.
- Tutup Tutup: Securely close the spin tub lid.
- Atur Timer Puteran: Turn the "Spin Timer" dial to set the desired spin duration (maximum 5 minutes). The machine will start spinning.
- Cabut Laundry: Once the spin cycle is complete, open the lid and carefully remove the spun laundry.
Pangropéa sareng Perawatan
Pangropéa rutin ngajamin umur panjang sareng kinerja optimal mesin cuci anjeun.
1. Cleaning the Tubs
- After each use, wipe the interior of both tubs with a clean, damp lawon pikeun miceun sésa deterjen atanapi serat.
- For deeper cleaning, use a mild, non-abrasive cleaner. Rinse thoroughly.
2. Ngabersihkeun Filter Lint
Locate the lint filter (usually inside the wash tub). Remove it, clean off accumulated lint under running water, and reinsert it properly.
3. beberesih exterior
Ngusap permukaan luar kalayan lemes, damp lawon. Hindarkeun ngagunakeun bahan kimia anu kasar atanapi pembersih abrasive anu tiasa ngaruksak finish.
4. Panyimpenan
If storing the machine for an extended period, ensure both tubs are completely dry. Disconnect the water inlet hose and power cord. Store in a dry, well-ventilated area.
Pitunjuk Ngungkulan
Sateuacan ngahubungi palayanan palanggan, tingali tabel di handap ieu pikeun masalah umum sareng solusina.
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Mesin teu ngamimitian | Kabel listrik dicabut; Listrik dicabuttage; Lid not closed properly (spin tub) | Check power connection; Check circuit breaker; Ensure lid is fully closed. |
| Cai henteu ngocor | Drain hose kinked or blocked; Drain selector not set to "Drain" | Straighten drain hose, clear blockages; Set wash selector to "Drain". |
| Geter / noise anu kaleuleuwihi | Machine not level; Uneven load in spin tub; Foreign objects in tub | Adjust leveling feet; Redistribute laundry evenly; Check for and remove foreign objects. |
| Cai bocor | Water inlet hose loose; Drain hose improperly positioned; Overfilling | Tighten hose connections; Ensure drain hose is secure; Do not exceed maximum water level. |
spésifikasi
- model: Hisense WSA1102PD
- Tipe: Mesin cuci semi-otomatis
- Kapasitas nyeuseuh: 11 kg
- Kapasitas Spin: 5.5 kg
- Ukuran (D x W x H): 53 cm x 25 cm x 104 cm
- beurat: 19 kg
- Bahan: palastik
- Kadali: Tombol/Dial
- Fitur husus: 2 Independent Motors, High Efficiency Storm Wash System, Air Drying, Reversible Impeller, Water Saving
- Lokasi Aksés: Beban Top
- warna: Hideung
Gambar 5: Dimensional drawing of the washing machine with approximate measurements.
Garansi sarta Rojongan Palanggan
Émbaran jaminan
This Hisense WSA1102PD washing machine comes with a garansi 1 taun on the entire unit and a garansi 3 taun on the motor, effective from the date of purchase. This warranty covers manufacturing defects under normal use. Please retain your proof of purchase for warranty claims.
Rojongan Palanggan
For technical assistance, service requests, or questions regarding your warranty, please contact Hisense customer support. Refer to the official Hisense website or your purchase documentation for the most current contact information in your region.
