Justfog Compact 14 Kit Instruction Manual

1. Bubuka

This manual provides detailed instructions for the safe and effective use of your Justfog Compact 14 Kit. Please read this manual thoroughly before operating the device to ensure proper function and longevity.

Eusi pakét

The Justfog Compact 14 Kit package typically includes the following items:

Image: Justfog Compact 14 Kit package contents. Includes the Compact 14 device, a clearomizer, a USB charging cable, a replacement coil, and the user manual.

• Justfog Compact 14 Battery Device
• Justfog Q14 Clearomizer (1.8ml)
• OCC Bottom Coil (pre-installed, typically 1.6Ω)
• Micro USB Ngecas Cable
• Manual pamaké

2. Komponén produk

Familiarize yourself with the different parts of your Justfog Compact 14 Kit:

Image: Labeled diagram of the Justfog Compact 14 Kit, highlighting key components such as the LED indicator, power button, USB port, 1500mAh battery, eGo 510 connector, adjustable airhole, chrome-coated surface, Pyrex glass tank, and coil resistance (1.2Ω / 1.6Ω).

• Indikator LED: Displays battery status and error signals.
• Tombol Daya: Used for device activation, power on/off, and vaping.
• USB Spin Port: Pikeun ngecas alat.
• Batré 1,500 mAh: Integrated rechargeable battery.
• eGo 510 Connect: Standard threading for clearomizer attachment.
• Adjustable Airhole: Allows adjustment of airflow for preferred draw.
• Chrome Coated Surface: Awét sareng pikaresepeun sacara estetisasing rengse.
• Pyrex Glass: Transparent tank material for e-liquid visibility.
• Coil (1.2Ω / 1.6Ω): Heating element responsible for vaporizing e-liquid.

3. Setup Awal

3.1 Ngecas Alat

Before first use, fully charge the device. Use the provided Micro USB cable.

Image: The Justfog Compact 14 Kit being charged via its Micro USB port, with the LED indicators illuminated to show charging status.

1. Connect the Micro USB cable to the USB port on the side of the Compact 14 device.
2. Connect the other end of the USB cable to a suitable USB power adapter (e.g., wall adapter, computer USB port).
3. The LED indicators will illuminate to show charging progress. Once fully charged, the LEDs will indicate completion (refer to Battery Functions section for details).

3.2 Installing/Replacing the Coil

The coil is a consumable part and needs to be replaced regularly (typically every 1-3 weeks depending on usage).

1. Unscrew the clearomizer from the battery.
2. Invert the clearomizer and unscrew the base.
3. Carefully unscrew the old coil from the base.
4. Screw a new coil firmly into the clearomizer base.
5. penting: Before reassembling, apply a few drops of e-liquid to the cotton wicking holes of the new coil to prime it. This prevents dry hits and extends coil life.
6. Screw the base back onto the clearomizer.

3.3 Filling the Clearomizer with E-liquid

Ensure the coil is properly installed before filling.

1. Unscrew the clearomizer from the battery.
2. Invert the clearomizer and unscrew the base.
3. Carefully tilt the clearomizer and fill the tank with e-liquid along the inner wall, avoiding the central airflow tube. Do not overfill.
4. Screw the base back onto the clearomizer firmly.
5. Allow the clearomizer to stand upright for 5-10 minutes after filling a new coil to ensure the cotton is fully saturated.
6. Screw the filled clearomizer back onto the battery device.

4. Parentah Operasi

4.1 Daya Hurung/Pareuman

To turn the device on or off, quickly press the power button 4 times consecutively within 2 seconds.

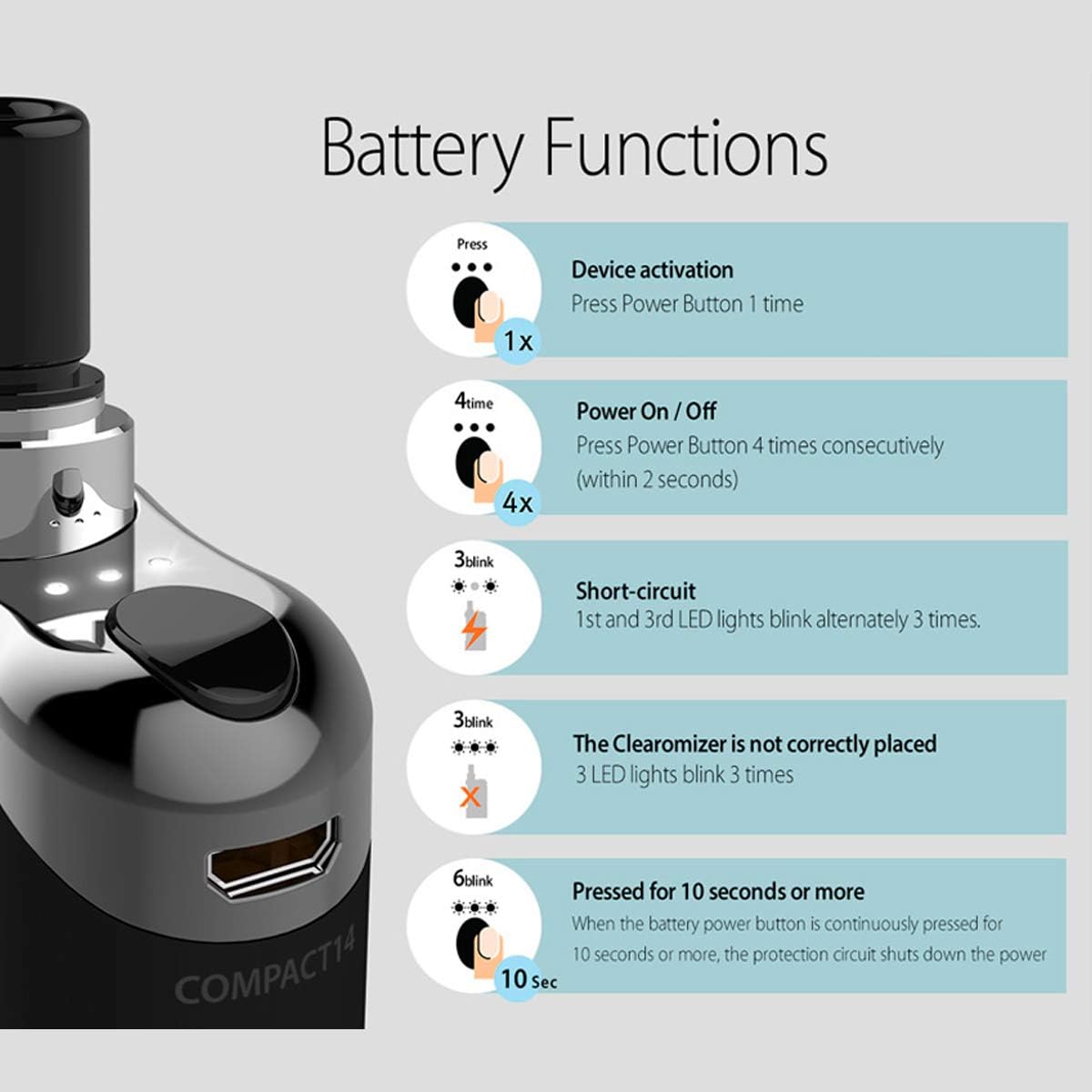

Image: Detailed diagram illustrating the battery functions of the Justfog Compact 14 Kit. It shows how to activate the device (1 press), power on/off (4 consecutive presses), and LED blink patterns for short-circuit (3 blinks), clearomizer not correctly placed (3 blinks), and continuous press for 10 seconds or more (6 blinks).

4.2 Nguap

Once the device is powered on, press and hold the power button while inhaling from the mouthpiece. Release the button when you finish inhaling.

4.3 Indikasi Tingkat Batré

The LED indicators on the device show the remaining battery charge:

Image: Visual representation of the Justfog Compact 14 Kit's LED battery level indicators. Three LEDs indicate 100-70% charge, two LEDs indicate 70-30%, one LED indicates 30%, and the light blinking 4 times signifies a nearly discharged battery.

• 3 LED: 100% - 70% Remaining Battery
• 2 LED: 70% - 30% Remaining Battery
• 1 LED: 30% Remaining Battery
• Light blinks 4 times: Battery is nearly discharged and requires charging.

4.4 Safety Protections and Error Indicators

The device is equipped with several safety features indicated by LED blinks:

• Sirkuit pondok: 1st and 3rd LED lights blink alternately 3 times. This indicates a short circuit in the clearomizer or coil. Remove and inspect the clearomizer/coil.
• Clearomizer not correctly placed: 3 LED lights blink 3 times. Ensure the clearomizer is screwed on properly and making good contact.
• Pressed for 10 seconds or more: When the battery power button is continuously pressed for 10 seconds or more, the protection circuit shuts down the power to prevent overheating. Release the button and try again.

5. Pangropéa

5.1 beberesih

Pembersihan rutin ngabantosan ngajaga kinerja sareng kabersihan:

• Clearomizer: When changing coils or e-liquid flavors, it is recommended to disassemble the clearomizer and rinse all parts (except the coil) with warm water. Allow them to dry completely before reassembly.
• Sambungan batré: Periodically clean the 510 connection on the battery and clearomizer with a cotton swab slightly dampened with rubbing alcohol. Ensure no liquid enters the device.
• Device Exterior: Lap bagian luar alat ku lawon anu lemes sareng garing.

5.2 Panggantian Koil

Coils are consumable and should be replaced when you notice a burnt taste, reduced vapor production, or a change in flavor. Refer to section 3.2 for detailed coil replacement instructions.

6. Cara ngungkulan

If you encounter issues with your Justfog Compact 14 Kit, refer to the table below for common problems and solutions:

7. Spésifikasi produk

8. Émbaran Kasalametan jeung Warnings

Please read and adhere to the following safety guidelines to prevent injury, damage to the device, or property damage:

• Jauhkeun alat tina jangkauan barudak sareng piaraan.
• Ulah kakeunaan alat ieu kana suhu anu ekstrim (panas atanapi tiis), sinar panonpoé langsung, atanapi kalembaban anu luhur.
• Ulah neuleumkeun alat dina cai atawa cairan séjén.
• Use only the provided USB cable for charging. Do not use damaged cables or chargers.
• Do not attempt to disassemble or modify the device, as this will void the warranty and may cause malfunction or injury.
• If the device emits smoke, a strange odor, or becomes excessively hot, immediately stop using it and disconnect it from any power source.
• Miceun alat sareng batréna sacara tanggung jawab numutkeun peraturan lokal. Ulah miceun kana runtah rumah tangga.
• This product is intended for adult smokers or vapers. It is not recommended for non-smokers, pregnant or breastfeeding women, or individuals with heart disease, high blood pressure, diabetes, or asthma. Consult your doctor before use if you have any medical conditions.
• E-liquids may contain nicotine, which is an addictive chemical.

9. Garansi jeung Rojongan

For warranty information, please refer to the warranty card or documentation included in your product packaging. Warranty terms and conditions may vary by region and retailer.

For technical support or further assistance, please contact the retailer where you purchased the product or visit the official Justfog websitus pikeun inpo kontak.

Official Justfog Websitus: www.justfog.com
