1. Bubuka
This manual provides essential instructions for the safe and efficient operation, setup, and maintenance of your Scheppach PLM1800 Thickness Planer. Please read this manual thoroughly before using the machine to ensure proper handling and to prevent injury or damage.
The Scheppach PLM1800 is a powerful 1500W thickness planer designed for precise planing of various wood types. It features a 48mm diameter cutter block with two high-speed steel blades, offering a maximum planing width of 330mm and a maximum planing height of 152mm.
2. Parentah Kasalametan
Always observe general safety precautions when operating power tools. Failure to do so can result in serious injury.
- Alat Pelindung Pribadi: Always wear safety glasses, hearing protection, and a dust mask. Use appropriate gloves when handling blades or rough wood.
- Wewengkon Gawé: Ensure your work area is clean, well-lit, and free from obstructions. Keep children and bystanders away from the machine during operation.
- Kasalametan listrik: Ensure the power supply matches the machine's requirements. Do not operate the machine in damp or wet conditions. Always disconnect power before making adjustments or performing maintenance.
- Stabilitas Mesin: Securely mount the planer to a stable workbench to prevent movement during operation.
- Pangolahan Bahan: Never plane wood containing nails, screws, or other foreign objects. Ensure wood is free of excessive knots or defects that could cause kickback.
- Stopan Darurat: Biasakeun diri anjeun sareng lokasi sareng operasi tombol eureun darurat.
3. Produk Langkungview jeung Komponén
The Scheppach PLM1800 Thickness Planer is designed for efficient wood surfacing. Key components include the motor, cutter block, infeed and outfeed tables, height adjustment crank, and dust extraction port.
Figure 1: Scheppach PLM1800 Thickness Planer, showing its compact and robust design.
Figure 2: A user feeding a wooden board into the planer for thicknessing.

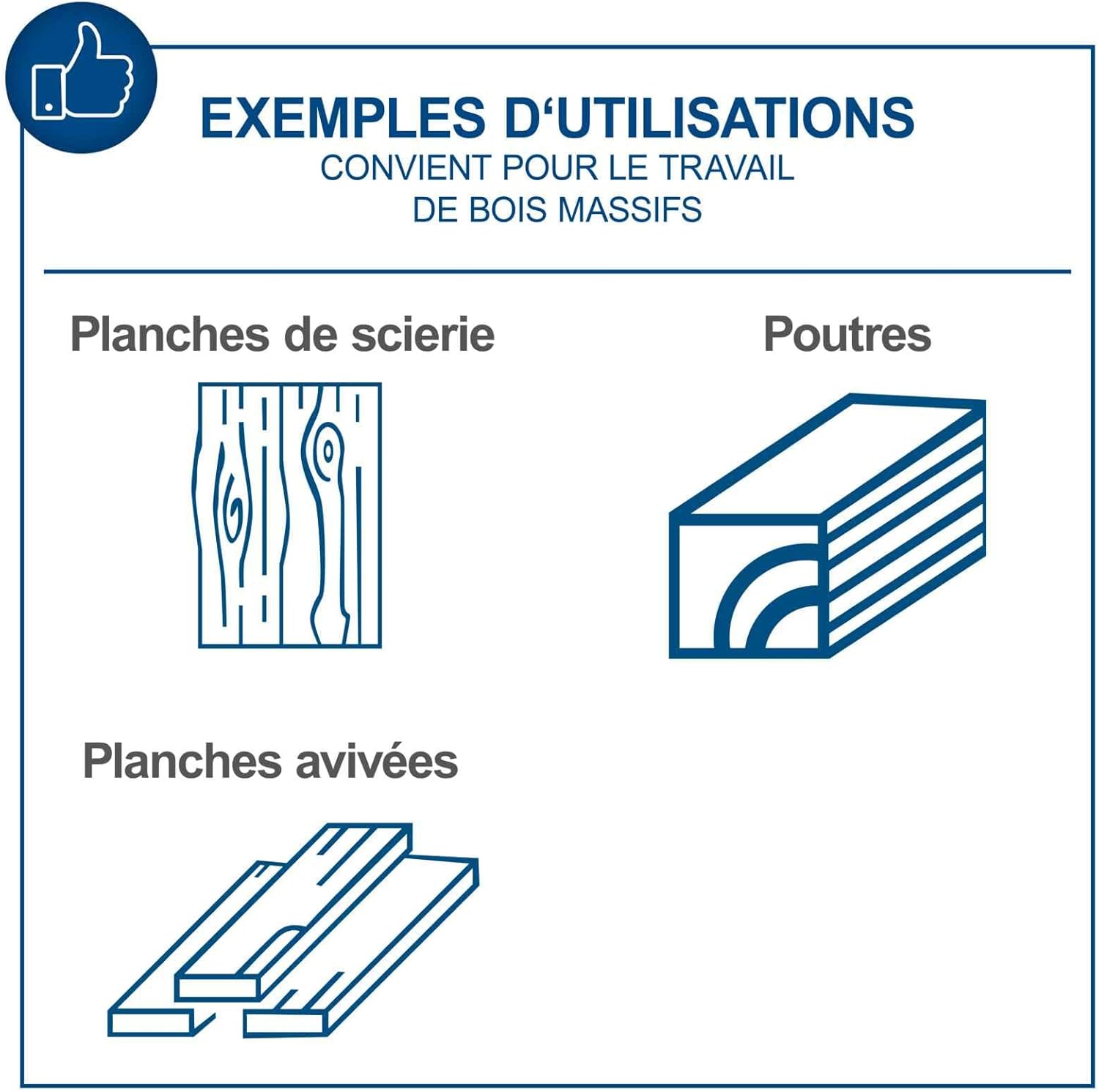

Figure 3: Illustrations showing various types of solid wood suitable for planing, including sawn boards, beams, and planed boards.
Figure 4: Manual feed rollers facilitate effortless handling of workpieces.
Figure 5: The PLM1800 precisely planes wood up to 330 x 152 mm in cross-section.
Figure 6: The infeed and outfeed table extensions are ideal for planing long workpieces.

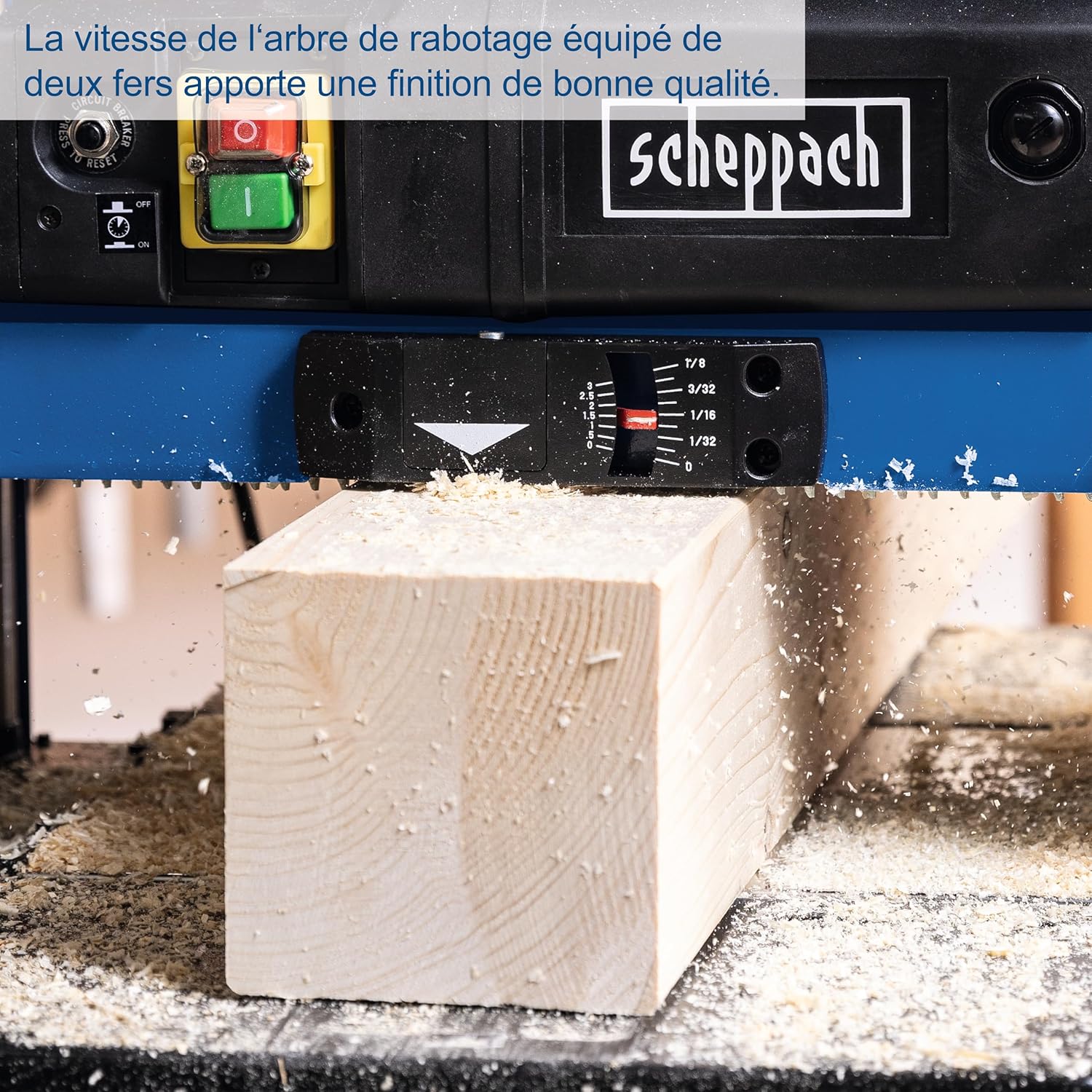

Figure 7: The high-speed cutter block with two blades ensures a high-quality finish.
Figure 8: Convenient height adjustment via the hand crank.
Figure 9: Diagram illustrating the 2-blade cutter block and automatic feed mechanism.

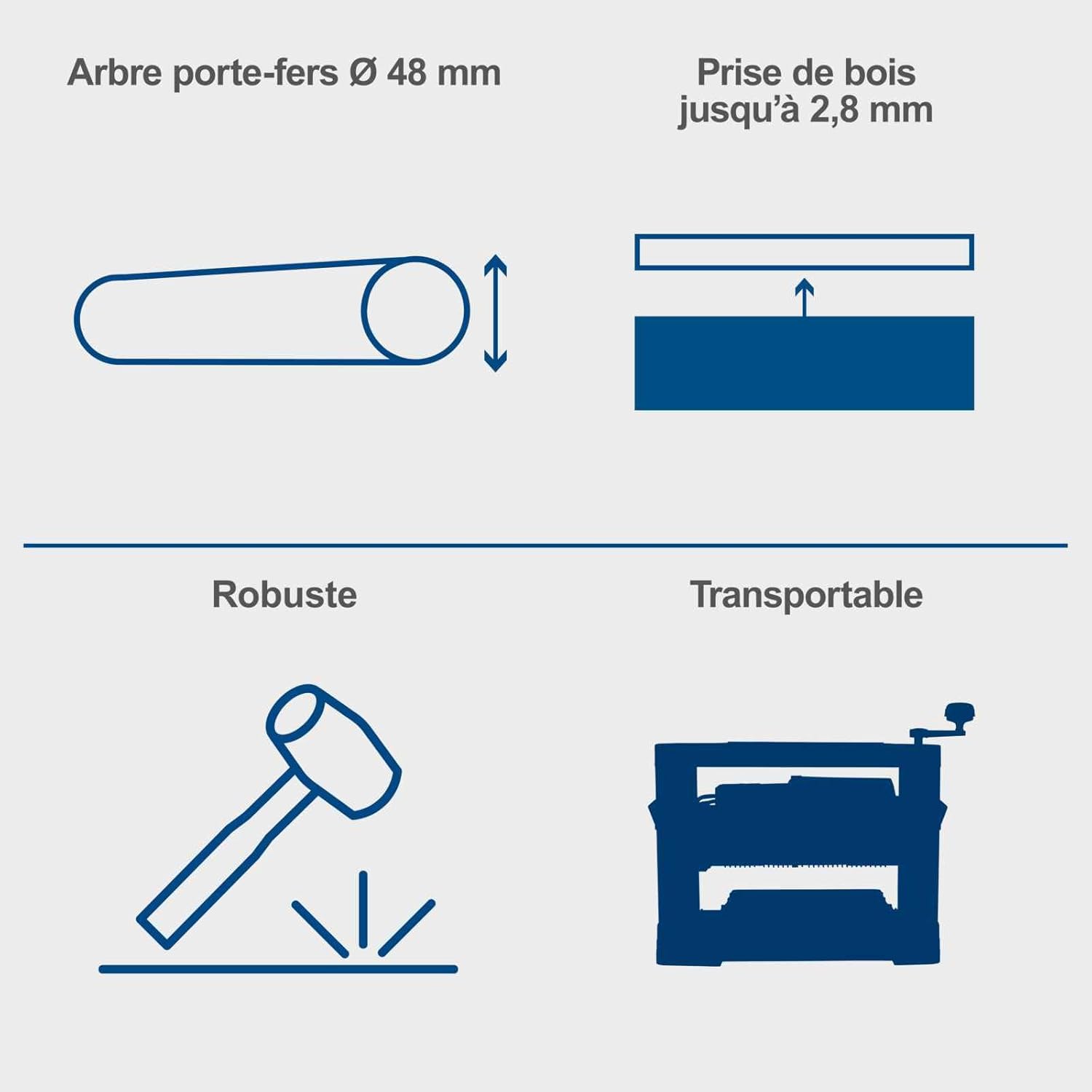

Figure 10: Diagram highlighting the 48mm cutter block diameter, maximum 2.8mm depth of cut, and the machine's robust and portable design.
4. Setélan
- Ngabongkar bungkusan: Carefully remove the planer from its packaging. Inspect for any shipping damage.
- Pamasangan: Securely fasten the planer to a sturdy workbench using appropriate bolts and washers. Ensure the workbench can support the machine's weight (30.5 kg) and withstand operational vibrations.
- Éksténsi Méja: Attach the infeed and outfeed table extensions if not already installed. Ensure they are level with the main planing bed.
- ékstraksi lebu: Connect a suitable dust extraction system to the dust port. Proper dust collection is crucial for safety and machine performance.
- Sambungan Daya: Plug the machine into a grounded electrical outlet that meets the specified voltage jeung sarat ayeuna.
5. Parentah Operasi
- Persiapan: Ensure the workpiece is clean, free of debris, and has no metal inclusions.
- Adjusting Planing Height: Use the height adjustment crank (Figure 8) to set the desired planing thickness. Refer to the measurement scale for accuracy. For best results, take multiple shallow passes rather than one deep pass. The maximum depth of cut is 2.8mm per pass.
- Ngamimitian Mesin: Press the green 'ON' button to start the planer. Allow the motor to reach full speed before feeding material.
- Feeding Material: Carefully feed the workpiece into the infeed table, ensuring it is flat against the table. The automatic feed mechanism will pull the wood through the machine. Maintain a steady, even pressure.
- Receiving Material: Support the workpiece as it exits the outfeed table to prevent it from dropping and damaging the planed surface.
- Ngeureunkeun Mesin: Press the red 'OFF' button to stop the planer. Disconnect from power when finished or before making adjustments.
6. Pangropéa
Pangropéa rutin ngajamin umur panjang sareng kinerja optimal tina planer anjeun.
- beberesih: After each use, disconnect the power and clean the machine. Remove sawdust and chips from the tables, cutter block area, and dust port. Use compressed air for hard-to-reach areas.
- Inspeksi agul jeung ngagantian: Regularly inspect the planer blades for sharpness and damage. Dull or chipped blades can lead to poor finish and increased motor strain. Replace both blades simultaneously to maintain balance. Refer to the manufacturer's instructions for specific blade replacement procedures.
- Lubrication: Periodically lubricate moving parts as indicated in the full product manual (not provided here).
- Inspeksi kabel listrik: Check the power cord for any signs of damage or wear.
7. Cara ngungkulan
Bagian ieu alamat masalah umum Anjeun bisa sapatemon kalawan planer Anjeun.
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Mesin teu ngamimitian | No power supply; Emergency stop engaged; Overload protection tripped | Check power connection; Release emergency stop; Reset overload protection (if applicable) |
| Poor planing finish (e.g., ripples, tear-out) | Dull blades; Too deep a cut; Incorrect feed rate; Wood grain issues | Replace blades; Reduce depth of cut; Adjust feed rate; Plane with the grain |
| Wood jams or stops feeding | Too deep a cut; Excessive resin buildup on rollers; Foreign object in wood | Reduce depth of cut; Clean feed rollers; Inspect wood for obstructions |
| Geter atawa noise kaleuleuwihan | Loose components; Unbalanced blades; Worn bearings | Check all fasteners; Ensure blades are correctly installed and balanced; Contact service for bearing issues |
8. Spésifikasi
Technical specifications for the Scheppach PLM1800 Thickness Planer:
| Fitur | Spésifikasi |
|---|---|
| Modél | PLM1800 (SC-PLM1800) |
| Kakuatan | 1500 Watt |
| Cutter Block Diameter | 48 mm |
| Cutter Block Speed | 8500 mnt-1 |
| Jumlah wilah | 2 (High-Speed Steel) |
| Max. Planing Width | 330 mm |
| Max. Planing Height | 152 mm |
| Max. Jero Cut | 2.8 mm |
| Laju eupan | 7.4 m / mnt |
| Table Dimensions (with extensions) | 330 x 630 mm |
| Ukuran produk (L x W x H) | 63 x 58 x 50 cm |
| Beurat | 30.5 kg |
| Bahan | Metal (Cast Iron base) |
| Sumber Daya | Kabel Listrik |
9. Garansi jeung Rojongan
The Scheppach PLM1800 Thickness Planer comes with a 2-taun jaminan produsén urang. Punten tahan bukti pameseran anjeun pikeun klaim garansi.
Spare parts for this model are available for a period of 7 taun. For technical support, spare parts, or warranty service, please contact your authorized Scheppach dealer or visit the official Scheppach websitus pikeun inpo kontak.
