Buku Panduan Pangguna Subwoofer SVS PC-2000 Pro

1. Bubuka

Welcome to the SVS PC-2000 Pro Subwoofer User Manual. This document provides essential information for the proper setup, operation, and maintenance of your SVS PC-2000 Pro 12-inch Ported Cylinder Subwoofer. Please read this manual thoroughly before using your subwoofer to ensure optimal performance and safety.

The SVS PC-2000 Pro is engineered to deliver deep, accurate, and powerful bass, enhancing your home audio experience for both music and movies. Its unique cylindrical design allows for a smaller footprint while maintaining impressive acoustic output.

Gambar 1.1: Hareupeun view of the SVS PC-2000 Pro Subwoofer, showcasing design cylindrical sarta finish hideung.

2. Émbaran Kasalametan

For your safety and to prevent damage to your subwoofer, please observe the following precautions:

• Sumber Daya: Connect the subwoofer only to a power outlet of the voltage dieusian dina panel pungkur.
• Ventilasi: Pastikeun ventilasi di sabudeureun subwoofer cekap. Ulah ngahalangan liang ventilasi naon waé.
• Cai sareng Uap: Do not expose the subwoofer to water, rain, or excessive moisture.
• Panas: Jauhkeun subwoofer tina sumber panas sapertos radiator, pancatat panas, kompor, atanapi alat sanés anu ngahasilkeun panas.
• beberesih: Unplug the subwoofer from the wall outlet before cleaning. Use a dry cloth for cleaning.
• Palayanan: Do not attempt to service the subwoofer yourself. Refer all servicing to qualified service personnel.

3. Fitur sarta Téhnologi

The SVS PC-2000 Pro incorporates advanced technology to deliver exceptional bass performance:

• Supir: Features a 12-inch high-excursion driver with a dual ferrite magnet motor assembly, ensuring powerful and controlled bass output. The lightweight and rigid aluminum vented cone with composite fiber dustcap maintains control even at high drive levels.
• Amppanguat: Equipped with a Sledge STA-550D amplifier, providing 550 Watts RMS and 1,500+ Watts Peak Power.
• Desain anu Diporting: The ported cylinder design allows for deeper bass extension and higher output compared to sealed designs of similar size.
• SVS App Control: Full control over volume, DSP functions, custom presets, and parametric EQ via the SVS mobile app (Bluetooth connectivity).

Gambar 3.1: Internal view of the SVS PC-2000 Pro, illustrating the driver, port, and amplifier module placement within the cylindrical enclosure.

Figure 3.2: Close-up of the SVS PC-2000 Pro's driver basket, highlighting the robust construction and ventilation for optimal performance.

4. Setélan

4.1 Ngabongkar bungkusan

Carefully remove the subwoofer from its packaging. Retain all packing materials for future transport or servicing. Inspect the subwoofer for any signs of damage. If damage is present, contact your dealer or SVS customer support immediately.

4.2 Nempatkeun

Subwoofer placement significantly impacts performance. Consider the following:

• Penempatan sudut: Often provides the most output and deepest extension, but can sometimes lead to 'boomy' bass.
• Panempatan Kamar Hareup: Nempatkeun subwoofer caket spiker hareup tiasa nyiptakeun sora anu langkung lancartage.
• Penempatan Tembok Tengah: Bisa nawarkeun kasaimbangan anu alus antara kaluaran jeung akurasi.
• Sababaraha Subwoofer: If using more than one subwoofer, strategic placement can smooth out the bass response across the listening area.

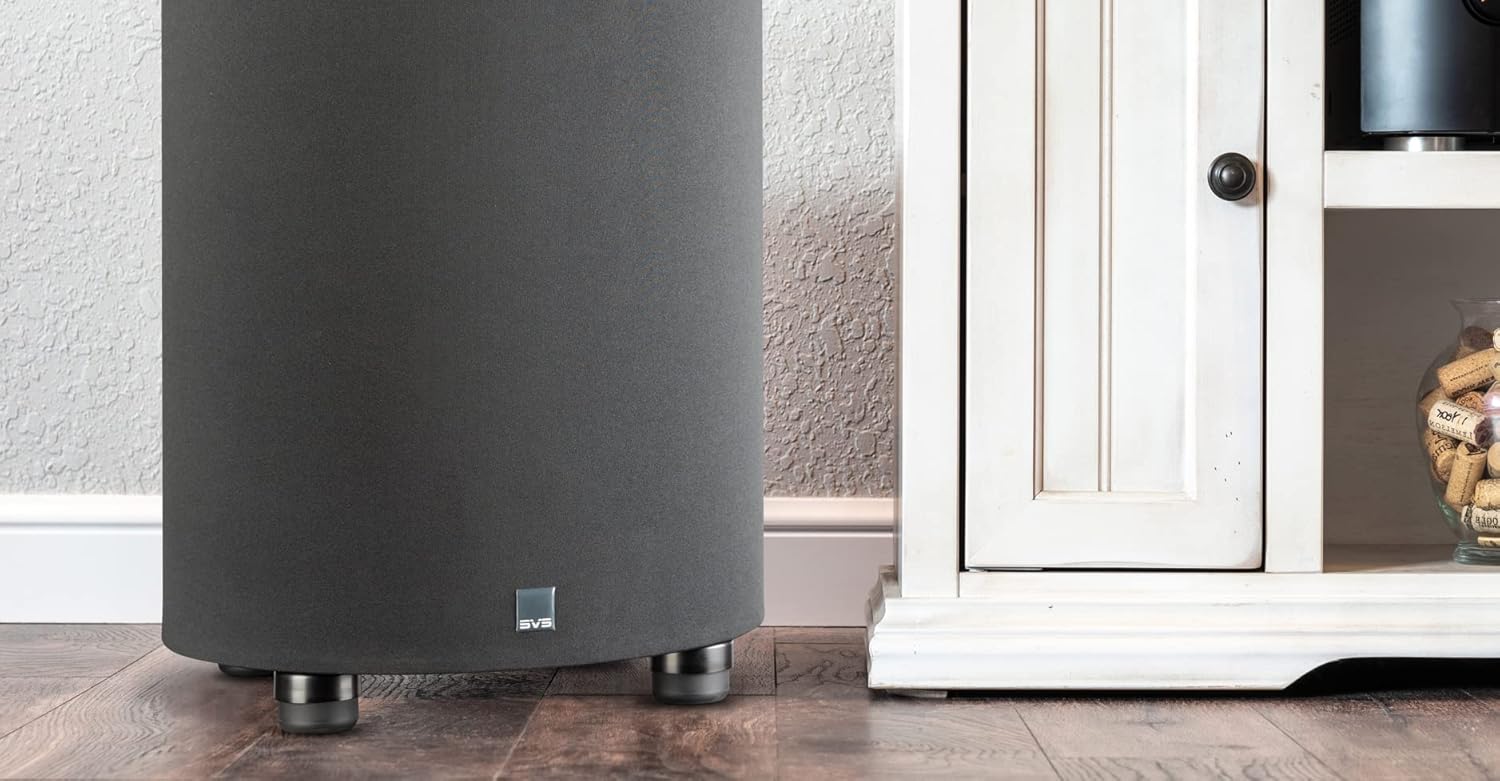

Figure 4.1: The SVS PC-2000 Pro Subwoofer positioned in a typical room environment, demonstrating its compact footprint.

4.3 Sambungan

The PC-2000 Pro offers various connection options. Ensure your AV receiver or processor is turned off before making any connections.

• Input LFE: For most home theater setups, connect a single RCA cable from the LFE output of your AV receiver to the LFE input on the subwoofer.
• Input RCA Stereo: For 2-channel stereo systems, connect RCA cables from the stereo pre-outs of your pre-ampifier atanapi panarima ka input RCA Kénca sareng Katuhu dina subwoofer.
• Input Tingkat Speaker: If your receiver does not have RCA outputs, you can use the speaker level inputs. Connect speaker wires from your receiver's main speaker outputs to the subwoofer's speaker level inputs.

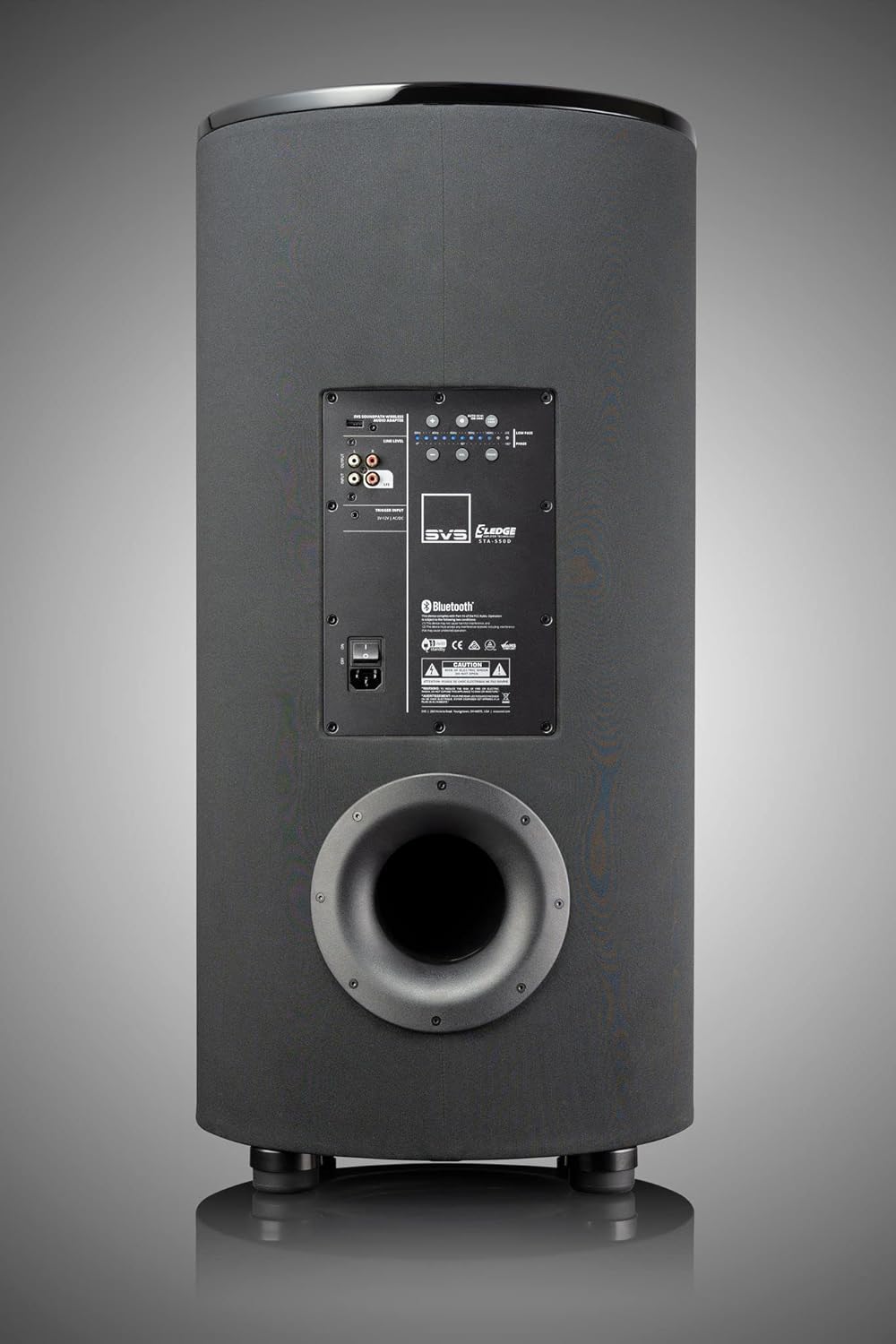

Figure 4.2: Rear panel of the SVS PC-2000 Pro Subwoofer, showing the various input and control options, including RCA inputs, speaker level inputs, and the power switch.

4.4 Mimiti Power-On

Once connections are made, plug the power cord into a wall outlet. Flip the main power switch on the rear panel to the 'ON' position. The subwoofer will enter standby mode if no audio signal is present, and automatically wake up when a signal is detected.

5. Ngoperasikeun Subwoofer

5.1 SVS App Control

The SVS PC-2000 Pro can be fully controlled via the SVS mobile app, available for iOS and Android devices. Download the app and connect to your subwoofer via Bluetooth. The app provides access to all DSP functions and settings.

5.2 Setélan Dasar

• Volume: Adjust the overall output level of the subwoofer. Start with a moderate level and fine-tune to blend with your main speakers.
• Saringan Low Pass (Crossover): Sets the upper frequency limit for the subwoofer. This should typically be set slightly above the lowest frequency your main speakers can reproduce. If using an AV receiver with bass management, set the subwoofer's low pass filter to LFE or bypass.
• Fase: Adjusts the timing of the subwoofer's output relative to your main speakers. This can be critical for seamless blending. Experiment with 0 and 180 degrees.
• Polaritasna: Inverts the electrical polarity of the subwoofer's output. This is different from phase and is rarely needed for adjustment.

5.3 Advanced Settings (SVS App)

• Parametrik EQ (PEQ): Allows for precise room correction by applying filters at specific frequencies to address room modes or peaks.
• Kompensasi Peningkatan Kamar: Reduces excessive bass output in smaller rooms where room gain can cause an unnatural boost in low frequencies.
• Pangaturan Pelabuhan: The PC-2000 Pro is a ported design. The app may offer options related to port tuning, such as sealing ports with foam bungs for a sealed subwoofer response.

6. Pangropéa

Proper care will ensure the longevity and performance of your SVS PC-2000 Pro Subwoofer.

• beberesih: Use a soft, dry cloth to wipe down the cabinet. For piano gloss finishes, use a microfiber cloth to avoid scratches. Do not use liquid cleaners or abrasive chemicals.
• Lebu: Regularly dust the subwoofer, especially the driver and port areas, to prevent buildup.
• panempatan: Avoid placing the subwoofer in direct sunlight or near heat sources, which can damage the finish and internal components.
• Panyimpenan: If storing the subwoofer for an extended period, use the original packaging to protect it from dust and physical damage. Store in a cool, dry place.

7. Cara ngungkulan

If you encounter issues with your SVS PC-2000 Pro, refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact SVS customer support for further assistance.

8. Spésifikasi

Key technical specifications for the SVS PC-2000 Pro 12" Ported Cylinder Subwoofer:

Figure 8.1: Dimensional drawing of the SVS PC-2000 Pro Subwoofer, indicating its height, width, and depth.

9. Garansi jeung Rojongan

The SVS PC-2000 Pro Subwoofer is backed by a Garansi Tanpa Syarat 5 Taun, ensuring peace of mind regarding your investment. This warranty covers defects in materials and workmanship under normal use.

For technical support, troubleshooting assistance, or warranty claims, please contact SVS customer support. You can typically find contact information on the official SVS websitus atawa ngaliwatan dealer otorisasi Anjeun.

When contacting support, please have your product model number (PC-2000PRO-PIANOGLOSS) and purchase information readily available.
