1. Bubuka
This manual provides essential information for the safe and efficient operation of your new Whirlpool WhiteMagic Royal Plus 7.5 Kg Fully-Automatic Top Loading Washing Machine. Please read these instructions carefully before using the appliance and retain them for future reference.
Image: The Whirlpool WhiteMagic Royal Plus 7.5 Kg washing machine, grey in color, positioned in a room next to a laundry basket.
2. Émbaran Kasalametan
Salawasna turutan pancegahan kaamanan dasar nalika nganggo alat-alat listrik pikeun ngirangan résiko kahuruan, kejutan listrik, atanapi tatu pikeun jalma.
- Pastikeun yén mesin cuci geus bener grounded.
- Ulah ngajalankeun mesin lamun ari kakuatan ruksak.
- Jauhkeun barudak sareng piaraan tina alat salami operasi.
- Ulah ngumbah barang-barang anu dikotoran ku bahan anu gampang kaduruk.
- Salawasna cabut colokan mesin sateuacan beberesih atanapi ngalakukeun perawatan naon waé.
3. Produk Langkungview
Your Whirlpool WhiteMagic Royal Plus washing machine is designed for efficient and convenient laundry care. It features a top-loading design with a durable stainless steel drum and body.
Image: An angled top-down view of the Whirlpool WhiteMagic Royal Plus 7.5 Kg washing machine, highlighting its grey exterior and control panel.
Fitur konci:
- Téhnologi Pangumbahan Cai Teuas: Adapts wash programs for effective cleaning in hard water conditions.
- Spiro Wash Action: Provides enhanced cleaning performance.
- Zero Pressure Fill (ZPF) Technology: Ensures the wash tub fills faster even with low water pressure.
- 12 Program Ngumbah: A variety of cycles for different fabric types and soil levels.
- Nyeuseuh Express: For quick laundry cycles.
- Nyeuseuh Tunda: Ngamungkinkeun anjeun nyetel waktos mimiti anu ditunda pikeun siklus nyeuseuh anjeun.
- Smart Lint Filter: Éféktif ngumpulkeun serat salami siklus nyeuseuh.
- Pamanas Diwangun: Offers 3 hot water modes for sanitization and tough stain removal.
4. Instalasi jeung Setup
4.1 Ngabongkar bungkusan
Carefully remove all packaging materials. Ensure no components are left inside the drum or attached to the exterior.
4.2 Nempatkeun
Place the washing machine on a firm, level surface. Ensure there is adequate space around the machine for ventilation and access. The machine is designed for freestanding installation.
Image: Diagram showing the dimensions of the washing machine: 88cm height, 54cm depth, and 56cm width.
4.3 Cai jeung Power Connection
- Sambungkeun selang inlet cai ka keran cai tiis. Pastikeun sambungan kedap pikeun nyegah bocor.
- Posisi selang solokan bener pikeun ngidinan drainase cai ditangtoskeun.
- Plug the power cord into a grounded electrical outlet. The machine operates at 360 Watts.
4.4 Naratas
Adjust the leveling feet at the bottom of the machine to ensure it is stable and does not wobble. A level machine reduces noise and vibration during operation.
5. Parentah Operasi
5.1 Control Panel Leuwihview
The control panel allows you to select wash programs, adjust settings, and start/pause cycles. It features an LED Digital Display for clear information.
Image: A close-up of the washing machine's control panel, showing buttons for Power, Program, Start/Pause, Express Wash, Delay Wash, Water Level, and indicators for Water and Voltage Check.
5.2 Ngamuat laundry
Open the top lid and load clothes loosely into the drum. Do not overload the machine. For best results, ensure items can move freely during the wash cycle.
Gambar: Top view of the washing machine with its lid open, revealing the stainless steel wash drum and agitator.
5.3 Nambahkeun Detergent
Add the appropriate amount of detergent to the dispenser. Refer to your detergent packaging for recommended quantities based on load size and water hardness.

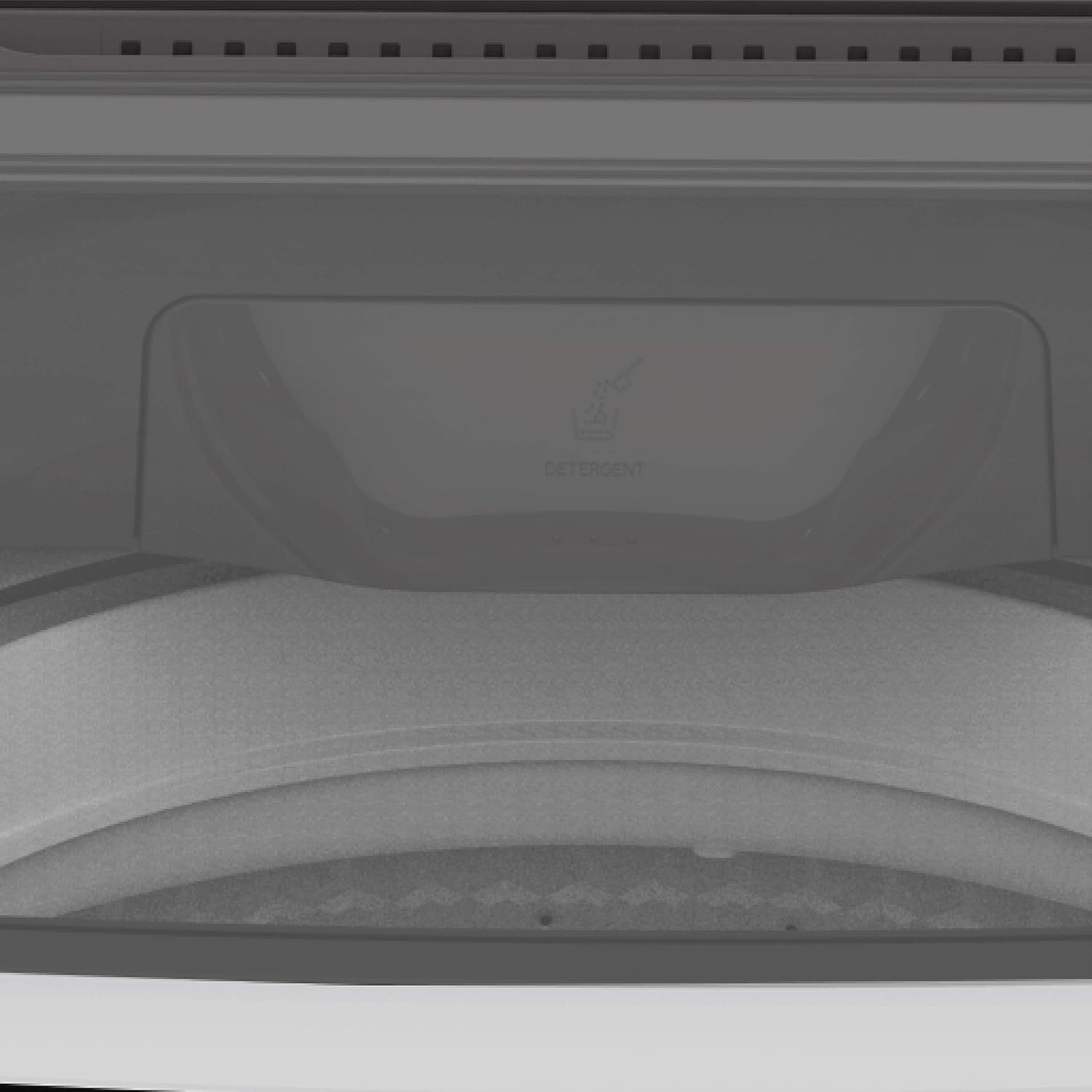

Gambar: A close-up view of the detergent dispenser compartment located inside the washing machine's tub.
5.4 Milih Program Nyeuseuh
Your washing machine offers 12 wash programs. Turn the program selector or press the program button to choose the desired cycle:
- Sapopoé
- Beurat
- Dahareun
- Bodas
- Nyeuseuh
- Eco Nyeuseuh
- Woollens
- Sepré
- Bilas + garing
- Garing
- Ngumbah Ukur
- Aqua Store
5.5 Fitur husus
Hard Water Wash
This feature optimizes the wash cycle to provide better detergent action and softer clothes when washing in hard water conditions.
Spiro Wash Action
The Spiro Wash action is designed to provide up to 20% better cleaning by creating a unique washing motion within the drum.
Image: A graphic representation of the Spiro Wash action, showing water swirling in a spiral motion within the washing machine drum.
Nyeuseuh Nyeuseuh
Select this program for quick washing of lightly soiled clothes or when you need items cleaned in a shorter timeframe.
Image: A stopwatch icon, symbolizing the quick cycle time of the Express Wash feature.
Tunda Nyeuseuh
Use the Delay Wash function to postpone the start of a wash cycle by a few hours, allowing you to schedule laundry at your convenience.
123 Nyeuseuh
This simplified operation allows you to start a wash cycle in three easy steps:
- Hurungkeun mesin.
- Pilih hiji program.
- Ngamimitian siklus nyeuseuh.
Hot Water Modes (In-Built Heater)
The integrated heater provides three hot water modes for enhanced cleaning and sanitization:
- Bébas Alérgén: For deep cleaning and allergen removal.
- Panas: For heavily soiled items and sanitization.
- haneut: For general washing with improved stain removal.
Image: A thermometer graphic indicating different wash temperatures: Warm, Hot, and Allergen Free, with corresponding piles of laundry.
Zero Pressure Fill (ZPF) Technology
This technology ensures that the wash tub fills quickly even when water pressure is low, preventing delays in your laundry cycle.
Image: A graphic showing water filling the washing machine tub from the bottom, illustrating the Zero Pressure Fill technology.
5.6 Ngamimitian Siklus
After selecting your program and any desired options, press the Mimitian / Reureuh tombol pikeun ngamimitian siklus nyeuseuh.
6. Pangropéa
Pangropéa rutin ngajamin kinerja optimal sareng umur panjang mesin cuci anjeun.
6.1 Ngabersihan Filter Lint
Your machine is equipped with a Smart Lint Filter. Regularly clean the lint filter to prevent lint buildup on clothes and ensure efficient operation. Refer to the specific instructions in your full product manual for filter location and cleaning procedure.
6.2 Auto Tub Clean
Utilize the Auto Tub Clean feature periodically to clean the washing machine drum and prevent odor buildup. This helps maintain hygiene and wash quality.
Gambar: A close-up view of the stainless steel washing machine drum, showing the perforations and the agitator at the bottom.
6.3 beberesih exterior
Ngusap bagian luar mesin kalayan lemes, damp lawon. Hindarkeun pembersih abrasive atanapi pangleyur anu tiasa ngaruksak finish.
7. Cara ngungkulan
If you encounter issues with your washing machine, refer to the following common problems and solutions. For more complex issues, contact customer support.
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Mesin teu ngamimitian | Kabel listrik dicabut; Tutupna teu ditutup kalawan bener; Program teu dipilih. | Pariksa sambungan daya; Pastikeun tutupna ditutup sapinuhna; Pilih program nyeuseuh teras pencét Start. |
| Noise/geter kaleuleuwihan | Machine not level; Overloaded; Transit bolts not removed. | Adjust leveling feet; Reduce load size; Ensure all transit bolts are removed during installation. |
| Cai teu draining | selang solokan kinked atawa diblokir; Saringan mampet. | Check and clear drain hose; Clean the lint filter. |
| Baju teu beresih | Incorrect program selected; Insufficient detergent; Overloaded. | Select appropriate program; Use recommended detergent amount; Do not overload. |
8. Spésifikasi
| Fitur | Rincian |
|---|---|
| merek | Whirlpool |
| Modél | WM ROYAL PLUS 7.5 GREY 5YMW |
| Énergi Énergi | 5 Béntang |
| Kapasitas | 7.5 kg |
| Konsumsi Énergi Taunan | 3143.6 Kilowatt Jam Per Taun |
| Laju rotasi maksimum | 740 rpm |
| Tingkat Noise (cuci) | 63 desibel |
| Tingkat Noise (Spinning) | 72 dB |
| Tipe Pamasangan | Jalanan |
| Faktor Bentuk | Muatan Luhur |
| Fitur husus | Express Wash, Hard Water Wash Technology, LED Digital Display, Power Scrub Technology, Smart lint filter |
| Warna | kulawu |
| Konsol kontrol | Pinuh Otomatis |
| Jumlah Siklus Pilihan | 12 |
| Bahan | Stainless Steel (Drum), Stainless Steel (Body) |
| Wattage | 360 Watt |
| Ukuran produk (L x W x H) | 54D x 56W x 88H Sentimeter |
| Item Beurat | 6 kg610g |
Image: A 'Power Savings Guide' label indicating a 5-star energy efficiency rating for the appliance.
9. Garansi sarta Rojongan Palanggan
9.1 Émbaran jaminan
Mesin cuci Whirlpool anjeun dilengkepan ku 2-taun jaminan komprehensif jeung a garansi 5 taun dina motor from the date of purchase. Please retain your purchase receipt for warranty claims. Terms and conditions apply.
Image: A graphic displaying "2+5 YEAR WARRANTY*" with an asterisk indicating terms and conditions apply.
9.2 Rojongan Palanggan
For any service requests, queries, or assistance, please contact Whirlpool customer support:
- Surélék: helpdeskindia@whirlpool.com
- Nomer Bebas Pulsa: 1800 208 1800
- Alamat Pabrikan: Whirlpool of India Ltd. Plot No. A-4, MIDC Ranjangaon, Taluka Shirur, Dist: Pune, Maharashtra 412220, India.
