Midiplus EZ8 MIDI Keyboard Controller User Manual

Bubuka

This manual provides detailed instructions for the setup, operation, and maintenance of your Midiplus EZ8 MIDI Keyboard Controller. Please read this manual thoroughly before using the device to ensure proper functionality and to prevent damage. Keep this manual for future reference.

Produk Leuwihview

The Midiplus EZ8 is an 88-key full-size MIDI keyboard controller designed for music production and performance. It features touch-sensitive keys and a compact design, making it suitable for various studio and live applications. The controller is powered via USB and does not require additional drivers for most operating systems.

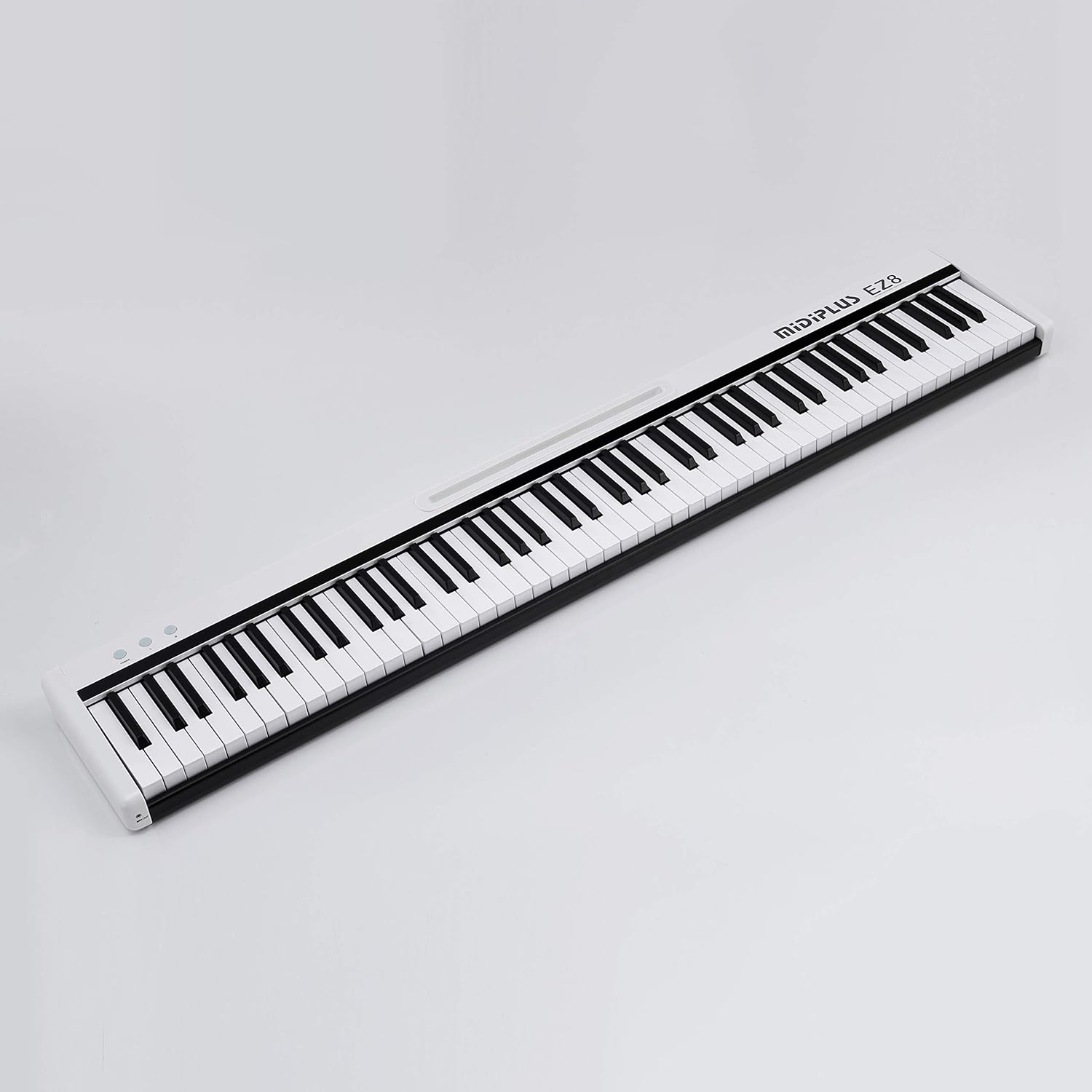

Gambar: Pinuh view of the Midiplus EZ8 MIDI Keyboard Controller, showcasinmibanda 88 konci sareng desain anu ringkes.

Fitur konci:

• 88 full-size, touch-sensitive keys
• Transpose buttons for octave shifting
• Ngadukung panganteur pedal
• Expression pedal interface
• USB interface for power and MIDI data
• MIDI OUT interface for external MIDI devices
• Driver-free operation (built-in USB audio driver)
• USB Powered

Eusi pakét:

• Midiplus EZ8 MIDI Keyboard Controller
• Ngajaga Pedal
• Pedal Éksprési
• Kabel USB
• Manual pangguna (dokumén ieu)

Disetél

Follow these steps to set up your Midiplus EZ8 MIDI Keyboard Controller:

1. Sambungkeun kabel USB: Connect one end of the provided USB cable to the USB port on the back panel of the EZ8 controller. Connect the other end to an available USB port on your computer (PC or Mac). The controller will power on automatically.
2. Connect Pedals (Optional): If you wish to use a sustain pedal or expression pedal, connect them to their respective interfaces on the back panel of the EZ8. Ensure the pedals are fully inserted.
3. Pangenal Komputer: Your computer should automatically recognize the EZ8 as a MIDI device. No additional drivers are typically required.
4. Setup parangkat lunak: Open your preferred Digital Audio Workstation (DAW) or music software (e.g., Ableton Live, Avid Pro Tools, FL Studio). Navigate to the MIDI settings or preferences within your software and select the Midiplus EZ8 as your MIDI input device.

Gambar: Deukeut view of the Midiplus EZ8's control panel and rear ports, showing the USB, pedal, and MIDI OUT connections.

Parentah Operasi

Maén kibor:

• Once connected and configured in your software, you can begin playing the keys. The EZ8 features touch-sensitive keys, meaning the velocity (how hard or soft you press a key) will affect the sound's dynamics in your software.

Using Transpose Buttons:

• The EZ8 includes transpose buttons, typically labeled with up and down arrows or similar indicators. These buttons allow you to shift the pitch of the entire keyboard up or down by octaves. Refer to the markings on your specific unit for exact button functions.

MIDI OUT Functionality:

• The MIDI OUT port on the front panel allows you to connect the EZ8 to external MIDI hardware devices, such as synthesizers, sound modules, or other MIDI controllers. Use a standard 5-pin MIDI cable for this connection.

Sambungan

The Midiplus EZ8 offers several connection options:

• Port USB: Located on the back panel. This port provides both power to the unit and transmits MIDI data to and from your computer.
• Sustain Pedal Interface: Located on the back panel. Connect a standard sustain pedal here for piano-like sustain effects.
• Expression Pedal Interface: Located on the back panel. Connect an expression pedal here to control various parameters in your software, such as volume or modulation.
• MIDI OUT Interface: Located on the front panel. Use this to send MIDI data from the EZ8 to other MIDI-compatible hardware devices.

Pangropéa

Proper care will ensure the longevity of your Midiplus EZ8:

• beberesih: Anggo kaén anu lembut sareng garing pikeun ngusap permukaan keyboard. Pikeun kokotor nekad, a rada damp lawon bisa dipaké, dituturkeun ku lawon garing. Ulah make pembersih abrasif, pangleyur, atawa lilin, sabab ieu bisa ngaruksak lapisan ahir.
• Panyimpenan: When not in use, store the keyboard in a clean, dry environment away from direct sunlight, extreme temperatures, and excessive humidity. If transporting, use a protective case.
• Hindarkeun Cairan: Jauhkeun cairan tina keyboard pikeun nyegah karusakan internal.
• Nanganan kalayan ati-ati: Ulah nepi ka ngalungkeun kibor atawa ngagebugan kibor kalawan tarik.

Pamérésan masalah

If you encounter issues with your Midiplus EZ8, refer to the following common problems and solutions:

• No Sound from Software:
  • Ensure the EZ8 is properly connected via USB and powered on.
  • Verify that the EZ8 is selected as the MIDI input device in your DAW or music software's preferences.
  • Check that the software instrument or track is armed for recording or monitoring MIDI input.
  • Confirm that your software's master volume and instrument volume are not muted or set too low.
• Inconsistent Key Velocity or Unresponsive Keys:
  • Ensure the USB cable is securely connected at both ends. A loose connection can cause intermittent data transmission.
  • Try connecting the EZ8 to a different USB port on your computer.
  • Test the keyboard with a different DAW or MIDI monitoring software to rule out software-specific issues.
  • If certain keys are consistently unresponsive, gently clean around the key with a soft, dry cloth. Avoid forcing keys.
• Transpose Buttons Not Working:
  • Ensure you are pressing the transpose buttons correctly. Some controllers require a combination press or a specific sequence.
  • Check if your DAW or software has its own transpose settings that might be overriding the controller's function.
• Pedal henteu ngabales:
  • Ensure the sustain and expression pedals are fully inserted into their correct ports on the back of the EZ8.
  • Verify that your software instrument supports sustain and expression pedal input.
  • Test with a different pedal if available to determine if the issue is with the pedal itself.

spésifikasi

Garansi sareng Rojongan

For warranty information and technical support, please refer to the documentation provided at the time of purchase or visit the official Midiplus website. If you encounter issues not covered in this manual, please contact Midiplus customer support for assistance.
