Orient RA-AB0F15S Automatic Watch Instruction Manual

Bubuka

This manual provides essential instructions for the proper setup, operation, and maintenance of your Orient RA-AB0F15S automatic watch. The Orient RA-AB0F15S is a mechanical timepiece that harnesses the energy of motion generated by daily activities to power itself, eliminating the need for batteries. It features a stainless steel case and band, a silver dial with numbers, and a day-date display.

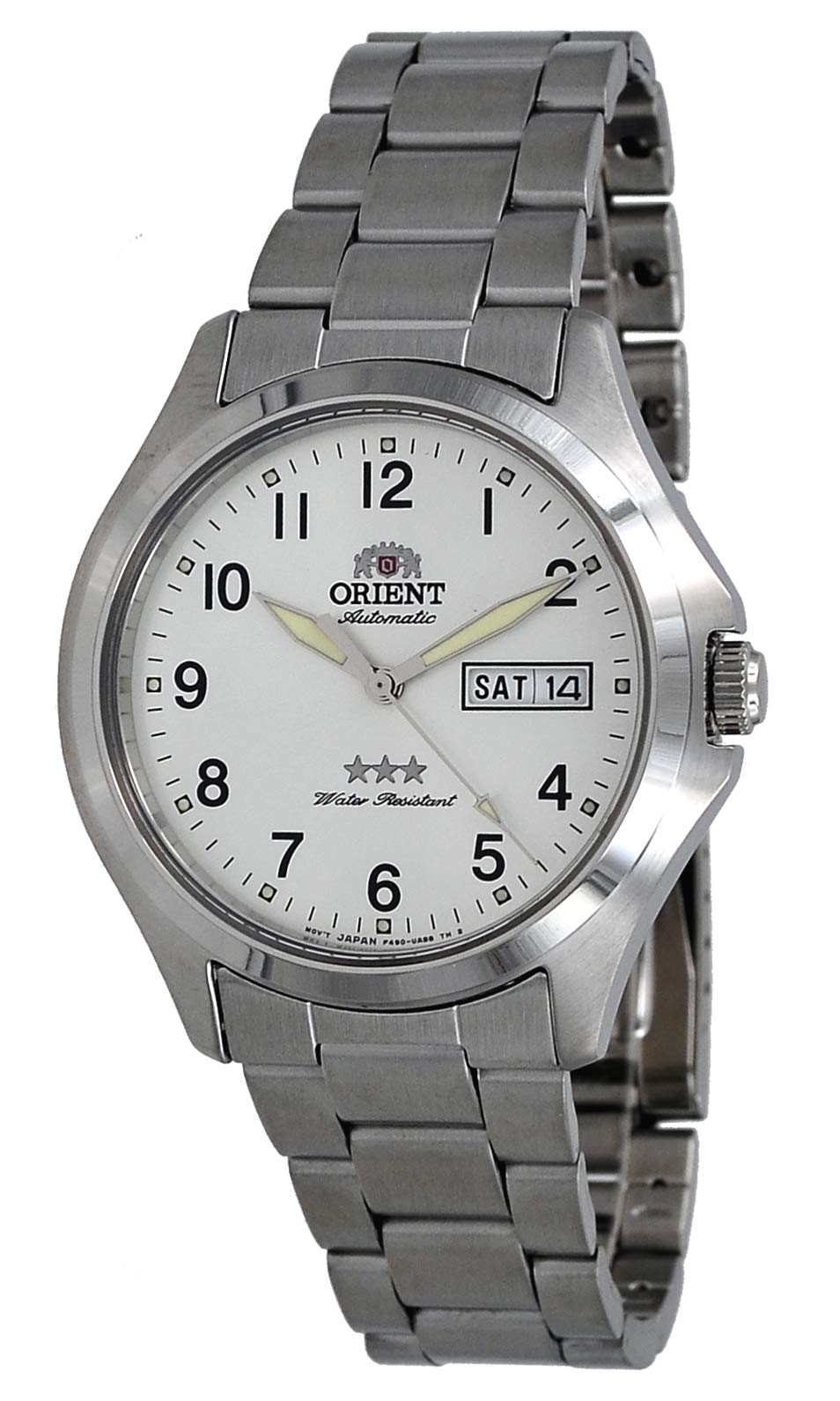

Gambar 1: Hareupeun view of the Orient RA-AB0F15S automatic watch, showcasing the silver dial, day-date display, and stainless steel bracelet.

Orient watches are known for their robust and trustworthy mechanical movements, developed and produced in-house. This dedication ensures a reliable timepiece designed for longevity and precision.

Disetél

1. Mimitian-Up

As an automatic watch, the RA-AB0F15S is powered by the movement of your wrist. If the watch has stopped, gently shake it side-to-side for about 30 seconds to initiate the movement. The second hand should begin to sweep. For optimal power reserve, wear the watch regularly.

2. Nyetel Waktos sareng Kaping

1. Tarik kaluar makuta: Locate the crown on the right side of the watch case. Gently pull it out to the first click position for date adjustment, and to the second click position for time adjustment.
2. Setel Tanggal sareng Dinten: In the first click position, rotate the crown clockwise or counter-clockwise to adjust the day and date. Avoid setting the date between 9:00 PM and 3:00 AM, as this is when the watch's internal mechanism is engaged in changing the date, and manual adjustment can cause damage.
3. Setel waktos: In the second click position, rotate the crown to set the correct time. To ensure accuracy, set the minute hand a few minutes ahead of the desired time, then turn it back to the exact time.
4. Nyorong dina makuta: Once the time and date are set, push the crown back into its normal operating position against the watch case. This also ensures water resistance.

Gambar 2: The Orient RA-AB0F15S watch worn on a wrist, demonstrating its practical use and fit.

3. Pangaluyuan Gelang

The stainless steel bracelet can be adjusted by removing or adding links. This procedure typically requires specialized tools and is best performed by a qualified jeweler or watch technician to prevent damage to the bracelet or clasp.

Gambar 3: Tukangeun view of the Orient RA-AB0F15S watch, showing the stainless steel case back and the single-locking fold-over clasp in an open position, ready for bracelet adjustment or wear.

Ngoperasikeun Watch Otomatis Anjeun

Your Orient RA-AB0F15S is an automatic mechanical watch. This means it does not require a battery. Instead, it is powered by a mainspring that is wound by the natural motion of your arm while wearing the watch. When fully wound, the watch typically has a power reserve that allows it to run for approximately 40 hours when not being worn.

Tahan cai

This watch is water resistant to 30 meters (3 ATM). This rating means the watch is suitable for everyday use and can withstand splashes or brief immersion in water. It is henteu cocog pikeun ngojay, mandi, atanapi nyilem. Salawasna pastikeun makuta kadorong sapinuhna ka jero pikeun ngajaga tahan cai.

Pangropéa

beberesih

To maintain the appearance of your watch, wipe the case and bracelet periodically with a soft, dry cloth. For stainless steel, a slightly damp lawon bisa dipaké, dituturkeun ku pangeringan langsung. Ulah ngagunakeun bahan kimia anu kasar atanapi bahan abrasif, sabab ieu tiasa ngaruksak lapisan ahir.

Perawatan sareng Pancegahan

• Hindarkeun Shocks: While robust, mechanical watches are sensitive to strong impacts. Avoid dropping the watch or subjecting it to severe shocks.
• Suhu ekstrim: Do not expose the watch to extreme temperatures (above 60°C / 140°F or below 0°C / 32°F) or sudden temperature changes, as this can affect lubrication and accuracy.
• Médan magnét: Keep the watch away from strong magnetic fields (e.g., speakers, refrigerators, medical devices), which can magnetize the movement and affect timekeeping accuracy.
• Kimia: Avoid direct contact with solvents, detergents, perfumes, and cosmetics, as they can damage the case, gasket, or bracelet.

Ngalayanan

For optimal performance and longevity, it is recommended to have your automatic watch serviced by a qualified watchmaker every 3-5 years. This service typically includes cleaning, lubrication, and adjustment of the movement.

Pamérésan masalah

• Watch has stopped or runs intermittently: This is common for automatic watches that have not been worn for a period. Gently shake the watch for about 30 seconds to restart the movement. If it still does not run, ensure the crown is fully pushed in. Consistent wear for several hours should build up sufficient power reserve.
• Waktu teu akurat: Check if the watch has been exposed to strong magnetic fields. If so, demagnetization by a watchmaker may be necessary. Ensure the crown is fully pushed in after setting the time.
• Date/Day does not change: Ensure the watch has sufficient power reserve. If the date/day is stuck, manually advance the time past midnight to observe if it changes. If not, manually set the date/day as described in the "Setup" section, avoiding the restricted hours.
• Kondensasi handapeun kristal: This indicates a potential breach in water resistance. Immediately take the watch to a qualified watchmaker for inspection and repair to prevent further damage to the movement.

spésifikasi

Garansi

This Orient RA-AB0F15S watch is covered by a Garansi Produsén. The terms and duration of the warranty are provided by Orient. Please refer to the warranty card included with your purchase or visit the official Orient website for detailed information regarding coverage, limitations, and how to make a claim.

Ngarojong

For further assistance, technical support, or service inquiries regarding your Orient RA-AB0F15S watch, please contact Orient customer service. You can typically find contact information, FAQs, and service center locations on the official Orient websitus:

Visit Orient Watch Official Websitus

When contacting support, please have your watch model number (RA-AB0F15S) and purchase details readily available.
