1. Bubuka
The ORCATORCH D620 V2.0 is a high-performance primary canister dive light designed for technical diving, including caving and wreck exploration. It features a powerful 2700 lumen output, multiple operating modes, and a robust, water-pressure resistant construction rated for depths up to 150 meters. This manual provides essential information for the safe and effective use, maintenance, and troubleshooting of your dive light.
2. Émbaran Kasalametan
- Always inspect the dive light for any damage or leaks before each dive.
- Ensure O-rings are clean, lubricated, and properly seated to maintain waterproof integrity.
- Do not look directly into the light beam, especially on high settings, as it can cause temporary vision impairment.
- Jauhkeun lampu tina barudak.
- Use only recommended batteries and chargers. Improper use can lead to battery damage or explosion.
- Avoid disassembling the sealed head of the light to prevent damage and voiding the warranty.
- Rinse the light with fresh water after every dive and allow it to dry completely.
3. Eusi Paket
The ORCATORCH D620 V2.0 package includes the following items:
- 1 x OrcaTorch D620 canister dive light
- 4 x Batré Rechargeable
- 1 x carjer
- 1 x Goodman Handle
- 3 x Spare O-Rings
- 1 x Manual Pamaké
- 1 x Exquisite Carrying Case
4. Setélan
4.1 Attaching the Goodman Handle
The adjustable rotary Goodman handle allows for comfortable and secure handling during dives. It can be easily assembled and adjusted to fit your hand.
- Align the Goodman handle with the light head.
- Secure the handle using the provided screws and adjust the position for optimal comfort and grip.
- The handle can be folded across the light face for compact storage and protection.
Video: Demonstration of assembling and adjusting the Goodman handle on the OrcaTorch D620 dive light. This video shows how to attach the handle and customize its fit for comfortable use during dives.
4.2 Pamasangan Batré sareng Ngecas
The D620 V2.0 is powered by four rechargeable batteries. Ensure batteries are fully charged before each dive.
- Unscrew the battery compartment of the canister.
- Insert the four rechargeable batteries according to the polarity markings.
- Securely close the battery compartment, ensuring O-rings are correctly seated.
- Connect the charger to the battery canister and a power source. The charger's indicator will show charging status.
5. Parentah Operasi
5.1 Daya Hurung / Pareum sareng Modeu Ngalihkeun
The D620 V2.0 features a titanium alloy switch for reliable operation and multiple brightness levels.
- Pikeun Ngahurungkeun: Press the side button once.
- Pikeun Ngalihkeun Modeu: Press the side button repeatedly to cycle through High, Medium, and Low brightness settings.
- Pikeun mareuman: Press and hold the side button for approximately 1 second.
5.2 Electronic Safety Lock
The new upgraded switch locking design prevents accidental activation during transport or storage.
- Pikeun ngonci: When the light is off, press and hold the side button for 5 seconds. The main light will flash twice to indicate the lock status. Once locked, the button will emit a green light when pressed.
- Pikeun muka konci: Press and hold the side button for 5 seconds. The main light will flash twice to indicate the unlock status. After unlocking, press the button to adjust the mode.
Video: Hiji leuwihview of the OrcaTorch D620 V2.0 Canister Dive Light, demonstrating its features including the upgraded switch, battery indicator, and electronic safety lock. The video also highlights its water pressure resistance and adjustable Goodman handle.
5.3 Indikator Status Batré
The LED indicator on the switch provides real-time battery status:
- héjo: Battery level over 30%.
- Beureum: Tingkat batré antara 10% sareng 30%.
- Kedip-kedip Beureum: Tingkat batré kirang ti 10%.

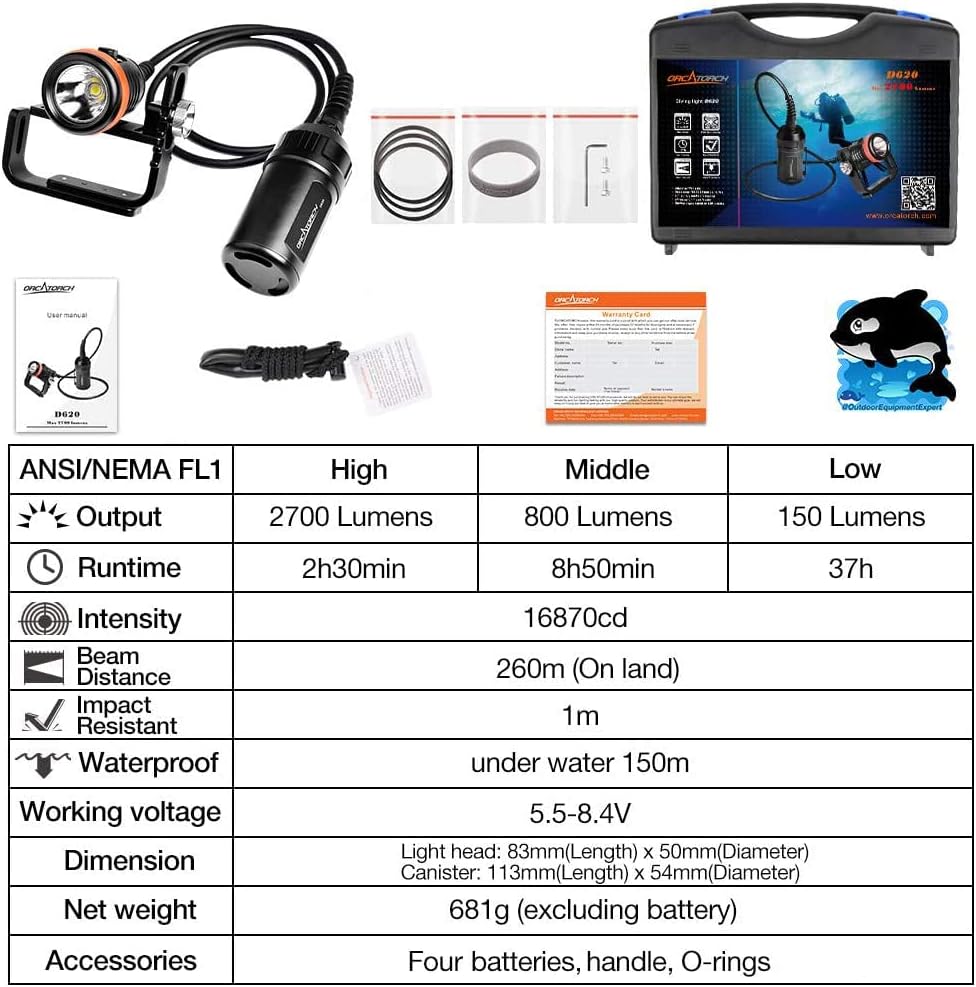

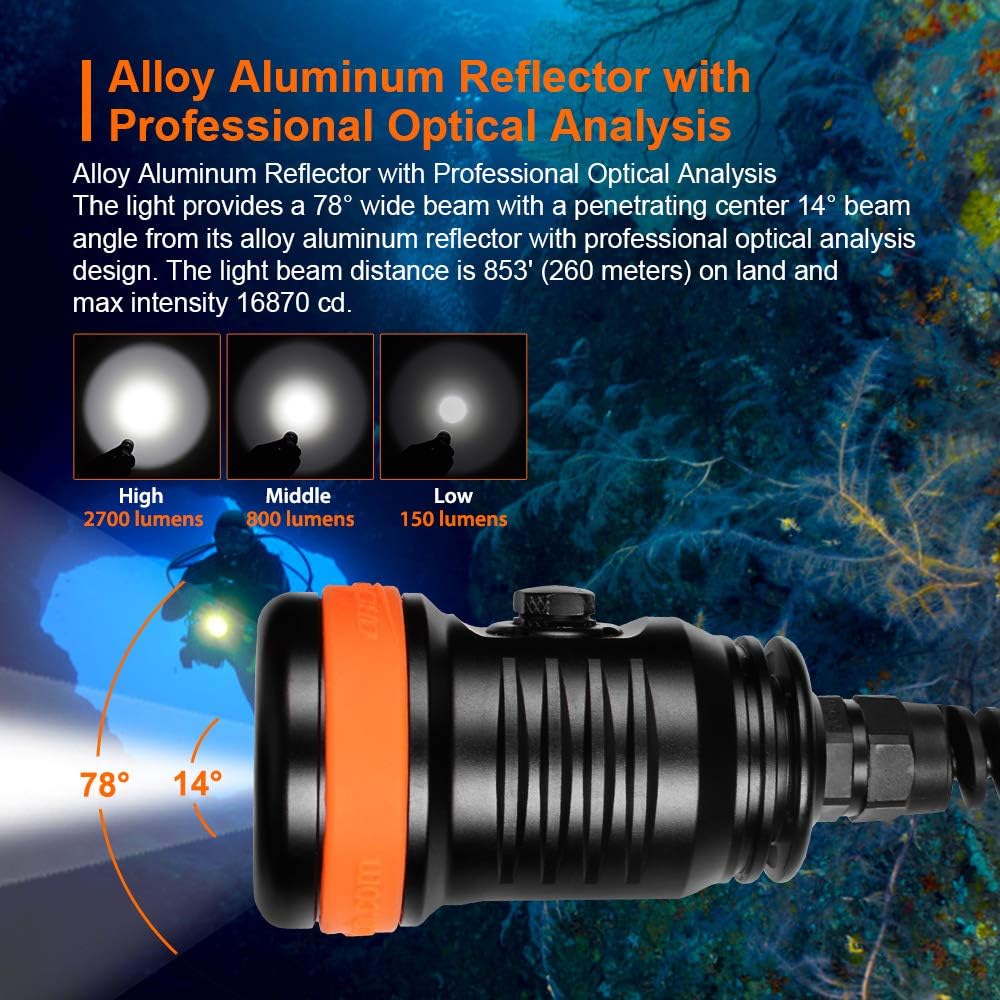

6. Spésifikasi
The ORCATORCH D620 V2.0 is built with high-quality materials and advanced features for demanding underwater environments.
| Fitur | Mode luhur | Middle Mode | Modeu Rendah |
|---|---|---|---|
| Kaluaran | 2700 Lumén | 800 Lumén | 150 Lumén |
| Runtime | 2h 30min | 8h 50min | 37 jam |
| Inténsitas | 16870cd | ||
| Jarak Beam | 260m (Di darat) | ||
| Tahan Dampak | 1m | ||
| Tahan cai | Jero cai 150m | ||
| Gawé Voltage | 5.5-8.4V | ||
| Diménsi | Light head: 83mm(L) x 50mm(D), Canister: 113mm(L) x 54mm(D) | ||
| Beurat bersih | 681g (kaasup batré) | ||
| Asesoris | Four batteries, handle, O-rings | ||
7. Pangropéa
- beberesih: After each dive, thoroughly rinse the dive light with fresh water to remove salt, sand, and other debris. Allow it to air dry completely before storage.
- Perawatan O-Ring: Regularly inspect the O-rings for any signs of wear, cracks, or damage. Clean them and apply a thin layer of silicone grease to ensure a proper seal. Replace damaged O-rings immediately.
- Perawatan batré: Store batteries in a cool, dry place. If not used for an extended period, charge them every 3-6 months to prolong their lifespan.
- Panyimpenan: Store the dive light in its protective carrying case in a cool, dry environment, away from direct sunlight and extreme temperatures.
8. Cara ngungkulan
If you encounter issues with your ORCATORCH D620 V2.0, please refer to the following common solutions:
- Lampu teu hurung:
- Check if the batteries are correctly installed and fully charged.
- Ensure the electronic safety lock is disengaged (refer to Section 5.2).
- Inspect the battery contacts for corrosion or debris.
- Lampu kedip-kedip atanapi redup teu disangka-sangka:
- The battery level may be low; recharge the batteries.
- Check for loose connections in the battery compartment or between the light head and canister.
- bocor cai:
- Immediately rinse the light with fresh water and dry it.
- Inspect all O-rings for damage, proper seating, and lubrication. Replace if necessary.
- Ensure all threaded connections are tightened securely.
If the issue persists, please contact ORCATORCH customer support for assistance.
9. Garansi jeung Rojongan
ORCATORCH provides a 2-year free replacement warranty for its products to ensure customer satisfaction. For any product-related inquiries, technical support, or warranty claims, please visit the official ORCATORCH websitus atanapi ngahubungan layanan palanggan maranéhna.
Resmi Websitus: www.orcatorch.com
