1. Bubuka
Thank you for choosing the Real Flame Alcott 75" Electric Fireplace with Mantel. This freestanding electric fireplace is designed to provide supplemental heat and a realistic flame effect, enhancing the ambiance of your living space. This manual contains important information regarding the assembly, operation, maintenance, and safety of your new electric fireplace. Please read it thoroughly before installation and use, and retain it for future reference.

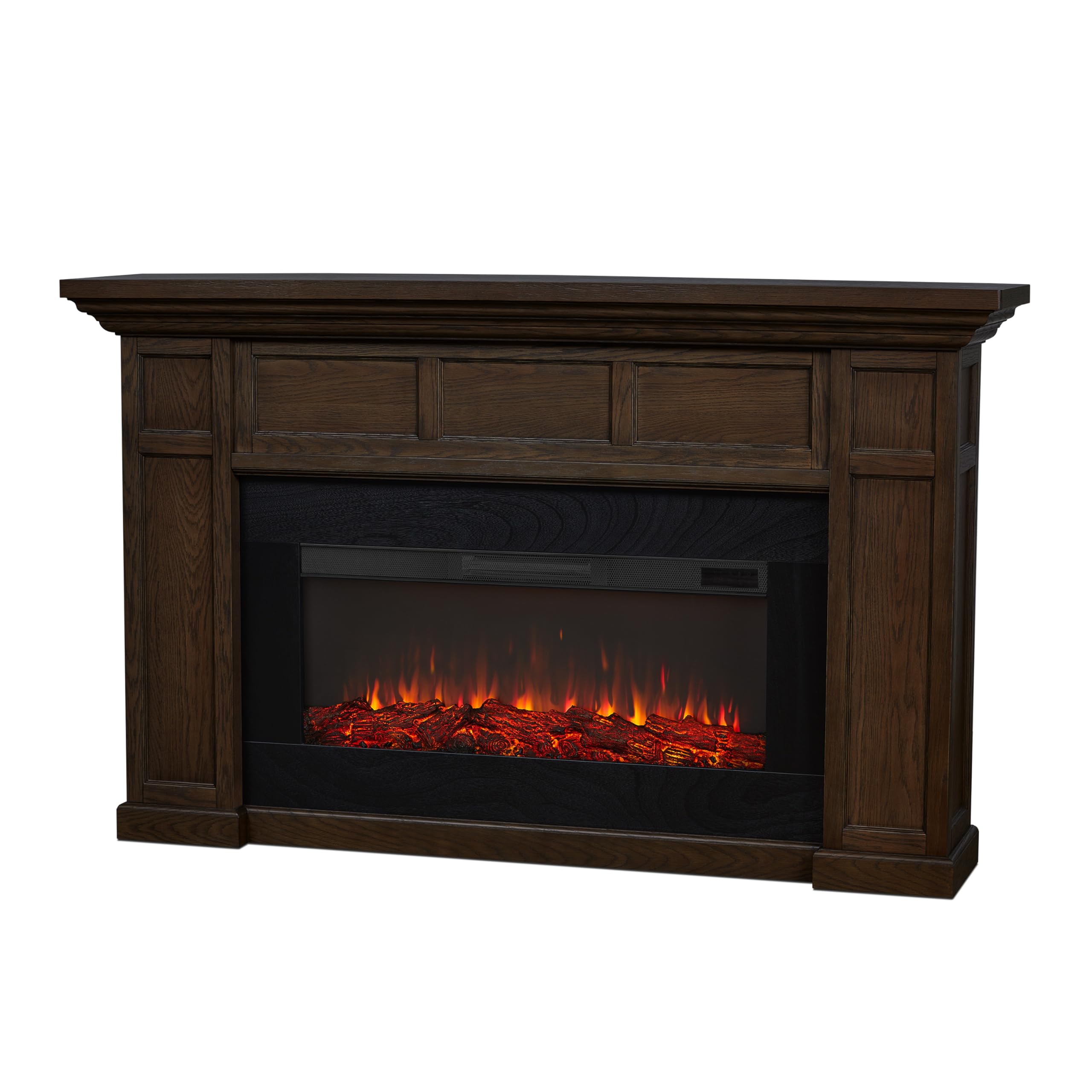

Figure 1: Real Flame Alcott 75" Electric Fireplace with Mantel (Aged Barrel)
2. Émbaran Kasalametan penting
To reduce the risk of fire, electric shock, or injury, always follow basic precautions when using this appliance.
- Baca sadaya pitunjuk sateuacan nganggo hawu ieu.
- Perkakas ieu kanggo panggunaan jero rohangan wungkul.
- Pastikeun kabel listrik henteu diciwit atanapi ruksak.
- Do not operate the fireplace with a damaged cord or plug, or if the heater malfunctions.
- Keep combustible materials at least 3 feet (0.9 m) from the front of the fireplace.
- Salawasna cabut hawu nalika henteu dianggo.
- Do not insert or allow foreign objects into any ventilation or exhaust opening.
- To prevent electric shock, do not immerse the unit in water or other liquids.
- The fireplace features an automatic safety shut-off to prevent overheating.
- An anti-topple safety device is included and should be installed.
- The mantel supports up to 30 lbs. A television can be hung above the mantel but should not be placed directly on it.
- This product is CSA and FCC certified.
3. Eusi Paket
Pastikeun yén sadaya komponén aya sareng henteu ruksak sateuacan dipasang.
- Mantel (Aged Barrel finish)
- Replaceable Electric Fireplace Heater Insert
- Kadali jauh
- 6-foot Power Cord with Lay-Flat Plug
- Anti-Topple Safety Device
- Hardware Pack for Assembly
4. Parentah Majelis
Assembly is required for the mantel. It is recommended to have two adults for assembly due to the weight and size of the components. Follow the detailed instructions provided in the separate Mantel Assembly Instructions manual included in your package.
Gambar 2: Diménsi Produk (74.75" L x 15.75" D x 45.75" T)
The fireplace arrives in two boxes. While assembly is generally straightforward, some steps may require assistance, particularly when positioning the heavier mantel top. Ensure all screws and fasteners are securely tightened.
5. Setup Awal
- panempatan: Position the assembled fireplace on a flat, stable surface in your desired room. Ensure adequate clearance from combustible materials.
- Sambungan Daya: Plug the 6-foot power cord into a standard three-prong 120V AC outlet. Avoid using extension cords if possible.
- Anti-Topple Device: Secure the fireplace to the wall using the provided anti-topple safety device to prevent accidental tipping.
- Kadali jauh: Install batteries (not included) into the remote control.
Figure 3: Recommended TV Placement (TV can be hung above, not placed directly on mantel)
6. Parentah Operasi
Your Alcott electric fireplace can be operated using the included remote control or the touch controls located on the unit.
6.1. Operasi dasar
- Hurungkeun/Pareuman: Press the power button on the remote or unit to turn the fireplace on or off.
- Pangaruh seuneu: The realistic log and flame effect will activate upon power-on.
- Fungsi Panas: Press the heat button to activate the supplemental heater. The heater can be turned off independently to enjoy the flame effect year-round without heat.
6.2. Nyaluyukeun Setélan
- Warna seuneu: Cycle through six different flame colors using the dedicated button on the remote or unit.
- Caang seuneu: Adjust the flame brightness through five levels to suit your preference.
- Termostat: Use the adjustable thermostat to set your desired room temperature. The heater will cycle on and off to maintain this setting.
- Fungsi Timer: Set a timer for automatic shut-off, allowing you to enjoy the fireplace for a specific duration.
Figure 4: Fireplace Insert Controls and Features
Figure 5: Six Flame Color Options
7. Fitur konci
- Pangaruh seuneu realistis: Mimics the look of a real, flickering fire with dynamic glowing embers.
- Six Flame Colors: Offers a variety of ambiance options to match your mood or decor.
- Five Flame Brightness Levels: Allows for customization of the flame intensity.
- Thermostat adjustable: Provides precise temperature control for optimal comfort.
- Fungsi Timer: Conveniently set the fireplace to turn off automatically.
- Supplemental Heat: Delivers 5100 BTUs of heat, capable of warming rooms up to 1,000 sq ft.
- Pamakéan Sapanjang Taun: Enjoy the flame effect with or without the heater activated.
- Desain nangtung: Easy to place in various indoor settings without requiring a chimney or vents.
- Real Wood Finish Mantel: Adds a touch of modern farmhouse style to your home.
8. Pangropéa
Pangropéa rutin mastikeun umur panjang sareng kinerja optimal perapian listrik anjeun.
- beberesih: Salawasna cabut colokan alat sateuacan beberesih. Ngagunakeun lemes, damp lawon pikeun ngusap beungeut luar. Entong nganggo pembersih atanapi semprotan anu abrasif.
- Ventilasi: Jaga ventilasi asupan sareng pembuangan hawa bersih tina lebu sareng kokotor pikeun mastikeun aliran hawa anu leres sareng nyegah panas teuing.
- Bohlam lampu: The flame effect uses LED technology, which typically does not require replacement. If issues arise, consult customer support.
- Panyimpenan: If storing the fireplace for an extended period, unplug it and cover it to protect from dust.
9. Cara ngungkulan
Upami anjeun ngalaman masalah sareng perapian anjeun, tingali masalah sareng solusi umum ieu:
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Hawu teu hurung. | Henteu dicolokkeun, listriktage, circuit breaker tripped, remote control batteries dead. | Check power cord connection, verify power to outlet, reset circuit breaker, replace remote batteries. |
| Taya kaluaran panas. | Heater function off, thermostat set too low, air vents blocked, safety shut-off activated. | Ensure heater is on, increase thermostat setting, clear vents, unplug and wait 5-10 minutes before restarting. |
| Pangaruh seuneu teu jalan. | Flame effect turned off, internal component issue. | Pastikeun éfék seuneu diaktipkeun. Upami masalah terus-terusan, hubungi dukungan palanggan. |
| Kadali jauh teu jalan. | Batré pareum, kahalangan, jarak jauh di luar jangkauan. | Replace batteries, remove obstructions, ensure remote is within operating range. |
For issues not covered here, please contact Real Flame customer support.
10. Spésifikasi
| Fitur | Rincian |
|---|---|
| merek | Seuneu Nyata |
| Ngaran modél | Alcott Landscape 75" Electric Fireplace with Mantel |
| Nomer modél | 4130E-AGB |
| Dimensi produk | 15.75 "D x 74.75" W x 45.75" H |
| Bahan | Kayu direkayasa |
| Tipe rengse | Dicét |
| Warna | Aged Barrel |
| Tipe Pamasangan | Jalanan |
| Sumber Daya | AC |
| Konsumsi Daya | 1500 Watt |
| Kaluaran Panas | 5100 Unit Termal Britania |
| Panutup pemanasan | Nepi ka 1000 sq ft |
| Jenis ventilasi | Modal Gratis |
| Fitur husus | Multi flame colors and brightness levels, adjustable thermostat, timer, over heat protection, automatic safety shut off, option to turn off heater to enjoy heatless flames year round |
| Sertifikasi | CSA, FCC |
11. Émbaran jaminan
The Real Flame Alcott 75" Electric Fireplace with Mantel comes with a Hiji Taun Garansi Terbatas. This warranty covers defects in materials and workmanship under normal use. For specific terms, conditions, and how to make a claim, please refer to the warranty documentation included with your product or visit the official Real Flame websitus.
Figure 6: Product Certifications and Warranty
12. Rojongan Palanggan
For further assistance, technical support, or warranty inquiries, please contact Real Flame customer service:
- Websitus: Nganjang ka Real Flame Store on Amazon pikeun inpormasi produk sareng sumber dukungan.
- Inpormasi kontak: Refer to your product packaging or the Real Flame website for the most up-to-date contact details (phone, email).
