1. Bubuka
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your SOLLA 100W LED Flood Light, Model YM-002. Please read these instructions thoroughly before installation and retain this manual for future reference.
The SOLLA 100W LED Flood Light is designed for various outdoor and indoor lighting applications, including yards, gardens, garages, rooftops, patios, playgrounds, courts, and parking lots. It features high brightness, energy efficiency, and durable construction.
2. Émbaran Kasalametan
PERHATOSAN: To prevent electric shock, fire, or injury, always follow basic safety precautions when installing or servicing this fixture.
- Installation must be performed by a qualified electrician or service person in accordance with national and local electrical codes.
- Pastikeun catu daya dipegatkeun samemeh instalasi, pangropéa, atawa beberesih.
- Do not operate the fixture with a damaged cord or plug.
- Ulah ngaropéa fixture nu. Sakur modifikasi tiasa ngabatalkeun jaminan sareng nyiptakeun bahaya kaamanan.
- This fixture is designed for hard-wiring. It does not include a plug.
- Avoid direct eye exposure to the light source when the fixture is operating.
- Mastikeun beungeut ningkatna bisa ngarojong beurat fixture nu.
3. Produk Langkungview
3.1 Fitur konci
- Umur panjang: Aluminum alloy housing provides high thermal conductivity, ensuring efficient heat dissipation and a lifespan of over 50,000 hours.
- Caang luhur: Delivers 10000 lumens with a luminous efficacy of 100 lm/w, offering significant energy savings compared to traditional lighting.
- Lightning & Water Resistance: IP65 rated for protection against dust and water jets, and includes an SPD (Surge Protective Device) for enhanced protection during thunderstorms.
- Sturdiness & Durability: Constructed with a robust metal bracket and tempered glass, designed for high-temperature resistance (up to 120°C) and anti-aging performance.
- Pamasangan Gampang: Features an adjustable bracket for flexible mounting on various surfaces.
3.2 Komponén
The SOLLA 100W LED Flood Light consists of the following main components:
- LED Light Panel: Contains the high-brightness LED chips.
- Tempered Glass Cover: Protects the LED panel.
- Aluminum Housing: Provides structural integrity and heat dissipation.
- Adjustable Mounting Bracket: Allows for flexible positioning.
- Waterproof Joint and Wiring: For secure electrical connection.
Gambar 1: Hareupeun view of the SOLLA 100W LED Flood Light, showcasing its rectangular design, LED array, and "SOLLA 100W IP66" branding.
4. Spésifikasi
| Fitur | Spésifikasi |
|---|---|
| merek | SOLLA |
| Nomer modél | YM-002 |
| Wattage | 100 Watt |
| Caang | 10000 Lumén |
| Warna Cahaya | 3000K Haneut Bodas |
| Voltage | 110 volt |
| Bahan | Aluminium, Kaca Tempered |
| Ukuran produk (L x W x H) | 12.6" x 1.73" x 8.03" (32cm x 4.39cm x 20.39cm) |
| Item Beurat | 3.69 pon |
| Peunteun IP | IP65 (Tahan cai) |
| Tipe Pamasangan | Wall mount, Eave/Soffit mount |
| Pamakéan jero rohangan / outdoor | Jero rohangan / Luar |
| Tipe Sumber Cahaya | LED |
Figure 2: Diagram illustrating the dimensions of the SOLLA 100W LED Flood Light, including length (12.6 inches / 32 cm), width (1.73 inches / 4.39 cm), and height (8.03 inches / 20.39 cm) with the bracket.
5. Pamasangan
penting: Pastikeun kakuatan pareum di circuit breaker sateuacan ngamimitian pamasangan.
5.1 Lokasi Pamasangan
Choose a suitable mounting location that provides adequate illumination for the desired area. The adjustable bracket allows for various mounting orientations:
- Pamasangan témbok: Secure the bracket directly to a wall.
- Pamasangan Lantai: Install the fixture on a flat ground surface.
- Pemasangan siling: Attach the fixture to an overhead structure or eave/soffit.
Figure 3: Illustration of different mounting options: wall, floor, and ceiling mounting.
5.2 Léngkah-léngkah Pamasangan
- Mark the desired mounting holes on the surface using the fixture's bracket as a template.
- Drill appropriate holes for the mounting screws (not included).
- Secure the mounting bracket to the surface using suitable screws and anchors.
- Attach the flood light fixture to the secured bracket.
- Adjust the angle of the flood light to the desired position and tighten the bracket screws to secure it. The bracket allows for 180-degree adjustment.
Figure 4: An illustration demonstrating the 180-degree adjustable mounting bracket, allowing for flexible positioning and aiming of the flood light.
5.3 Kabel Listrik
This flood light requires hard-wiring to a 110V AC power source. The fixture comes with three wires:
- Kawat Hideung: Hirup (L)
- Kawat bodas: nétral (N)
- Green/Yellow Wire: Earth/Ground (E)
Connect these wires to the corresponding wires from your power supply using appropriate waterproof wire connectors. Ensure all connections are secure and insulated.
Figure 5: An illustration detailing the hard-wiring connections (Live, Neutral, Earth wires) and the approximate wire length of 39.37 inches (100 cm).
5.4 Irradiation Distance and Area
Refer to the table below for recommended mounting heights and effective lighting distances/areas for the 100W model.
Figure 6: A table and diagram showing recommended mounting heights, best irradiation distances, and lighting areas for different wattage SOLLA flood lights, specifically highlighting the 100W model's performance.
6. Operasi
Once properly installed and wired, the SOLLA 100W LED Flood Light operates by switching on the connected power supply. There are no complex controls on the fixture itself; it functions as a direct on/off light source.

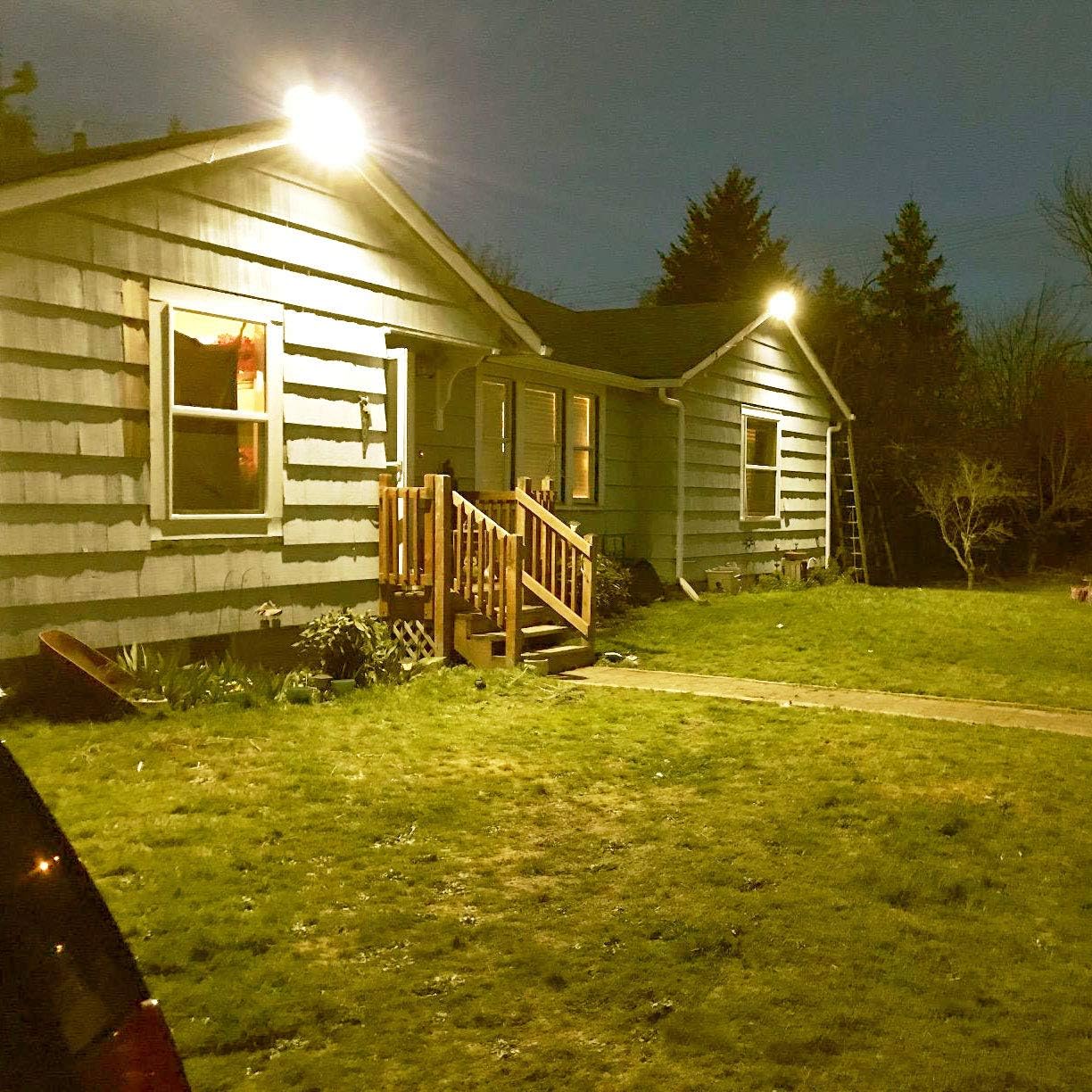

Gambar 7: Kelample of SOLLA LED Flood Lights illuminating a house exterior at night, demonstrating their effective coverage.
7. Pangropéa
The SOLLA 100W LED Flood Light is designed for minimal maintenance. However, regular checks can ensure optimal performance and longevity.
- beberesih: Periodically clean the tempered glass cover with a soft, damp cloth to remove dirt, dust, or debris that may obstruct light output. Do not use abrasive cleaners or solvents.
- Pamariksaan: Annually inspect the fixture for any signs of damage, loose connections, or wear on the wiring. Ensure the mounting bracket remains securely fastened.
- Dissipation panas: Ensure that the heat dissipation fins on the back of the fixture are not obstructed by debris or insulation, as this can affect performance and lifespan.
Gambar 8: A lengkep view of the rear of the flood light, emphasizing the aluminum heat dissipation fins designed to efficiently manage heat and extend the product's lifespan.
8. Cara ngungkulan
If you encounter issues with your SOLLA 100W LED Flood Light, refer to the following common problems and solutions:
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Lampu teu hurung | No power supply; Loose wiring connection; Faulty switch/breaker | Check power supply at the source; Verify all wiring connections are secure; Test the switch or circuit breaker. |
| Lampu kedip-kedip atanapi dims | Unstable power supply; Loose wiring; Overheating | Ensure stable power; Check wiring connections; Ensure adequate ventilation around the fixture. |
| Ngurangan kaluaran cahaya | Dirt or debris on lens; Overheating | Clean the tempered glass cover; Ensure proper heat dissipation. |
| Asup cai | Improper installation of waterproof joint; Damaged housing/seal | Re-check waterproof connections during installation; Inspect for physical damage. If damaged, replace the fixture. |
Upami masalahna tetep saatos nyobian solusi ieu, hubungi dukungan palanggan.
9. Garansi jeung Rojongan
SOLLA products are manufactured to high-quality standards. This product is covered by a standard warranty. Please refer to your purchase documentation or the SOLLA official websitus pikeun istilah jeung kaayaan jaminan husus.
For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact SOLLA customer support through the retailer where the product was purchased or via the official SOLLA websitus.
SOLLA Websitus: Visit the SOLLA Store on Amazon
