NICE Era P Series Remote Control User Manual

1. Bubuka

The NICE Era P series remote controls are designed for convenient and intuitive operation of various automated systems, including lighting, sun protection, and garage doors. These transmitters utilize a 433.92 MHz rolling code with a Teach-In function for easy programming. The ergonomic design ensures comfortable handling and straightforward use.

2. Product Models and Features

The Era P series offers several models, each tailored for specific control needs:

• Era P1: A manual transmitter for controlling a single system with electronic loads or a drive group.
• Era P1S: Similar to P1, but includes dedicated 'Sun for You' ON/OFF buttons for activating or deactivating automatic commands from weather sensors.
• Era P6: A 6-channel manual transmitter capable of controlling up to six systems or drive groups. Systems can be activated individually, in groups, or multi-groups.
• Era P6S: A 6-channel transmitter with 'Sun for You' ON/OFF buttons, offering individual or group control for up to six systems.
• Era P1V (Era P Vario): A manual transmitter for controlling a single system with electronic loads or a drive group, featuring a slider for analog dimmer function.
• Era P6SV: The most versatile 6-channel transmitter, combining individual/group control, 'Sun for You' ON/OFF buttons, and an analog dimmer slider.

Image: NICE Era P1S Remote Control. This model features Up, Stop, Down buttons and two 'Sun for You' ON/OFF buttons.

Image: NICE Era P6 Remote Control. This model includes six channel selection buttons, along with Up, Stop, and Down controls.

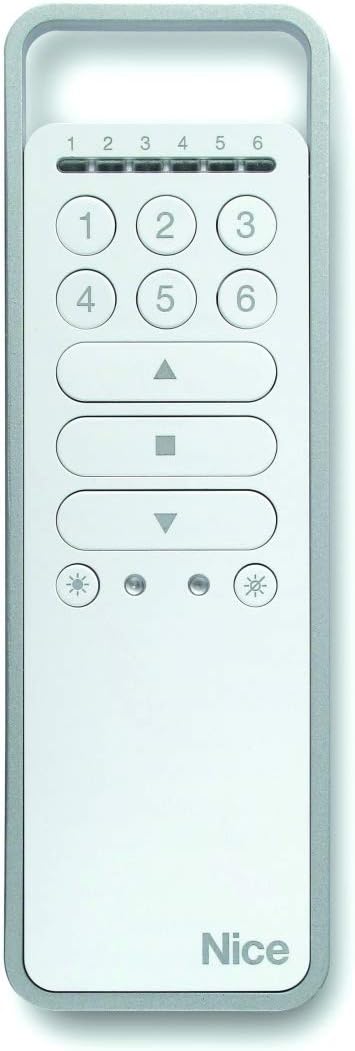

Image: NICE Era P6S Remote Control. This model combines six channel buttons with Up, Stop, Down, and 'Sun for You' ON/OFF buttons.

Image: NICE Era P1V Remote Control. This model features Up, Stop, Down buttons and an integrated dimmer slider for precise control.

Image: NICE Era P6SV Remote Control. This advanced model includes six channel buttons, Up, Stop, Down, 'Sun for You' ON/OFF buttons, and a dimmer slider.

3. Setélan

3.1. Pamasangan batré

The remote control requires two 1.5V AAA alkaline batteries. To install or replace batteries:

1. Teangan tempat panutup kompartemen batré dina tonggong kadali jauh.
2. Geser atawa cabut panutup panutup pikeun muka kompartemen.
3. Pasangkeun dua batré AAA, pastikeun polaritasna (+/-) bener sakumaha anu dituduhkeun di jero kompartemenna.
4. Ganti panutup kompartemen batré aman.

3.2. Programming (Teach-In Function)

The Era P series remotes feature a Teach-In function for easy programming. This typically involves pairing the new remote with an existing system or another already programmed remote. Specific programming steps may vary depending on the receiver unit or existing remote. Refer to the receiver's manual or the manufacturer's official resources for detailed instructions.

• Remote Duplication: New transmitters can often be duplicated from an already recorded transmitter by bringing the new transmitter close to the existing one and pressing a specific button sequence.
• Programming to a Receiver: Follow the instructions provided with your specific NICE receiver unit to put it into programming mode and then transmit the code from the Era P remote.

4. Parentah Operasi

4.1. Basic Control Functions

• Tombol Luhur (▲): Activates the upward movement or opens the system.
• Stop Button (■): Stops any ongoing movement or action.
• Tombol Ka Handap (▼): Activates the downward movement or closes the system.

4.2. Channel Selection (P6, P6S, P6SV Models)

For multi-channel remotes (P6, P6S, P6SV), use the numbered buttons (1-6) to select the desired channel or group of systems you wish to control. The selected channel will typically be indicated by an LED.

4.3. 'Sun for You' Buttons (P1S, P6S, P6SV Models)

These buttons (often marked with a sun icon) are used to activate or deactivate automatic commands sent by installed weather sensors. Pressing the ON button enables automatic control, while the OFF button disables it.

4.4. Dimmer Function (P1V, P6SV Models)

Models with a dimmer slider (P1V, P6SV) allow for analog control of lighting intensity. Slide your finger along the '+' or '-' indicators to adjust the brightness level.

4.5. Group and Multi-Group Control

The Era P series allows for storing a single transmitter in multiple awnings or roller shutters to create groups. The 'group memo' function can be used to recall the last multiple group activated.

5. Pangropéa

5.1. Ngagantian batré

When the remote control's range decreases or it becomes unresponsive, it may be time to replace the batteries. Follow the battery installation steps in Section 3.1. Ensure to use two new 1.5V AAA alkaline batteries for optimal performance.

5.2. beberesih

To clean the remote control, use a soft, dry cloth. Do not use abrasive cleaners, solvents, or wet cloths, as these can damage the device's surface or internal components.

6. Cara ngungkulan

• Jauh teu ngabales:
  • Pariksa naha batréna leres diselapkeun sareng henteu béak. Ganti lamun perlu.
  • Ensure the remote is within the operating range of the receiver (up to 200m in open space, 35m indoors).
  • Verify that the remote is properly programmed to the receiver. If not, attempt reprogramming.
• rentang operasi pondok:
  • Ganti batréna ku nu anyar.
  • Ensure there are no significant obstructions (e.g., thick walls, metal structures) between the remote and the receiver.
  • Check for sources of radio interference in the vicinity.
• Kasulitan dina pamrograman:
  • Consult the specific programming instructions for your receiver unit or the manufacturer's websitus.
  • Ensure you are following the correct sequence and timing for the Teach-In function.

7. Spésifikasi Téknis

8. Garansi jeung Rojongan

For information regarding product warranty, please refer to the documentation provided at the time of purchase or contact your retailer. For technical support or further assistance with programming and operation, please visit the official NICE websitus atanapi ngahubungan departemén layanan palanggan maranéhna.
