1. Produk Langkungview
About Your Waterdrop XWF Filter
The Waterdrop XWF Refrigerator Water Filter (Model WD-F48) is designed to provide clean, fresh-tasting water by effectively reducing various contaminants. This filter is certified by NSF International against NSF/ANSI Standard 42 for the reduction of aesthetic impurities and NSF/ANSI 372 for lead-free materials.
Kasaluyuan
This filter is a direct replacement for GE XWF filters (without an RFID chip). It is compatible with the following filter models:
- GE XWF, GE WR17X30702
- Maxblue MB-F48, AQUA CREST AQF-FF48
- Filterlogic FL-RF48, Waterspecialist WS648A
- CF9, GF-XWF, PF9
It is also compatible with various GE refrigerator models, including but not limited to: GBE21, GDE21, GDE25, GFE24, GFE26, GNE21, GNE25, GNE27, GYE18, QNE27, GSE25, GSS23, GSS25, GZS22, PSE25, CZS22, GNE27JSMSS, GNE27JMMES, GNE27ESMSS, GNE27JGMBB, GNE27JGMWW, GSE23, GSE23G, GSE26, CFE26, XFE26, CWE19.
Important Note: This filter is a replacement for XWF (without chip), NOT XWFE (with chip). Please confirm your refrigerator model and existing filter type before purchase.
Image: Confirming compatibility with XWF filters and incompatibility with XWFE and MWF filters.
Performance Filtrasi
The Waterdrop XWF filter utilizes a 100% Sri Lankan superior coconut shell carbon block to effectively reduce a wide range of contaminants, including heavy metals, chlorine, mercury, copper, cadmium, VOCs, chromium, THM, and other suspended particles. While impurities are reduced, beneficial minerals are retained for healthier water.
Video: Hiji leuwihview of the Waterdrop XWF filter, highlighting its features and filtration capabilities.
2. Pitunjuk Instalasi
Sateuacan Instalasi
- Remove the new filter from its plastic packaging.
- Ensure your refrigerator's water supply is turned off before beginning the installation.
Lengkah-demi-Lengkah Instalasi
- Locate your refrigerator's water filter compartment. This is typically inside the refrigerator compartment or in the grille at the bottom.
- Putar saringan heubeul lawan-jarum jam pikeun muka koncina, teras tarik kaluar. Sababaraha cai bisa netes, jadi siapkeun anduk.
- Insert the new Waterdrop XWF filter into the housing. Align the arrow on the filter with the arrow on the filter housing.
- Dorong saringan pageuh kana wadahna teras puterkeun searah jarum jam dugi ka konci dina tempatna. Anjeun kedah ngaraos aya klik atanapi résistansi.
- Turn on your refrigerator's water supply.
- Flush 2-3 gallons of water through the dispenser to remove any trapped air and carbon fines. This will also ensure optimal filtration performance.
- Check for any leaks around the filter housing.
No tools are required for installation. For detailed instructions specific to your refrigerator model, please consult your appliance's user manual.

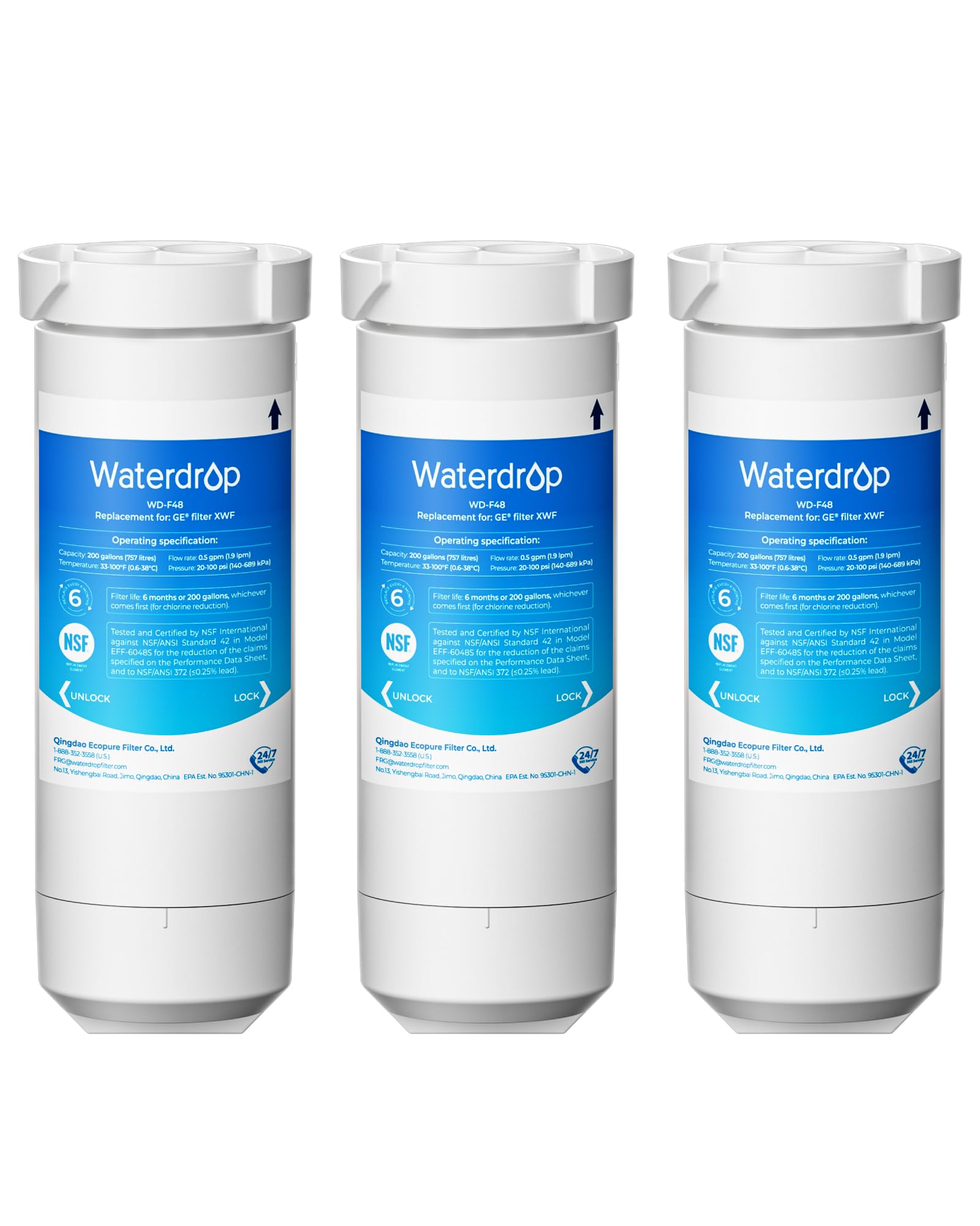

Image: The Waterdrop XWF Refrigerator Water Filter, Model WD-F48.
Video: A short demonstration of replacing a refrigerator water filter, showing the physical filter and the twist-in installation process.
Video: A comparison of the Waterdrop WD F48 filter with a GE filter, which includes a demonstration of its fit and installation.
3. Operasi
Kumaha Filter anjeun Gawéna
The Waterdrop XWF filter uses an advanced coconut shell carbon block to filter water. As water passes through the filter, the carbon block traps and reduces impurities, ensuring that the water dispensed from your refrigerator is clean and tastes fresh. This process effectively removes harmful substances while allowing beneficial minerals to pass through.
Image: Illustration of the filter's ability to reduce 97% of chlorine and other harmful impurities.
Image: Highlighting the use of natural coconut carbon for safe, better-tasting water.
Image: Visual comparison of water quality before and after filtration.
4. Pangropéa
Saringan Lifespan
For optimal performance and water quality, it is recommended to replace your Waterdrop XWF filter every 6 months or after filtering 200 gallons of water, whichever comes first. The actual lifespan may vary depending on your local water quality and usage.
Tracking Filter Life
The product includes complimentary month install stickers. Attach one to your filter or a visible location on your refrigerator to easily track when the filter needs to be replaced.
Image: Highlighting the 6-month filter lifespan and 200-gallon filtration capacity.
5. Cara ngungkulan
"Water Filter Expired" or "Error" Message (XWFE Models)
If your GE refrigerator uses an XWFE filter (which includes an RFID chip) and displays an "Expired" or "Error" message when using the Waterdrop XWF filter, it is because the XWF filter does not contain the RFID chip required by XWFE systems. A common workaround involves carefully removing the RFID chip from your old XWFE filter or a GE filter bypass plug and attaching it to the new Waterdrop XWF filter or placing it near the sensor. This will allow the refrigerator to recognize a filter is present and dispense water. However, the "Expired" message may still appear as the system tracks usage based on the chip.
Aliran Cai Ngurangan
If you experience a noticeable reduction in water flow from your dispenser, this typically indicates that the filter is nearing the end of its lifespan or is becoming clogged with impurities. It is time to replace the filter.
Bébas
Ensure the filter is correctly seated and twisted securely into the filter housing. If leaks persist, remove and re-install the filter, making sure all seals are intact and the filter is fully engaged. If the issue continues, contact customer support.
6. Spésifikasi produk
| Fitur | Spésifikasi |
|---|---|
| Nomer modél | WD-F48 |
| Bahan | Bahan Bebas Timah, Bahan Kelas Pangan, Blok Karbon Kalapa Diaktipkeun Canggih |
| Dimensi produk | 7.08 "D x 2.36" W x 6.22" H |
| Sertifikasi Tés éksternal | NSF 42 (Reduces aesthetic impurities), NSF 372 (Lead-free materials) |
| Kapasitas | 200 galon |
| Laju Ngalir | 0.5 GPM (1.9 LPM) |
| Tekanan | 20-100 PSI (140-689 kPa) |
| Suhu | 34-100°F (1-38°C) |
| Item Beurat | 1.3 pon |
| Komponén Kaasup | Refrigerator Water Filter Replacement, User's Manual, Month Install Stickers |
Image: Demonstrating thorough testing for safety and reliable performance.
7. Garansi jeung Rojongan
Waterdrop is committed to providing high-quality products and excellent customer service. For any questions, concerns, or support regarding your Waterdrop XWF Refrigerator Water Filter, please refer to the contact information provided with your product packaging or visit the official Waterdrop website. Our customer support team is available to assist you with installation, troubleshooting, and any other inquiries you may have.
