Whirlpool WHE3133.1
Whirlpool WHE3133.1 Freezer 312 Liter User Manual
Model: WHE3133.1
1. Bubuka
This user manual provides comprehensive instructions for the safe and efficient operation, installation, and maintenance of your new Whirlpool WHE3133.1 chest freezer. Please read this manual thoroughly before using the appliance and keep it for future reference. Proper use and care will ensure optimal performance and longevity of your freezer.
2. Parentah Kasalametan
Salawasna turutan pancegahan kaamanan dasar nalika nganggo alat-alat listrik pikeun ngirangan résiko kahuruan, kejutan listrik, sareng tatu pikeun jalma.
Kasalametan Umum
- Pastikeun catu daya voltage cocog sareng labél rating dina alat.
- Do not pull the power cord to disconnect the appliance from the mains. Always grasp the plug firmly.
- Do not allow children to play with the appliance or packaging materials.
- Tetep bukaan ventilasi jelas tina halangan.
- Ulah nyimpen bahan ngabeledug sapertos kaléng aerosol kalayan propelan anu gampang kaduruk dina alat ieu.
Kasalametan listrik
- Perkakas ieu kedah dibumikeun leres.
- Entong nganggo kabel penyambung atanapi adaptor anu teu dibatas.
- Upami kabel suplai ruksak, éta kedah diganti ku produsén, agén jasana, atanapi jalma anu mumpuni anu sami pikeun nyegah bahaya.
3. Setup jeung Instalasi
Ngabongkar bungkusan
Carefully remove all packaging materials, including tape and labels, from your freezer. Dispose of packaging materials responsibly.
Lokasi
- Place the freezer on a firm, level surface away from direct sunlight and heat sources (e.g., stoves, radiators).
- Ensure adequate air circulation around the appliance. Leave at least 10 cm (4 inches) of space at the back and sides, and 30 cm (12 inches) above the lid for proper ventilation.
- The ambient temperature should be between 10°C and 43°C (50°F and 109°F).
Leveling
Adjust the leveling feet at the bottom of the freezer to ensure it is stable and level. This prevents vibrations and ensures proper door sealing.
Ngabersihan Awal
Before first use, clean the interior of the freezer with a mild detergent and warm water. Wipe dry thoroughly.
Sambungan Daya
Colokkeun freezer kana stop kontak listrik khusus anu dihubungkeun ka ground. Ulah nganggo sababaraha stop kontak atanapi kabel ekstensi.

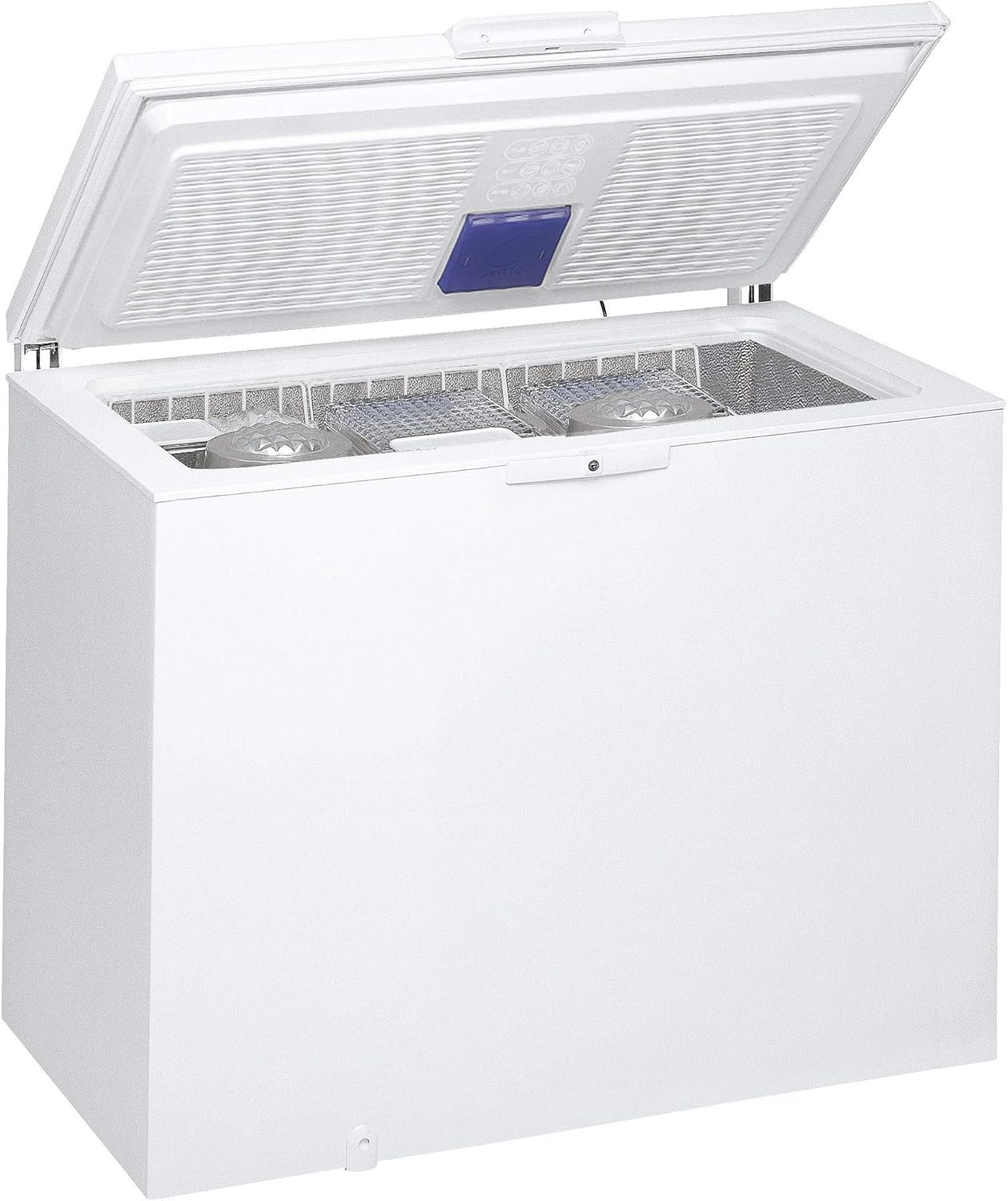

Figure 3.1: The Whirlpool WHE3133.1 chest freezer with its lid open, revealing the spacious interior and two removable storage baskets. The control panel is visible on the underside of the lid.
4. Parentah Operasi
Kontrol Suhu
The temperature control dial is located on the front of the freezer or inside the lid. Turn the dial to adjust the temperature. Lower numbers typically indicate warmer temperatures, and higher numbers indicate colder temperatures. For optimal food preservation, set the temperature to -18°C (0°F) or colder.
Initial Start-up and Freezing
After plugging in, allow the freezer to operate for at least 4 hours before loading food. For large quantities of fresh food, activate the "Fast Freeze" function (if available) 24 hours before adding the food. Distribute food evenly to allow for proper air circulation.
Pedoman Panyimpenan Dahareun
- Wrap food tightly in freezer-safe packaging to prevent freezer burn.
- Label and date all frozen items.
- Ulah langsung neundeun kadaharan panas kana freezer. Keun heula nepi ka tiis.
- Avoid overloading the freezer, as this can hinder efficient freezing.
5. Pangropéa jeung beberesih
Defrosting
Defrost the freezer when the ice layer reaches a thickness of about 0.5 cm (0.2 inches). To defrost:
- Cabut colokan freezer tina stop kontak listrik.
- Cabut sadaya tuangeun sareng simpen dina freezer atanapi cooler sanés.
- Open the lid and place towels around the base to catch melting ice. The freezer may have a drain plug at the bottom for easier water removal.
- Allow the ice to melt naturally. Do not use sharp objects or heating devices to speed up defrosting.
- Once defrosted, clean the interior with a mild detergent and warm water, then dry thoroughly.
- Colokkeun deui freezer teras antepkeun tiis sateuacan ngabalikeun kadaharan.
Ngabersihan rutin
Clean the exterior of the freezer with a soft cloth and mild detergent. Regularly vacuum the condenser coils at the back or bottom of the freezer (if accessible) to ensure efficient operation.
6. Cara ngungkulan
Sateuacan ngahubungan jasa, pariksa masalah umum ieu:
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Freezer teu jalan. | Teu aya catu daya; kabel listrik leupas; pemutus sirkuit pareum. | Check power outlet; ensure plug is firmly inserted; reset circuit breaker. |
| Freezer-na teu cukup tiis. | Temperature setting too high; lid not closed properly; excessive ice build-up; poor ventilation. | Adjust temperature setting; ensure lid is sealed; defrost the freezer; ensure adequate clearance around the unit. |
| Sora kaleuleuwihi. | Freezer not level; objects vibrating against the unit. | Level the freezer using adjustable feet; remove any objects touching the freezer. |
| Cai dina lantai. | Drain plug open or not sealed properly after defrosting. | Ensure drain plug is securely closed. |
7. Spésifikasi
| Fitur | Rincian |
|---|---|
| merek | Whirlpool |
| Modél | Whe3133.1 |
| Kapasitas | 312 ltr |
| Voltage | 220V |
| Basa (Manual) | Inggris |
Note: Specifications are subject to change without notice. For the most accurate and up-to-date information, please refer to the product's rating label or the official Whirlpool websitus.
8. Garansi jeung Rojongan
Émbaran jaminan
Your Whirlpool WHE3133.1 freezer comes with a standard manufacturer's warranty. Please refer to the separate warranty card included with your purchase for detailed terms and conditions, including warranty period and coverage. Keep your proof of purchase for warranty claims.
Rojongan Palanggan
For technical assistance, spare parts, or service requests, please contact Whirlpool customer support. Contact details can typically be found on the Whirlpool official websitus atanapi dina kartu jaminan.
When contacting support, please have your model number (WHE3133.1) and serial number ready.
