1. Bubuka
The AOPUTTRIVER AP-570T-APP is a versatile Bluetooth-enabled digital clamp meter designed for precise electrical measurements. This auto-ranging multimeter offers a wide array of functions including DC/AC Voltage & Current, Resistance, Temperature, Frequency, and Duty Cycle measurements. Its robust design and real-time data recording capabilities via a mobile application make it an essential tool for professionals and DIY enthusiasts alike.
2. Produk Langkungview
Familiarize yourself with the components and features of your AP-570T-APP Digital Clamp Méter.

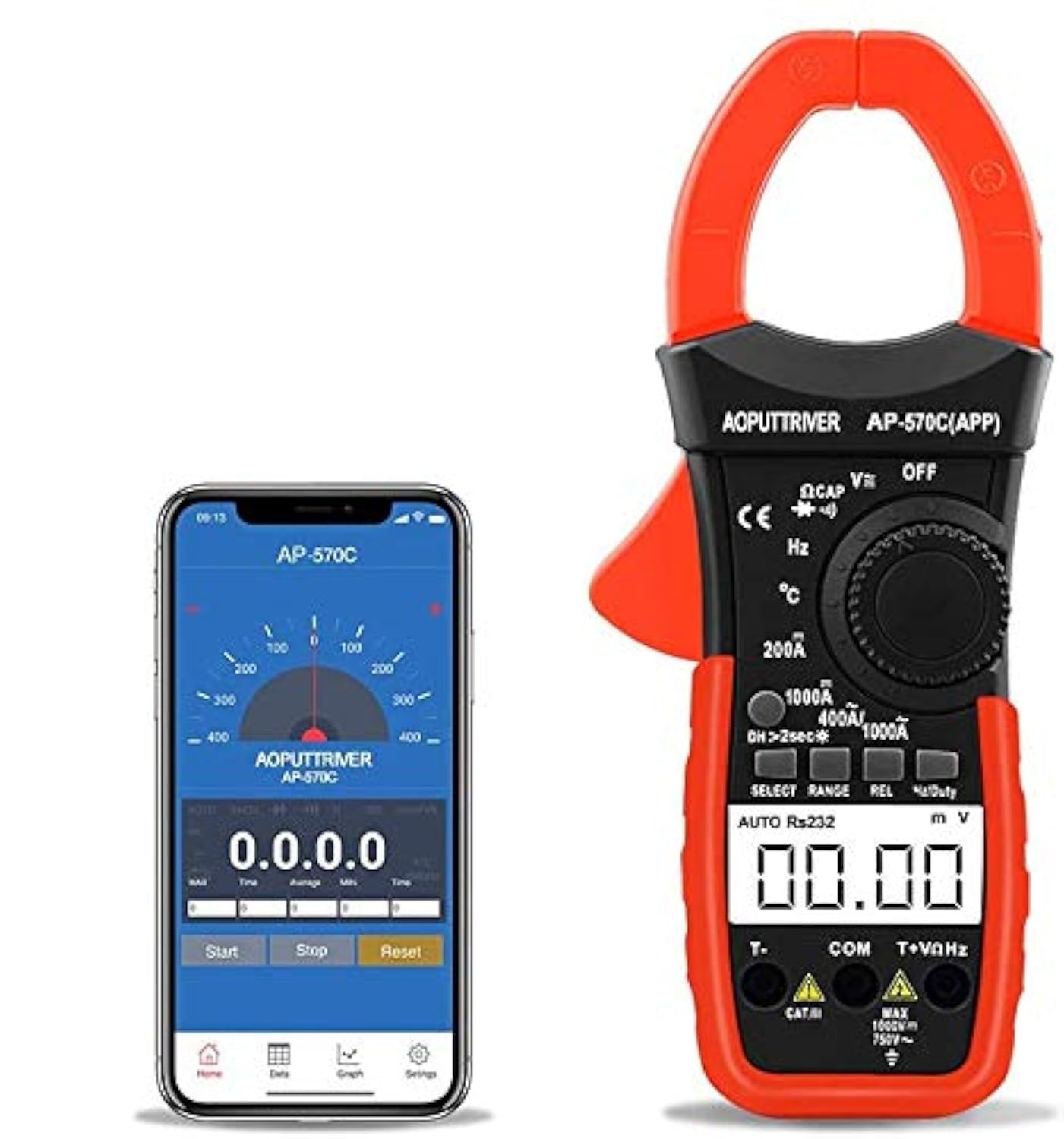

Figure 2.1: AOPUTTRIVER AP-570T-APP Digital Clamp Meter alongside its mobile application interface.
Figure 2.2: Key components of the clamp meter, including the Rotary Switch, D.HOLD/BACK LIGHT KEY, SELECT KEY, RANGE KEY, HZ/DUTY KEY, REL KEY, LCD DISPLAY, T+VΩHz INPUT JACK, T- INPUT JACK, and COM INPUT JACK.
Figure 2.3: The current clamp, designed for secure closure during measurement, and the high-definition display screen with backlight.
Figure 2.4: The 570 series clamp meter features a double integral A/D conversion chip for high precision, stable performance, and strong anti-interference ability.

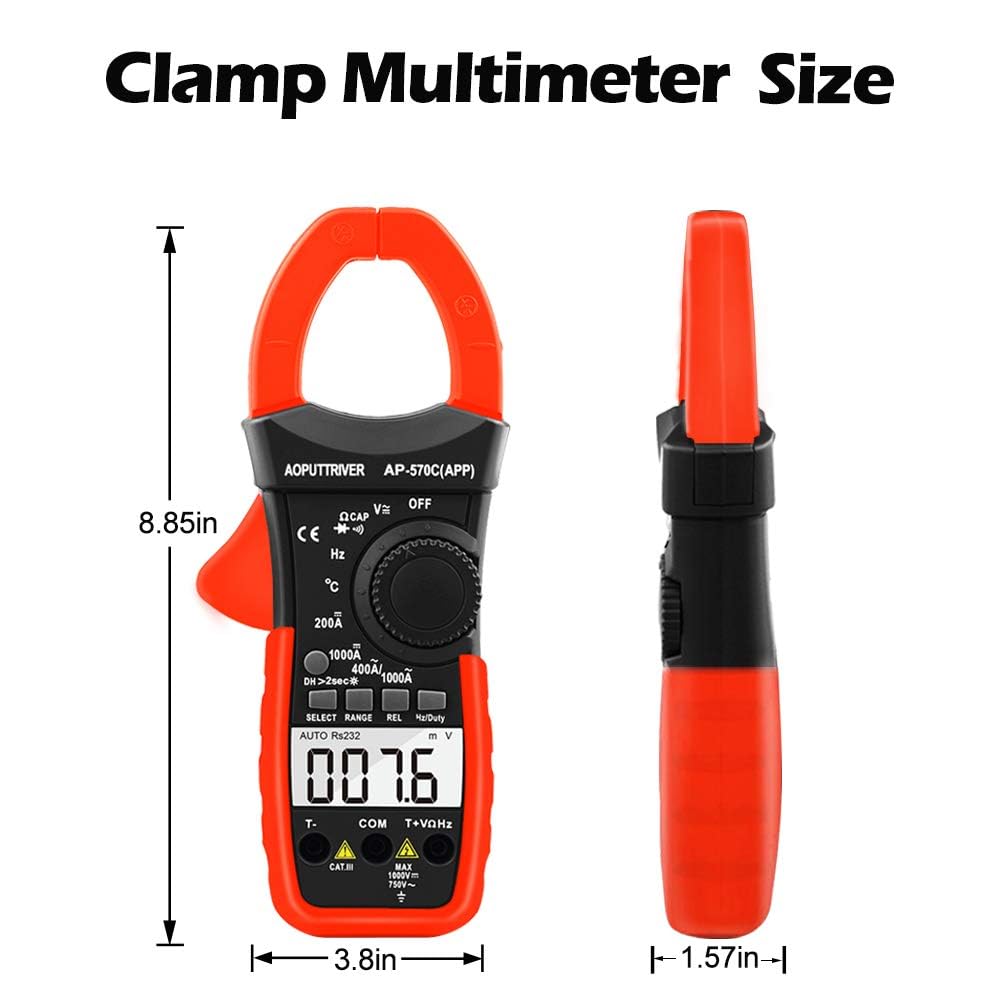

Figure 2.5: Dimensions of the clamp multimeter, illustrating its compact and ergonomic size.
3. Setup and APP Connection
The AP-570T-APP features Bluetooth connectivity for real-time data recording and analysis via a mobile application. Follow these steps to set up the APP and connect your device:
- Pasang APP: Scan the QR code provided in the physical manual or search for "intelligent clamp meter" on your mobile phone's app store (Android/iOS) to download and install the application.
- Aktipkeun Bluetooth: Hurungkeun Bluetooth dina telepon sélulér Anjeun.
- Launch APP: Open the "intelligent clamp meter" application on your phone.
- Daya Dina Alat: Turn on your AP-570T-APP Digital Clamp Méter.
- Sambungan otomatis: Anjeun leres TEU need to manually find the product from your mobile phone's Bluetooth settings. The APP will automatically connect to the clamp meter. Push the green "start button" on the APP for data transmission.
- Ngarengsekeun Masalah Sambungan: If the connection fails, ensure your phone is not connected to other Bluetooth devices. Temporarily disconnect other devices and ensure only your phone's Bluetooth is open nearby, as it may auto-connect to other open Bluetooth devices.
- Idin: You must grant Storage & Location permissions to the APP to save data before connecting to the AP-570C-APP clamp méter.
Video 3.1: Demonstrates the steps to install the APP and connect it to the AP-570C-APP clamp méter.
4. Parentah Operasi
The AP-570T-APP offers a comprehensive range of measurement functions. Always ensure the correct function and range are selected before making any measurements.
4.1 General Measurement Functions
- 4000 Count Auto Ranging: The meter automatically selects the appropriate measurement range.
- AC / DC Voltage & Ayeuna: Measure both alternating and direct current/voltage. Note: For current, measurements below 1A may not be accurate.
- Pangukuran Kapasitansi: Determine the capacitance of components.
- Résistansi listrik: Measure the resistance of circuits or components.
- Pangukuran Frékuénsi: Measure the frequency of AC signals.
- Suhu: Use the included temperature probe for temperature readings.
- Diode and On/Off Test: Test diodes and check for circuit continuity.
- Siklus tugas: Measure the duty cycle of pulsed signals.
- Témbongkeun Daya Lemah: An indicator will show when the battery is low.
- Layar LCD: Clear digital display for readings.
- Nilai Relatif: Measure relative values.
- Tahan Data: Freeze the current reading on the display.
- Lampu tukang: Illuminate the display for use in low-light conditions.
- Otomatis Pareum: The meter will automatically shut down after a period of inactivity to conserve battery life.
4.2 Using the Bluetooth APP for Data Recording
Once connected, the mobile APP allows for advanced data management:
- Data waktos nyata: View live measurement data directly on your smartphone.
- Ngarekam Data: Record measurement data over time for analysis. The APP supports saving data in various formats (e.g., text, Excel).
- Analysis and Processing: Utilize the APP's features to analyze recorded data, including graphical representations and statistical summaries (Max/Avg/Min values).
- Pangimeutan jauh: Initiate tests and obtain readings from a distance, which is particularly useful for automotive testing or monitoring hard-to-reach circuits.
Video 4.1: Leuwihview of the AP-570CAPP Clamp Meter's features and its integration with the Bluetooth APP for various measurements.
Figure 4.1: Performing a DC Current Test using the clamp meter on electrical wiring.
5. Pangropéa
Pangropéa anu leres mastikeun umur panjang sareng akurasi cl anjeunamp méter.
5.1 Ngagantian batré
The AP-570T-APP uses one 9V battery (6D22 type). When the low power indicator appears on the display, it's time to replace the battery.
- Pastikeun méterna dipareuman.
- Teang kompartemen batré dina tonggong méter.
- Anggo obeng leutik pikeun muka panutup batréna.
- Carefully disconnect the old 9V battery from its terminals.
- Connect a new 9V battery, ensuring correct polarity.
- Ganti panutup batré jeung amankeun ku screw nu.
A single 9V battery can provide enough power for up to a year of operation under normal use.
Figure 5.1: Steps for easily replacing the 9V battery in the clamp méter.
6. Cara ngungkulan
If you encounter issues with your AP-570T-APP, refer to the following common problems and solutions:
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| APP not connecting via Bluetooth |
|
|
| Display shows "OL" |
|
|
| Inaccurate current readings (especially low current) |
|
|
| Data log disappears or connection drops in APP |
|
|
7. Spésifikasi
| Spésifikasi | Rincian |
|---|---|
| Nomer modél | AP-570C-APP |
| Dimensi produk | 8.8 x 3.8 x 1.5 inci |
| Item Beurat | 15.87 ons (450 gram) |
| Sumber Daya | Didukung ku batré (1 x batré 9V kalebet) |
| Témbongkeun Counts | 4000 cacah |
| Standar Kasalametan | IEC1010 Double Insulation/Pollution Degree 2/Over voltage Kategori III |
| Overload Protection | Yes, displays "OL" when over range. |
| Konektipitas Bluetooth | Yes, for real-time data recording via mobile APP. |
| Tanggal Sadia munggaran | 26 Maret 2019 |
8. Naon Kaasup
Your AOPUTTRIVER Digital Clamp Pakét méter ngawengku barang-barang ieu:
- 1 x AP-570C-APP True RMS Digital Clamp Méter
- 2 x Test Leads (Pair)
- 1 x K-Type Thermocouple (Temperature Probe)
- 1 x Mawa Kasus
- 1 x Manual Instruksi
- 1 x Obeng Leutik
- 1 x 9V (6D22) Battery
Figure 8.1: The AP-570T-APP Digital Clamp Meter and its complete set of accessories.
9. Garansi jeung Rojongan
AOPUTTRIVER products are designed for reliability and performance. For detailed warranty information and technical support, please refer to the official user manual PDF or contact AOPUTTRIVER customer service.
Anjeun tiasa ngaksés Manual Pangguna resmi (PDF) Ieuh.
