Electrolux EFT39X Wall-Mounted Cooker Hood User Manual

Bubuka

Thank you for choosing the Electrolux EFT39X Wall-Mounted Cooker Hood. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your appliance. Please read these instructions carefully before using the cooker hood and keep them for future reference.

The Electrolux EFT39X is a 90 cm wall-mounted decorative hood designed to effectively remove cooking fumes and odors from your kitchen. It features a maximum airflow of 600 m³/h, 2 LED lights totaling 8 Watts for illumination, and can operate in either extraction or recirculation mode.

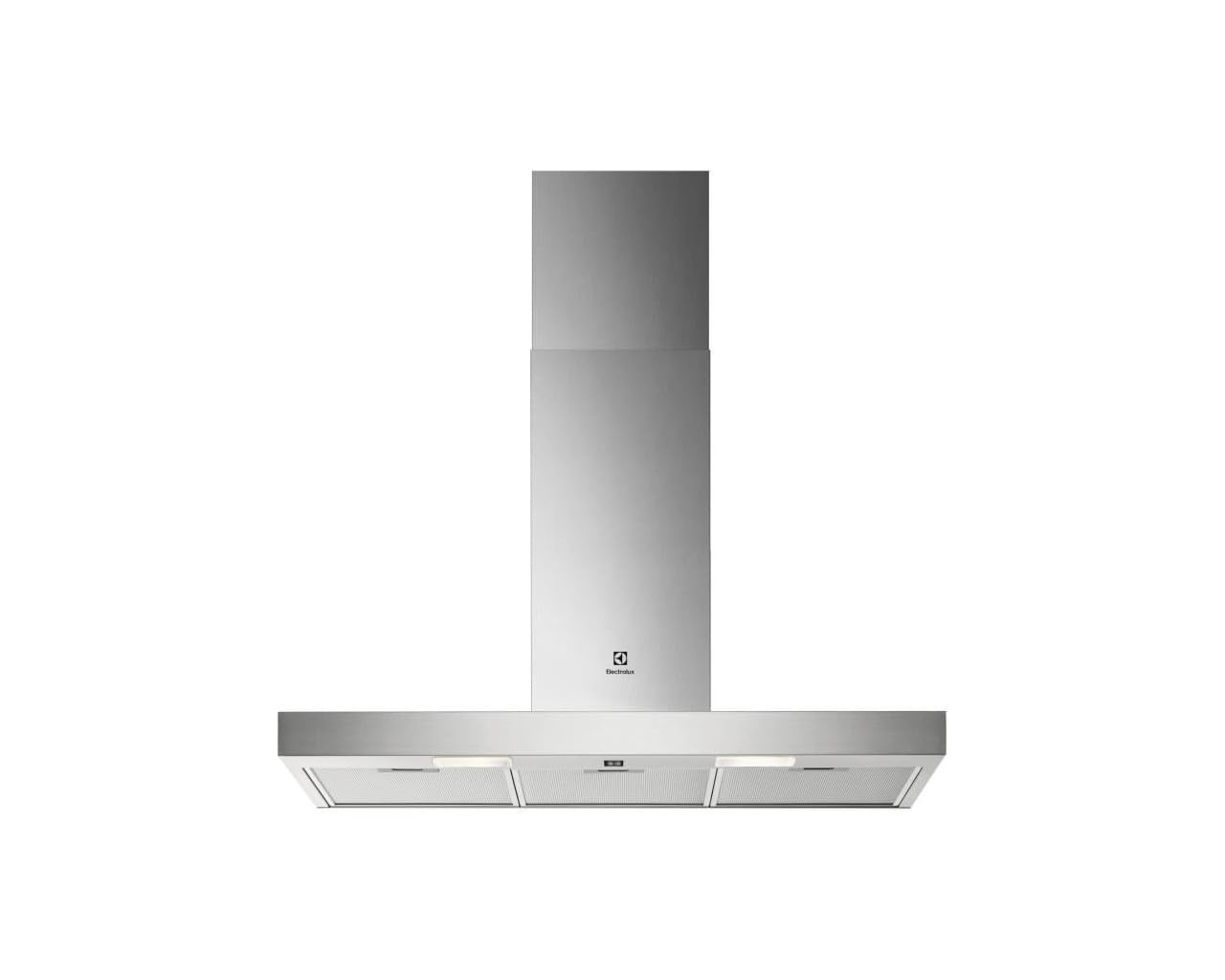

Image: The Electrolux EFT39X wall-mounted cooker hood, showcasing desain stainless steel na sleek.

Émbaran Kasalametan

Pikeun kasalametan anjeun sareng pikeun mastikeun operasi anu leres, salawasna patuh kana tindakan pencegahan ieu:

• Pastikeun alat dipasang ku jalma anu mumpuni.
• Sok pegatkeun sambungan alat tina catu daya sateuacan beberesih atanapi pangropéa.
• Ulah flambé handapeun tiung cooker.
• Regularly clean the filters to prevent fire hazards.
• Pastikeun ventilasi anu cekap di rohangan nalika sungkup dianggo babarengan sareng gas atanapi alat-alat pembakaran bahan bakar anu sanés.
• Hawa knalpot teu kedah dibuang kana flue anu dianggo pikeun nyéépkeun haseup tina alat-alat pembakaran gas atanapi suluh anu sanés.

Setup sareng Instalasi

The Electrolux EFT39X cooker hood is designed for wall mounting. It can be configured for either extraction (ducting outside) or recirculation (filtering and returning air to the kitchen) mode.

Ngabongkar sareng Inspeksi

• Taliti miceun sadaya bahan bungkusan.
• Pariksa alat pikeun karusakan naon waé. Ulah install lamun ruksak.
• Verify that all included components are present: washable filters, mounting hardware.

Pamasangan Syarat

Refer to the technical drawing for precise dimensions and mounting points. Ensure sufficient clearance above the cooking surface as specified in local regulations and the diagram.

Image: Technical drawing showing the dimensions and installation requirements for the Electrolux EFT39X cooker hood. This diagram includes measurements for height, width, depth, and recommended clearances above a hob.

Sambungan Listrik

The appliance must be connected to the mains supply by a qualified electrician, following all local and national wiring regulations.

Parentah Operasi

The Electrolux EFT39X cooker hood features rocker switches for controlling fan speed and lighting.

Image: Close-up of the control panel with two rocker switches. One switch controls the fan speed (settings 1, 2, and off 'O'), and the other controls the LED lighting (on/off).

Operasi Kipas

• To turn on the fan: Press the fan speed rocker switch to position '1' for low speed or '2' for high speed.
• To turn off the fan: Press the fan speed rocker switch to position 'O'.
• It is recommended to turn on the hood a few minutes before cooking and leave it on for approximately 10-15 minutes after cooking to ensure complete removal of fumes.

Operasi lampu

• Pikeun ngahurungkeun lampu: Press the light rocker switch to the 'on' position (indicated by a light bulb symbol).
• Pikeun mareuman lampu: Press the light rocker switch to the 'off' position.

Image: Close-up of the integrated LED light panel on the underside of the cooker hood, providing illumination for the cooking area.

Pangropéa

Regular maintenance ensures optimal performance and extends the lifespan of your cooker hood. Always disconnect the appliance from the power supply before performing any maintenance.

Ngabersihan Saringan Lemak

The metal grease filters trap grease particles from cooking fumes and must be cleaned regularly to prevent fire hazards and maintain efficiency. The filters are washable.

• Frékuénsi: Clean filters every 2-4 weeks, depending on usage.
• Ngahapus: Locate the filter latches, typically spring-loaded, and pull them to release the filters.
• beberesih: Wash the filters by hand in hot water with a mild detergent, or in a dishwasher on a low-temperature cycle. Ensure they are completely dry before re-installing.
• Pamasangan ulang: Insert the dry filters back into their slots until they click into place.

Gambar: Deukeut view of the mesh grease filters on the underside of the Electrolux EFT39X cooker hood, designed to be easily removable for cleaning.

Replacing Carbon Filters (Recirculation Mode Only)

If your hood is set up for recirculation, it uses activated carbon filters to remove odors. These filters cannot be washed and must be replaced periodically.

• Frékuénsi: Replace carbon filters every 3-6 months, depending on usage.
• ngagantian: Refer to the specific instructions provided with the carbon filters for removal and installation.

Ngabersihan Luar

Clean the exterior surfaces with a soft cloth and a mild, non-abrasive detergent. For stainless steel surfaces, use a specialized stainless steel cleaner to maintain its finish. Avoid abrasive cleaners or scouring pads.

Pamérésan masalah

Sateuacan ngahubungi layanan palanggan, mangga parios masalah sareng solusi umum ieu:

If the problem persists after checking these points, please contact Electrolux customer service or a qualified technician.

spésifikasi

Garansi sareng Rojongan

Kanggo inpormasi garansi, mangga tingali kartu garansi anu kalebet dina produk anjeun atanapi kunjungi situs wéb resmi Electrolux. websitus. Simpen bukti pameseran anjeun pikeun klaim garansi.

For technical support, spare parts, or service requests, please contact Electrolux customer service. You can find contact details on the official Electrolux websitus atawa dina dokuméntasi disadiakeun kalawan alat Anjeun.

When contacting support, please have your model number (EFT39X) and serial number ready. The serial number is typically located on a label inside the hood.

Pabrikan: Éléktronik

Nomer Rujukan: 7332543658602
