Allen-Bradley 1490N9 Series C 3/4 Inch Conduit Hub Instruction Manual

1. Bubuka

This manual provides essential information for the safe and proper installation, operation, and maintenance of the Allen-Bradley Bulletin 1490, 3/4 inch Conduit Hub, Model 1490-N9, Series C. This product is designed for use in industrial electrical applications to provide a secure connection for threaded conduit.

Please read this manual thoroughly before attempting any installation or service to ensure compliance with all safety guidelines and product specifications.

2. Émbaran Kasalametan

WARNING: Risk of Electric Shock or Fire Hazard.

• This conduit hub is designed for use ONLY WITH THREADED CONDUIT. Do not attempt to use with non-threaded conduit.
• Pamasangan sareng pangropéa kedah dilaksanakeun ku tanaga anu mumpuni, saluyu sareng sadaya kode sareng peraturan listrik lokal sareng nasional.
• Ensure power is disconnected and locked out before installing, inspecting, or servicing the conduit hub or any associated electrical system.
• Paké produk ieu ONLY WHERE SPECIFIED BY ALLEN-BRADLEY for the intended application.
• Do not modify the product in any way. Unauthorized modifications can lead to product failure, injury, or property damage.
• The product is UL Listed A206 and SP® certified, indicating compliance with specific safety standards. Ensure the installation environment is compatible with the product's ratings.

3. Produk Langkungview

The Allen-Bradley 1490N9 Series C Conduit Hub is a robust component designed to provide a secure and sealed connection point for 3/4 inch threaded conduit in various industrial environments. It is part of the Bulletin 1490 series of conduit fittings.

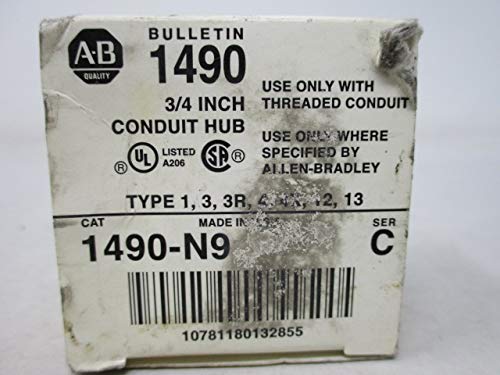

Figure 3.1: Allen-Bradley 1490N9 Conduit Hub product packaging.

This image displays the original product packaging for the Allen-Bradley Bulletin 1490, 3/4 inch Conduit Hub, Model 1490-N9, Series C. The label clearly indicates its UL Listed A206 and SP certified status, and specifies its intended use with threaded conduit only, and where specified by Allen-Bradley. It is rated for various environmental conditions, including Type 1, 3, 3R, 4, 12, and 13 applications.

fitur konci ngawengku:

• Designed for 3/4 inch threaded conduit.
• UL Listed A206 and SP® certified for safety and performance.
• Suitable for Type 1, 3, 3R, 4, 12, 13 environmental ratings.
• Durable construction for industrial applications.

4. Setup jeung Instalasi

Proper installation is critical for the safe and effective operation of the conduit hub. Always adhere to the following guidelines:

1. Persiapan: Ensure the installation area is clean, dry, and free from debris. Verify that the conduit to be used is 3/4 inch and threaded.
2. Kasalametan munggaran: Before beginning installation, ensure all power to the associated electrical system is completely disconnected and properly locked out/tagged out to prevent accidental energization.
3. Pamasangan: Securely fasten the conduit hub to the designated enclosure or junction box. Ensure the mounting surface is stable and capable of supporting the hub and connected conduit.
4. Sambungan Conduit: Thread the 3/4 inch conduit into the hub opening. Tighten the connection firmly using appropriate tools to ensure a secure and sealed fit. Do not overtighten, as this may damage the threads.
5. Sealing: If required by the application or local codes, apply appropriate thread sealant or sealing compound to ensure environmental integrity, especially in wet or dusty environments.
6. Pamariksaan: After installation, visually inspect all connections to ensure they are tight and secure. Verify that the conduit hub is properly aligned and that there are no exposed wires or loose components.

Consult relevant Allen-Bradley documentation and local electrical codes for specific installation requirements for your application.

5. Parentah Operasi

The Allen-Bradley 1490N9 Conduit Hub is a passive component designed to provide a secure and protective pathway for electrical wiring. Once properly installed, it requires no active operation.

Its function is to maintain the integrity of the conduit system, protecting internal wiring from environmental factors and mechanical damage. Ensure that the conduit hub remains securely connected and free from physical damage to ensure continuous protection.

6. Pangropéa

Regular inspection and minimal maintenance will ensure the longevity and continued performance of the conduit hub.

• Inspeksi périodik: Annually, or more frequently in harsh environments, inspect the conduit hub for any signs of physical damage, corrosion, or loose connections.
• beberesih: If necessary, gently clean the exterior of the hub with a soft, damp cloth. Do not use abrasive cleaners or solvents that could damage the material.
• Integritas sambungan: Verify that the threaded conduit remains tightly secured to the hub. Retighten if any looseness is detected, ensuring not to overtighten.
• Environmental Seal: Check for any degradation of seals or sealants, especially in environments requiring specific ingress protection. Replace or reapply as needed.

Always ensure power is disconnected before performing any maintenance that involves touching the hub or associated wiring.

7. Cara ngungkulan

As a passive component, the conduit hub typically does not "malfunction." Most issues relate to improper installation or external damage.

If you encounter issues not listed here, or if solutions do not resolve the problem, contact a qualified electrician or Allen-Bradley technical support.

8. Spésifikasi

9. Garansi jeung Rojongan

For information regarding product warranty, technical support, or service, please contact your authorized Allen-Bradley distributor or visit the official Allen-Bradley website. Ensure you have the product model number (1490N9) and series (C) available when seeking support.

This product is designed for industrial use and should be installed and maintained by qualified professionals.
