1. Bubuka
Thank you for choosing the Electrolux EKM5570 Planetary Mixer. This manual provides essential information for the safe and efficient operation, maintenance, and care of your appliance. Please read these instructions thoroughly before first use and keep them for future reference.
2. Émbaran Kasalametan
- Always ensure the mixer is unplugged from the power outlet before assembling, disassembling, or cleaning.
- Ulah neuleumkeun unit motor dina cai atawa cairan séjén.
- Jauhkeun leungeun, rambut, pakean, sareng perkakas tina bagian anu obah nalika operasi pikeun nyegah tatu.
- Never operate the mixer with a damaged cord or plug, or if the appliance malfunctions or has been dropped or damaged.
- Perkakas ieu kanggo panggunaan rumah tangga wungkul. Ulah make di luar.
- Ngawaskeun barudak sacara saksama nalika alatna dianggo.
- Pastikeun mixer disimpen dina permukaan anu stabil, datar, sareng garing nalika dioperasikeun.
3. Produk Langkungview
The Electrolux EKM5570 Planetary Mixer is designed for versatile kitchen tasks, featuring a powerful 1200W motor and 10 variable speeds. It comes with a range of accessories to assist with various recipes.
Komponén sareng Asesoris:
- Main Mixer Unit (with 10-speed control dial and LED light)
- 4.8 Liter Stainless Steel Bowl
- 2.9 Liter Stainless Steel Bowl
- Kawat Whisk
- Adonan Hook
- Flat Beater (metal)
- SoftEdge™ Flat Beater (silicone)
- PerfectRise™ Lid (for dough proofing)
- Penjaga Splash
Image: The Electrolux EKM5570 Planetary Mixer shown with its main unit, two stainless steel bowls, and all included attachments: wire whisk, dough hook, metal flat beater, SoftEdge™ flat beater, and PerfectRise™ lid.
Gambar: A close-up view of the various accessories for the Electrolux EKM5570 mixer, including the two bowls, wire whisk, dough hook, and both flat beaters, alongside the PerfectRise™ lid.
4. Setélan
- Ngabongkar: Sacara saksama miceun sadaya komponén tina bungkusan. Simpen bungkusan pikeun neundeun atanapi transportasi ka hareup.
- Bersih: Before first use, wash the bowls, whisk, dough hook, and beaters in warm, soapy water. Rinse thoroughly and dry. Wipe the main mixer unit with a damp lawon.
- posisi: Place the mixer on a clean, dry, and stable countertop. Ensure adequate space around the unit for ventilation and operation.
- Pasang Mangkuk: Select the desired stainless steel bowl (4.8L or 2.9L). Place it onto the base of the mixer and twist clockwise until it locks securely into place.
- Pasang Lampiran: Tilt the mixer head up by pressing the release button. Insert the desired attachment (whisk, dough hook, or beater) into the attachment shaft and twist to secure it. Lower the mixer head until it locks into position.
Image: The Electrolux EKM5570 mixer with its head tilted upwards, showing the attachment shaft ready for an accessory to be installed or removed.
5. Parentah Operasi
The Electrolux EKM5570 features a planetary mixing action, ensuring thorough ingredient incorporation. The integrated LED light provides clear visibility into the bowl during mixing.
Operasi umum:
- Pastikeun mixer parantos dipasang kalayan leres sareng mangkok sareng asesoris anu dipikahoyong.
- Tambahkeun bahan kana mangkok campur kode.
- Colokkeun mixer kana stop kontak listrik anu cocog.
- Turn the speed control dial to the desired speed (1-10). Start at a lower speed and gradually increase to prevent splashing.
- To stop the mixer, turn the speed dial to '0' (off) and unplug the appliance.
Image: A close-up of the Electrolux EKM5570's speed control dial, featuring a metallic finish and an illuminated blue LED ring indicating the selected speed setting.

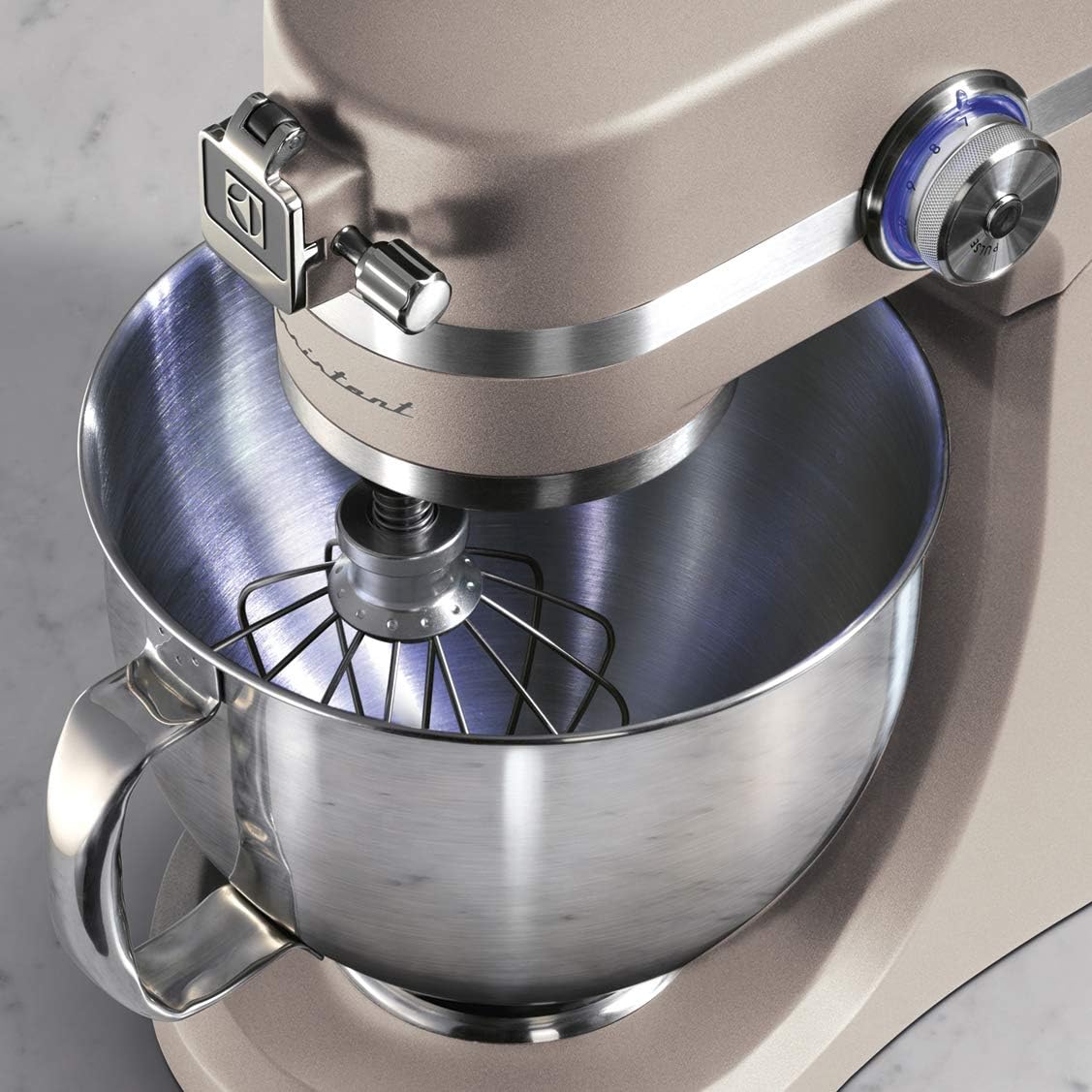

Image: The interior of the Electrolux EKM5570 mixing bowl is brightly illuminated by an integrated LED light, providing clear visibility of the ingredients during the mixing process.
Ngagunakeun kantétan:
- Kawat Whisk: Ideal for whipping eggs, cream, meringues, and light batters. Use medium to high speeds.
- Adonan Hook: Designed for kneading yeast doughs for bread, pizza, and pasta. Use low speeds.
- Flat Beater (Metal): Suitable for mixing cakes, cookies, frostings, and mashed potatoes. Use low to medium speeds.
- SoftEdge™ Flat Beater (Silicone): This beater, with its silicone edge, scrapes the sides of the bowl during mixing, ensuring all ingredients are thoroughly incorporated without lumps. Excellent for batters and creams. Use low to medium speeds.
Image: A split image comparing a regular beater (left) leaving unmixed ingredients on the bowl's edge, and the SoftEdge™ beater (right) demonstrating superior scraping action for a more thoroughly mixed batter.
PerfectRise™ Lid:
The PerfectRise™ Lid is designed to create an optimal humid environment for dough proofing. After kneading, cover the bowl with the PerfectRise™ Lid to help your dough rise effectively.
Image: A bowl of dough covered with the transparent PerfectRise™ Lid, illustrating its use for optimal dough proofing.
6. Pangropéa jeung beberesih
- Sok cabut mixer sateuacan dibersihkeun.
- Bowls and Attachments: The stainless steel bowls, wire whisk, dough hook, and flat beaters are dishwasher safe. For manual cleaning, wash in warm, soapy water, rinse, and dry thoroughly.
- Unit Utama: Ngusap bagian luar unit motor kalayan lemes, damp lawon. Ulah make cleaners abrasive atawa neuleumkeun unit dina cai.
- Panyimpenan: Store the mixer and its accessories in a dry place.
7. Cara ngungkulan
If you encounter issues with your Electrolux EKM5570 mixer, please refer to the following common problems and solutions:
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Mixer teu ngamimitian | Not plugged in; power switch off; head not locked down. | Ensure power cord is securely plugged in. Turn speed dial to '0' then to desired speed. Ensure mixer head is fully lowered and locked. |
| Attachments not reaching ingredients | Bowl not properly seated; attachment not fully inserted. | Ensure bowl is twisted and locked into place. Re-insert attachment firmly into the shaft. |
| Mixer overheats or stops during use | Overloading with ingredients; continuous operation for too long. | Reduce the amount of ingredients. Turn off the mixer and let it cool down for at least 30 minutes before resuming use. Refer to recipe guidelines for maximum capacities. |
| Noise nyaring salila operasi | Normal operating noise; loose attachment or bowl. | Some noise is normal, especially at higher speeds or with heavy dough. Check that the bowl and attachment are securely fastened. |
8. Spésifikasi
- merek: Electrolux
- Jumlah modél: EKM5570
- kakuatan: 1200 Watt
- Voltage: 230 volt
- Jumlah Laju: 10
- Main Bowl Capacity: 4.8 liter
- Secondary Bowl Capacity: 2.9 liter
- Bahan: Alloy Steel
- Ukuran produk (L x W x H): 37 x 21 x 36 cm
- Beurat barang: 10.68 kg
- Tingkat Noise: 79 desibel
- Fitur husus: Mangkuk anu tiasa dicabut
- Negara asal: Cina
9. Garansi jeung Rojongan
For warranty information, please refer to the documentation provided with your purchase or contact your local Electrolux customer service. If you require technical assistance or have questions not covered in this manual, please visit the official Electrolux websitus atanapi ngahubungi jalur dukunganana.
You can find more information and support at the official Electrolux websitus: www.électrolux.com
