1. Parentah Kasalametan penting
- Baca sadaya parentah sateuacan nganggo alat.
- Salawasna tempatkeun dehumidifier dina permukaan anu stabil sareng rata.
- Pastikeun kabel listrik teu ruksak sareng nyambung ka stop kontak anu di-ground.
- Ulah ngoperasikeun unit ieu di deukeut cai atanapi di lingkungan anu baseuh teuing.
- Jauhkeun barudak sareng piaraan tina alat salami operasi.
- Cabut colokan unit sateuacan ngabersihkeun atanapi ngalakukeun perawatan naon waé.
- Ulah ngahalangan jalan asup atawa kaluarna hawa. Jaga jarak sahenteuna 4 inci (10 cm) di sabudeureun unit.
- Ulah nyelapkeun objék kana liang hawa.
- If the unit is damaged, do not attempt to repair it yourself. Contact customer support.
2. Produk Langkungview
The Hysure T8 Plus is a compact and efficient electric dehumidifier designed to reduce humidity in small to medium-sized rooms. It features a 2000ml (70 oz) water tank, automatic shut-off, and quiet operation.
Figure 2.1: Hysure T8 Plus Dehumidifier, front view.

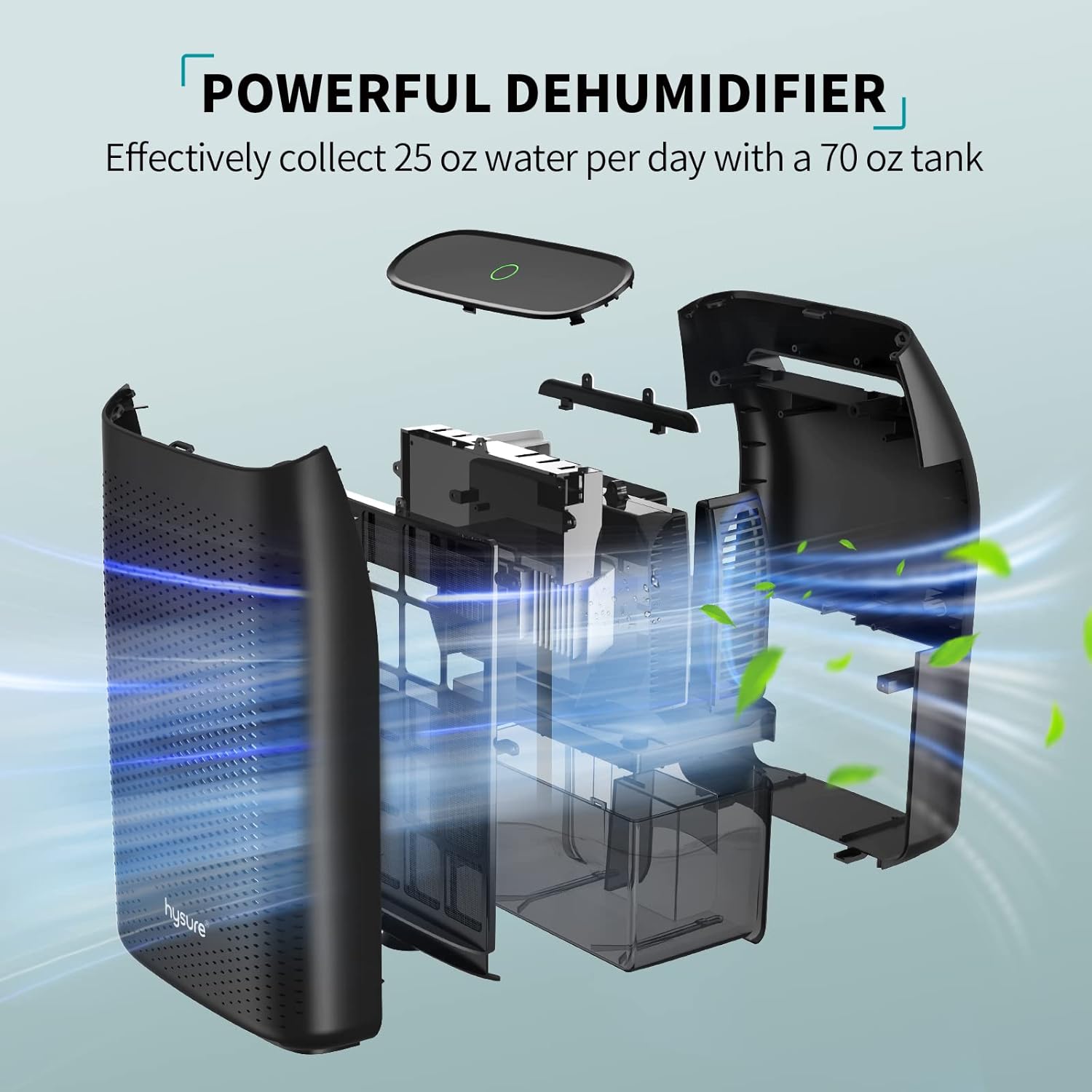

Figure 2.2: Internal components and airflow of the Hysure T8 Plus Dehumidifier.
Fitur konci:
- Efisiensi Tinggi: Removes up to 25oz (750ml) of moisture per day in optimal conditions (86°F, 80% RH).
- Tangki cai ageung: Equipped with a 2000ml (70 oz) capacity water tank.
- Pareuman-Pareuman: Otomatis pareum lamun tanki cai pinuh pikeun nyegah mudal.
- Operasi Ultra-Tepi: Utilizes Peltier technology for noise levels below 35dB, suitable for bedrooms and offices.
- Énergi Éfisién: Low power consumption of 40W/H.
- Desain portabel: Compact and lightweight with an integrated handle for easy movement.
- Saringan Gampang Bersih: Includes a washable filter to capture large particles.
Figure 2.3: The dehumidifier features a practical handle for easy portability.
3. Setélan
- Ngabongkar bungkusan: Sacara saksama piceun dehumidifier tina bungkusanna. Simpen bungkusan pikeun neundeun atanapi transportasi ka hareup.
- panempatan: Place the unit on a firm, level surface in the desired area. Ensure there is at least 4 inches (10 cm) of space around the air inlets and outlets for proper airflow. Avoid placing it directly against walls or furniture.
- Sambungan Daya: Connect the power adapter to the dehumidifier's power port, then plug the adapter into a suitable electrical outlet. For safety, ensure the outlet is grounded and, if used in a bathroom, a GFCI outlet is recommended.
- Cék awal: Ensure the water tank is correctly inserted and empty before first use.
4. Parentah Operasi
Hurungkeun/Pareuman:
- To turn the dehumidifier ON, press the power button located on the top of the unit. The indicator light will illuminate green.
- To turn the dehumidifier Pareum, press the power button again. The indicator light will turn off.

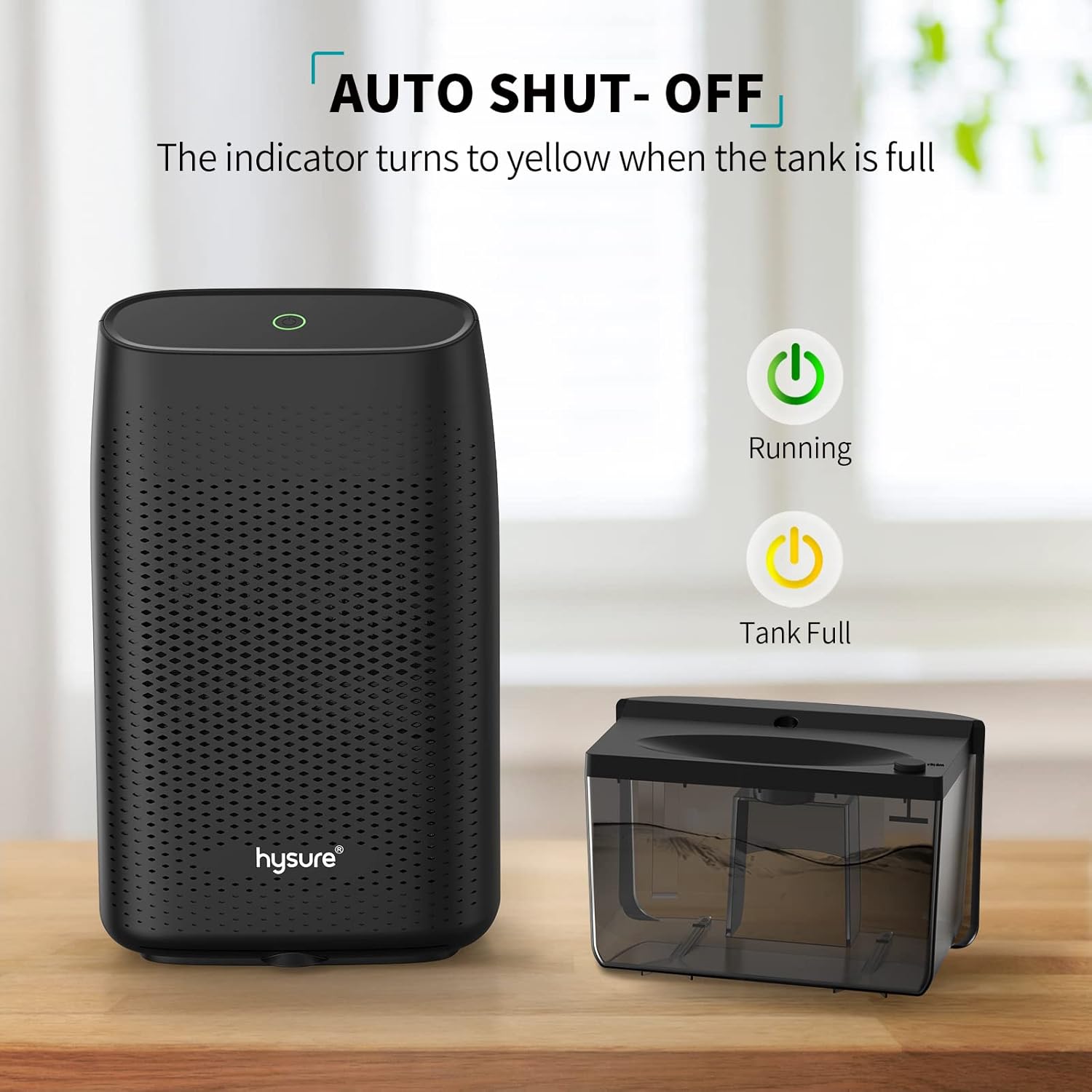

Figure 4.1: The power button and indicator lights for running and tank full status.
Pareum Otomatis:
The Hysure T8 Plus is equipped with an automatic shut-off function. When the water tank reaches its maximum capacity, the unit will automatically power off, and the indicator light will change to yellow to alert you that the tank needs to be emptied.
Video 4.1: Demonstration of the Hysure T8 Plus Dehumidifier's high efficiency and auto-off feature. This video illustrates the unit's operation and how it automatically stops when the water tank is full, indicated by a change in the power light.
5. Pangropéa
Ngosongkeun Tangki Cai:
- When the indicator light turns yellow, the water tank is full.
- Pareuman dehumidifier sareng cabut colokan tina stop kontak listrik.
- Carefully slide out the water tank from the back of the unit.
- Tuang kaluar cai dikumpulkeun.
- Geser deui tangki cai kosong kana unit dugi ka ngaklik dina tempatna.
- Plug in the dehumidifier and press the power button to resume operation.
Ngabersihan Saringan Udara:
The dehumidifier is equipped with an easy-clean filter to maintain optimal performance. Regular cleaning is recommended.
- Pareuman sareng cabut dehumidifier.
- Locate the air filter, typically behind the front grille.
- Cabut saringan.
- Clean the filter using a soft brush or vacuum cleaner to remove dust and debris. For stubborn dirt, wash it gently with warm, soapy water.
- Pastikeun saringanna garing pisan sateuacan dipasangkeun deui kana unit.
- Reattach the front grille and plug in the dehumidifier to resume operation.
Figure 5.1: The removable dust-proof filter helps maintain air quality and unit efficiency.
6. Cara ngungkulan
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Dehumidifier teu hurung. | No power, power button not pressed, water tank not properly inserted. | Check power connection, press power button, ensure water tank is securely in place. |
| Dehumidifier teu ngumpulkeun cai. | Humidity level too low, ambient temperature too low, air inlets/outlets blocked, filter dirty. | Ensure room humidity is above 40% and temperature is above 59°F (15°C). Clear any obstructions. Clean the air filter. |
| Unit ribut. | Unit not on a level surface, internal component vibration. | Teundeun unit dina datar, permukaan stabil. Lamun noise persists, kontak rojongan customer. |
| Indicator light is yellow. | Tangki cai pinuh. | Kosongkeun tangki cai teras pasangkeun deui. |
7. Spésifikasi
| Fitur | Rincian |
|---|---|
| merek | Hysure |
| Ngaran modél | T8 Tambih Deui |
| Kapasitas Dehumidification | Up to 25 oz (750ml) per day (at 86°F, 80% RH) |
| Kapasitas Tangki Cai | 2000 ml (70 oz) |
| Wewengkon Cakupan | Up to 3000 cubic feet (269 sq ft) |
| Konsumsi Daya | 40W |
| Tingkat Noise | Kurang ti 35dB |
| Dimensi produk | 6 "D x 9" W x 15" H (15.24 cm D x 22.86 cm W x 38.1 cm H) |
| Item Beurat | 5.26 pon (2.39 kg) |
| Bahan | palastik |
| Fitur husus | Automatic Moisture Removal, Automatic Shutoff, Continuous Draining, Portable, Quiet Operation, Washable Filter |
8. Garansi jeung Rojongan
Hysure products are manufactured to high-quality standards. For warranty information, technical support, or customer service inquiries, please refer to the contact details provided on the product packaging or visit the official Hysure websitus.
Punten tahan bukti pameseran anjeun pikeun klaim garansi.
