Marantz SR7013 9.2 Channel AV Receiver Instruction Manual

1. Bubuka jeung Leuwihview

The Marantz SR7013 AV Receiver is engineered to deliver a superior and powerful listening experience for movies and music. It incorporates precision audio engineering and tuning, featuring advanced decoding technologies such as Dolby Atmos, DTS:X, Auro-3D, and DTS Virtual:X for immersive home theater sound. Proprietary HDAM circuit boards ensure detailed and dynamic audio reproduction. The receiver is equipped with eight HDMI inputs, fully compatible with the latest specifications including 4K Ultra High Definition video, 60Hz video, HDR, Dolby Vision, Hybrid Log-Gamma, and eARC for 3D audio transmission. Enjoy seamless music streaming from smart devices via Bluetooth, AirPlay 2, or the HEOS app. Voice control is supported through Amazon Alexa, allowing users to manage playback, switch inputs, and adjust volume.

2. Fitur konci

• Exceptional Visual Clarity: Full-rate pass-through, SD/HD video upscaling to Ultra HD, 4:4:4 Pure Color, HDR10, BT.2020, 3D, 21:9 video, Dolby Vision, HLG, and eARC for 3D audio transmission via HDMI.
• Cinematic Audio Experience: 125W per channel, supporting standard 9.2, 7.1.2, or 5.1.4 3D systems with Dolby Atmos elevation speakers. Extend audio to up to 3 rooms with 5.1 (zone 1), 2.1 (zone 2 & zone 3) configurations.
• Integrasi Kontrol Sora: Compatible with Amazon Alexa, Google Assistant, Apple Siri, and Josh Smart Home for hands-free control of music playback, input switching, and volume adjustments.
• Streaming nirkabel: Stream unlimited music and videos via Bluetooth, AirPlay 2, or the HEOS app from your smart devices.
• Otomatisasi Imah Smart: Seamlessly integrates with smart home automation systems like Josh or Control4, enabling remote monitoring of connected devices.
• High-Grade Audio Components: Features Marantz's exclusive HDAM technology and custom-designed components for exceptional stereo listening and an immersive home theater experience.

3. Setélan

3.1. Unboxing and Included Accessories

Sacara saksama miceun sadaya komponén tina bungkusan. Pastikeun sadaya item anu didaptarkeun di handap aya:

• 9.2ch panarima AV
• 6' AC power cord
• Controller jauh
• 2 WLAN/Bluetooth antennas
• Dua batré "AAA"
• Sound calibration microphone (ACM1HB)
• Nangtung mikropon
• anteneu kawat FM
• anteneu loop AM
• Pituduh ngamimitian gancang

3.2. Nempatkeun fisik

Place the Marantz SR7013 on a stable, flat surface with adequate ventilation. Avoid placing it in enclosed cabinets without proper airflow to prevent overheating. Ensure sufficient space around the unit for heat dissipation.

3.3. Nyambungkeun Speaker

The SR7013 supports various speaker configurations, including 9.2, 7.1.2, and 5.1.4 setups. Connect your speakers to the corresponding terminals on the rear panel of the receiver. Ensure correct polarity (+ to + and - to -) for each speaker. For optimal sound, use high-quality speaker cables.

Image: Rear panel of the Marantz SR7013 AV Receiver, illustrating the various speaker terminals and input/output ports for comprehensive connectivity.

For Dolby Atmos or DTS:X setups, connect height speakers or Dolby Atmos-enabled speakers as per your desired configuration. Refer to the quick start guide for detailed wiring diagrams for specific setups.

3.4. Nyambungkeun Alat Audio/Video

Connect your audio and video sources (e.g., Blu-ray player, game console, cable box) to the HDMI input ports on the rear panel. The SR7013 features eight HDMI inputs supporting 4K UHD, HDR, and other advanced video formats. Connect your TV or projector to the HDMI OUT (MONITOR 1 or 2) port. For eARC functionality, ensure your TV supports eARC and connect to the designated HDMI OUT port.

Gambar: Hareupeun view of the Marantz SR7013 AV Receiver, showcasing its sleek design with a central display and prominent control knobs.

Additional audio inputs (analog, optical, coaxial) are available for other devices. Connect the included WLAN/Bluetooth antennas to the rear panel for wireless connectivity.

3.5. Initial Configuration and Room Calibration

After connecting all devices and speakers, power on the receiver and your TV. Follow the on-screen setup assistant for initial configuration. Use the supplied sound calibration microphone (ACM1HB) and microphone stand to perform Audyssey MultEQ XT32 room correction. This process automatically detects speaker configuration, distance, and levels, optimizing sound performance for your specific listening environment.

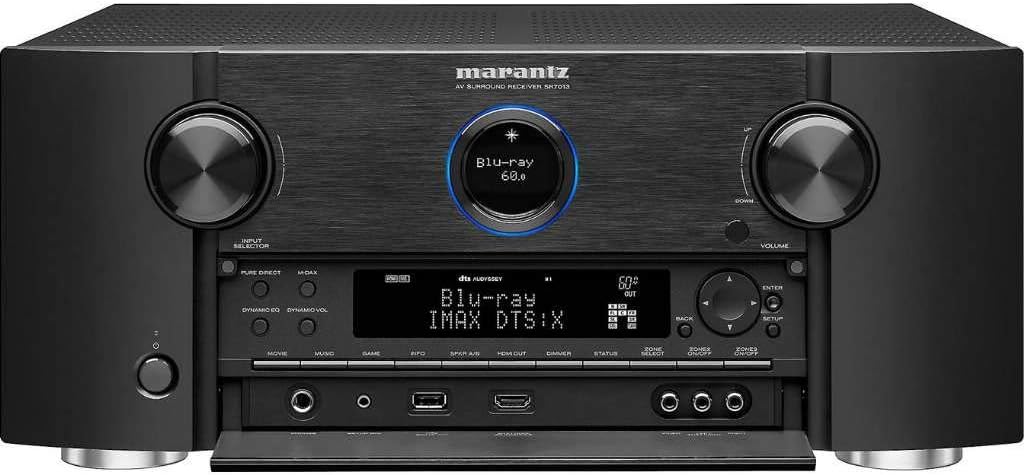

Image: Front panel of the Marantz SR7013 AV Receiver with the lower flap open, revealing additional control buttons and front-facing input ports for convenience.

4. Parentah Operasi

4.1. Operasi dasar

Use the remote control or the front panel buttons to power on/off the receiver, select input sources, and adjust volume. The main display provides information on the current input, volume level, and audio format.

4.2. Audio Modes and Sound Settings

The SR7013 offers various audio modes, including Stereo, Multi-Channel Stereo, Direct, Pure Direct, and surround sound modes (Dolby Atmos, DTS:X, etc.). Select the desired mode based on your content and listening preference. Access advanced sound settings through the on-screen menu to fine-tune equalization, speaker levels, and crossover frequencies.

4.3. Network and Streaming Features

Connect the receiver to your home network via Ethernet or Wi-Fi. Utilize the built-in HEOS technology for multi-room audio and access various streaming services. Bluetooth and AirPlay 2 allow direct streaming from compatible devices. Download the HEOS app for comprehensive control and access to streaming platforms.

4.4. Kontrol sora

Enable the HEOS Home Entertainment skill for Amazon Alexa or integrate with Google Assistant, Apple Siri, or Josh Smart Home. Use voice commands to control basic receiver functions such as power, volume, input selection, and music playback.

4.5. Multi-Zone Audio

The SR7013 supports up to three audio zones. Configure Zone 2 and Zone 3 outputs to enjoy different audio sources in separate rooms. Control each zone independently using the remote control or the HEOS app.

5. Pangropéa

• beberesih: Anggo lawon anu lemes sareng garing pikeun ngabersihkeun bagian luar panarima. Hindarkeun pembersih atanapi pangleyur anu abrasif.
• Ventilasi: Ensure ventilation openings are not blocked to prevent overheating. Regularly check for dust accumulation.
• Pembaruan firmware: Periodically check for and install firmware updates to ensure optimal performance and access to new features. Updates can typically be performed via the network connection.

6. Cara ngungkulan

• Henteu aya kakuatan: Pariksa sambungan kabel listrik sareng pastikeun stop kontakna tiasa dianggo.
• Henteu aya sora: Verify speaker connections, input source selection, and volume level. Check audio mode settings.
• Taya Video: Confirm HDMI cable connections between source, receiver, and TV. Ensure correct input selection on both receiver and TV.
• Masalah Sambungan Jaringan: Check network cable or Wi-Fi settings. Restart your router and the receiver.
• Remote Control Teu Gawé: Ganti batréna. Pastikeun teu aya halangan antara remot sareng sénsor IR panarima.

For more detailed troubleshooting, refer to the full user manual available on the Marantz support websitus.

7. Spésifikasi

8. Garansi jeung Rojongan

For warranty information and technical support, please refer to the official Marantz websitus atanapi ngahubungan layanan palanggan maranéhna. Simpen resi pameseran anjeun pikeun klaim jaminan.

Pabrikan: Marantz

Titimangsa munggaran sadia: 12 Séptémber 2018
