AVANTEK CW-11 Wireless Doorbell Instruction Manual

1. Bubuka

Thank you for choosing the AVANTEK CW-11 Wireless Doorbell. This manual provides detailed instructions for the installation, operation, and maintenance of your new doorbell system. Please read this manual thoroughly before use and retain it for future reference.

2. Eusi Paket

Pastikeun yén sadaya komponén aya dina bungkusan:

• 1 x Panarima Colokkeun
• 1 x Transmitter (Push Button)
• 2 x sekrup
• 2 x Jangkar Tembok
• 1 x Small Key (for battery compartment)
• 1 x Pita napel dua sisi
• 1 x Manual Pamaké

Image: Contents of the AVANTEK Doorbell Kit, showing the receiver, transmitter, screws, anchors, key, and adhesive tape.

3. Produk Langkungview

panarima

• Plug-in design for easy power.
• LED indicator for visual alerts.
• Tombol-tombol pangatur volume.
• Melody selection buttons.
• Compact design (approx. 8 cm height, 7.3 cm width) that does not obstruct adjacent power outlets.

Image: The compact receiver plugged into a wall outlet, illustrating its small size (8 cm height, 7.3 cm width) and how it leaves adjacent sockets free.

Pamancar

• Push button with LED indicator.
• Powered by a CR2032 lithium battery (included), offering up to 3 years of lifespan.
• IP55 dustproof and waterproof rating, suitable for outdoor use in temperatures from -20°C to +60°C.

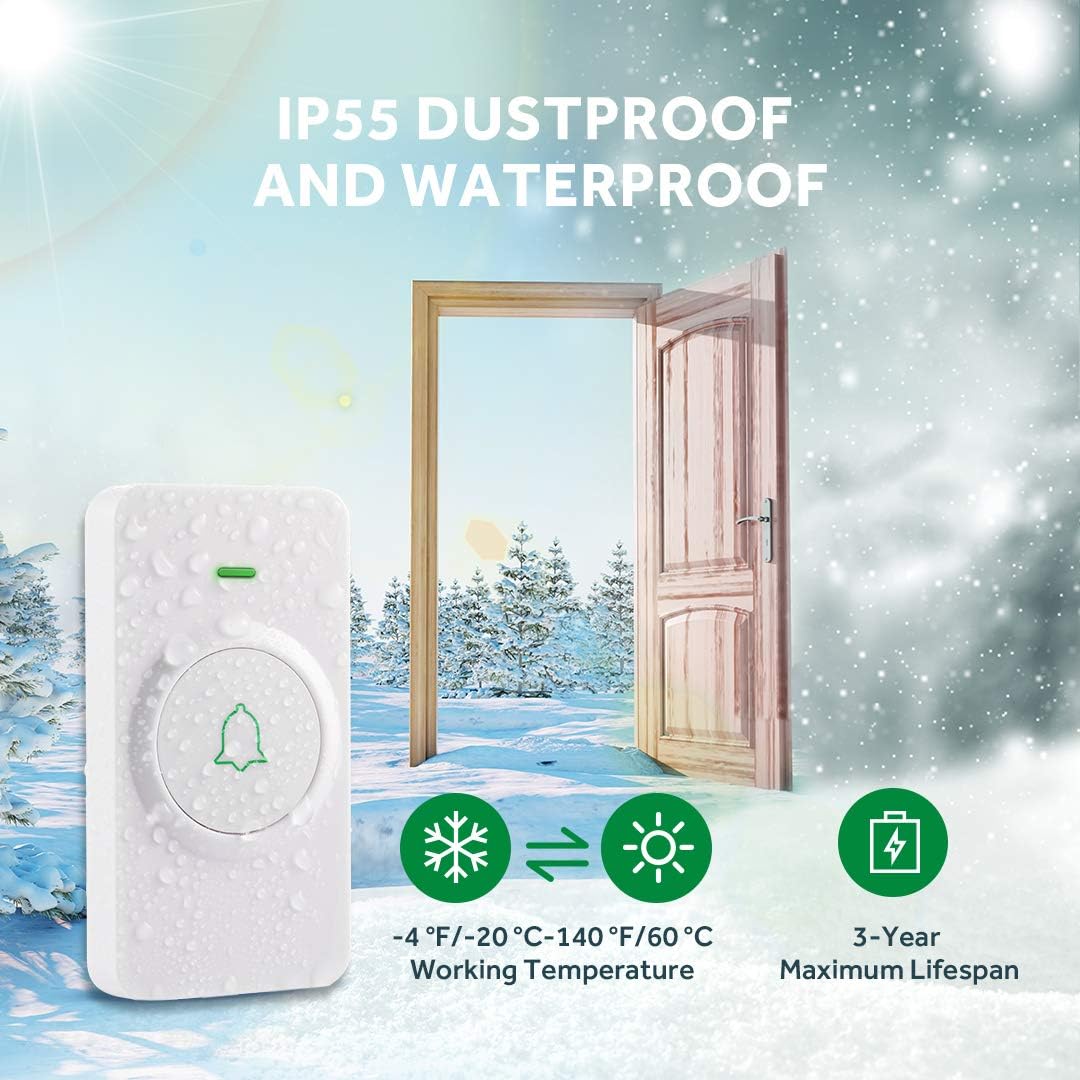

Image: The doorbell transmitter highlighting its IP55 dustproof and waterproof features, with illustrations of its resilience in both cold (-20°C) and hot (60°C) weather, and a 3-year maximum battery lifespan.

4. Setélan

4.1 Pamasangan pamancar

The transmitter can be installed using either the provided screws and anchors or the double-sided adhesive tape.

1. Adhesive Tape Method: Clean the desired mounting surface thoroughly. Peel off one side of the protective film from the double-sided adhesive tape and attach it to the back of the transmitter. Peel off the other side and firmly press the transmitter onto the wall for at least 30 seconds.
2. Screw-in Method: Mark the desired mounting location. Drill two holes at the marked spots. Insert the wall anchors into the holes. Align the transmitter's mounting holes with the anchors and secure it with the screws.

4.2 Setup panarima

Simply plug the receiver into any standard indoor power outlet. The receiver's LED will flash, indicating it is powered on and ready for pairing.

4.3 Ngapasangkeun Pemancar sareng Panarima

The doorbell system is pre-paired at the factory. If re-pairing is needed or if you are adding additional transmitters/receivers:

1. Colokkeun panarima.
2. Press and hold the volume button on the receiver for 3 seconds until its LED starts flashing. This indicates pairing mode.
3. Within 5 seconds, press the transmitter button. The receiver's LED will flash, and it will play its current melody once, indicating successful pairing.
4. If pairing fails, repeat the steps.

5. Operasi

5.1 Ngarobah Melodi

The receiver offers 52 distinct melodies. To change the melody:

• Press the 'Next' or 'Previous' button on the side of the receiver to cycle through the available melodies.
• The receiver will play each melody as you select it.
• The memory function ensures your last selected melody is retained even after a power outage.

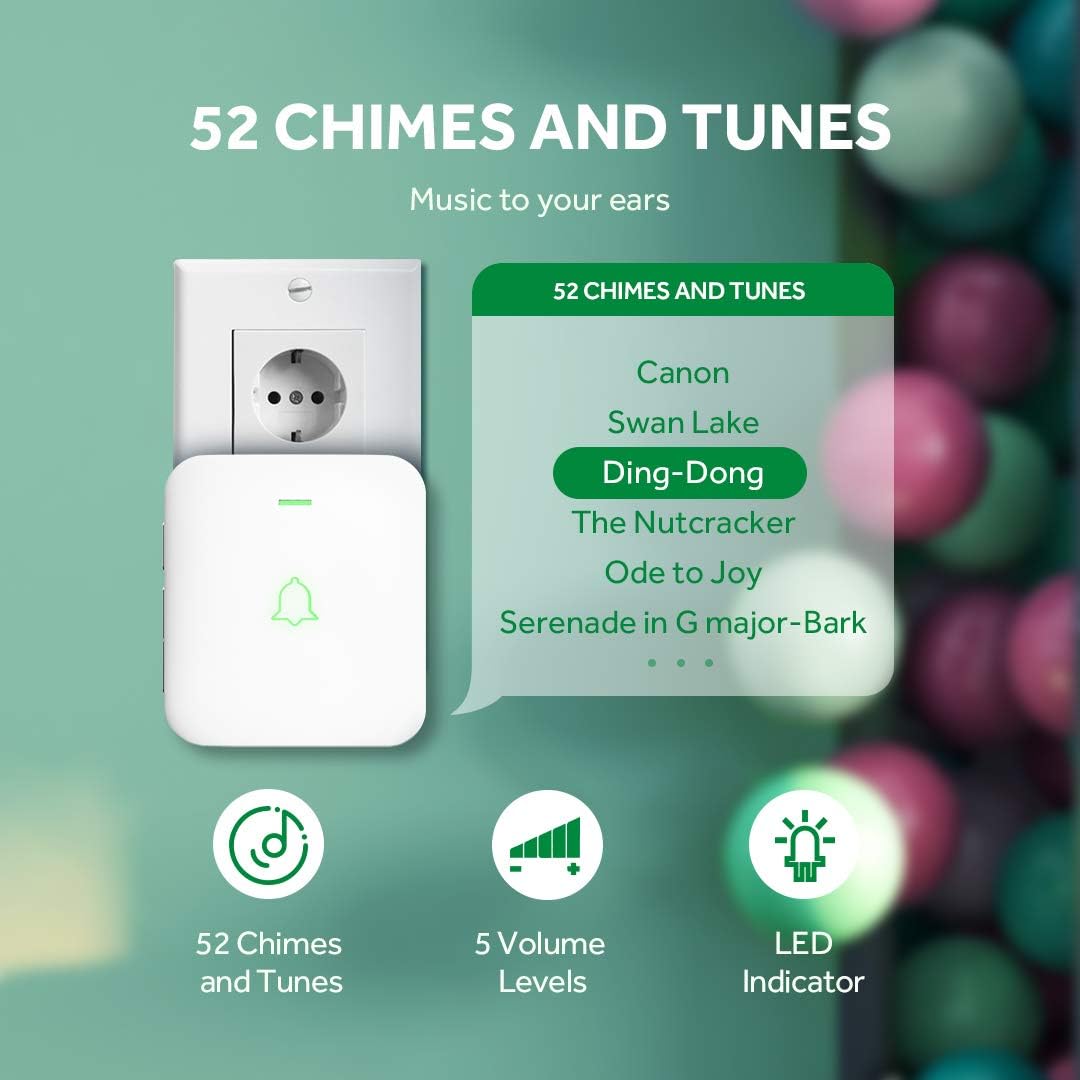

Image: The doorbell receiver displaying its features: 52 chimes and tunes, 5 volume levels, and an LED indicator. Examples of melodies like 'Canon' and 'Ding-Dong' are shown.

5.2 Nyaluyukeun Volume

The receiver has 5 adjustable volume levels, with a maximum sound intensity of 115 dB. To adjust the volume:

• Press the 'Volume' button on the side of the receiver repeatedly to cycle through the 5 volume levels.
• The receiver will play a sound at each level to indicate the current volume.
• The memory function retains your last selected volume level.

5.3 Silent Mode (LED Notification)

For situations requiring silence, such as during sleep or meetings, the receiver can be set to silent mode, where it only provides a visual LED notification.

• Cycle through the volume levels until the mute icon is displayed or the sound is off. The LED will still flash when the doorbell is pressed.

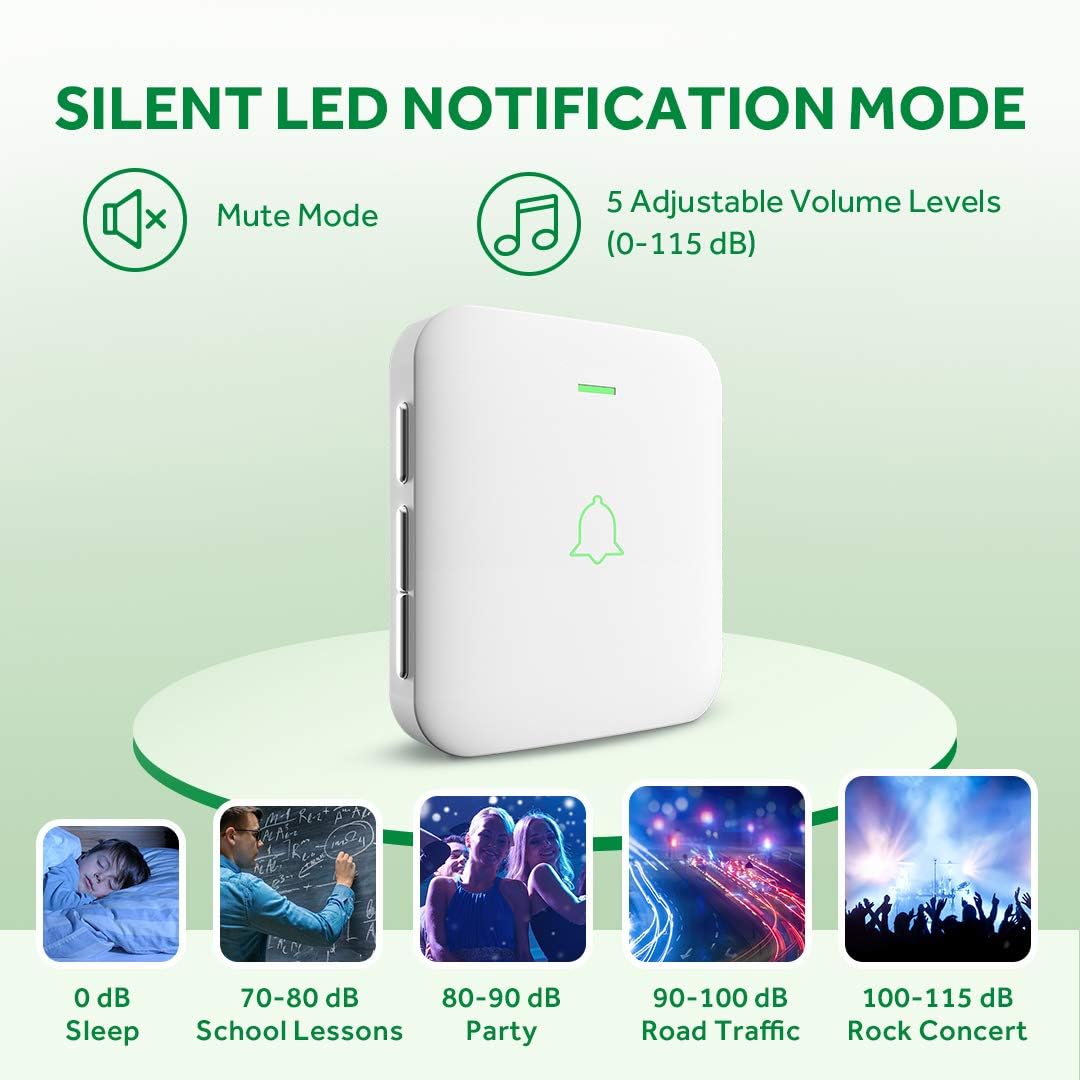

Image: The doorbell receiver illustrating its silent LED notification mode and the range of 5 adjustable volume levels (0-115 dB), with exampkirang ti lingkungan sora anu has.

6. Pangropéa

6.1 Battery Replacement (Transmitter)

The transmitter uses a CR2032 lithium battery with an average lifespan of 3 years. When the transmitter's LED no longer lights up or the range decreases significantly, it's time to replace the battery.

1. Use the small key (or a small flat-head screwdriver) to open the battery compartment on the side of the transmitter.
2. Cabut batré CR2032 anu lami kalayan ati-ati.
3. Selapkeun batré CR2032 anyar kalayan sisi positif (+) nyanghareup ka luhur.
4. Tutup kompartemen batré anu aman.

6.2 beberesih

Lap unit bel panto ku lawon anu lemes sareng garing. Entong nganggo pembersih atanapi pangleyur anu abrasif, sabab éta tiasa ngaruksak permukaan.

7. Cara ngungkulan

8. Spésifikasi

• model: CW-11 / SB-122
• merek: AVANTEK
• Jangkauan nirkabel: Nepi ka 300 méter (1000 suku) dina hawa kabuka
• Melodi: 52 lonceng anu tiasa dipilih
• Tingkat volume: 5 tingkat anu tiasa disaluyukeun (0-115 dB)
• Batré pamancar: 1 x CR2032 Litium (kaasup)
• Umur Batré Pemancar: Nepi ka 3 taun
• Daya panarima: AC 100-240V (Colokkeun)
• Suhu operasi: -20°C nepi ka +60°C (-4°F nepi ka +140°F)
• Rating waterproof: IP55 (Pamancar)
• Sertifikasi: CE, FCC, RoHS
• Ukuran (Receiver): Kira-kira 11.4 x 9.5 x 6.9 cm
• beurat: 159 grams (total package)
• Métode pamasangan: Self-adhesive or Screw-in

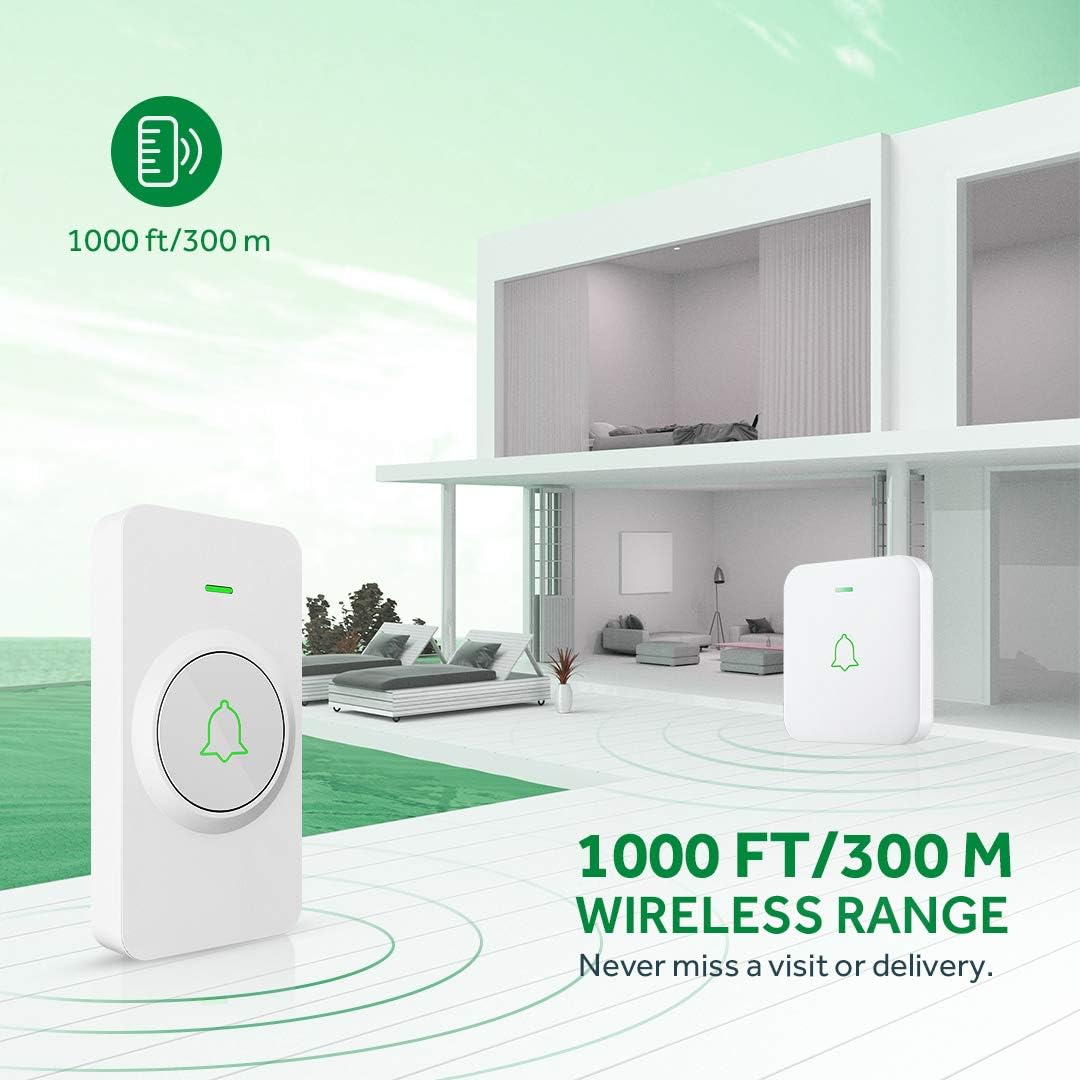

Image: Diagram illustrating the 300-meter (1000 ft) wireless range of the AVANTEK doorbell system within a multi-story home environment.

9. Garansi jeung Rojongan

AVANTEK products come with a standard manufacturer's warranty. For specific warranty details, technical support, or any inquiries, please refer to the contact information provided on the product packaging or visit the official AVANTEK website. Please note that compatibility for products purchased before 2021 may vary; contact customer support for verification.
