Stanley SPT115 115mm Marble Saw 1200W (110V) User Manual

1. Bubuka

The Stanley SPT115 110V Marble Saw is a portable electric tool designed for precise cutting of marble, concrete, wood, and other similar materials. It features a powerful 1200W motor and uses a 115mm diameter blade. This saw is engineered for efficiency and safety in various construction and carpentry tasks.

Key features of your Stanley SPT115 Marble Saw include:

• Powerful 1200W motor for efficient cutting.
• 115mm blade diameter suitable for various materials.
• Motor constructed with sealed ball bearings for enhanced durability against dust.
• Integrated safety switch for secure operation.
• External access to carbon brushes for convenient maintenance.
• Ergonomic handle designed for comfortable and precise control.

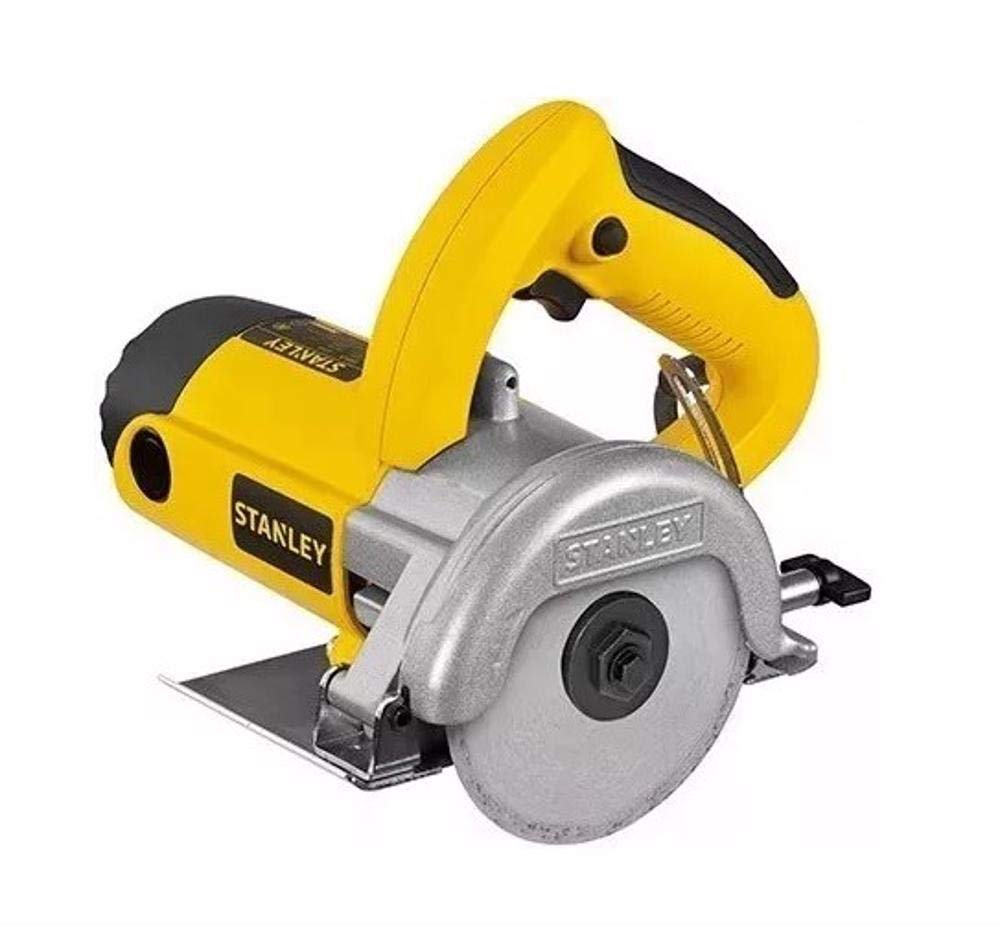

Image 1.1: Stanley SPT115 115mm Marble Saw. This image shows the complete marble saw with its ergonomic handle and blade guard.

2. Pitunjuk Kasalametan Umum

Always follow basic safety precautions when using electric power tools to reduce the risk of fire, electric shock, and personal injury. Keep this manual for future reference.

2.1 Kasalametan Area Gawé

• Tetep wewengkon gawé beresih jeung well-cahayana. Wewengkon nu pabalatak atawa poek ngondang kacilakaan.
• Ulah ngajalankeun parabot kakuatan dina atmosfir ngabeledug, kayaning ku ayana cair kaduruk, gas, atawa lebu. Alat-alat listrik nyiptakeun percikan api anu tiasa nyababkeun lebu atanapi haseup.
• Jauhkeun murangkalih sareng jalma-jalma nalika ngajalankeun alat listrik. Distractions bisa ngabalukarkeun anjeun leungit kontrol.

2.2 Kasalametan listrik

• Colokan alat listrik kedah cocog sareng stop kontak. Pernah ngaropéa colokan dina sagala cara.
• Hindarkeun kontak awak sareng permukaan bumi sapertos pipa, radiator, rentang, sareng kulkas. Aya ngaronjat résiko shock listrik lamun awak anjeun grounded.
• Ulah ngalaan alat listrik ka hujan atawa kaayaan baseuh. Cai asup kana alat listrik bakal ningkatkeun résiko shock listrik.
• Ulah nyiksa ari. Ulah make ari keur mawa, narik, atawa cabut colokan alat kakuatan. Jauhkeun ari tina panas, minyak, ujung seukeut, atawa bagian pindah.

2.3 Kasalametan Pribadi

• Salawasna maké panyalindungan panon. Paké kacasoca kaamanan, kacasoca, atawa tameng beungeut.
• Anggo panyalindungan dédéngéan anu pas.
• Pakéan anu bener. Ulah maké pakéan leupas atawa perhiasan. Jauhkeun rambut sareng pakean anjeun tina bagian anu obah.
• Tetep waspada, awas naon anu anjeun lakukeun, sareng nganggo akal sehat nalika ngoperasikeun alat listrik.
• Ulah overreach. Tetep footing ditangtoskeun jeung kasaimbangan sepanjang waktos.

3. Produk Langkungview jeung Komponén

Familiarize yourself with the main components of your Stanley SPT115 Marble Saw before operation.

• Perumahan motor: Contains the 1200W motor and internal components.
• Gagang ergonomis: Nyayogikeun cekelan sareng kontrol anu nyaman nalika operasi.
• Saklar kaamanan: Prevents accidental starting and allows for quick power cut-off.
• Penjaga Blade: Protects the user from the rotating blade and debris.
• Plat dasar: Supports the saw on the workpiece and guides the cut.
• Agul Clamp/Arbor: Secures the 115mm cutting blade.
• External Carbon Brush Access: Allows for easy inspection and replacement of carbon brushes.
• Kabel listrik: Nyambungkeun alat kana sumber listrik.

4. Setélan

4.1 Ngabongkar bungkusan

• Carefully remove the saw and all accessories from the packaging.
• Mariksa alat pikeun sagala karuksakan anu mungkin geus lumangsung salila pengiriman barang. Ulah beroperasi lamun ruksak.
• Pastikeun sadaya komponén anu didaptarkeun dina eusi pakét aya.

4.2 Blade Installation (Blade not included)

Catetan: The Stanley SPT115 Marble Saw typically does not include a cutting blade. Purchase a suitable 115mm diameter tungsten carbide blade for your specific material (e.g., ceramic, concrete, marble).

1. Pegatkeun Daya: Salawasna pastikeun ragaji dicabut tina sumber listrik sateuacan masang atanapi ngarobih sabeulah.
2. Access Blade Arbor: Locate the blade guard and any locking mechanisms that allow access to the blade arbor.
3. Pasang Blade: Place the chosen 115mm blade onto the arbor, ensuring the rotation direction indicated on the blade matches the arrow on the saw's blade guard.
4. Sabeulah Aman: Use the provided wrench to tighten the blade clamp nut securely. Do not overtighten.
5. Close Guard: Ensure the blade guard is properly closed and secured before connecting power.

4.3 Sambungan Daya

• Verify that your power supply matches the tool's specified voltage (110V).
• Colokkeun kabel listrik kana stop kontak listrik grounded.

5. Parentah Operasi

5.1 Sateuacan Ngamimitian

• Ensure all safety instructions have been read and understood.
• Anggo alat pelindung diri (APD) anu merenah, kalebet kacamata pengaman, pelindung dédéngéan, sareng masker lebu.
• Amankeun workpiece pageuh pikeun nyegah gerakan nalika motong.
• Pariksa yén bilahna parantos dipasang sareng diketatkeun kalayan leres.

5.2 Ngawitan sareng Ngeureunkeun Gergaji

• Pikeun ngamimitian: Press and hold the safety switch, then squeeze the trigger switch.
• Pikeun eureun: Release the trigger switch. The blade will stop rotating.

5.3 Téhnik motong

• Potongan awal: Ngidinan sabeulah pikeun ngahontal speed pinuh saméméh ngahubungan workpiece nu.
• Laju Pakan: Apply steady, even pressure. Do not force the saw, especially when cutting hard materials. Let the tool do the work.
• Potongan lempeng: Use a straight edge or guide to ensure accurate cuts.
• Material Considerations:
  • For ceramic and stone, ensure the material is stable and consider using water cooling if the blade and application allow, to reduce dust and extend blade life.
  • For wood, ensure the wood is free of nails or foreign objects.
• Ngaréngsékeun Motong: Support the workpiece to prevent pinching the blade as the cut is completed.

6. Pangropéa

Regular maintenance ensures the longevity and optimal performance of your Stanley SPT115 Marble Saw. Always disconnect the tool from the power supply before performing any maintenance.

6.1 beberesih

• Sanggeus unggal pamakean, ngabersihan alat ku kaén anu lembut pikeun ngaleungitkeun lebu sareng lebu.
• Use compressed air to clear ventilation openings. Do not allow dust to accumulate.
• Entong nganggo bahan kimia kasar atanapi beberesih kasar.

6.2 Ngagantian Sikat Karbon

The SPT115 features external access to carbon brushes for easy replacement. Worn carbon brushes can lead to reduced power or intermittent operation.

1. Pegatkeun Daya: Cabut alatna.
2. Locate Covers: Identify the carbon brush covers on the motor housing.
3. Remove Brushes: Unscrew the covers and carefully remove the old carbon brushes.
4. Pasang Sikat Anyar: Insert new, genuine Stanley carbon brushes, ensuring they slide freely.
5. Panutup Aman: Replace and tighten the brush covers.

6.3 Inspection agul jeung ngagantian

• Regularly inspect the cutting blade for wear, cracks, or damage. A dull or damaged blade can affect performance and safety.
• Replace worn blades promptly following the blade installation instructions in Section 4.2.

6.4 Panyimpenan

• Simpen alatna di tempat anu garing sareng aman, jauh tina jangkauan barudak.
• Jaga kabel listrik tina karusakan nalika disimpen.

7. Cara ngungkulan

Sateuacan ngahubungi layanan palanggan, tingali pituduh ngungkulan masalah ieu pikeun masalah umum.

8. Spésifikasi

9. Garansi jeung Rojongan

9.1 Émbaran jaminan

This product is covered by Stanley's standard warranty. For specific details regarding the warranty period, coverage, and terms, please refer to the warranty card included with your purchase or visit the official Stanley website. Extended warranty options may be available for purchase separately.

9.2 Rojongan Palanggan

For technical assistance, spare parts, or service inquiries, please contact Stanley customer support. You can find contact information on the official Stanley websitus atanapi ngalangkungan dealer resmi lokal anjeun.

Stanley resmi Websitus: www.stanleytools.com
