Bubuka
The eufy BoostIQ RoboVac 30 is an upgraded, super-thin robot vacuum cleaner designed for efficient cleaning on hard floors and medium-pile carpets. Featuring 1500Pa suction power and BoostIQ Technology, it automatically adjusts suction for optimal cleaning. Boundary strips are included to define cleaning areas, ensuring a worry-free cleaning experience.
The eufy RoboVac 30, a super-thin robot vacuum cleaner, ready for operation.
fitur konci ngawengku:
- Worry-Free Cleaning: Utilize Boundary Strips to restrict cleaning to desired areas. The slim 2.85” body navigates under furniture with ease.
- Téknologi BoostIQ: Automatically increases suction power within 1.5 seconds when additional vacuuming strength is required for deeper cleaning.
- Operasi sepi: Vacuums for up to 100 minutes on hardwood floors with powerful suction, at a noise level comparable to a microwave.
- Fitur pinter: Equipped with an anti-scratch tempered glass-top cover, infrared sensors for obstacle avoidance, and drop-sensing technology to prevent falls. The RoboVac automatically recharges.
Naon dina Box
Your eufy RoboVac 30 package includes the following components:
- RoboVac 30 Unit
- 13 ft Boundary Strips
- Remote Control (2 batré AAA kaasup)
- Base ngecas
- Adaptor Daya AC
- Alat beberesih
- Set tambahan tina Saringan Kinerja Tinggi
- 4 Sikat samping
- 5 Kabel Dasi
- Wilujeng sumping Guide

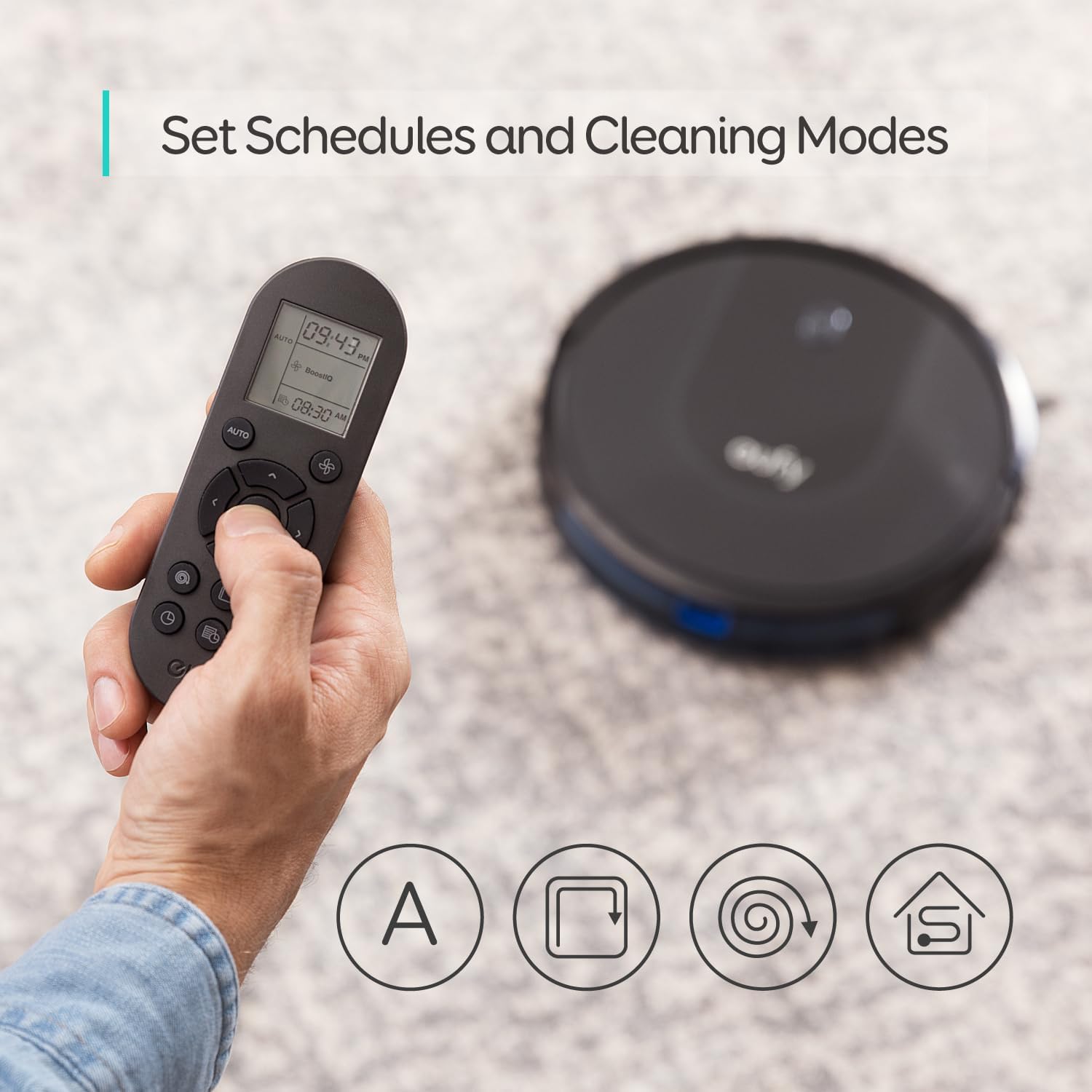

The remote control for the RoboVac 30, showing various cleaning modes.
Disetél
1. Prepare the Charging Base:
Place the charging base against a wall in an open, uncluttered area. Ensure there is at least 3 feet of clear space on either side of the charging base and 6 feet in front of it for optimal navigation.
Connect the AC power adapter to the charging base and plug the other end into a wall outlet. Ensure the power indicator light on the charging base is illuminated.
2. Install Side Brushes:
Flip the RoboVac over. Attach the side brushes to the square posts on the bottom of the unit by pressing them down until they click into place.
3. Biaya Mimiti:
Place the RoboVac onto the charging base. The indicator light on the RoboVac will pulse orange while charging and turn solid blue when fully charged. Allow for a full charge before first use (approximately 5-6 hours).
4. Apply Boundary Strips (Optional):
Use the included boundary strips to create "no-go" zones for your RoboVac. Cut the strips to the desired length and place them on the floor to block off areas you don't want the RoboVac to enter. Ensure the strips are laid flat.
Boundary strips can be used to define specific vacuuming zones.
Parentah Operasi
The RoboVac 30 offers multiple cleaning modes and control options:
Modeu Ngabersihan:
- beberesih otomatis: The RoboVac automatically cleans your home, adjusting its path and suction power as needed. Press the "Auto" button on the remote or the power button on the RoboVac to start.
- Beberesihan Tempat: For concentrated cleaning of a small area, place the RoboVac in the center of the desired spot and select "Spot" mode on the remote.
- Bersihan Tepi: To clean along walls and furniture edges, select "Edge" mode on the remote.
Ngagunakeun Remote Control:
The included remote control allows you to start/stop cleaning, select cleaning modes, adjust suction power, and manually direct the RoboVac.
- Mimitian / eureun: Press the "Start/Stop" button to begin or pause cleaning.
- Tombol arah: Use the arrow buttons to manually steer the RoboVac.
- Daya nyeuseup: Adjust suction levels using the fan icon button.
- Jadwal beberesih: Set a cleaning schedule for specific times.
- Balik deui ka Imah: Press the home icon button to send the RoboVac back to its charging base.
App Control (Wi-Fi Compatible):
For enhanced control and scheduling, download the eufyHome app. The app allows you to:
- Start/Stop cleaning from anywhere.
- Customize cleaning schedules.
- Awasi kamajuan beberesih sareng tingkat batréna.
- Nampi bewara.
Pangropéa
Regular maintenance ensures optimal performance of your RoboVac. Always turn off the RoboVac and unplug the charging base before performing any maintenance.
1. Ngosongkeun Tong Liang:
Press the dustbin release button and pull out the dustbin. Open the dustbin cover and empty its contents into a trash bin. It is recommended to empty the dustbin after each cleaning cycle.
2. Ngabersihan saringan:
Remove the filter from the dustbin. Tap the filter to remove dust and debris. The high-performance filters are washable; rinse them thoroughly with water and air-dry completely for at least 24 hours before reinserting. Replace filters every 6 months or after 50 rounds of washing.
The RoboVac 30 in action, demonstrating its powerful 1500Pa suction.
3. Cleaning the Rolling Brush:
Open the brush guard by pressing the release tabs. Lift out the rolling brush. Use the provided cleaning tool to remove hair and debris wrapped around the brush. Reinsert the rolling brush and close the brush guard until it clicks.
4. Ngabersihan Sikat Sisi:
Gently pull the side brushes off their posts. Remove any hair or debris. If the brushes are worn or damaged, replace them with new ones. Push the new brushes onto the posts until they click.
5. Cleaning the Wheels:
Inspect the front wheel and side wheels for any tangled hair or debris. Pull out the front wheel and clean it. Clean the side wheels with a cloth. Reinsert the front wheel until it clicks.
Pamérésan masalah
The RoboVac will emit a series of beeps and/or display a flashing or solid red light to indicate a problem. Refer to the table below for common issues:
| Flashing Red Indicator Light / Beeps | Lampu Indikator Beureum padet |
|---|---|
| Hiji bip: RoboVac is stuck and a wheel is hanging in mid-air. | Hiji bip: RoboVac's wheel is stuck. |
| Dua bip: Bemper RoboVac macét. | Dua bip: Bemper RoboVac macét. |
| Tilu bip: RoboVac gets stuck and cannot reverse. | Tilu bip: RoboVac's side brush is stuck. |
| Four Beeps: Tingkat kakuatan RoboVac rendah teuing. | Four Beeps: RoboVac's rolling brush is stuck. |
For more detailed troubleshooting, please refer to the full user manual or contact customer support.
spésifikasi
- Ngaran modél: RoboVac 30
- merek: eufy
- Fitur husus: APP and Voice Control, Auto-Docking, Quiet, Wi-Fi Compatible
- warna: Hideung
- Ukuran produk: 12.8 "L x 2.85" W x 12.8" H
- Jenis saringan: Bisa dikumbah
- Kahirupan batré: 100 menit
- Voltage: 14.4 Volt (DC)
- Capacity (Dustbin): 0.6 liter
- Sumber Daya: Batré Powered
- Métode kontrol: Jauh
- Faktor Bentuk: Robotik
- Beurat barang: 5.86 pon
- Saran permukaan: Tile, Laminate, Hardwood, Low-Pile Carpet
Garansi sareng Rojongan
The eufy RoboVac 30 comes with a 12-bulan jaminan bébas salempang, mastikeun katengtreman pikiran kalawan pameseran Anjeun.
For any questions, technical support, or warranty claims, please refer to the contact information provided in your Welcome Guide or visit the official eufy support websitus.
Online resources and FAQs are also available to assist with common inquiries and product usage.
