Bubuka
This manual provides detailed instructions for the installation, operation, and maintenance of your K-Rain KV 12' Adjustable Male Threaded Nozzle. Designed for efficient and precise irrigation, this nozzle delivers superior spray patterns and is compatible with any female-threaded spray body. Please read this manual thoroughly before use to ensure optimal performance and longevity of your product.

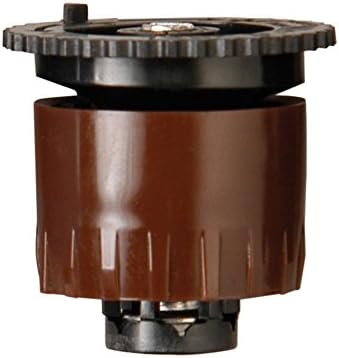

Image: The K-Rain KV 12' Adjustable Male Threaded Nozzle, featuring its brown body and black adjustable top.
Fitur konci
- Superior Spray Patterns: Engineered to provide consistent and efficient water distribution.
- Kasaluyuan Universal: Designed to fit seamlessly with any standard female-threaded spray body.
- Color-Coded Identification: Simplifies selection and installation with distinct color coding.
- Manjangkeun Kahirupan Filter: Features extra-long filters to reduce the frequency of cleaning and maintenance.
Image: An illustration highlighting K-Rain product benefits, including ease of installation, compatibility with other brands, and water conservation features.
Setup sareng Instalasi
- Prepare the Sprinkler Body: Ensure the female-threaded sprinkler body is clean and free of debris.
- Thread the Nozzle: Carefully screw the K-Rain KV 12' Adjustable Male Threaded Nozzle into the sprinkler body. Hand-tighten only to prevent damage to the threads. Do not overtighten.
- Saluyukeun Alignment: Once hand-tightened, ensure the nozzle is oriented correctly for the desired spray direction.
- Initial Water Test: Turn on the water supply to check for leaks and observe the initial spray pattern.
Image: An illustration depicting the versatility of K-Rain products for various landscape types, including small, large, bumpy, and flat areas, emphasizing precision engineering.
Operasi sareng Pangaluyuan
The K-Rain KV 12' nozzle is adjustable, allowing you to customize the spray pattern to suit your landscape needs. Follow these steps to adjust the spray:
- Identify Adjustment Point: Locate the adjustment mechanism on the top of the nozzle. This typically involves a small screw or a rotating collar.
- Saluyukeun Arc: While the water is running, use a flathead screwdriver or your fingers (depending on the design) to rotate the top section or screw. This will adjust the arc of the spray from a partial circle to a full 360-degree pattern.
- Adjust Radius (if applicable): Some adjustable nozzles also allow for radius adjustment. If present, a separate screw or mechanism will control the distance of the spray. Turn clockwise to decrease the radius and counter-clockwise to increase it.
- Setélan lemes: Make small adjustments and observe the spray pattern until the desired coverage is achieved. Ensure there is no overspray onto non-irrigated areas.
Image: An illustration promoting water conservation and efficient coverage, showing how to methodically water each zone of a lawn to minimize runoff and maximize water efficiency.
Pangropéa
Regular maintenance ensures the longevity and optimal performance of your K-Rain nozzle. The extra-long filters help extend time between cleanings, but periodic inspection is still recommended.
- Saringan beberesih: Periodically remove the nozzle from the sprinkler body. Carefully pull out the internal filter screen. Rinse the filter under running water to remove any accumulated debris, dirt, or sediment. If heavily clogged, a soft brush can be used.
- Nozzle Head Cleaning: Inspect the nozzle opening for any blockages. Use a small, soft brush or a toothpick to gently clear any obstructions. Do not use metal objects that could damage the nozzle.
- Reassembly: After cleaning, reinsert the filter screen into the nozzle and screw the nozzle back onto the sprinkler body, hand-tightening only.
- Winterization: In regions subject to freezing temperatures, it is crucial to properly winterize your irrigation system, including removing or draining water from nozzles and lines, to prevent freeze damage. Consult your irrigation system's main manual for specific winterization procedures.
Pamérésan masalah
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Uneven or erratic spray pattern | Clogged filter or nozzle opening; low water pressure. | Clean the filter and nozzle opening as described in the Maintenance section. Check water supply pressure. |
| Taya nyemprot cai tina nozzle | Completely clogged nozzle; no water supply to the zone; damaged nozzle. | Ensure water is supplied to the zone. Clean the nozzle thoroughly. Replace if damaged. |
| Water leaking from base of nozzle | Nozzle not properly tightened; damaged threads; worn seal in sprinkler body. | Hand-tighten the nozzle securely. Inspect threads for damage. If the leak persists, the sprinkler body's seal may need replacement. |
| Spray arc cannot be adjusted | Adjustment mechanism is stuck or damaged. | Gently attempt to free the mechanism. If damaged, the nozzle may need replacement. |
spésifikasi
- merek: K-Rain
- model: KV 12'
- Tipe: Adjustable Male Threaded Nozzle
- Bahan: palastik
- Kasaluyuan: Fits any female-threaded spray body
- ASIN: B07CGM1PBJ
Garansi sareng Rojongan
For warranty information or technical support regarding your K-Rain KV 12' Adjustable Male Threaded Nozzle, please contact K-Rain customer service directly. Refer to the official K-Rain websitus atanapi kemasan produk kanggo inpormasi kontak sareng syarat garansi anu pangénggalna.
You can visit the K-Rain Store for more information: K-Rain Official Store
