Vulcan 36-S-6B-N Endurance Gas Range Instruction Manual

1. Bubuka

This manual provides essential instructions for the safe and efficient installation, operation, and maintenance of your Vulcan 36-S-6B-N Endurance Gas Range. Please read this manual thoroughly before using the appliance and retain it for future reference. Proper installation and adherence to these guidelines are crucial for optimal performance and user safety.

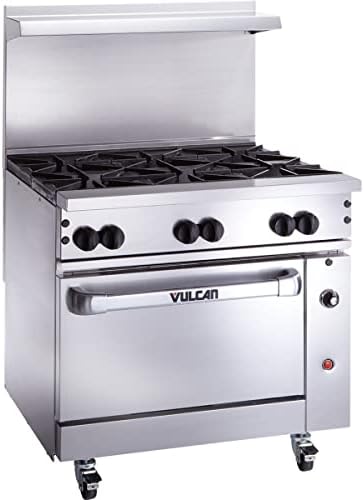

Gambar 1.1: Hareupeun view of the Vulcan 36-S-6B-N Endurance Gas Range, showcasing its stainless steel construction, six top burners, and oven door with a prominent handle.

2. Émbaran Kasalametan penting

WARNING: For your safety, improper installation, adjustment, alteration, service, or maintenance can cause property damage, injury, or death. Read the installation, operating, and maintenance instructions thoroughly before installing or servicing this equipment.

• Ensure proper ventilation when operating this appliance.
• Entong nyimpen atanapi nganggo béngsin atanapi uap sareng cairan anu gampang kaduruk di sakuriling ieu atanapi alat anu sanés.
• Jaga aréa alat beresih sareng bebas tina bahan anu kaduruk.
• Only qualified personnel should install, service, or repair this appliance.
• Always turn off the gas supply to the appliance before performing any maintenance or cleaning.

3. Setup jeung Instalasi

The Vulcan 36-S-6B-N Endurance Gas Range must be installed by a qualified technician in accordance with local codes and the National Fuel Gas Code ANSI Z223.1/NFPA 54 (latest edition).

3.1 Ngabongkar bungkusan

Carefully remove the appliance from its packaging. Inspect for any shipping damage. Report any damage immediately to the carrier and your dealer.

3.2 Sarat Lokasi

• Install on a level, non-combustible surface.
• Maintain adequate clearances from combustible walls and materials as specified by local codes.
• Ensure proper ventilation hood installation above the range.

3.3 Sambungan Gas

Connect the appliance to the natural gas supply using a flexible connector approved for commercial use. Ensure all connections are leak-tested before operation.

3.4 Naratas

The range comes standard with legs. If casters are used (sold separately), ensure they are securely attached and the unit is level to prevent grease spills and ensure even cooking.

Gambar 3.1: Sisi view of the gas range, showing its depth and the standard legs or optional casters for mobility.

4. Parentah Operasi

4.1 Operasi burner

The range features six 30,000 BTU cast iron burners with lift-off heads for easy cleaning. The rear burners are designed to accommodate larger pots and pans.

1. Ensure the burner grates are properly seated.
2. Tempatkeun alat masak dina parut.
3. Push in and turn the corresponding burner control knob to the "PILOT" position.
4. Ignite the pilot light (if not already lit) using a long match or lighter.
5. Once the pilot is lit, turn the knob to the desired flame setting (LOW to HIGH).
6. To turn off, turn the knob to the "OFF" position.

Gambar 4.1: A close-up view of a pan on a lit gas burner, demonstrating the cooking surface in use.

Image 4.2: Another close-up showing clams being cooked in a pan on one of the range's powerful gas burners.

4.2 Operasi Oven

The oven features a 26-1/2"D x 14"H interior and includes two racks. It is designed to fit full-size sheet pans side-to-side or front-to-back.

1. Ensure oven racks are positioned correctly for your cooking needs.
2. Turn the oven control knob to the desired temperature.
3. Ngidinan oven preheat kana suhu nu disetel.
4. Place food inside the oven.
5. Ngawas kamajuan masak.
6. To turn off, turn the knob to the "OFF" position.

Image 4.3: The oven door is open, revealing the spacious interior with two adjustable racks, suitable for full-size sheet pans.

5. Pangropéa jeung beberesih

Regular cleaning and maintenance will extend the life of your Vulcan gas range and ensure safe operation.

5.1 beberesih poean

• Burner Grates and Lift-Off Heads: Remove grates and burner heads daily. Wash with warm, soapy water, rinse, and dry thoroughly.
• permukaan stainless steel: Hapus ku iklanamp cloth and mild detergent. For stubborn stains, use a non-abrasive stainless steel cleaner. Always wipe in the direction of the grain.
• Panci Tetes: Clean drip pans regularly to prevent grease buildup.

5.2 beberesih Oven

• Ngidinan oven pikeun niiskeun lengkep.
• Remove oven racks and clean separately.
• Ngusap interior kalayan iklanamp cloth and mild oven cleaner (ensure it's safe for commercial ovens). Avoid harsh abrasives.

5.3 Pangropéa preventif

• Periodically check gas connections for leaks (using a soapy water solution, never an open flame).
• Ensure pilot lights are consistently lit. If a pilot light frequently goes out, contact a qualified service technician.
• Inspect burner ports for blockages and clean as necessary.

6. Cara ngungkulan

Sateuacan ngahubungan jasa, ulangview masalah umum sareng solusi ieu:

7. Spésifikasi

8. Émbaran jaminan

Specific warranty details for the Vulcan 36-S-6B-N Endurance Gas Range are typically provided at the point of purchase or included with the appliance documentation. Please refer to your purchase agreement or contact Vulcan customer service for comprehensive warranty terms and conditions.

9. Rojongan Palanggan

For technical assistance, parts, or service inquiries, please contact your authorized Vulcan dealer or visit the official Vulcan websitus pikeun sumber rojongan.

When contacting support, please have your model number (36-S-6B-N) and serial number ready.
