Topaz 17100LED 100 Watt LED Temporary Work Light User Manual

1. Bubuka

This manual provides instructions for the safe installation, operation, and maintenance of the Topaz 17100LED 100 Watt LED Temporary Work Light. Please read this manual thoroughly before use and retain it for future reference.

The Topaz 17100LED is an LED temporary high bay fixture designed for rugged job site conditions. It is suitable for outdoor use and features a heavy-duty, corrosion-resistant safety cage. Weighing approximately 6 pounds, this fixture includes a three-foot power cord with a pre-installed, self-locking metal hook for easy hanging and portability. The 17100LED offers significant energy savings compared to traditional HID light fixtures and has an estimated operating life of up to 40,000 hours.

2. Émbaran Kasalametan

Salawasna turutan pancegahan kaamanan dasar nalika nganggo produk listrik pikeun ngirangan résiko seuneu, kejutan listrik, sareng tatu pribadi.

• Baca sagala parentah: Before installation or operation, carefully read and understand all instructions provided in this manual.
• Pegatkeun kakuatan: Always disconnect power at the source before installing, servicing, or cleaning the fixture.
• Pembumian anu leres: Ensure the fixture is properly grounded according to local electrical codes.
• Hindarkeun paparan cai: Sedengkeun cocog pikeun damp locations, avoid direct exposure to heavy rain or submersion in water.
• Ulah ngarobah: Do not attempt to alter or modify the fixture in any way. Unauthorized modifications may void the warranty and create safety hazards.
• Suhu operasi: Ensure the operating environment is within the specified temperature range for the fixture.
• Pamasangan aman: Always ensure the fixture is securely mounted or hung to prevent it from falling.
• rating listrik: Pariksa yén catu daya voltage matches the fixture's electrical rating (120-277V).

3. Eusi Paket

The package for the Topaz 17100LED Temporary Work Light includes:

• 1 x Topaz 17100LED LED Temporary Light

4. Setélan

The Topaz 17100LED is designed for quick and easy setup.

1. Buka bungkus alatna: Carefully remove the LED temporary light from its packaging. Inspect for any damage that may have occurred during shipping.
2. Identify hanging point: Locate a secure and stable structure from which to hang the light. Ensure the hanging point can safely support the weight of the fixture (approximately 6 pounds).
3. Hang the fixture: Utilize the pre-installed, self-locking metal hook to securely hang the light from the chosen structure.
4. Nyambung ka kakuatan: The fixture comes with a 3-foot power cord (Type SVT 300V). Plug the power cord into a standard 120V electrical outlet. Ensure the outlet is functional and provides stable power. The fixture is rated for 120-277V operation.

Image 1: Topaz 17100LED LED Temporary Light showing the integrated hanging hook and safety cage.

5. Parentah Operasi

The Topaz 17100LED is designed for straightforward operation.

1. Daya Hurung: Once the fixture is securely hung and plugged into a live electrical outlet, the light will illuminate immediately.
2. Dimaksudkeun pamakéan: This temporary work light is suitable for various commercial and industrial applications, including:
• Garasi parkir
• New building construction or renovation sites
• Schools and university gymnasiums
• Outdoor work areas
• toko eceran
3. Non-Dimmable: Please note that this fixture is not dimmable. It operates at full brightness when powered on.

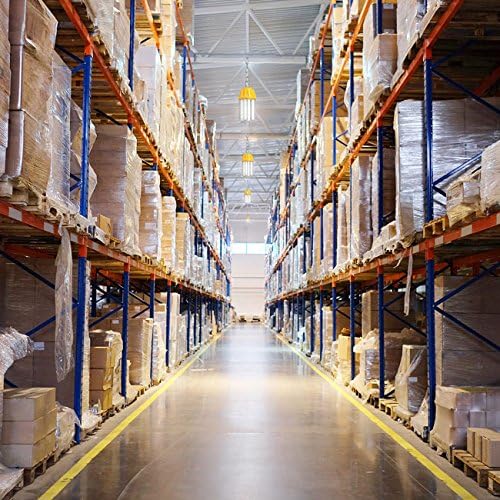

Image 2: Multiple Topaz 17100LED lights providing illumination in a warehouse environment.

6. Pangropéa

The Topaz 17100LED is designed for minimal maintenance due to its durable construction and long-life LED technology.

• beberesih: Disconnect the power before cleaning. Use a soft, dry, or slightly damp lawon pikeun ngusap bagian luar perlengkapan. Entong nganggo pembersih abrasif, pangleyur, atanapi bahan kimia anu keras, sabab ieu tiasa ngaruksak lapisan atanapi komponén internal.
• Kahirupan LED: The integrated LED light source has an estimated operating life of up to 40,000 hours and does not require bulb replacement.
• Pamariksaan: Periodically inspect the power cord and hanging hook for any signs of wear or damage. If damage is observed, discontinue use and contact customer support.

7. Cara ngungkulan

If you encounter issues with your Topaz 17100LED, refer to the following troubleshooting guide:

• Lampu teu hurung:
  • Pastikeun kabel listrik dicolokkeun sacara aman kana stop kontak listrik.
  • Check the circuit breaker or fuse for the outlet to ensure power is supplied.
  • Pariksa yén catu daya voltage is within the fixture's operating range (120-277V).
• Lampu kedip-kedip atanapi redup:
  • Ensure a stable power supply. Fluctuations in voltage can cause flickering.
  • Check for any loose connections in the power cord or outlet.

If these steps do not resolve the issue, please contact Topaz customer support for further assistance.

8. Spésifikasi

Gambar 3: Angled view of the Topaz 17100LED, highlighting the LED light source within the protective cage.

9. Émbaran jaminan

The Topaz 17100LED LED Temporary Work Light is covered by a 1-taun jaminan kawates ti tanggal beuli. Garansi ieu nyertakeun cacad dina bahan sareng pagawean dina panggunaan normal.

The warranty does not cover damage resulting from improper installation, misuse, abuse, accidents, unauthorized repairs, or modifications. For warranty claims or service, please retain your proof of purchase and contact Topaz customer support.

10. Rojongan

For technical assistance, product inquiries, or customer service, please visit the official Topaz website or contact their support department. Refer to the product packaging or the Topaz websitus pikeun inpo kontak panganyarna.

When contacting support, please have your product model number (17100LED) and date of purchase readily available.
