CITIZEN Upper Arm Blood Pressure Monitor CHU501 User Manual

Bubuka

This manual provides essential information for the safe and effective use of your CITIZEN Upper Arm Blood Pressure Monitor CHU501. Please read it thoroughly before use and keep it for future reference.

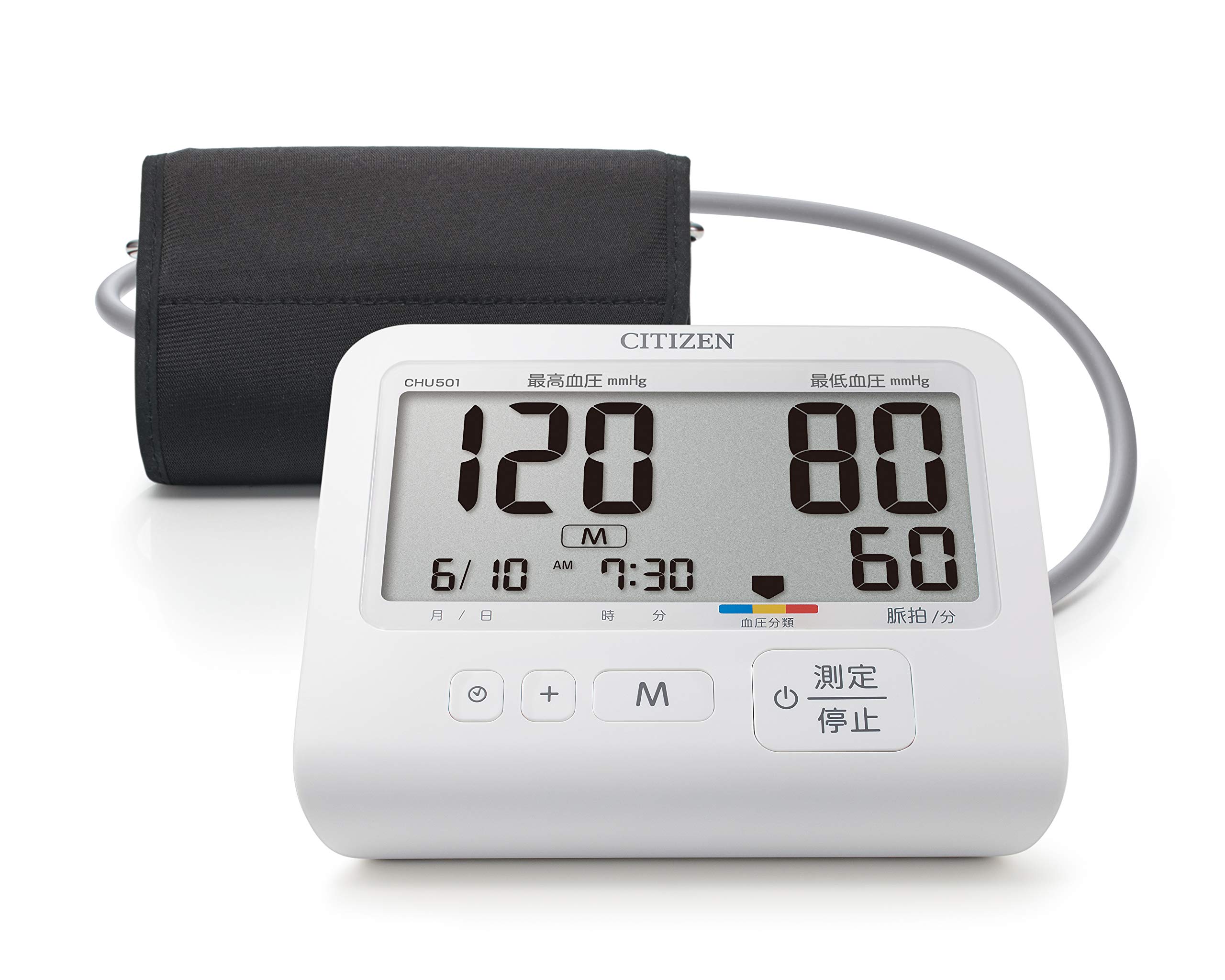

The CITIZEN CHU501 is an automatic electronic blood pressure monitor designed for non-invasive measurement of systolic and diastolic blood pressure, contributing to personal health management.

Important Safety Information and Contraindications

To ensure proper and safe use of your blood pressure monitor, please observe the following warnings and prohibitions:

• Always use the arm cuff provided with this blood pressure monitor. Do not connect or use it in conjunction with other medical devices or instruments. Failure to do so may result in injury or accident.
• If you are measuring your own blood pressure, do so under the guidance of a physician and seek their diagnosis. Follow your doctor's instructions regarding medication. Do not self-diagnose or self-treat based on measurement results.
• Do not apply the cuff to an arm with untreated wounds or injuries, as this may worsen the condition.
• Do not apply the cuff to an arm currently undergoing treatment such as intravenous drip or blood transfusion. This may lead to injury or accident.
• If you have severe circulatory disorders in your arm, consult your physician before using this device. Using it without consultation may cause adverse health effects.
• Individuals with low blood flow at the measurement site, weak pulse, or frequent arrhythmias may experience inaccurate measurements or be unable to measure. Always consult a doctor before use.
• Do not use this device near flammable gases, such as anesthetic gases, in a hospital environment. There is a risk of ignition.
• Do not use this device under high oxygen concentrations, such as in hyperbaric oxygen chambers or oxygen tents within hospitals. There is a risk of fire.
• This product is intended for personal blood pressure measurement at home. Do not use it in medical institutions or public places where an unspecified number of individuals are measured.
• If you use a pacemaker, please follow the instructions of your attending physician.

Disetél

Before using your blood pressure monitor, ensure it is properly set up.

1. Ngabongkar jeung Mariksa Eusi

Carefully unpack the device and verify that all components are present. The standard package includes:

• Main Unit (Blood Pressure Monitor)
• Panangan Cuff
• Instruction Manual / Warranty / EMC Technical Data
• Medical Device Attachment Document
• 4 x AA Alkaline Batteries (for initial monitoring)

2. Pamasangan Sumber Daya

The CHU501 can be powered by four AA alkaline batteries or an optional dedicated AC adapter.

• Pamasangan batré: Open the battery compartment on the back of the device. Insert four AA alkaline batteries, ensuring correct polarity (+/-). Close the compartment securely.

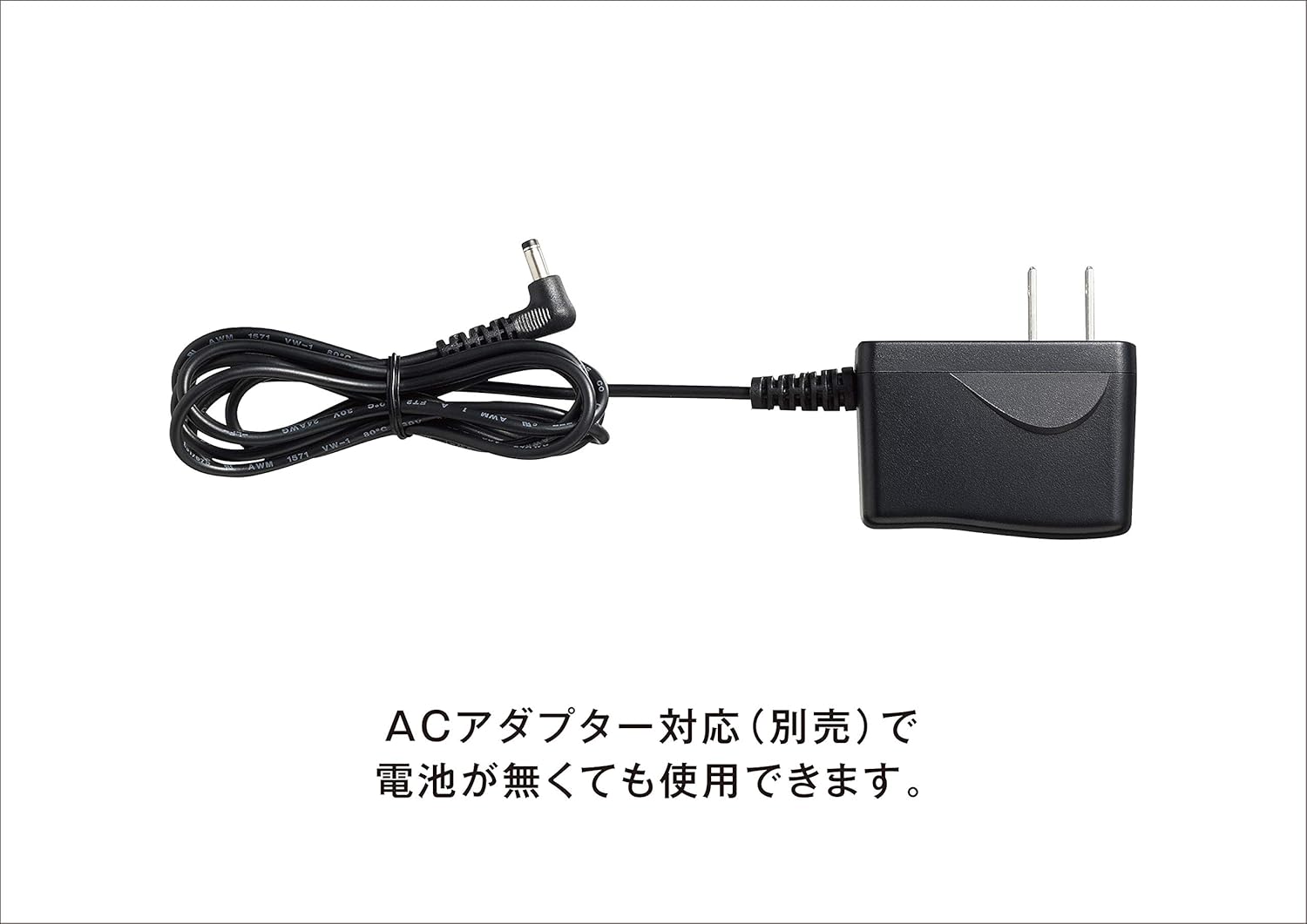

• AC Adapter (Sold Separately): If using the AC adapter, connect it to the power input jack on the side of the monitor and plug it into a wall outlet.

3. Sambungan Cuff

Connect the air plug of the arm cuff firmly into the air jack on the side of the main unit.

Parentah Operasi

Turutan léngkah-léngkah ieu pikeun ngukur tekanan darah anu akurat:

1. Nyiapkeun Pangukuran

• Sit comfortably in a chair with your back supported and feet flat on the floor.
• Letakkan leungeun anjeun dina méja supados manset aya dina tingkat jantung.
• Avoid talking, moving, or eating for at least 5 minutes before measurement.
• Ensure the arm cuff is correctly applied to your upper arm, directly on the skin, about 1-2 cm above the elbow. The applicable arm circumference range is 22.0 to 32.0 cm.

2. Start Measurement

• Pencét éta [Measure/Stop] switch to start the measurement. The cuff will inflate automatically.
• Tetep jempé sareng sepi salami pangukuran.
• The measurement results (systolic, diastolic blood pressure, and pulse rate) will be displayed on the LCD screen once the measurement is complete.

3. Stop Measurement (If Necessary)

• If you feel any discomfort or strong pressure during measurement, press the [Measure/Stop] switch again, disconnect the air hose plug, or remove the cuff immediately.

4. Important Measurement Guidelines

• Do not take continuous measurements. Allow an interval of at least 1 minute between measurements to prevent congestion or swelling in the arm.
• The device stores up to 90 measurement readings in its memory.

Pangropéa

Proper care and maintenance will ensure the longevity and accuracy of your blood pressure monitor.

• beberesih: Wipe the main unit and cuff with a soft, dry cloth. Do not use abrasive cleaners or immerse the device in water.
• Panyimpenan: When not in use for an extended period, remove the batteries from the device. Store the monitor in a cool, dry place, away from direct sunlight, high temperatures, humidity, dust, and corrosive gases.
• Ngagantian batré: If the power mark appears on the display or the device does not turn on when pressing the [Measure/Stop] switch, replace all four AA alkaline batteries simultaneously with new ones. If using rechargeable batteries, ensure they are fully charged.

Pamérésan masalah

If you encounter any issues with your blood pressure monitor, refer to the following common solutions:

Pikeun masalah teu katutupan di dieu, mangga ngahubungan rojongan customer.

spésifikasi

Émbaran jaminan

Your CITIZEN blood pressure monitor is covered by a manufacturer's warranty. Please retain your warranty card and proof of purchase.

Cakupan Garansi:

The warranty guarantees free repair for one year from the date of purchase, in accordance with these warranty terms, should a malfunction occur despite correct use as per the instruction manual. Please note that the information provided on the warranty card may be used for service activities during the warranty period and subsequent safety inspections.

Conditions for Paid Repair (even within warranty period):

• Malfunctions or damages due to incorrect use or handling.
• Malfunctions or damages due to improper storage or attributable to the user.
• Malfunctions or damages due to fire, earthquake, flood, abnormal voltage, power sources other than specified, other natural disasters, or impacts.
• Gagal nampilkeun kartu jaminan.
• Incomplete entries on the warranty card, such as purchase date or store name, or if the text has been altered.
• Replacement of exterior scratches, damage, exterior parts, accessories, or consumables (batteries) after use.

Please note that any costs incurred when bringing the product to the store of purchase or shipping costs to our company will be borne by the customer.

The warranty card will not be reissued, so please keep it safe. This warranty is valid only in Japan.

Rojongan sareng Inpormasi Kontak

For any inquiries, technical support, or service requests, please contact:

If a malfunction is discovered, immediately stop using the device, do not disassemble it, and contact the retailer or our customer service center.
