Rollz Motion 2-in-1 Rollator and Transport Chair User Manual

1. Bubuka

This manual provides detailed instructions for the safe and effective use, setup, operation, and maintenance of your Rollz Motion 2-in-1 rollator and transport chair. Please read this manual thoroughly before using the product to ensure proper function and user safety. The Rollz Motion is designed to offer both walking support as a rollator and the convenience of a transport chair.

2. Émbaran Kasalametan

Your safety is paramount. Adhere to all warnings and instructions provided. Failure to do so may result in injury or damage to the product.

• Kapasitas beurat: Ulah ngaleuwihan kapasitas beurat maksimum tina 275 lb (125 kg).
• Rem: Always engage the parking brakes when sitting on the seat or when the unit is stationary. Ensure brakes are functioning correctly before each use.
• Stabilitas: When using as a rollator, maintain a stable posture and do not lean excessively on the handles, as this may cause the front wheels to lift.
• Konversi: Ensure the unit is fully and securely converted between rollator and transport chair modes before use.
• pangawasan: When used as a transport chair, the user must always be pushed by an attendant. It is not designed for self-propulsion.
• Permukaan henteu rata: Exercise caution on uneven terrain, inclines, or declines. Use the curb assistant feature for small obstacles.

3. Produk Langkungview jeung Komponén

Familiarize yourself with the main parts of your Rollz Motion.

•

  Gambar 3.1: The Rollz Motion in its primary rollator configuration, showcasing the ergonomic handles, frame, and wheels. This view highlights the sleek design and robust construction.

•

  Gambar 3.2: A front perspective of the Rollz Motion when set up as a rollator. This image clearly shows the front swivel wheels and the overall width of the device, emphasizing its maneuverability.
•

  Gambar 3.3: The Rollz Motion transformed into a transport chair, viewed from the front. This configuration includes the backrest and footrests, ready for an attendant to push the user.

•

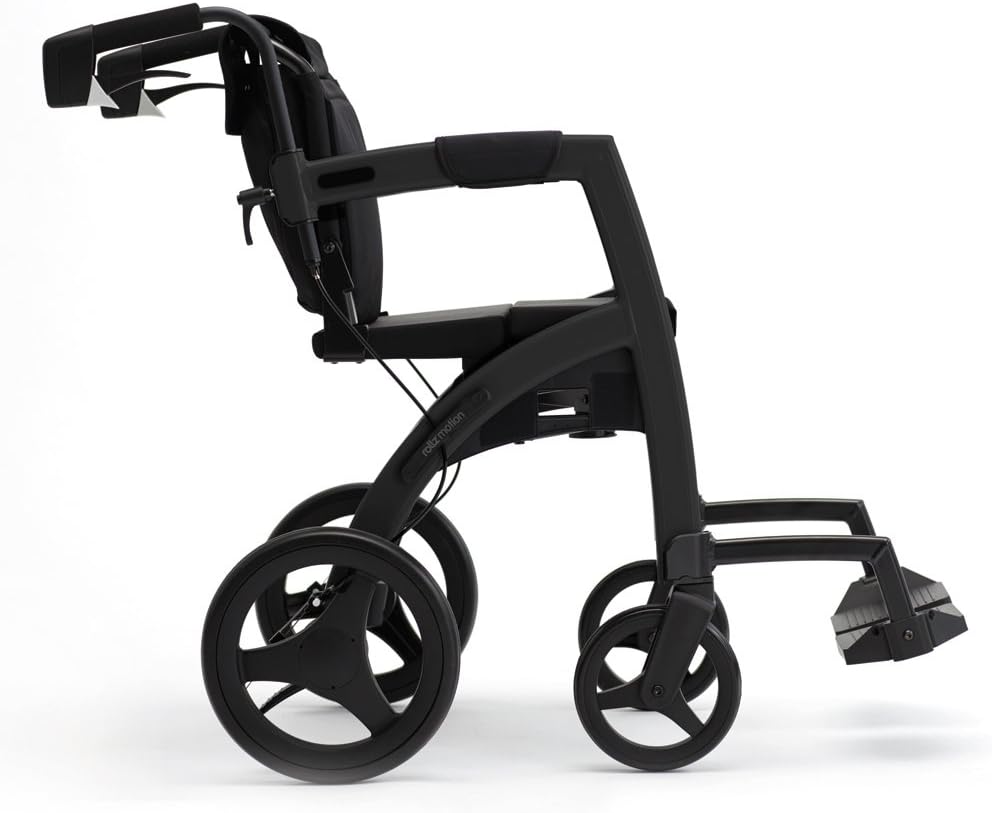

  Gambar 3.4: Hiji sisi view of the Rollz Motion in transport chair mode, illustrating the position of the footrests and the overall profile when configured for transport. The large rear wheels are visible.

•

  Gambar 3.5: An individual being comfortably pushed in the Rollz Motion transport chair, demonstrating its practical use in an outdoor setting. This image highlights the ease of mobility for the user and attendant.

4. Setélan

Follow these steps to prepare your Rollz Motion for use:

1. Unfolding: Place the folded Rollz Motion on a flat surface. Grasp the handles and pull them outwards until the frame locks into place. Ensure all locking mechanisms are engaged.
2. Nyaluyukeun jangkungna cecekelan: Press the adjustment buttons on the handle tubes and slide the handles up or down to your desired height. Release the buttons and ensure the handles lock securely into the nearest hole. The ideal height is when your elbows are slightly bent while standing upright with your hands on the grips. Handle height range: 34 - 39 inches (86 - 99 cm).
3. Attaching Footrests (for Transport Chair mode): The detachable transport chair package includes removable footrests. Locate the attachment points on the frame and securely click the footrests into place. Ensure they are firmly attached before use.

5. Parentah Operasi

5.1 Using as a Rollator

• Leumpang: Push the rollator forward, maintaining a position between the handles. Walk at a comfortable pace, allowing the rollator to support your balance.
• ngerem: Squeeze the brake levers on the handles to slow down or stop. For parking, push the brake levers down until they click into the locked position. Pull them up to release. The unit is equipped with innovative drum brakes for safe and balanced braking.
• linggih: Engage the parking brakes before sitting on the seat. Ensure the unit is stable. Seat size walker: 16.5 x 8 inches (42 x 20.3 cm). Seat height: 21.5 inches (55 cm).

5.2 Converting to a Transport Chair

To transform your rollator into a transport chair:

1. Ensure the unit is on a flat, stable surface and the parking brakes are engaged.
2. Follow the specific conversion steps outlined in the quick guide provided with your product. This typically involves rotating the backrest and attaching the footrests.
3. Verify all components are securely locked in place before a user sits in the chair. Seat size transport chair: 16.5 x 15 inches (42 x 38 cm).

5.3 Ngagunakeun salaku Kursi Angkutan

• Ensure the user is seated comfortably and securely.
• The attendant should grasp the handles firmly and push the chair.
• Curb Assistant: For small curbs or obstacles, gently press down on the curb assistant lever (located near the rear wheels) with your foot to slightly lift the front wheels, allowing for easier navigation over the obstacle.

6. Pangropéa

Regular maintenance ensures the longevity and safe operation of your Rollz Motion.

• beberesih: Clean the frame and fabric components with a damp lawon jeung detergent hampang. Ulah make cleaners abrasive.
• Pamariksaan rem: Periodically check the brake cables and levers for wear or damage. Ensure the brakes engage and disengage smoothly and effectively. Adjust if necessary, or consult a qualified technician.
• Inspeksi roda: Inspect wheels regularly for wear, especially the rear wheels. While durable, continuous use on rough surfaces may lead to wear. Ensure all wheels spin freely and are free of debris. Front wheel diameter: 8 inches (20.3 cm), Rear wheel diameter: 12 inches (30.5 cm).
• Pengikat: Check all screws, bolts, and fasteners periodically to ensure they are tight. Do not overtighten.
• Panyimpenan: Store the Rollz Motion in a dry, clean place, away from direct sunlight and extreme temperatures. The unit folds into a compact package for easy storage. Depth folded: 11.5 inches (29.2 cm).

7. Cara ngungkulan

If you encounter issues with your Rollz Motion, refer to the following common problems and solutions:

• Kasesahan Lipatan / Unfolding: Ensure all locking mechanisms are disengaged before attempting to fold, and fully engaged when unfolding. Check for any obstructions.
• Brakes Not Engaging/Disengaging Properly: Check for debris in the brake mechanism. Inspect brake cables for fraying or looseness. If issues persist, professional adjustment may be required.
• Unstable as a Walker: Ensure handle height is correctly adjusted for your posture. Avoid leaning too far forward. The design requires the user to walk close to the unit.
• Roda henteu lancar: Check for hair, lint, or other debris wrapped around the wheel axles. Clean wheels regularly.

For problems not listed here, please contact customer support.

8. Spésifikasi

9. Garansi jeung Rojongan

For warranty information, please refer to the documentation provided with your purchase or visit the official Rollz website. Rollz products are designed for durability and performance.

For customer support, technical assistance, or to inquire about replacement parts, please contact your authorized Rollz dealer or the Rollz customer service department. Contact details can typically be found on the manufacturer's websitus atanapi dina resi pameseran Anjeun.
