Homtime Alarm Clock Radio User Manual

Bubuka

Hatur nuhun pikeun meuliasing the Homtime Alarm Clock Radio. This device combines a digital alarm clock, wireless Bluetooth speaker, FM radio, and dual USB charging station, designed to enhance your bedroom or office environment. Please read this manual carefully before use to ensure proper operation and to fully utilize all features.

Émbaran Kasalametan penting

• Ulah ngalaan unit ka hujan atawa Uap pikeun nyegah seuneu atawa shock listrik.
• Do not expose the unit to direct sunlight, heat sources, or excessive dust.
• Pastikeun ventilasi anu leres sareng henteu ngahalangan bukaan ventilasi.
• Paké ngan adaptor kakuatan disadiakeun kalawan unit.
• Entong nyobian ngabongkar atanapi ngarobih unit. Rujuk sadayana jasa ka tanaga anu mumpuni.
• Jauhkeun unit tina médan magnét anu kuat.
• Buang batré kalayan leres, nuturkeun aturan lokal.

Eusi pakét

Mangga parios pakét kanggo barang-barang ieu:

• Homtime Alarm Clock Radio Unit
• Adaptor kakuatan
• Manual pangguna (dokumén ieu)

Produk Leuwihview

Familiarize yourself with the various parts and controls of your Homtime Alarm Clock Radio.

Gambar 1: Hareupeun view of the Homtime Alarm Clock Radio, showing the digital display, dual USB charging ports, and top control panel with phone stand.

Gambar 2: Various perspectives of the alarm clock radio, highlighting the top control panel, front display, side speaker grilles, and bottom battery compartment.

Layout Panel kontrol

• Layar tampilan: Shows time, alarm status, FM frequency, and Bluetooth indicator.
• SNOOZE / DIMMER Button: Activates snooze during alarm, adjusts display brightness.
• Tombol Luhur / Turun: Saluyukeun volume audio.
• Tombol Bluetooth: Mimitian mode papasangan Bluetooth.
• Tombol Radio FM: Toggles FM radio mode.
• Tombol Setel Alarm: Lebet kana modeu setelan alarm.
• Tombol Setel Waktos: Asup kana mode setelan waktos.
• Dual USB Port Ngecas: Pikeun ngecas alat éksternal.
• Stand Telepon: slot terpadu pikeun nyekel smartphone.
• AUX-in Port (Rear): For connecting external audio devices via cable.
• FM Antenna (Rear): Antena anu tiasa dipanjangkeun pikeun panarimaan FM.

Disetél

1. Sambungan Daya

1. Connect the provided power adapter to the DC 5V input port on the back of the unit.
2. Colokkeun adaptor kakuatan kana stop kontak témbok standar. Pintonan bakal hurung.

2. Nyadangkeun Batré (Opsional)

The unit supports 3 AAA batteries (not included) for time and alarm settings backup during power outages. This feature does not power the display or audio functions.

1. Tangtukeun lokasi kompartemen batré dina handapeun unit.
2. Buka panutup kompartemen.
3. Pasangkeun 3 batré AAA, perhatikeun polaritasna anu leres (+/-) sakumaha anu dituduhkeun di jero kompartemenna.
4. Tutup panutup kompartemen batré aman.

Parentah Operasi

Nyetél Waktos

1. Pencét jeung tahan tombol Waktos Set tombol nepi ka digit jam mimiti flash.
2. Ngagunakeun éta Volume Kaluhur/Turun tombol pikeun nyaluyukeun jam.
3. Pencét éta Waktos Set button again to move to the minute digits.
4. Ngagunakeun éta Volume Kaluhur/Turun tombol pikeun nyaluyukeun menit.
5. Pencét éta Waktos Set tombol sakali deui pikeun ngonfirmasi tur kaluar mode setelan waktos.

Nyetel Alarm

1. Pencét jeung tahan tombol Siapkeun Alarm tombol nepi ka angka jam alarm mimiti kedip-kedip.
2. Ngagunakeun éta Volume Kaluhur/Turun tombol pikeun nyaluyukeun jam alarm.
3. Pencét éta Siapkeun Alarm button again to move to the alarm minute digits.
4. Ngagunakeun éta Volume Kaluhur/Turun tombol pikeun nyaluyukeun menit alarm.
5. Pencét éta Siapkeun Alarm button again to select the alarm source (Buzzer or FM Radio). Use Volume Kaluhur/Turun pikeun milih.
6. Pencét éta Siapkeun Alarm button one more time to confirm and exit alarm setting mode. The alarm icon will appear on the display.

Catetan: The alarm volume starts low and gradually increases to gently wake you up.

Fungsi Snooze

Lamun alarm disada, pencét badag SNOOZE / DIMMER button on the top of the unit to temporarily silence the alarm. The alarm will sound again after a few minutes.

Paparan Dimmer

Pencét éta SNOOZE / DIMMER button (when the alarm is not sounding) to cycle through different brightness levels for the display, including an option to turn it off completely.

Operasi Radio FM

Gambar 3: The alarm clock radio actively receiving FM radio signals, indicated by graphic waves.

1. Extend the FM antenna located at the back of the unit for optimal reception.
2. Pencét éta Radio FM button to enter FM radio mode. The current frequency will be displayed.
3. Pencét jeung tahan tombol Radio FM button to auto-scan and save available stations.
4. Ngagunakeun éta Volume Kaluhur/Turun tombol pikeun ngatur volume radio.
5. Pikeun nyetel sacara manual, pencét sakeudeung Volume Kaluhur/Turun kancing.
6. To exit FM radio mode, press the Radio FM tombol deui.

Saré ka Timer Musik

While in FM radio mode, you can set a sleep timer (15-60 minutes) to automatically turn off the radio after a set duration. Consult the full manual for specific button presses for this feature.

Papasangan Bluetooth

Gambar 4: The alarm clock radio wirelessly connected to a smartphone via Bluetooth, ready for audio streaming.

1. Pencét éta Bluetooth button on the top panel. The Bluetooth indicator on the display will flash, indicating pairing mode.
2. Dina alat nu diaktipkeun Bluetooth (contona, smartphone, tablet), aktipkeun Bluetooth sareng milarian alat nu sadia.
3. Select "Homtime" (or similar name) from the list of devices.
4. Once connected, the Bluetooth indicator on the clock's display will stop flashing and remain solid. You can now stream audio from your device to the alarm clock radio.

USB Ngecas

Gambar 5: A smartphone connected to one of the two front USB ports on the alarm clock radio, illustrating the charging capability.

The unit features dual USB charging ports (1 x 2.1A, 1 x 1.0A) on the front for convenient charging of your mobile devices.

1. Connect your device's USB charging cable to one of the USB ports on the front of the alarm clock radio.
2. Sambungkeun tungtung kabel anu sanésna kana smartphone, tablet, atanapi alat anu didamel tina USB anjeun.
3. Alat bakal mimiti ngecas sacara otomatis.

Catetan: Built-in surge protection helps prevent overcharging and overheating.

Ngagunakeun Stand Telepon

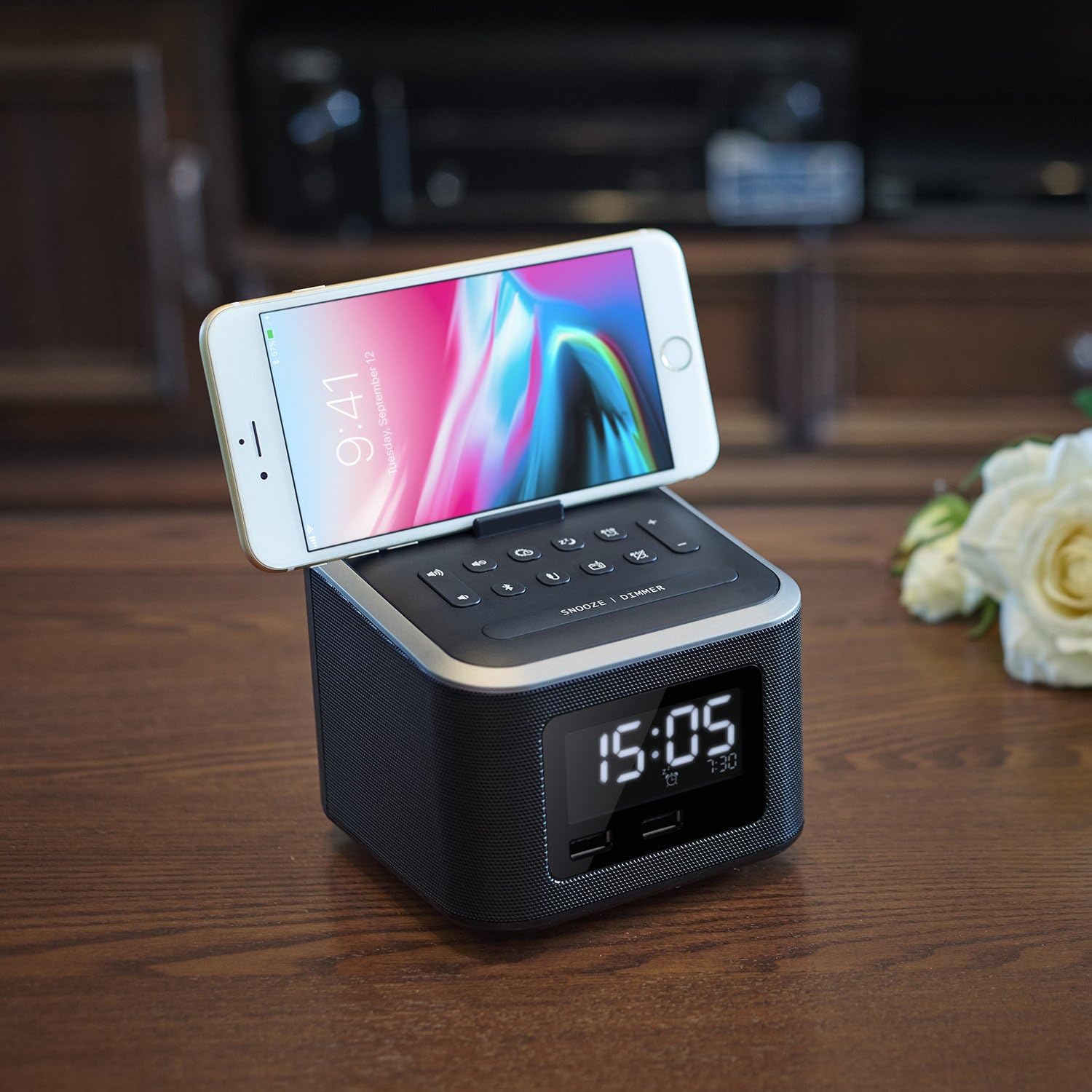

Gambar 6: A smartphone securely resting in the dedicated stand on the top surface of the alarm clock radio, ideal for hands-free viewing.

The integrated phone stand on the top of the unit allows you to conveniently dock your smartphone while charging or watching videos.

Sambungan AUX-in

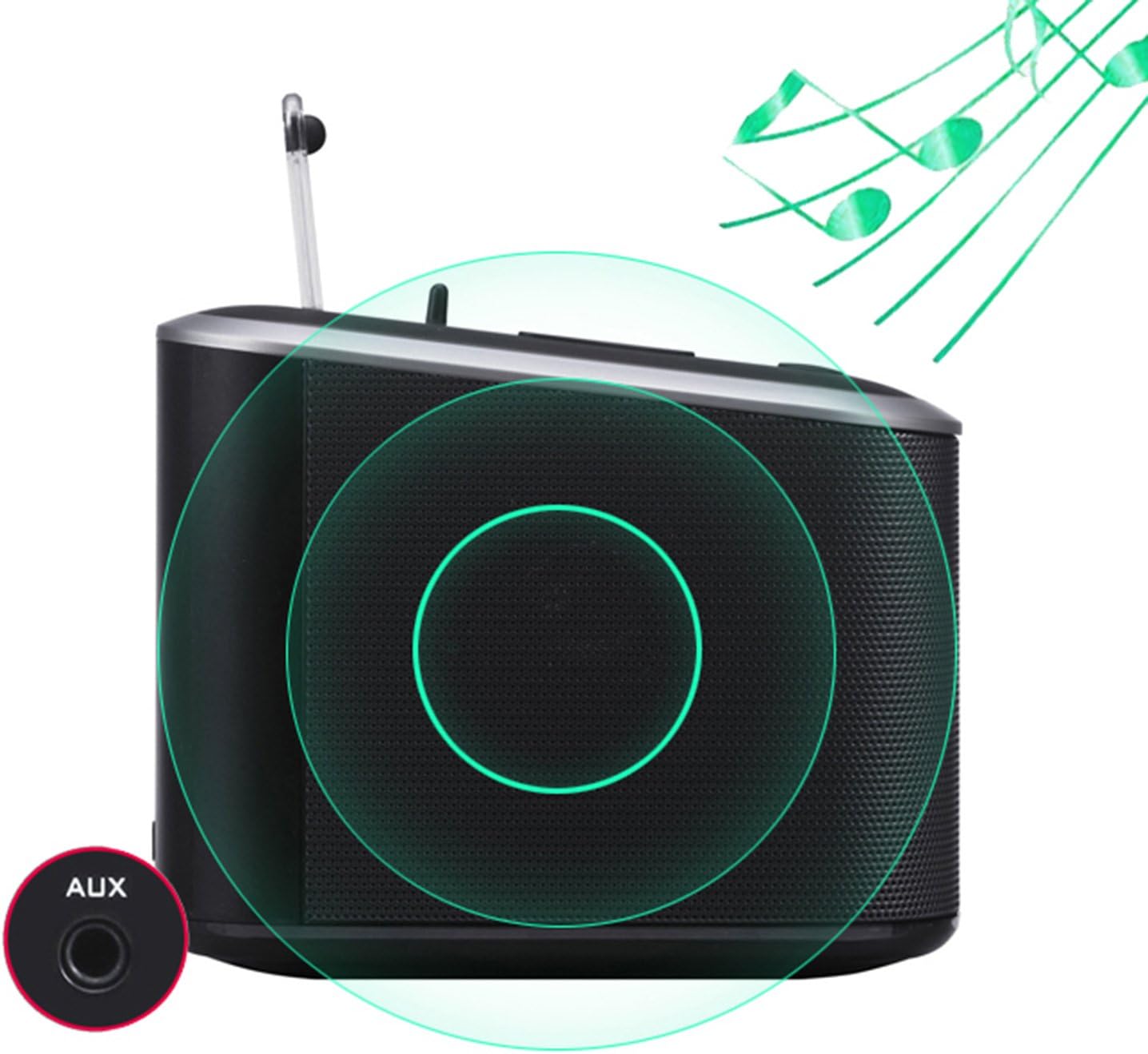

Gambar 7: Tukangeun view of the alarm clock radio, specifically highlighting the AUX-in port for connecting external audio devices with a 3.5mm cable.

Connect any audio device with a 3.5mm audio output (e.g., MP3 player, older smartphone) to the AUX-in port on the back of the unit using a 3.5mm audio cable (not included).

1. Connect one end of a 3.5mm audio cable to the AUX-in port on the back of the alarm clock radio.
2. Sambungkeun tungtung kabel anu sanésna kana jack headphone atanapi output audio alat éksternal anjeun.
3. The unit will automatically switch to AUX-in mode, or you may need to select it using the mode button (if applicable, otherwise Bluetooth/FM will be off).
4. Kontrol playback sareng polumeu tina alat anu disambungkeun.

Pangropéa

• beberesih: Ngusap unit ku kaén anu lembut sareng garing. Ulah make cleaners abrasive atawa pangleyur.
• Panyimpenan: If storing for an extended period, disconnect from power and remove backup batteries. Store in a cool, dry place.
• Perawatan Antenna: Handle the FM antenna gently to avoid damage.

Pamérésan masalah

spésifikasi

Garansi sareng Rojongan

Homtime products are designed and manufactured to the highest quality standards. For information regarding warranty coverage, technical support, or service inquiries, please refer to the contact information provided with your purchase or visit the official Homtime websitus.

Punten mertahankeun bukti pameseran anjeun pikeun tujuan garansi.
