Dell D6000 Universal Dock Instruction Manual

Bubuka

The Dell D6000 Universal Dock is designed to provide universal compatibility for a wide range of PC brands and operating systems utilizing DisplayLink technology. This dock allows convenient connection of any laptop equipped with USB-C or USB-A, enabling users to connect to multiple displays, a mouse, keyboard, and other peripherals through a single cable. It supports up to three 4K displays simultaneously or a single 5K resolution display. The single USB-C cable also provides power delivery to charge your laptop up to 65W, helping to maintain a clean and organized workspace.

Eusi pakét

Pastikeun yén sadaya komponén aya dina bungkusan:

• Dell D6000 Universal Dock
• Adaptor kakuatan
• Kabel Daya
• USB-C to USB-A/USB-C Cable (integrated)
• HDMI Cable (may be included depending on region/bundle)

Disetél

Follow these steps to set up your Dell D6000 Universal Dock:

1. Sambungkeun Kakuatan: Plug the power cable into the power adapter, then connect the power adapter to the dock's power input port and a wall outlet.
2. Nyambung ka Laptop: Use the integrated USB-C cable from the dock to connect to your laptop's USB-C port. If your laptop only has USB-A ports, slide the USB-C connector back to reveal the USB-A connector and plug it into a USB 3.0 port on your laptop.
3. Pasang Supir: For optimal functionality, ensure DisplayLink drivers are installed on your operating system (Windows 7, 8, 8.1, 10, or Chrome OS). Drivers can typically be downloaded from the official Dell support websitus.
4. Sambungkeun Pintonan: Connect your monitors to the dock using the available HDMI and DisplayPort outputs. The dock supports up to three 4K displays or one 5K display.
5. Sambungkeun Periferal: Plug in your USB devices (keyboard, mouse, external drives) into the USB 3.0 ports on the front or back of the dock. Connect your network cable to the Ethernet port for a wired internet connection. Use the audio jack for headphones or speakers.

Gambar: Hareupeun view of the Dell D6000 Universal Dock, highlighting the two USB 3.0 ports, one USB-C port, and a 3.5mm audio jack.

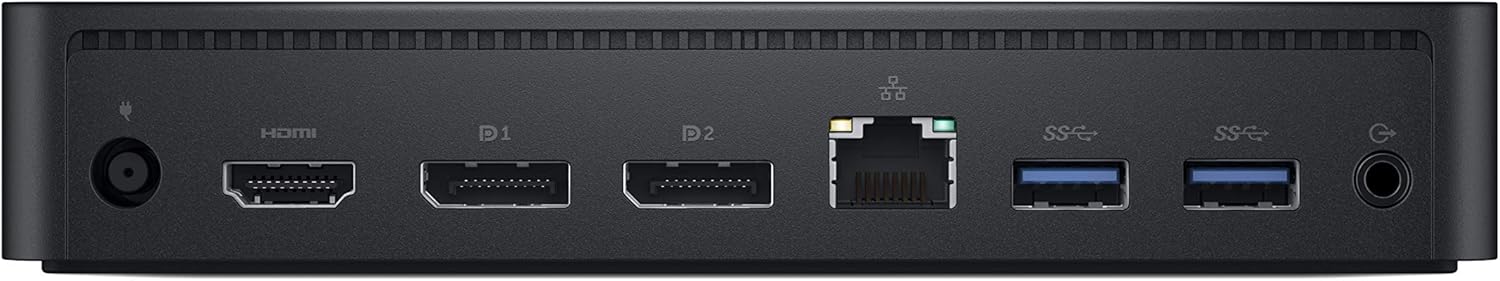

Gambar: Tukangeun view of the Dell D6000 Universal Dock, showing the power input, HDMI port, two DisplayPort outputs, Ethernet port, two additional USB 3.0 ports, and a 3.5mm audio output.

Parentah Operasi

Once the Dell D6000 Universal Dock is properly set up and connected to your laptop, it operates automatically.

• Deteksi otomatis: Your laptop should automatically detect the connected displays and peripherals.
• Konfigurasi Tampilan: You can configure your display settings (e.g., extend, duplicate, primary display) through your operating system's display settings.
• Pangiriman kakuatan: If connected via USB-C, the dock will charge your laptop (up to 65W) while in use, eliminating the need for a separate laptop charger.
• Hot-Plugging: (teu kahartos) Peripherals can generally be connected or disconnected while the dock is active without requiring a system restart.

Pangropéa

To ensure the longevity and optimal performance of your Dell D6000 Universal Dock, follow these maintenance guidelines:

• beberesih: Use a soft, dry cloth to clean the exterior of the dock. Avoid liquid cleaners or abrasive materials.
• Ventilasi: Ensure the dock's ventilation slots are not obstructed to prevent overheating.
• Manajemén Kabel: Organize cables to prevent tangling and strain on the ports. Avoid bending cables sharply, especially the integrated USB-C/USB-A cable.
• Panyimpenan: When not in use for extended periods, disconnect the dock from power and store it in a cool, dry place.

Pamérésan masalah

If you encounter issues with your Dell D6000 Universal Dock, try the following troubleshooting steps:

• Henteu aya kaluaran tampilan:
  • Ensure the dock is powered on and the power adapter is securely connected.
  • Verify that the DisplayLink drivers are correctly installed and up to date.
  • Check all display cables (HDMI, DisplayPort) for secure connections.
  • Try connecting displays one at a time to isolate a potential issue with a specific port or cable.
  • Pareuman terus hurungkeun deui laptop sareng dok anjeun.
• Peripherals Not Responding (Keyboard, Mouse, etc.):
  • Ensure the USB devices are securely plugged into the dock's USB ports.
  • Try connecting the device to a different USB port on the dock or directly to your laptop to determine if the issue is with the dock port or the device itself.
  • Update DisplayLink drivers and your laptop's USB drivers.
• Inconsistent Performance (e.g., choppy audio, keyboard lag):
  • This can sometimes occur when the dock is under heavy load with multiple high-bandwidth devices.
  • Ensure your laptop's power settings are optimized for performance.
  • Try disconnecting non-essential peripherals to see if performance improves.
  • Verify that the dock's power adapter is providing sufficient power.
• Laptop Teu Ngecas:
  • Ensure your laptop is connected to the dock via the USB-C cable. USB-A connection does not support power delivery.
  • Check if your laptop supports charging via USB-C and that the dock's power delivery is sufficient for your laptop's requirements (up to 65W).
  • Verify the power adapter is securely connected to the dock and a working power outlet.
• Integrated Cable Issues:
  • The integrated USB-C/USB-A cable is crucial for the dock's functionality. Handle it with care to avoid damage.
  • If the cable appears damaged or connections are intermittent, contact Dell support for assistance.

spésifikasi

Garansi sareng Rojongan

For detailed warranty information regarding your Dell D6000 Universal Dock, please refer to the official Dell websitus atanapi dokuméntasi anu kalebet dina pameseran anjeun.

For technical support, driver downloads, and additional resources, visit the official Dell support websitus: www.dell.com/support.
