Smartline 15 ft x 24 ft Oval Kolam renang Liner Instruksi Manual

Bubuka

Thank you for choosing the Smartline 15 ft x 24 ft Oval Swimming Pool Liner. This high-quality, 25-gauge virgin vinyl liner features the elegant Manor pattern and is specifically designed for Esther Williams and Johnny Weissmuller beaded-style pools with a 52-inch wall height. This manual provides essential information for the proper installation, operation, maintenance, and troubleshooting of your new pool liner to ensure years of enjoyment.

The Manor pattern provides the visage of triangular and diamond tiles forming an interlocking diamond formation, enhancing the aesthetic appeal of your pool.

Setup sareng Instalasi

Proper installation is crucial for the longevity and performance of your pool liner. This liner is hand-folded to minimize permanent creasing and excessive wrinkles upon unpacking.

Daptar pariksa Pra-Pasang:

• Ensure the pool base is smooth, level, and free of debris or sharp objects.
• Verify that your pool is an Esther Williams or Johnny Weissmuller style with a bead track. This liner is designed to slip into such a bead track.
• Confirm the pool dimensions (15 ft x 24 ft oval, 52-inch wall height) match the liner specifications.
• Have all necessary tools ready, including skimmer and return gaskets (included with the liner).

Liner Installation Steps:

1. Carefully unroll the liner in the center of the pool base.
2. Position the liner so that the pattern is correctly aligned with the pool walls.
3. Begin inserting the beaded edge of the liner into the bead receiver track along the top of the pool wall. Work your way around the entire perimeter, ensuring a snug fit.
4. Once the bead is fully seated, use a vacuum (not included) to create a suction between the liner and the pool wall. This will pull the liner tightly against the walls and remove any air pockets.
5. Begin filling the pool with water. As the water level rises, smooth out any remaining wrinkles from the center outwards.
6. Once the water level reaches the skimmer and return openings, carefully cut out the openings and install the included skimmer and return gaskets and faceplates according to your pool's instructions.
7. Continue filling the pool to the recommended operating level.

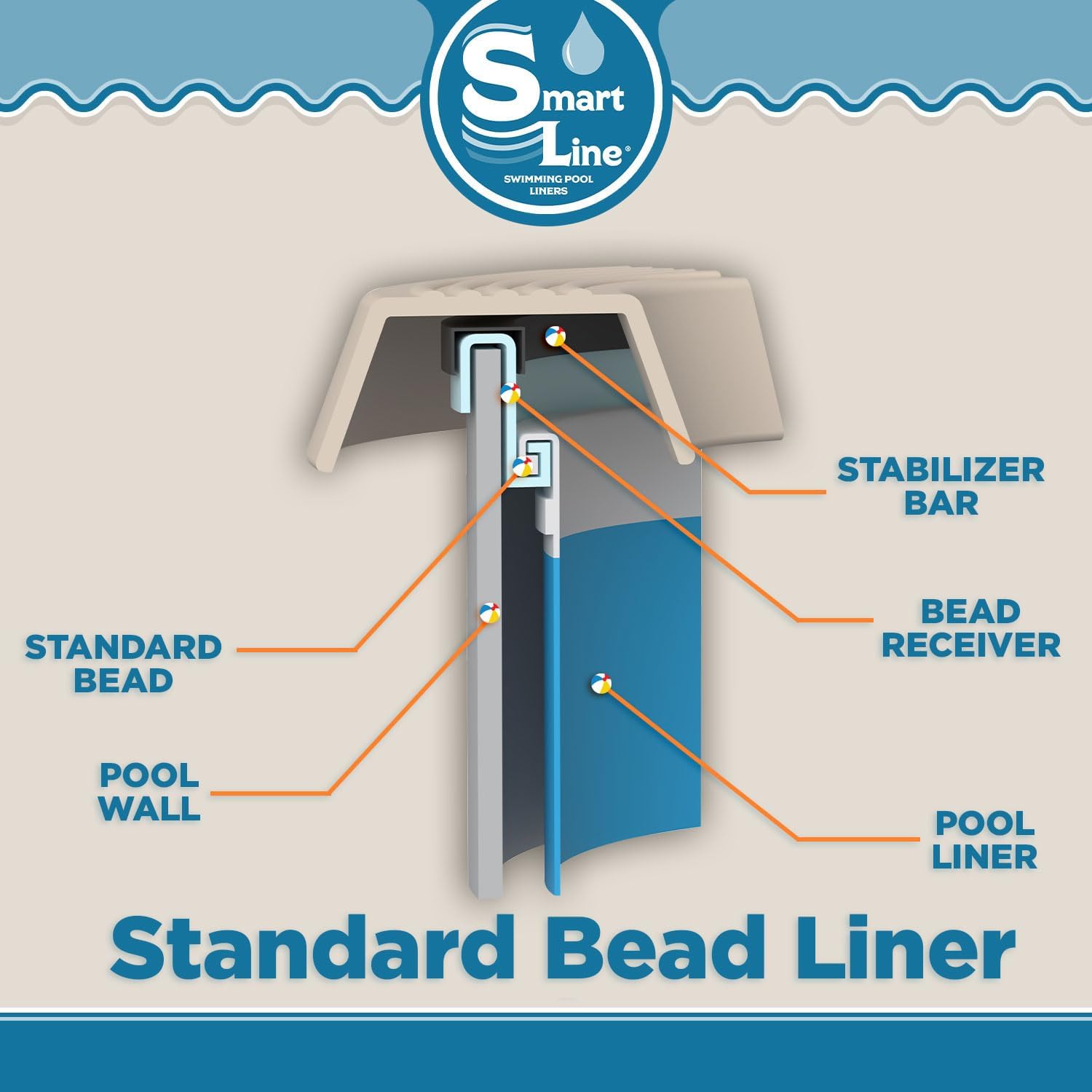

Figure 1: Diagram illustrating the components of a standard bead liner installation, showing the stabilizer bar, bead receiver, pool wall, and pool liner.

Figure 2: Image showing the skimmer and return gaskets that are included with your Smartline pool liner for a complete installation.

Operating Your Pool Liner

Your Smartline pool liner is constructed from 100% virgin vinyl and features Lamiclear technology, which provides years of protection against abrasion, chemicals, and UV fading. This technology incorporates an acrylic top coat, a UV resistant print layer, and a virgin vinyl base layer for enhanced durability.

Kimia cai:

• Maintain proper water chemistry as recommended by pool professionals. Imbalanced water can shorten the life of your liner.
• Avoid excessive chlorine levels, which can cause premature fading or damage to the liner material.
• Regularly test and adjust pH, alkalinity, and calcium hardness.

Pamakéan umum:

• Prevent sharp objects from coming into contact with the liner.
• Ensure pool toys and accessories are liner-safe.
• Avoid draining the pool completely unless absolutely necessary for maintenance or repair, as this can cause the liner to shrink or shift.

Figure 3: Comparison image demonstrating the fade resistance of Smartline liners due to UV protection, compared to liners without such protection.

Pangropéa

Regular maintenance will extend the life and preserve the appearance of your Smartline pool liner.

beberesih:

• Brush the liner regularly to prevent algae growth and dirt buildup.
• Use only pool-specific cleaning products that are safe for vinyl liners. Avoid abrasive cleaners or harsh chemicals.
• Clean the waterline frequently to remove scum lines.

Pamariksaan:

• Periodically inspect the liner for any signs of wear, tears, or punctures.
• Check the bead receiver for proper seating of the liner.
• Ensure skimmer and return gaskets remain sealed and free of leaks.

Winterization:

• Follow standard pool winterization procedures for your region.
• Do not completely drain the pool for winter unless specified by a pool professional for specific repairs.
• Use a winter cover to protect the liner from debris and harsh weather conditions.

Pamérésan masalah

This section addresses common issues you might encounter with your pool liner.

Wrinkles in Liner:

• Cukang lantaranana: Improper installation, shifting ground, or liner shrinkage/expansion due to temperature changes or draining.
• Solusi: During initial fill, use a vacuum to pull the liner tight. For existing wrinkles, try to smooth them out by hand while the water level is low. If persistent, consult a pool professional.

Fading or Discoloration:

• Cukang lantaranana: Excessive UV exposure, improper water chemistry (e.g., high chlorine), or contact with certain chemicals.
• Solusi: Your Smartline liner features Lamiclear technology for UV and chemical resistance. Ensure proper water chemistry is maintained. If fading occurs despite proper care, it may be due to prolonged exposure to extreme conditions.

Bocor:

• Cukang lantaranana: Punctures, tears, or issues with skimmer/return gaskets.
• Solusi: Inspect the liner carefully for visible damage. Check the seals around the skimmer, return, and main drain. Small punctures can often be repaired with a vinyl patch kit (not included). For larger tears or persistent leaks, contact a pool professional.

spésifikasi

Figure 4: Image highlighting key features of the Smartline liner, including 25-year lifespan, 100% virgin vinyl, double welded seams, and heat bonded construction.

Figure 5: The Manor pattern of the Smartline pool liner, featuring a decorative tile border and a vibrant water ripple design.

Émbaran jaminan

Your Smartline pool liner comes with a 25-taun jaminan kawates. This warranty protects against defects in material and workmanship under normal use and service conditions. Please retain your proof of purchase for warranty claims. For full details regarding warranty coverage, limitations, and claim procedures, refer to the warranty document included with your product packaging or contact Smartline customer support.

Ngarojong

If you have any questions, require assistance with installation, or encounter issues not covered in this manual, please contact Smartline customer support. For the most up-to-date contact information, please visit the official Smartline websitus atanapi tingal wincik kontak disadiakeun dina bungkusan produk Anjeun.

Always consult with a qualified pool professional for complex installations, repairs, or water chemistry issues.
