Bubuka
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Festool KS 60 E-Set GB 240V KAPEX Sliding Compound Mitre Saw. Please read this manual thoroughly before initial use and keep it for future reference.
The Festool KS 60 E-Set GB 240V KAPEX is designed for maximum precision and is ideal for mobile use in assembly applications. It helps maintain a clean workplace even with longer workpieces thanks to its pull-out extension table.
Parentah Kasalametan
Always observe general safety regulations and local safety standards when operating power tools. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.
- Anggo alat pelindung pribadi (PPE), kalebet panyalindungan panon, panyalindungan dédéngéan, sareng masker lebu.
- Pastikeun workpiece geus aman clamped saméméh motong.
- Keep hands clear of the cutting area and rotating blade.
- Disconnect the saw from the power supply before making any adjustments, changing accessories, or performing maintenance.
- Pastikeun daérah damelna caang sareng bébas tina halangan.
- Ulah beroperasi ragaji dina damp atawa kaayaan baseuh.
- Use only genuine Festool accessories and spare parts.
Komponén produk
Familiarize yourself with the main components of your Festool KS 60 E-Set GB 240V KAPEX mitre saw.
Gambar 1: Gemblengna view of the Festool KS 60 E-Set GB 240V KAPEX Sliding Compound Mitre Saw, showcasing desain anu kompak sareng komponén utama na.
Figure 2: Detail of the mitre angle scale and adjustment mechanism, indicating precise angle settings for cuts.
Figure 3: The mitre saw with its pull-out extension tables deployed, demonstrating support for longer workpieces.

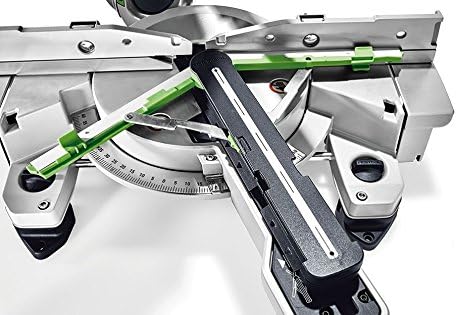

Figure 4: The integrated angle finder accessory, used for accurate measurement and transfer of angles.
Figure 5: The saw in action, demonstrating a precise cut on a wooden workpiece, highlighting the blade guard and dust extraction port.
Gambar 6: Tukangeun view of the mitre saw with a dust extraction hose connected, emphasizing the efficient dust management system.
Setup sareng Majelis
Ngabongkar bungkusan
Carefully remove the saw and all accessories from the packaging. Inspect for any damage that may have occurred during transit. Retain packaging for future transport or storage.
Sambungan Daya
The Festool KS 60 E-Set GB 240V KAPEX operates on 240 Volts. Ensure your power supply matches this requirement. The saw has a wattage of 1500 watts. Connect the power cord to a suitable grounded outlet.
Stabilizing the Saw
Place the saw on a stable, level workbench. Use the integrated mounting holes to secure the saw to the workbench if permanent installation is desired. Adjust the leveling feet to ensure stability.
Masang Blade
The saw comes with a 216 mm carbide blade with 36 teeth, suitable for wood. To install or change the blade:
- Pegatkeun sambungan ragaji tina catu daya.
- Angkat pelindung bilah.
- Anggo konci anu disayogikeun pikeun ngaleupaskeun baut penahan bilah.
- Remove the old blade, noting the rotation direction.
- Install the new blade, ensuring the teeth are oriented correctly for cutting (usually indicated by an arrow on the blade matching an arrow on the saw).
- Tighten the blade retaining bolt securely.
- Turunkeun hansip sabeulah.
Setup ékstraksi lebu
For optimal dust collection, connect a suitable dust extractor to the saw's dust port. This will help maintain a clean work environment and improve visibility during operation.
Parentah Operasi
Operasi Dasar
- Ensure the workpiece is clean and free of foreign objects.
- Place the workpiece firmly against the fence and the saw table.
- Ngamankeun workpiece ngagunakeun clamps lamun perlu.
- Adjust the desired cutting angle (mitre) and bevel angle. The saw allows for a cutting angle of up to 47 degrees.
- Turn on the saw and allow the blade to reach full speed before beginning the cut.
- Slowly lower the saw blade through the workpiece, maintaining a steady, controlled motion.
- Once the cut is complete, allow the blade to stop rotating before raising the saw head.
- Remove the cut workpiece and clear any debris.
Adjusting Mitre and Bevel Angles
The Festool KS 60 E-Set GB 240V KAPEX features precise adjustment mechanisms for both mitre and bevel cuts. Refer to the angle scale for accurate settings. Use the angle finder accessory for transferring angles directly from your workpiece.
Using the Pull-Out Extension Table
For cutting longer workpieces, extend the integrated pull-out extension tables. These provide additional support, ensuring stability and precision throughout the cut.
LED Hilfslicht (Auxiliary Light)
The integrated LED auxiliary light illuminates the cutting line, providing enhanced visibility and precision, especially in dimly lit environments. This feature is designed to be more helpful than traditional laser guides.
Pangropéa
Regular maintenance ensures the longevity and optimal performance of your Festool mitre saw.
- beberesih: After each use, disconnect the saw from power and clean off sawdust and debris from the motor housing, blade guard, and table. Use a brush or compressed air.
- Inspeksi sabeulah: Rutin mariksa sabeulah ragaji pikeun seukeutna gambar, ruksakna, atawa huntu leungit. Ganti wilah kusam atanapi ruksak geuwat.
- Lubrication: Periodically lubricate moving parts, such as the sliding mechanism, according to the manufacturer's recommendations.
- Sikat Karbon: This model features a brushless motor, eliminating the need for carbon brush replacement.
- Kabel listrik: Inspect the power cord for any signs of damage or fraying. Replace if necessary.
- Pengikat: Check all screws and bolts for tightness and tighten if loose.
For detailed maintenance procedures or if you encounter issues beyond routine cleaning, consult a qualified Festool service technician.
Pamérésan masalah
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Saw teu ngamimitian | No power supply; faulty switch; tripped circuit breaker. | Check power connection and outlet; inspect power cord; reset circuit breaker; contact service if switch is faulty. |
| Geter atawa noise kaleuleuwihan | Loose blade; damaged blade; loose mounting bolts; worn bearings. | Tighten blade bolt; replace damaged blade; tighten mounting bolts; contact service for worn bearings. |
| Poor cut quality (e.g., splintering, rough edges) | Dull blade; incorrect blade for material; improper feed rate; workpiece not secured. | Replace or sharpen blade; use appropriate blade for material; adjust feed rate; secure workpiece firmly. |
| Dust extraction ineffective | Dust port clogged; dust extractor not connected or full; hose damaged. | Clear dust port; connect dust extractor, empty bag/canister; check hose for damage. |
If you encounter problems not listed here or if the suggested solutions do not resolve the issue, please contact Festool customer support or an authorized service center.
Spésifikasi teknis
- model: Festool KS 60 E-Set GB 240V KAPEX
- Nomer Bagian: 561729
- Sumber Daya: Kabel Listrik
- Voltage: 240 volt
- Wattage: 1500 Watt
- Laju: 3500 rpm
- Diaméter agul: 216 milimeter
- Jumlah Huntu (Bilah): 36
- Bahan sabeulah: Karbida
- Saran permukaan: Kai
- Sudut motong: Nepi ka 47 Derajat
- Fitur husus: Brushless Motor
- Komponén Kaasup: 1 x Sliding compound mitre saw KS 60 E-SET GB 240V KAPEX
- Ukuran produk (L x W x H): 11.81" x 7.87" x 3.94"
- Beurat barang: 17.8 Kilogram (kira-kira 39.2 pon)
- Sistem pangukuran: métrik
- Spésifikasi patepung: EN 60745
Émbaran jaminan
The Festool KS 60 E-Set GB 240V KAPEX Sliding Compound Mitre Saw comes with a Limited Warranty. For specific terms, conditions, and duration of your warranty, please refer to the warranty card included with your product or visit the official Festool websitus. Simpen bukti pameseran anjeun pikeun klaim garansi.
Rojongan Palanggan
For technical assistance, spare parts, or service inquiries, please contact Festool customer support. You can find contact information and additional resources on the official Festool websitus:
Always provide your product model number (561729) and serial number when contacting support to ensure efficient service.
