Bubuka
This manual provides detailed instructions for the safe installation, operation, and maintenance of your Canarm Ryland 5-Light Chandelier Pendant. Please read all instructions carefully before beginning installation and retain this manual for future reference.
Émbaran Kasalametan
PERHATOSAN: Risk of electric shock. Disconnect power at the circuit breaker or fuse box before installation or servicing. All wiring must be in accordance with national and local electrical codes. If you are unsure about wiring, consult a qualified electrician.
- Ensure the electrical supply is turned off before handling the fixture.
- Paké ngan tipe bohlam dieusian jeung wattage (100W Type A bulbs, E26 base).
- Ulah ngaleuwihan wat maksimumtage pikeun fixture.
- Handle glass components (if any) with care.
- Jauhkeun bahan anu gampang kaduruk tina lampu.
Eusi pakét
Pariksa yén sadaya komponén aya sateuacan ngamimitian pamasangan:
- Chandelier fixture body
- Pamasangan hardware
- Chain for hanging
- Canopy/Ceiling plate
- Manual Pitunjuk (dokumén ieu)
Setup sareng Instalasi
Follow these steps for proper installation. If you are not comfortable performing electrical work, consult a qualified electrician.
- Pareuman Daya: Before starting, ensure the power to the circuit is turned off at the main fuse box or circuit breaker.
- Nyiapkeun pamasangan: Attach the mounting bracket securely to the electrical junction box in the ceiling.
- Saluyukeun Panjang Ranté: Determine the desired hanging height for the chandelier. Adjust the chain length by opening and removing links as necessary. Ensure the electrical wire is threaded through the chain and canopy.
- Sambungan Kawat: Connect the fixture's electrical wires to the household wiring. Typically, connect the black wire from the fixture to the black wire from the ceiling, the white wire from the fixture to the white wire from the ceiling, and the ground wire to the bare copper or green ground wire. Secure connections with wire nuts and wrap with electrical tape.
- Kanopi Aman: Carefully push the canopy up to the ceiling, covering the junction box and wiring connections, and secure it with the provided hardware.
- Pasang Bulbs: Screw in five (5) Type A bulbs with an E26 base (not included) into the sockets. Do not exceed 100 watts per bulb.
- Mulangkeun Daya: Sakali pamasangan parantos réngsé sareng sadaya sambungan aman, balikkeun kakuatan dina pemutus sirkuit.

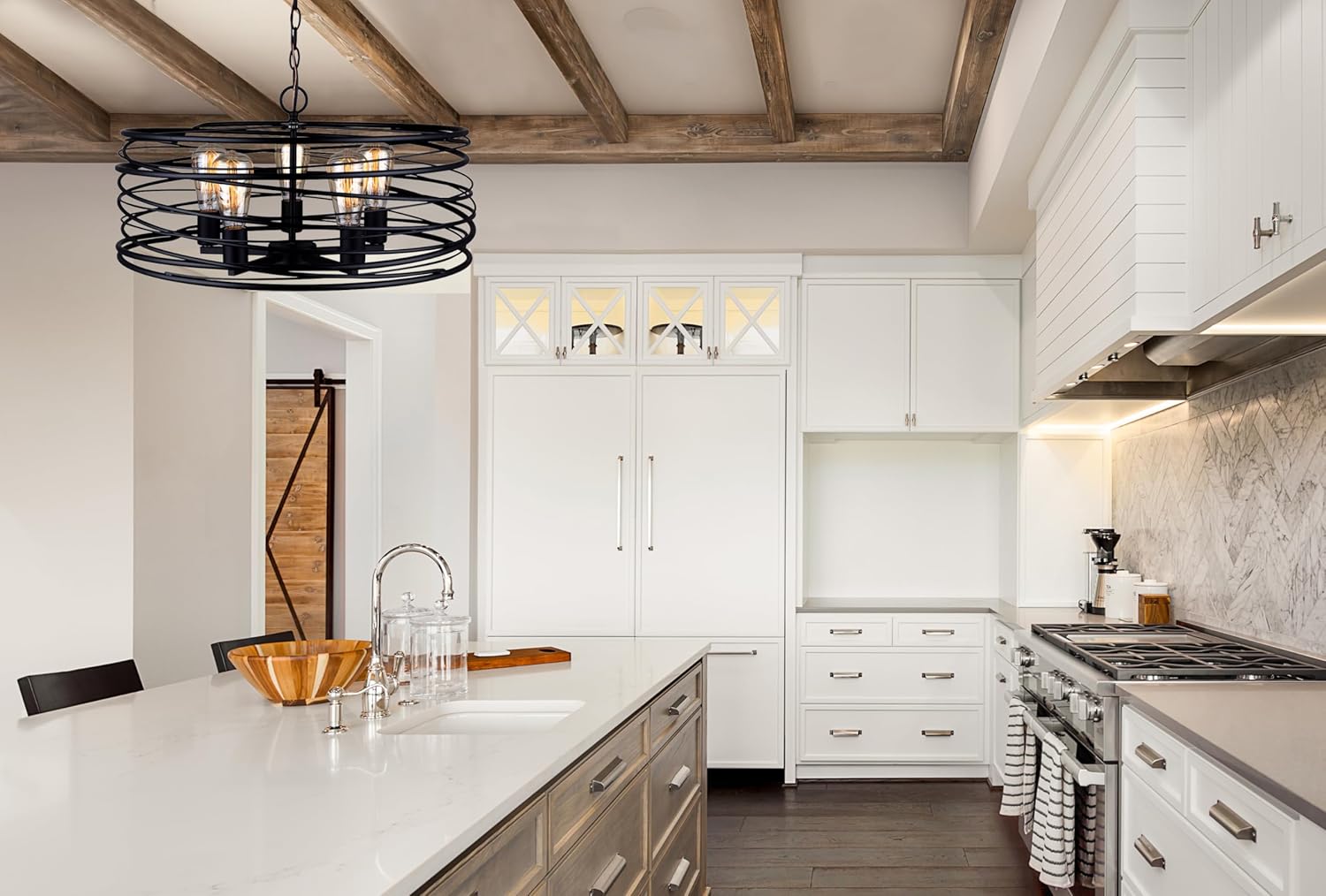

Image: The Canarm Ryland 5-Light Chandelier Pendant installed in a kitchen setting, demonstrating its hanging position and overall appearance.
Gambar: A close-up view of the Canarm Ryland 5-Light Chandelier Pendant, highlighting the matte black finish and the five exposed bulb sockets.
Parentah Operasi
The Canarm Ryland Chandelier operates via a standard wall switch (not included) connected to the electrical circuit. Ensure the correct bulbs are installed before operation.
- Hurungkeun/Pareuman: Use the wall switch to control the light fixture.
- Jenis bohlam: This fixture requires five (5) Type A bulbs with an E26 base, up to 100 watts each.
- Dimming: If connected to a dimmer switch, ensure the installed bulbs are compatible with dimming functionality.
Pangropéa
- beberesih: To clean the fixture, turn off the power and wipe with a soft, dry cloth. Do not use abrasive cleaners or solvents, as they may damage the finish.
- Ngagantian bohlam: Before replacing bulbs, ensure the power is turned off. Allow bulbs to cool completely before touching. Unscrew old bulbs and screw in new ones, ensuring they are the correct type and wattage.
- Pamariksaan: Periodically inspect the fixture for any signs of wear or damage. If any issues are found, disconnect power and consult a qualified electrician.
Pamérésan masalah
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Lampu henteu hurung. | Power is off; loose wiring; faulty bulb; tripped circuit breaker. | Check power supply; ensure all wiring is secure; replace bulb; reset circuit breaker. |
| Cahya kedip-kedip. | Loose bulb; incorrect bulb type; loose wiring. | Tighten bulb; ensure correct bulb type; check wiring connections. |
| Fixture hums. | Saklar dimmer sauyunan atawa bohlam. | Replace dimmer with a compatible type or use non-dimmable bulbs. |
| Cahayana redup/caang teuing. | Bohlam salah wattage. | Replace bulbs with desired wattage (within fixture limits). |
spésifikasi
- merek: Canarm
- model: IPL411B05BK22
- warna: Hideung
- Bahan: logam
- Gaya: Modern
- Bentuk Lampu: Pendant
- Ukuran produk: 22 "L x 22" W x 11" H
- Pamakéan Indoor/Outdoor: jero rohangan
- Sumber Daya: Kabel Listrik
- Jenis pamasangan: Semi siram Gunung
- Jenis Sumber Cahaya: Incandescent (compatible with LED/CFL if E26 base)
- Jumlah Sumber Cahaya: 5
- Voltage: 120 volt
- Dasar bohlam: E26
- Wattage: 500 watts (max total, 100W per bulb)
- Beurat barang: 11.44 pon
- Majelis Diperlukeun: Sumuhun
- Komponén Kaasup: Pamasangan Hardware
Garansi sareng Rojongan
This Canarm Ryland Chandelier comes with a 1 taun jaminan kawates produsén urang. For warranty claims or technical support, please contact Canarm customer service. Refer to the official Canarm websitus pikeun inpo kontak.
Sumberdaya Online: For additional information or frequently asked questions, visit the Canarm Store on Amazon.
