Alesis PA System in a Box Bundle User Manual

1. Produk Langkungview

The Alesis PA System in a Box Bundle provides a complete sound reinforcement solution. This package includes a 4-channel powered mixer, two 10-inch 2-way passive speakers, two durable speaker stands, two 20-foot speaker cables, and a microphone with its cable. It is designed for various applications such as small venues, rehearsal spaces, presentations, ceremonies, and events requiring portable sound.

The PA80 Powered Mixer delivers 280 watts of peak power (80 watts continuous) and features four channels, each with a balanced microphone XLR input, an unbalanced 1/4” line input, 2-band EQ, and FX level control. The mixer also includes a 3-band master EQ, master level control, and built-in digital delay effect with time and repeat controls. Additional connectivity options include an RCA input for mobile devices, an RCA output for recorders, and a USB/SD MP3 player for audio playback.

Gambar 1.1: The complete Alesis PA System in a Box Bundle, including mixer, speakers, stands, and microphone.

2. Parentah Setup

2.1 Ngabongkar bungkusan sareng Idéntifikasi Komponén

Cabut sadaya komponén tina bungkusna kalayan ati-ati. Pariksa yén sadaya barang anu didaptarkeun dina produkview are present. Retain packaging for future transport or storage.

2.2 Speaker Stand Assembly and Placement

1. Extend the legs of each speaker stand to form a stable tripod base. Ensure all locking mechanisms are securely tightened.
2. Adjust the height of the speaker stands to the desired level, ensuring the speakers will be above head height for optimal sound dispersion. Secure the height adjustment with the provided locking pin and knob.
3. Place one speaker onto the pole of each stand. Ensure the speaker is seated firmly and stably on the stand.

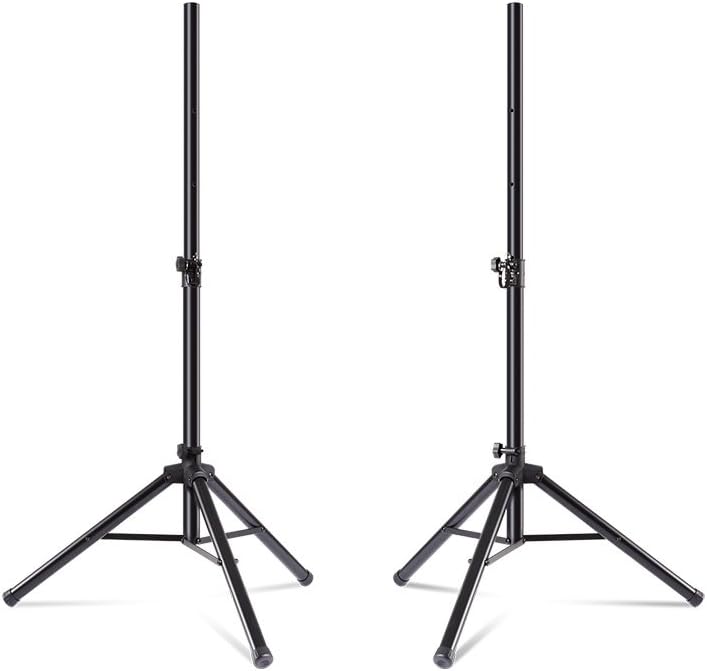

Gambar 2.1: The two included speaker stands, ready for assembly.

Gambar 2.2: Correct placement of a speaker onto a stand for stability.

2.3 Connecting Speakers to the Mixer

Connect one end of each 20-foot speaker cable to the speaker output jacks on the rear of the PA80 Powered Mixer. Connect the other end of each cable to the input jack on the back of each passive speaker.

Gambar 2.3: The two passive speakers included in the bundle.

Gambar 2.4: The two speaker cables used for connecting the mixer to the speakers.

2.4 Nyambungkeun Mikropon

Connect the XLR end of the microphone cable to the balanced XLR input on one of the mixer's channels (e.g., MIC IN 1). Connect the other end of the cable to the microphone.

Gambar 2.5: The included dynamic microphone.

Gambar 2.6: The XLR microphone cable.

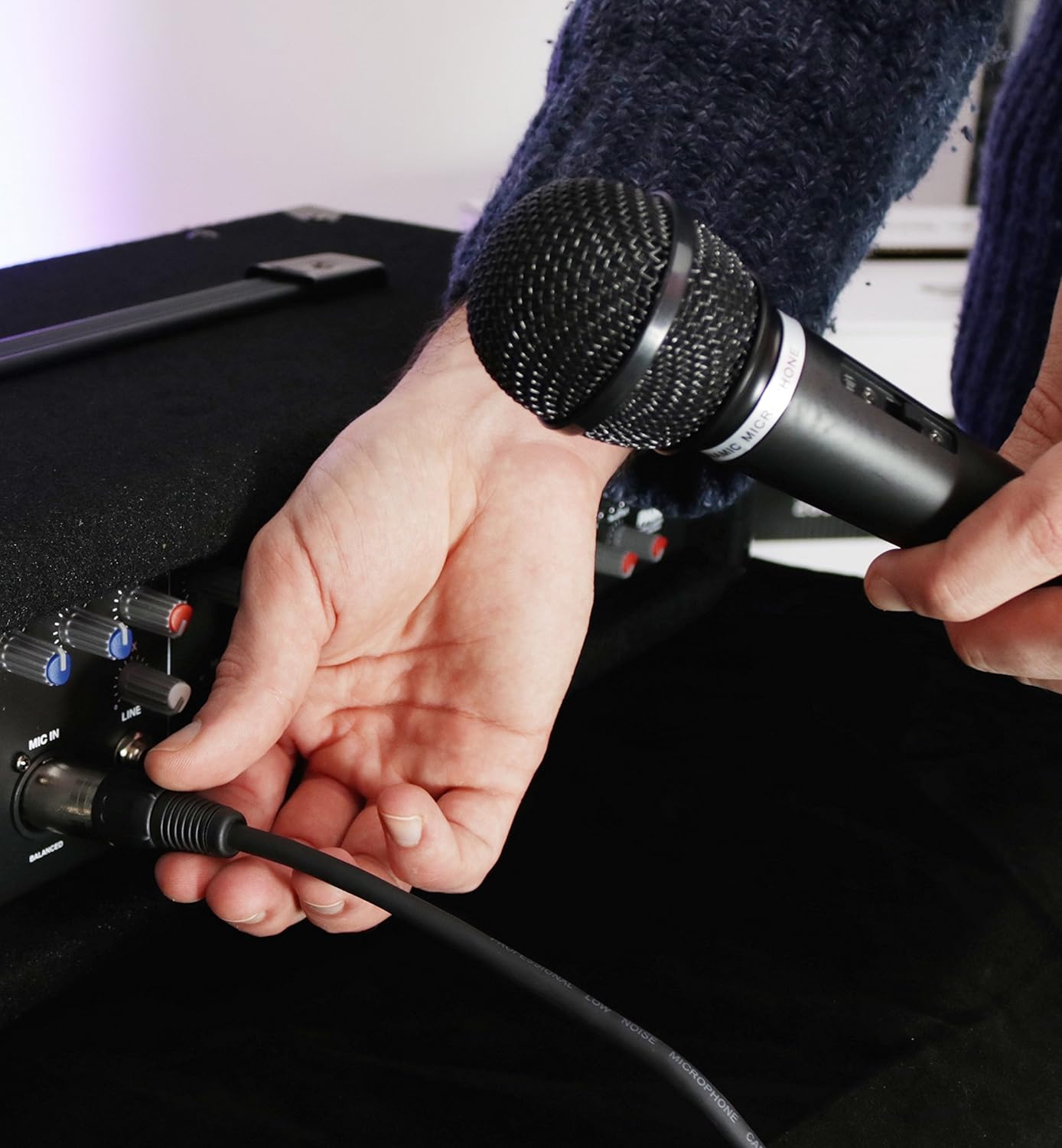

Gambar 2.7: Demonstrating how to connect the microphone to the mixer.

2.5 Nyambungkeun Sumber Audio Séjénna

• 1/4" Line Input: For instruments or other line-level devices, connect a 1/4" TS cable to the "LINE IN" jack on any channel.
• RCA Aux Input: For connecting mobile devices, CD players, or other consumer audio equipment, use an RCA cable to connect to the "AUX IN" jacks.
• USB/SD MP3 Player: Insert a USB flash drive or SD card into the respective slot on the mixer's front panel.

2.6 Sambungan Daya

Connect the included power cable to the mixer's power input and then to a standard AC power outlet. Ensure the mixer's power switch is in the OFF position before connecting to power.

3. Parentah Operasi

3.1 Kontrol Mixer Leuwihview

Gambar 3.1: The control panel of the PA80 Powered Mixer.

• Channel Controls (1-4):
  • TINGKAT: Adjusts the input gain for the channel.
  • RENDAH: Adjusts the low-frequency (bass) equalization for the channel.
  • TINGGI: Adjusts the high-frequency (treble) equalization for the channel.
  • FX: Controls the amount of the built-in digital delay effect applied to the channel.
• Kontrol Master:
  • FX MASTER: Overall level control for the digital delay effect.
  • WAKTU: Adjusts the delay time of the digital effect.
  • ULANG: Adjusts the number of repetitions for the digital delay effect.
  • LOW, MID, HIGH (Master EQ): Global equalization controls for the entire mix.
  • Master: Overall output volume control for the entire system.
• Kontrol Pamuter Média: Buttons for Play/Pause, Stop, Skip tracks, and EQ settings for USB/SD playback.

3.2 Ngahurungkeun sareng Pamariksaan Sora Mimiti

1. Ensure all channel LEVEL knobs and the MASTER volume knob are turned down completely.
2. Flip the power switch on the mixer to the ON position.
3. Gradually increase the MASTER volume knob to a low level.
4. For each connected input (microphone, instrument, etc.), slowly increase its respective channel LEVEL knob until a clear signal is heard through the speakers. Adjust the channel EQ (LOW, HIGH) as needed.
5. Adjust the MASTER EQ (LOW, MID, HIGH) to fine-tune the overall sound.

3.3 Using the Digital Delay Effect

To apply the digital delay effect:

1. Turn up the FX MASTER knob to a desired level.
2. Adjust the TIME and REPEAT knobs to achieve the desired delay characteristics.
3. For individual channels, increase the channel's FX knob to send that channel's signal to the delay effect.

3.4 MP3 Playback (USB/SD)

Selapkeun USB flash drive atawa kartu SD nu ngandung audio MP3 files into the designated slot. Use the media player controls (Play/Pause, Stop, Skip) to navigate and play tracks. The MP3 player has its own EQ settings that can be adjusted.

4. Pangropéa

• beberesih: Anggo lawon anu lemes sareng garing pikeun ngabersihkeun permukaan mixer sareng spiker. Ulah nganggo pembersih cair atanapi pelarut, sabab tiasa ngaruksak lapisan atanapi komponén internal.
• Panyimpenan: When not in use, store the system in a dry, dust-free environment. If transporting, use original packaging or suitable protective cases.
• Perawatan kabel: Avoid sharp bends or kinks in cables. Coil cables loosely when storing to prevent damage.
• Ventilasi: Ensure the mixer's ventilation openings are clear and unobstructed during operation to prevent overheating.

5. Cara ngungkulan

• Henteu aya sora:
  • Check if the mixer is powered on and connected to a working outlet.
  • Ensure speaker cables are securely connected to both the mixer and speakers.
  • Verify that the MASTER volume and individual channel LEVEL knobs are turned up.
  • Check the input source (microphone, instrument, MP3 player) for proper connection and functionality.
• Sora distort:
  • Reduce the channel LEVEL knob for the input source that is distorting.
  • Reduce the MASTER volume knob.
  • Check if any EQ settings (channel or master) are excessively boosted.
• Mikropon Teu Gawé:
  • Ensure the microphone cable is fully inserted into both the microphone and the mixer's XLR input.
  • Check the microphone's on/off switch, if applicable.
  • Increase the channel LEVEL for the microphone input.
• MP3 Player Issues (USB/SD):
  • Pastikeun USB drive atanapi kartu SD diselapkeun leres.
  • Pariksa yén audio files aya dina format nu cocog (MP3).
  • Try a different USB drive or SD card to rule out media issues.
• Humming atanapi Noise:
  • Pastikeun sadaya kabel ditangtayungan leres sareng disambungkeun.
  • Try connecting the mixer to a different power outlet.
  • Unplug all inputs one by one to identify the source of the noise.
  • A slight fan noise from the mixer is normal during operation.

6. Spésifikasi

7. Garansi jeung Rojongan

For detailed warranty information and technical support, please refer to the documentation included with your purchase or visit the official Alesis websitus. Pendaptaran produk tiasa diperyogikeun pikeun klaim garansi.
