1. Émbaran Kasalametan Umum
Please read this manual thoroughly before operating the Antari S-500 Silent Snow Machine. Failure to follow these instructions may result in injury or damage to the unit.
- Kasalametan listrik: Always connect the unit to a grounded power outlet. Do not operate if the power cord is damaged. Disconnect power before servicing.
- Pamakéan Cairan: Use only Antari SL-5A Premium Water Based Snow Fluid. Using other fluids may damage the unit and void the warranty. Do not ingest snow fluid.
- panempatan: Ensure the machine is placed on a stable, level surface. Keep clear of ventilation openings.
- Lingkungan Operasi: Do not expose the unit to rain or moisture. Operate in a well-ventilated area.
- Bagian Pindah: Keep hands and foreign objects away from the output nozzle and fan during operation.
2. Setélan
- Ngabongkar Unit: Carefully remove the S-500 snow machine from its packaging. Inspect for any damage.
- Posisi: Place the machine on a stable surface. The S-500 is housed in a durable road case with wheels for easy transport.
- Sambungkeun selang: Attach the provided 10-meter hose to the output nozzle of the machine. Ensure it is securely fastened.
- Fill the Fluid Tank: Open the 20-liter fluid tank and fill it with Antari SL-5A Premium Water Based Snow Fluid. Securely close the tank.
- Sambungan Daya: Connect the power cable to the machine's AC input and then to a suitable grounded power outlet (AC120V / 60Hz for US version).
- Sambungan DMX (Opsional): If using DMX control, connect your DMX controller to the DMX IN port.

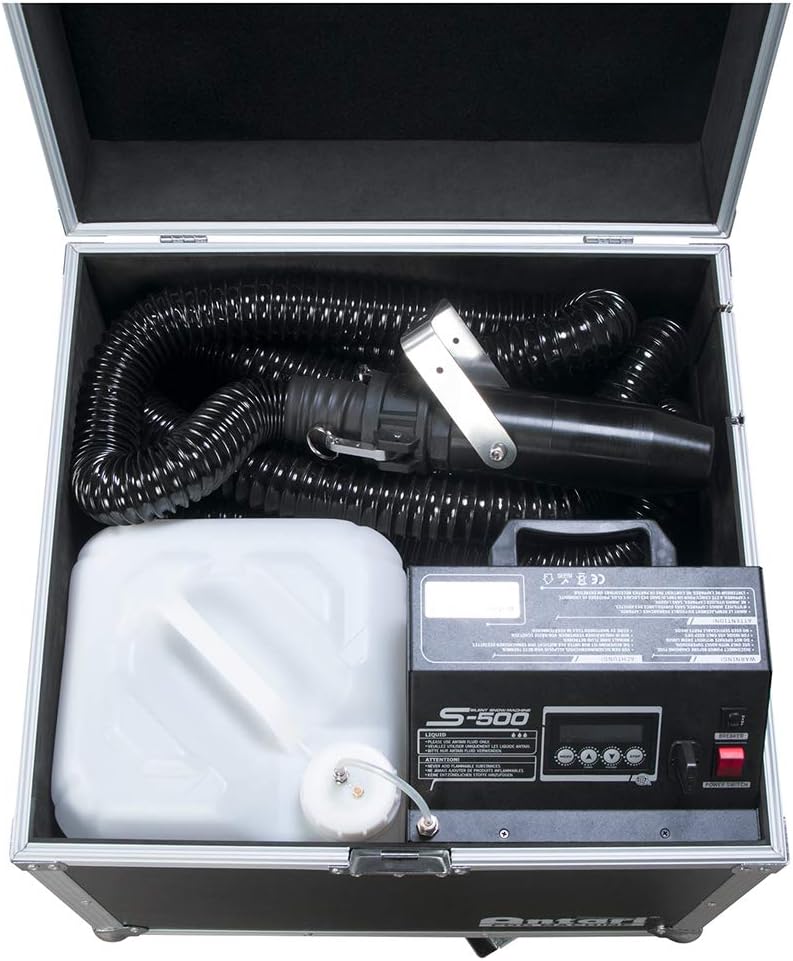

Image: Antari S-500 Silent Snow Machine with its 10-meter hose and 20-liter fluid tank, ready for setup.
Video: This video demonstrates the general assembly process for a snow machine, including connecting the hose and power. While it features a different brand, the steps are broadly applicable to the Antari S-500.
3. Parentah Operasi
- Daya Hurung: Flip the main power switch to the 'ON' position. The LCD panel will illuminate.
- Saluyukeun Kaluaran: Use the control panel or DMX to adjust the wind volume and flow rate. The maximum flow rate is 400 ml per minute.
- Kontrol DMX: For DMX operation, refer to your DMX controller's manual for channel assignments and programming. The S-500 is DMX controllable.
- Remote Control (Opsional): If using an optional wireless DMX or remote, ensure it is properly paired according to its specific instructions.
- Snow Output: Once settings are adjusted, the machine will begin producing silent snow effects.
Gambar: Deukeut view of the Antari S-500's control panel, showing the LCD display and adjustment buttons.
Video: This video demonstrates remote control operation and various light effects of a snow machine. While it features a different brand, the remote control functionality is similar.
Video: This video showcases the snow output of a professional snow machine. It provides a visual representation of the snow effect that can be achieved.
Video: Pra pondokview demonstrating the high-velocity snowflake output of a similar machine.
4. Pangropéa
Regular maintenance ensures the longevity and optimal performance of your S-500 snow machine.
- Ngabersihkeun saatos dianggo: After each use, especially before long-term storage, run clean water through the system.
- Procedure for Cleaning:
- Empty any remaining snow fluid from the tank.
- Eusian tank ku cai sulingan.
- Run the machine at maximum output until only clear water is sprayed from the nozzle.
- Turn off the machine and disconnect power.
- Bersihan Luar: Wipe the exterior of the machine with a dry, soft cloth.
- Panyimpenan: Simpen mesin di tempat anu tiis sareng garing, jauh tina sinar panonpoé langsung sareng suhu anu ekstrim.
Video: This video demonstrates the maintenance steps for a snow machine, including running clean water through the system for proper cleaning and storage. While it features a different brand, the steps are broadly applicable.
5. Cara ngungkulan
If you encounter issues with your S-500 snow machine, please refer to the following common solutions:
- Henteu aya kakuatan: Check if the power cable is securely connected and the power outlet is functional. Ensure the main power switch is ON.
- Taya Kaluaran Salju:
- Verify the fluid tank has sufficient snow fluid.
- Check if the fluid hose is properly connected and not kinked.
- Ensure the output settings (wind volume, flow rate) are not set to minimum.
- If using DMX, check DMX signal and settings.
- Weak Snow Output: Adjust the wind volume and flow rate settings to a higher level. Ensure the fluid is not diluted.
- Noise anu teu biasa: Turn off the machine immediately and contact customer support.
6. Spésifikasi
| Fitur | Rincian |
|---|---|
| Modél | S-500 |
| Voltage | AC120V / 60Hz (U.S. Version) |
| Konsumsi Daya | 1200W (Product Description) / 890W (Feature Bullets) |
| Laju aliran maksimum | 400 ml / mnt |
| Kapasitas tank | 20 Liter |
| Kadali | LCD panel, DMX included |
| Kaasup Asesoris | 10-Meter Hose |
| Beurat | 82 lbs (Product Description) / 93 pounds (Specifications) |
| Diménsi (mm) | L 592 W 551 H 651 |
| Ukuran (inci) | 29 x 25 x 29 inci |
| Cairan anu disarankeun | Antari SL-5A Premium Water Based Snow Fluid |
Note: There is a slight discrepancy in power consumption and weight between the product description and specifications. Please refer to the product packaging for the most accurate information.
7. Garansi jeung Rojongan
For warranty information, technical support, or service inquiries, please contact your authorized Antari dealer or the seller from whom you purchased the product. Keep your proof of purchase for warranty claims.
Customer support is available to assist with any questions or issues you may encounter.
