Geberit Mepla Metal Composite Pipe 16 x 2.25 mm (Model 601.130.00.1) Instruction Manual

1. Produk Langkungview

The Geberit Mepla Metal Composite Pipe is a versatile piping solution designed for various applications including heating, sanitary systems, drinking water supply, industrial uses, and shipbuilding. This pipe combines the benefits of metal and plastic, offering durability and flexibility.

model: 601.130.00.1

ukuran: 16 mm outer diameter, 2.25 mm wall thickness, 50 meters length.

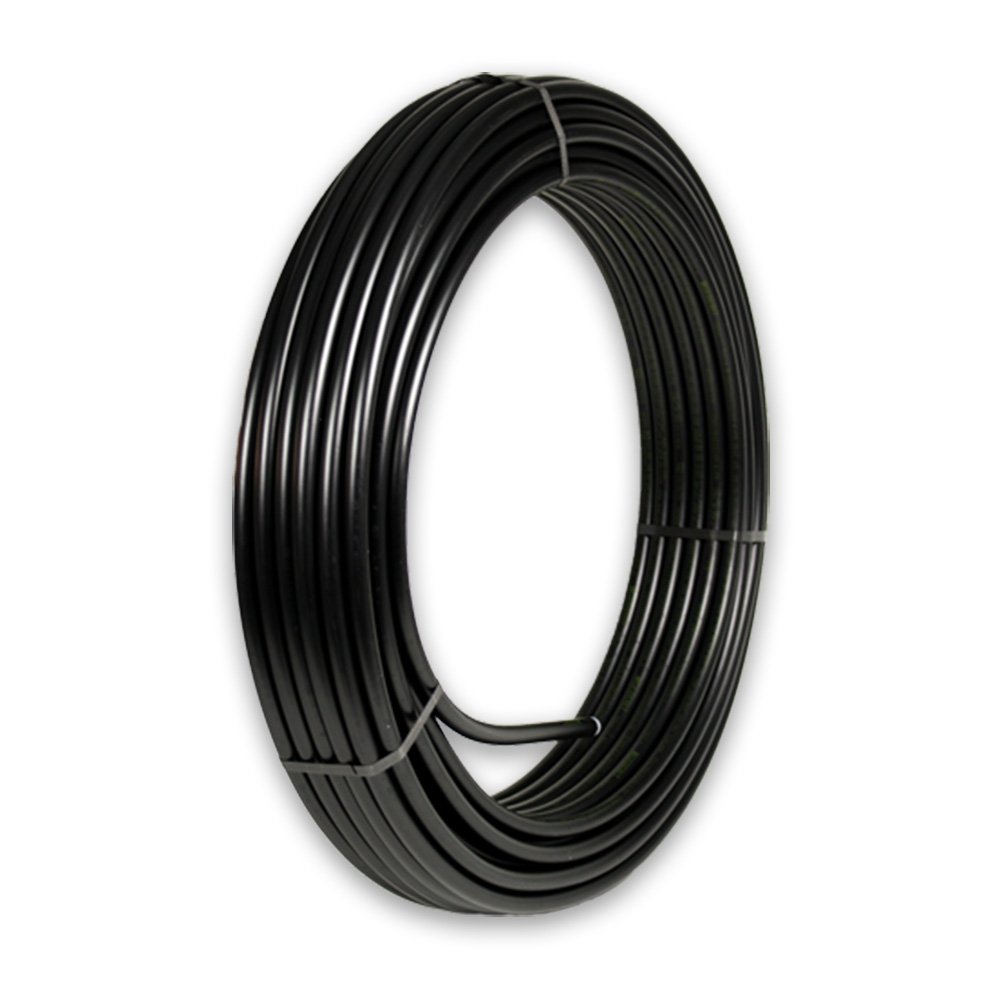

Image 1: A coiled section of the Geberit Mepla Metal Composite Pipe, illustrating its flexible nature and metallic appearance.

2. Émbaran Kasalametan

Adhere to all local building codes, plumbing regulations, and safety standards during installation and operation. Failure to do so may result in property damage, injury, or system failure.

• Always wear appropriate personal protective equipment (PPE), including safety glasses and gloves, when handling and installing pipes.
• Pastikeun wewengkon gawé téh well-ventilated.
• Do not exceed the maximum operating temperature of 70 °C or the maximum pressure of 10 bar.
• This pipe is designed exclusively for use with Geberit Mepla fittings. Using incompatible fittings may compromise system integrity and safety.
• Avoid sharp bends that could kink or damage the pipe. While bendable by hand, use appropriate bending tools for precise and smooth curves.
• Before commissioning, perform a pressure test on the installed system to detect any leaks.

3. Fitur Produk

• Aplikasi serbaguna: Suitable for heating, sanitary, drinking water (DVGW certified), industrial, and shipbuilding systems.
• Kualitas luhur: Manufactured by Geberit, ensuring reliability and performance.
• Kasaluyuan: Specifically designed for use with Geberit Mepla fittings.
• Fleksibilitas: Can be bent by hand, facilitating easier installation in various configurations.
• Kinerja: Maximum operating temperature of 70 °C and maximum pressure of 10 bar.
• Desain anti bocor: Features an unpressed leaking inner tube and cross-linked material (Pe-Xb) for enhanced system integrity.

4. Setup jeung Instalasi

Proper installation is crucial for the long-term performance and safety of your piping system. Refer to Geberit's specific installation instructions for detailed guidance on using Mepla fittings and tools.

1. Persiapan: Uncoil the required length of pipe. Ensure the pipe is clean and free from damage.
2. motong: Use a specialized pipe cutter to make clean, perpendicular cuts. Avoid using saws or tools that may deform the pipe end.
3. Deburring and Chamfering: After cutting, deburr the inner and outer edges of the pipe to ensure a smooth surface for fitting connection. Chamfering the inner edge can aid in fitting insertion.
4. Ngabengkokkeun: The pipe can be bent by hand for gentle curves. For tighter radii or consistent bends, use a pipe bending tool to prevent kinking or damage.
5. Fitting Connection:
   • Insert the Geberit Mepla fitting fully into the pipe end. Ensure the pipe reaches the stop within the fitting.
   • Use a compatible Geberit Mepla pressing tool with the correct pressing jaw (contour G) to crimp the fitting onto the pipe. The crimping process creates a secure, leak-tight connection.
   • Verify that the pressing process is complete and the fitting is securely attached.
6. Uji Sistem: After all connections are made, perform a pressure test according to local regulations and Geberit guidelines to check for leaks before concealing the pipes or commissioning the system.

5. Pitunjuk Operasi

Once installed and tested, the Geberit Mepla Metal Composite Pipe system operates as part of your overall plumbing or heating infrastructure. No specific user operation is required for the pipe itself beyond ensuring the system parameters remain within specified limits.

• Ensure that the fluid temperature within the pipe does not exceed 70 °C.
• Maintain system pressure below 10 bar.
• Regularly inspect visible pipe sections and fittings for any signs of damage or leaks.
• For drinking water applications, ensure the system is flushed thoroughly before initial use as per local health regulations.

6. Pangropéa

The Geberit Mepla Metal Composite Pipe is designed for long-term, maintenance-free operation under normal conditions. However, periodic checks of the overall system are recommended.

• Inspeksi Visual: Periodically check exposed pipe sections and fittings for any visible signs of wear, corrosion, or damage.
• Deteksi bocor: Monitor for any signs of moisture or drips around fittings and pipe runs. Address any leaks immediately by consulting a qualified plumber.
• beberesih: If necessary, clean the exterior of the pipe with a mild detergent and water. Avoid abrasive cleaners or solvents that could damage the pipe material.
• Sistem Flushing: For drinking water systems, periodic flushing may be recommended by local authorities to maintain water quality.

7. Cara ngungkulan

Most issues related to piping systems are due to improper installation or external factors. The pipe itself is highly reliable.

For issues not covered here, or if you are unsure about a solution, contact Geberit customer support or a certified plumbing professional.

8. Spésifikasi Téknis

9. Garansi jeung Rojongan

Geberit products are manufactured to high-quality standards. For specific warranty information regarding the Geberit Mepla Metal Composite Pipe, please refer to the official Geberit website or contact Geberit customer service directly. Warranty terms typically cover manufacturing defects under normal use and proper installation.

For technical support, installation queries, or warranty claims, please contact Geberit through their official channels:

• Geberit Resmi Websitus: www.geberit.com
• Rujuk kana website for local contact information and support resources.

Always ensure that any work on plumbing systems is carried out by qualified professionals.
