1. Bubuka
This manual provides essential information for the installation, operation, and maintenance of the Nice X-FAB XFAB2024 electromechanical gear motor. Designed for swing gates up to 2.3 meters, this 24V DC irreversible motor is suitable for intensive use. It features a compact, flush-mounted design with a durable, corrosion-resistant alloy steel construction.
2. Émbaran Kasalametan
Pitunjuk Kasalametan Penting: Read and follow all instructions carefully. Incorrect installation or use can cause serious injury or damage. Keep this manual for future reference.
- Installation must be performed by qualified personnel in compliance with local regulations.
- Disconnect power before any installation, maintenance, or repair work.
- Ensure the gate structure is sound and balanced before installing the motor.
- Do not allow children to play with or near the gate.
- Tetep leungeun jeung pakean bersih tina bagian nu obah.
- Regularly check the system for signs of wear or damage.
3. Setup jeung Instalasi
The X-FAB2024 motor is designed for flush mounting, offering a discreet installation. The self-supporting foundation box allows for flexible installation timing.
3.1 Foundation Box Installation
The compact foundation box has a height of 81 mm and is constructed from 2.5 mm thick alloy steel with an anti-corrosion cataphoresis finish. It is designed to protrude only 52 mm from the ground.
- Prepare the excavation for the foundation box, ensuring proper drainage.
- Position the self-supporting foundation box, ensuring it is level and correctly aligned with the gate's pivot point.
- Secure the box in place using appropriate fasteners or concrete.
- Install the adjustable mechanical stops for both opening and closing positions within the foundation box.
3.2 Pamasangan Motor
The motor is suspended inside the foundation box, which aids in draining deposits and ensures water resistance.
- Carefully place the X-FAB2024 motor into the foundation box.
- Connect the motor's output lever directly to the gate for quick and practical installation.
- Ensure all electrical connections are made according to the wiring diagram (refer to the separate wiring diagram provided with the product). The motor operates on 24 Volts DC.
- The motor is compatible with the Moonclever MC424L control unit jeung Solemyo system.

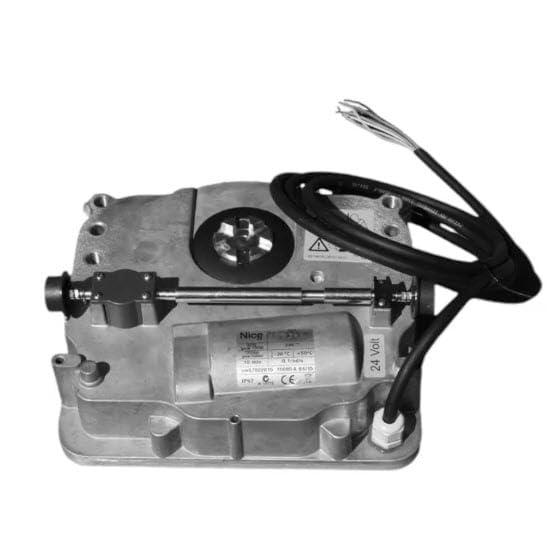

Gambar 1: Overhead view of the Nice X-FAB XFAB2024 gear motor, showing its robust metal casing, internal components, and electrical wiring. The motor is designed for flush mounting.
4. Parentah Operasi
The X-FAB2024 operates in an ON-OFF mode and is typically controlled via a push button or compatible control unit.
4.1 Operasi normal
- Press the designated control button to initiate the gate's opening or closing cycle.
- The motor will move the gate to its fully open or closed position, stopping automatically at the set mechanical limits.
- A second press during operation may stop the gate or reverse its direction, depending on the control unit's programming.
4.2 Kaluaran Manual
In case of power failure or malfunction, the gate can be operated manually using the convenient internal and external release mechanism.
- Locate the manual release mechanism on the gear motor.
- Insert the provided key into the lock and turn it to disengage the motor.
- The gate can now be moved manually.
- To re-engage the motor, reverse the key operation and ensure the gate is fully closed or open before attempting automatic operation.
5. Pangropéa
Regular maintenance ensures the longevity and reliable operation of your X-FAB2024 motor. Always disconnect power before performing any maintenance.
- Bulanan: Check for any obstructions around the gate's path. Inspect the mechanical stops for proper adjustment and wear.
- triwulanan: Clean the motor housing and foundation box to prevent accumulation of dirt and debris. Check electrical connections for tightness and signs of corrosion.
- taunan: Have a qualified technician inspect the entire system, including the motor, gate hinges, and control unit, for optimal performance and safety.
6. Cara ngungkulan
If you encounter issues with your X-FAB2024 motor, refer to the following common problems and solutions.
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Motor teu ngabales paréntah. | No power, faulty control unit, remote control battery dead. | Check power supply. Inspect control unit. Replace remote control batteries. |
| Gerbang eureun sacara teu disangka-sangka nalika dioperasikeun. | Obstruction detected, safety sensor triggered, motor overheating. | Remove obstructions. Check safety sensors. Allow motor to cool down. |
| Gate operates slowly or with difficulty. | Mechanical friction, low voltage, worn components. | Lubricate gate hinges. Check power supply. Contact support for inspection. |
Upami masalahna teras-terasan saatos nyobian solusi ieu, mangga ngahubungi dukungan téknis anu mumpuni.
7. Spésifikasi
| Nomer modél | X-FAB2024 (also known as S-FAB2024) |
| merek | NICE |
| Tipe Motor | Electromechanical, Irreversible |
| Operasi Voltage | 24 volt DC |
| Max Gate Panjang | Up to 2.3 meters (per leaf) |
| Tipe Pamasangan | Flush mounting (underground) |
| Foundation Box Height | 81 mm |
| Ground Protrusion | 52 mm |
| Sudut Bubuka | Up to 180° (standard) |
| Bahan | Alloy Steel with anti-corrosion cataphoresis finish |
| Modeu Operasi | HIRUP |
| Métode kontrol | Pencét tombol |
| Compatible Control Unit | Moonclever MC424L |
| Sistim cocog | Solemyo |
8. Émbaran jaminan
Specific warranty details for the Nice X-FAB XFAB2024 motor are typically provided at the point of purchase or within the product packaging. Please retain your proof of purchase for warranty claims.
Information regarding the availability of spare parts for this model is currently unavailable through standard product listings. For spare parts inquiries, please contact your authorized Nice dealer or support channel.
9. Rojongan jeung Kontak
For technical assistance, troubleshooting beyond this manual, or to inquire about service and spare parts, please contact your authorized Nice dealer or visit the official Nice websitus pikeun sumber rojongan.
Pabrikan: NICE
