1. Bubuka
This manual provides instructions for the setup, operation, and maintenance of your NPET M20 RGB FPS Gaming Mouse. Please read this manual thoroughly before using the product to ensure proper function and longevity.
2. Fitur Produk
- Desain ergonomis: The mouse features an ergonomic design for comfortable hand feeling during extended use.
- Laju Polling Tinggi: A 1000Hz polling rate ensures smooth and responsive gaming performance.
- Tombol anu tiasa diprogram: Customizable buttons allow for quick access to frequently used commands.
- Kasaluyuan lega: Compatible with laptops and personal computers running Windows operating systems.
- Lampu RGB: Features customizable RGB lighting with 16.8 million color options.
- 6 Tombol: Includes standard left/right click, scroll wheel, DPI adjustment, and side buttons.
- Sénsor optik: Equipped with an optical movement detection technology for precise tracking.
- Durable Braided Cable: A 5.7ft braided fiber cable provides durability and includes an anti-interference magnetic ring.
- Gold-plated USB Connector: Ensures reliable connectivity.
- Desain non-slip: Unique non-slip design for enhanced grip and comfort.
3. Parentah Setup
- Sambungkeun Mouse: Plug the gold-plated USB connector of the NPET M20 Gaming Mouse into an available USB port on your computer.
- Pamasangan supir: The mouse is typically plug-and-play. For advanced customization, including programmable buttons and lighting effects, install the dedicated driver software. Refer to the manufacturer's website for the latest software download.
- Kasaluyuan Sistim: Ensure your operating system is compatible (Windows 10, 8, 7, XP, Vista are supported).
4. Parentah Operasi
4.1 Fungsi Tombol
The NPET M20 Gaming Mouse features 6 buttons for various functions:
- Tombol kénca: Fungsi klik primér standar.
- Tombol katuhu: Fungsi klik sekundér standar.
- Kabayang Gulung (Tombol Tengah): Used for scrolling and acts as a clickable middle button.
- Tombol Maju: Located on the left side, typically used for navigating forward in web browser atawa aplikasi.
- Tombol Mundur: Located on the left side, typically used for navigating backward in web browser atawa aplikasi.
- Tombol Penyesuaian DPI: Located on the top, near the scroll wheel, used to cycle through DPI settings.
- Shortcut Mode Switch Button: Located on the underside of the mouse, allows switching between three different modes.

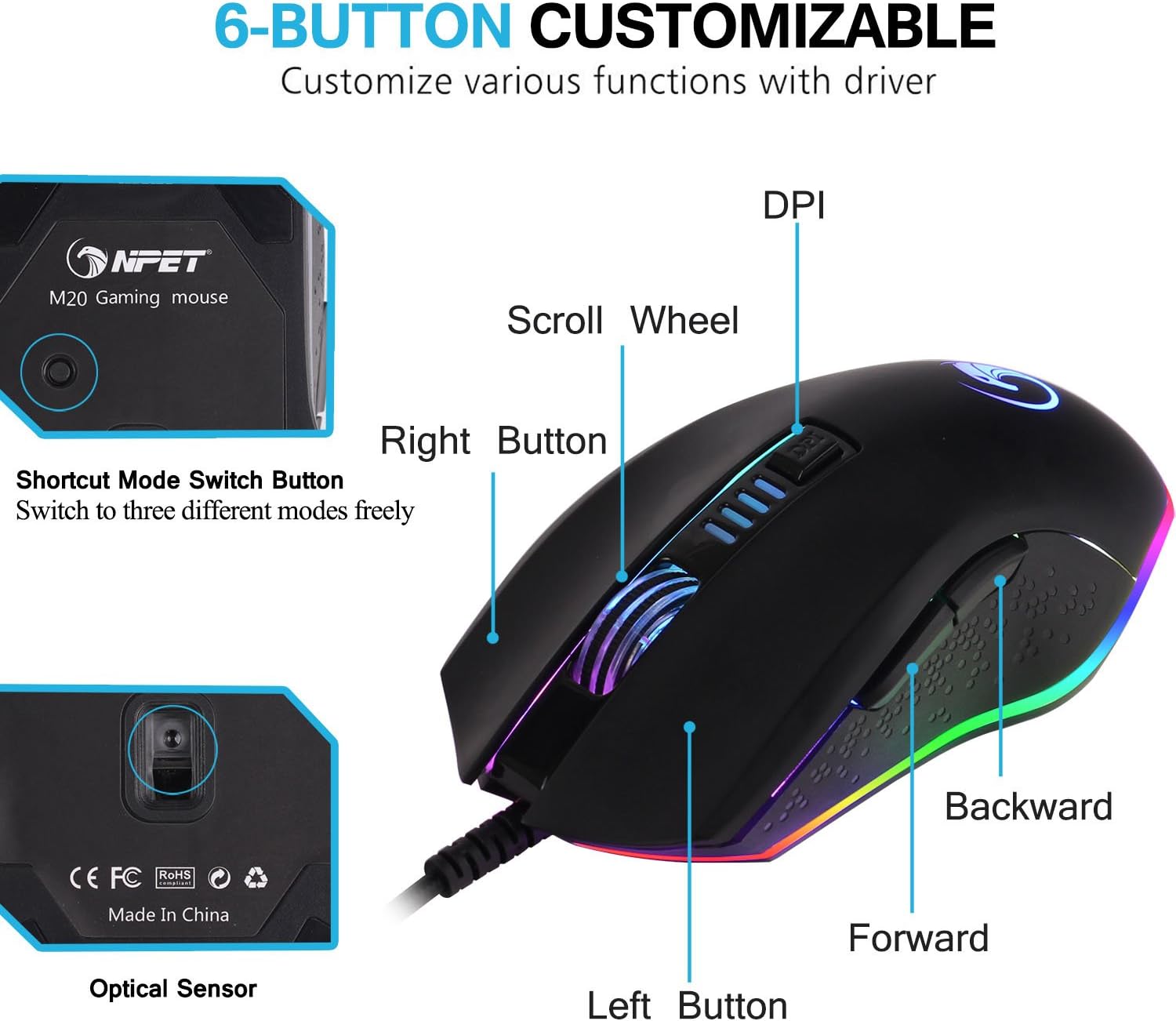

Diagram of the NPET M20 Gaming Mouse, identifying its 6 customizable buttons: DPI, Scroll Wheel, Right Button, Left Button, Forward, Backward, and a Shortcut Mode Switch Button on the underside.
4.2 DPI Settings and LED Indication
The mouse offers adjustable DPI (Dots Per Inch) settings, which can be cycled using the DPI Adjustment Button. The color of the NPET logo on the mouse indicates the current DPI setting:
- Beureum: 1000 DPI
- héjo: 2000 DPI
- Biru: 3000 DPI
- Koneng: 4000 DPI
Image demonstrating the NPET M20 Gaming Mouse's LED lights, where different colors indicate different DPI settings.
4.3 Kontrol cahaya RGB
The NPET M20 features dynamic RGB lighting. You can turn the LEDs on or off using the dedicated button on the underside of the mouse. Further customization of lighting modes and colors is available through the driver software.
Official product video from NPETtech showcasing the RGB lighting effects, ergonomic design, and various button functions of the NPET M20 Gaming Mouse in a product review formatna.
4.4 Kustomisasi Parangkat Lunak
The included driver software allows for advanced customization of the mouse. This includes:
- Programming the 6 buttons for specific functions or macros.
- Adjusting DPI settings beyond the default presets.
- Customizing RGB lighting modes and colors.
- Setting mouse parameters and polling rate.
Screenshot of the NPET M20 Gaming Mouse's driver software, showing options to customize the 6 programmable buttons, including DPI settings, macro editor, lighting, mouse parameters, and polling rate.
5. Pangropéa
- beberesih: Anggo lawon anu lemes sareng garing pikeun ngabersihkeun permukaan beurit. Pikeun sénsor optik, anggo kapas anu diusap entengampened kalayan rubbing alkohol.
- Perawatan kabel: Ulah tikungan anu seukeut atanapi narik kabel anu kepang kaleuleuwihi pikeun nyegah karusakan.
- Panyimpenan: Simpen beurit dina lingkungan anu garing sareng bébas lebu nalika henteu dianggo.
6. Cara ngungkulan
- Beurit Teu Ngabales: Ensure the USB cable is securely plugged into a working USB port. Try a different USB port or computer to rule out port issues.
- LED Teu Nyala: Check the LED on/off switch on the underside of the mouse. Ensure the driver software is installed correctly and lighting settings are configured.
- Buttons Not Working/Moving Freely: Verify that the driver software is installed and updated. If specific buttons feel loose or unresponsive, contact customer support.
- DPI Teu Robah: Press the DPI adjustment button to cycle through settings. If the indicator light does not change, reinstall the driver software or contact support.
- Masalah parangkat lunak: If the customization software is not functioning correctly, try reinstalling it from the official NPET websitus.
7. Spésifikasi
| Fitur | Spésifikasi |
|---|---|
| Dimensi produk | 5.02 x 2.66 x 1.61 inci |
| Item Beurat | 6.3 ons |
| Nomer Modél Item | ECCAV |
| Téhnologi Deteksi Gerakan | Optik |
| Jumlah Kancing | 6 |
| Laju Polling | 1000Hz |
| Panjang kabel | 5.7 kaki (dijait) |
| Tipe Panyambung | USB berlapis emas |
| Kasaluyuan | Windows 10, 8, 7, XP, Vista |
Image displaying the NPET M20 Gaming Mouse, highlighting its high precision control features including 4 adjustable DPI levels, 125Hz to 1000Hz refresh rate, 6000 FPS, and 20G acceleration.
Image illustrating the NPET M20 Gaming Mouse, emphasizing its professional AWG A3050 gaming sensor for fast and accurate movement.

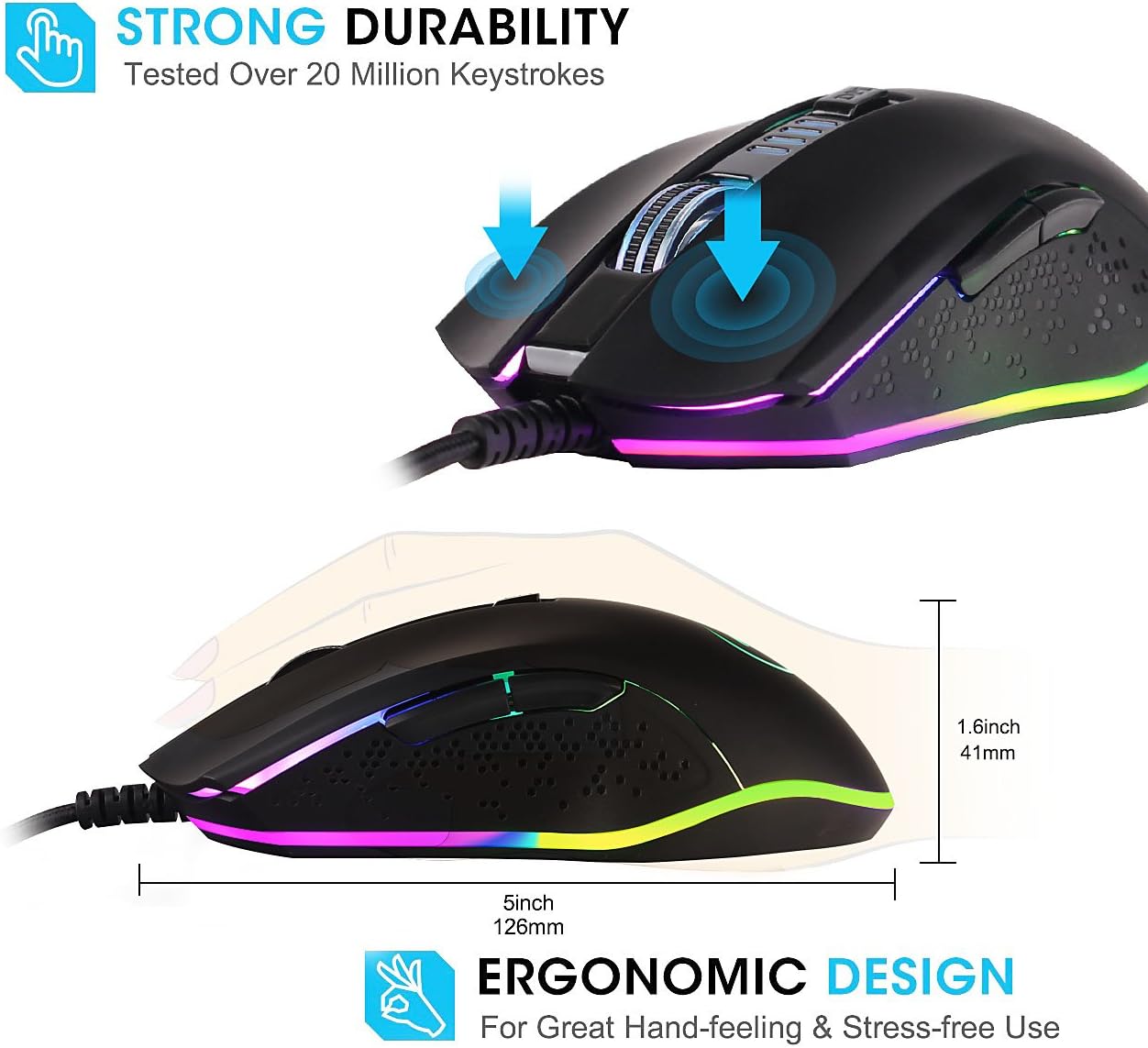

Pintonan gambarcasing the NPET M20 Gaming Mouse's strong durability, tested over 20 million keystrokes, and its ergonomic design for comfortable hand-feeling, with dimensions of 5 inches length and 1.6 inches height.
Image indicating the wide compatibility of the NPET M20 Gaming Mouse with Windows 10, Windows 8, Windows 7, Windows XP, and Vista operating systems.
Diwincik view of the NPET M20 Gaming Mouse, highlighting its gold-plated USB connector, 5.7ft braided fiber cable with anti-interference magnetic ring, DPI adjustment buttons, unique non-slip design for thumb rest, ring finger rest, and front LED lights with over 16 million customizing LED color options.
8. Garansi jeung Rojongan
For warranty information, technical support, or to download the latest drivers and software, please visit the official NPET websitus atanapi ngahubungan layanan palanggan maranéhna. Simpen resi pameseran anjeun pikeun klaim jaminan.
