1. Bubuka
This manual provides essential information for the safe and efficient operation, installation, and maintenance of the PolyScience AD07H200-A12E Heated Circulating Bath. Please read this manual thoroughly before operating the unit to ensure proper usage and to prevent potential hazards.
2. Émbaran Kasalametan
Salawasna merhatikeun pancegahan kaamanan di handap ieu pikeun nyegah tatu sareng karusakan alat:
- Pastikeun unit disimpen dina permukaan anu stabil sareng rata, jauh tina bahan anu gampang kaduruk.
- Use only the recommended heat transfer fluid for your application.
- Do not operate the unit without sufficient fluid in the bath.
- Salawasna pegatkeun sambungan kakuatan saméméh ngalakukeun sagala pangropéa atawa beberesih.
- Avoid direct contact with hot surfaces and fluids. Use appropriate personal protective equipment (PPE).
- Pastikeun ventilasi anu leres di sabudeureun unit.
- Ulah ngalelepkeun controller kana cai atawa cairan séjénna.
3. Produk Langkungview
The PolyScience AD07H200-A12E is a 7-liter capacity heated circulating bath designed for precise temperature control in various laboratory applications. It features an Advanced Digital Temperature Controller for accurate and stable temperature management.

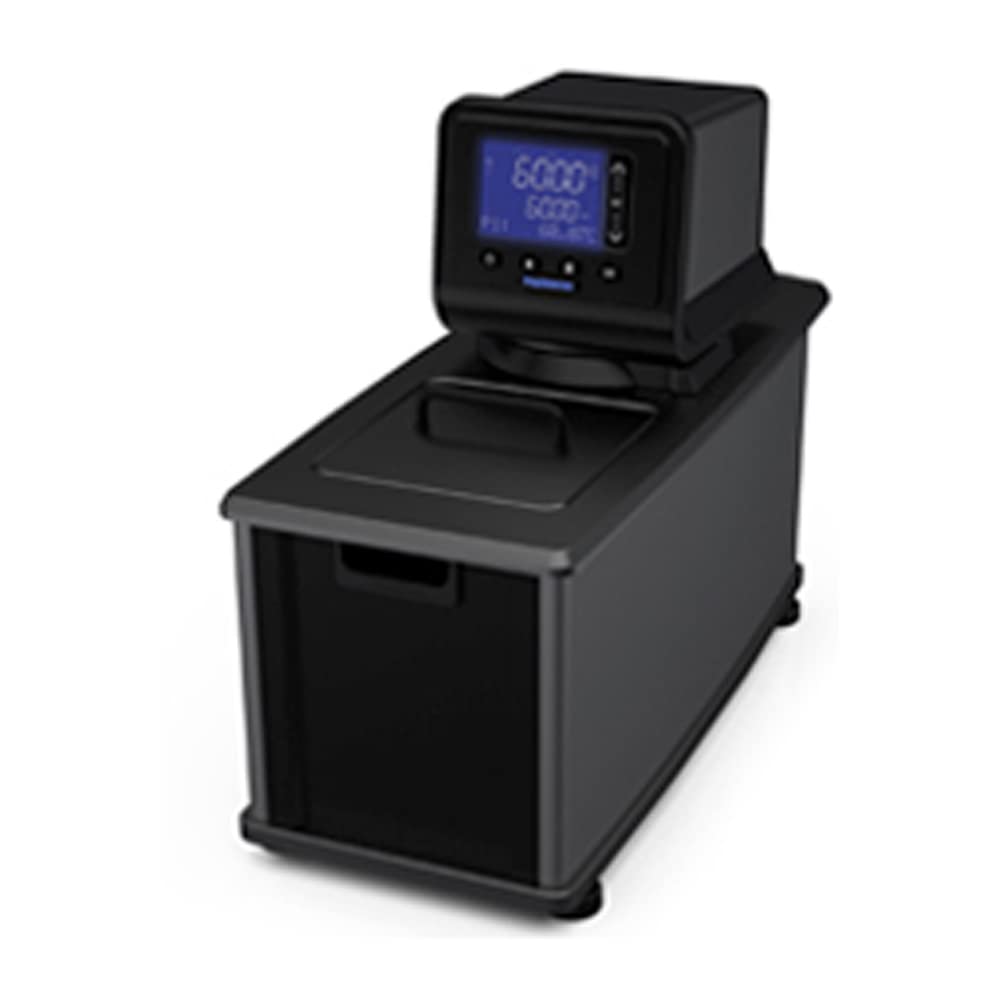

Gambar 1: PolyScience AD07H200-A12E Heated Circulating Bath. This image shows the complete unit, including the 7-liter bath reservoir and the advanced digital temperature controller mounted on top. The controller features a digital display and control buttons for setting and monitoring temperature.
Fitur konci:
- Advanced Digital Temperature Controller with intuitive display and multiple communication options.
- 7-liter bath capacity.
- Large bath opening for easy access and cleaning.
- Swivel 180 rotating controller for optimal viewdina sudut.
- Lid dock lid stowing system for convenience.
- DuraTop chemical-resistant deck for enhanced durability.
4. Setélan
- Ngabongkar bungkusan: Carefully remove the circulating bath from its packaging. Inspect for any shipping damage. Retain packaging for future transport or storage.
- panempatan: Position the unit on a flat, stable, and heat-resistant surface. Ensure adequate clearance (at least 15 cm or 6 inches) around all sides for proper ventilation.
- Pangeusian Cairan: Fill the bath reservoir with the appropriate heat transfer fluid (e.g., distilled water, ethylene glycol, silicone oil) to a level between the minimum and maximum fill lines. Refer to the fluid manufacturer's guidelines for specific temperature ranges.
- Sambungan Daya: Connect the power cord to a grounded electrical outlet (240V/50 Hz). Ensure the power supply matches the unit's requirements.
- Controller Orientation: Adjust the swivel 180 rotating controller to your preferred viewsudut ing.
5. Parentah Operasi
- Daya Hurung: Press the power button on the Advanced Digital Temperature Controller. The display will illuminate, showing the current bath temperature.
- Nyetel Suhu: Use the up/down arrow buttons to adjust the setpoint temperature. The display will show the setpoint flashing. Once the desired temperature is reached, the flashing will stop, and the unit will begin heating or cooling to maintain this temperature.
- Ngawaskeun: The controller display continuously shows the actual bath temperature. Some controllers may also display other parameters such as pump speed or timer settings.
- Fitur kaamanan: The unit is equipped with over-temperature protection. If the bath temperature exceeds a safe limit, the heater will shut off automatically, and an alarm may sound.
- Pareuman: To turn off the unit, press the power button. Allow the bath to cool down naturally before handling.
6. Pangropéa
Regular maintenance ensures optimal performance and extends the lifespan of your circulating bath.
- Panggantian Cairan: Periodically replace the heat transfer fluid according to the fluid manufacturer's recommendations or if it appears discolored or contaminated.
- Cleaning the Bath: Drain the bath and clean the reservoir with a mild detergent and soft cloth. Rinse thoroughly with distilled water. Avoid abrasive cleaners.
- Bersihan Luar: Wipe the exterior surfaces, including the DuraTop deck and controller, with a damp cloth. Do not use harsh chemicals that could damage the finish.
- Pangropéa pompa: Refer to the controller's specific manual for any pump maintenance procedures, such as cleaning the pump inlet filter.
7. Cara ngungkulan
This section addresses common issues you might encounter. For problems not listed here, contact PolyScience technical support.
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Unit teu hurung | No power supply; loose power cord | Check power outlet; ensure power cord is securely connected. |
| Suhu teu stabil atanapi teu leres | Insufficient fluid; sensor issue; incorrect setpoint | Check fluid level; verify setpoint; contact support if sensor suspected. |
| Kodeu kasalahan dipintonkeun | Specific fault detected by controller | Refer to the Advanced Digital Controller manual for specific error code meanings and remedies. |
| Pump not circulating | Low fluid level; clogged inlet filter | Check fluid level; clean pump inlet filter. |
8. Spésifikasi
- model: AD07H200-A12E
- Jumlah modél: 1184L15EA
- Kapasitas: 7 liter
- kakuatan: 240V / 50 Hz
- Jenis Controller: Canggih Digital Suhu Controller
- Pabrikan: PolyScience
- Perkiraan Ukuran Paket: 1 x 1 x 1 inci
- Beuratna Perkiraan: 43 pon
9. Garansi jeung Rojongan
For warranty information, technical assistance, or service inquiries, please contact PolyScience customer support. Keep your purchase receipt and model number readily available when contacting support.
PolyScience Contact Information: Please refer to the official PolyScience website or your product documentation for the most current contact details.
