1. Langkungview
The TiVo BOLT is a Unified Entertainment System designed to integrate all your entertainment sources. It replaces existing cable equipment, records multiple shows simultaneously, and seamlessly integrates streaming content. The device is engineered for speed and ease of use, offering features like 4K UHD compatibility, commercial skipping, and fast-forward with pitch-corrected audio.
Fitur konci:
- Record up to 4 shows simultaneously and store up to 150 hours of HD programming.
- Compatible with 4K UHD content for high-resolution viewing.
- SkipMode: Allows skipping entire commercial breaks during recorded shows with a single button press.
- QuickMode: Speeds up recorded and buffered shows by 30% with pitch-corrected audio.
- OneSearch: Unified search across live TV, on-demand content, and integrated streaming apps (Netflix, Amazon Prime, HBO Go, Hulu, VUDU, Pandora, etc.).
- Stream and download content to mobile devices within your home.
- Schedule recordings remotely using the free TiVo app.
- Supports recording of Over-the-Air (OTA) channels with an HD antenna.
- Compatible with TiVo Mini for multi-room TV solutions.

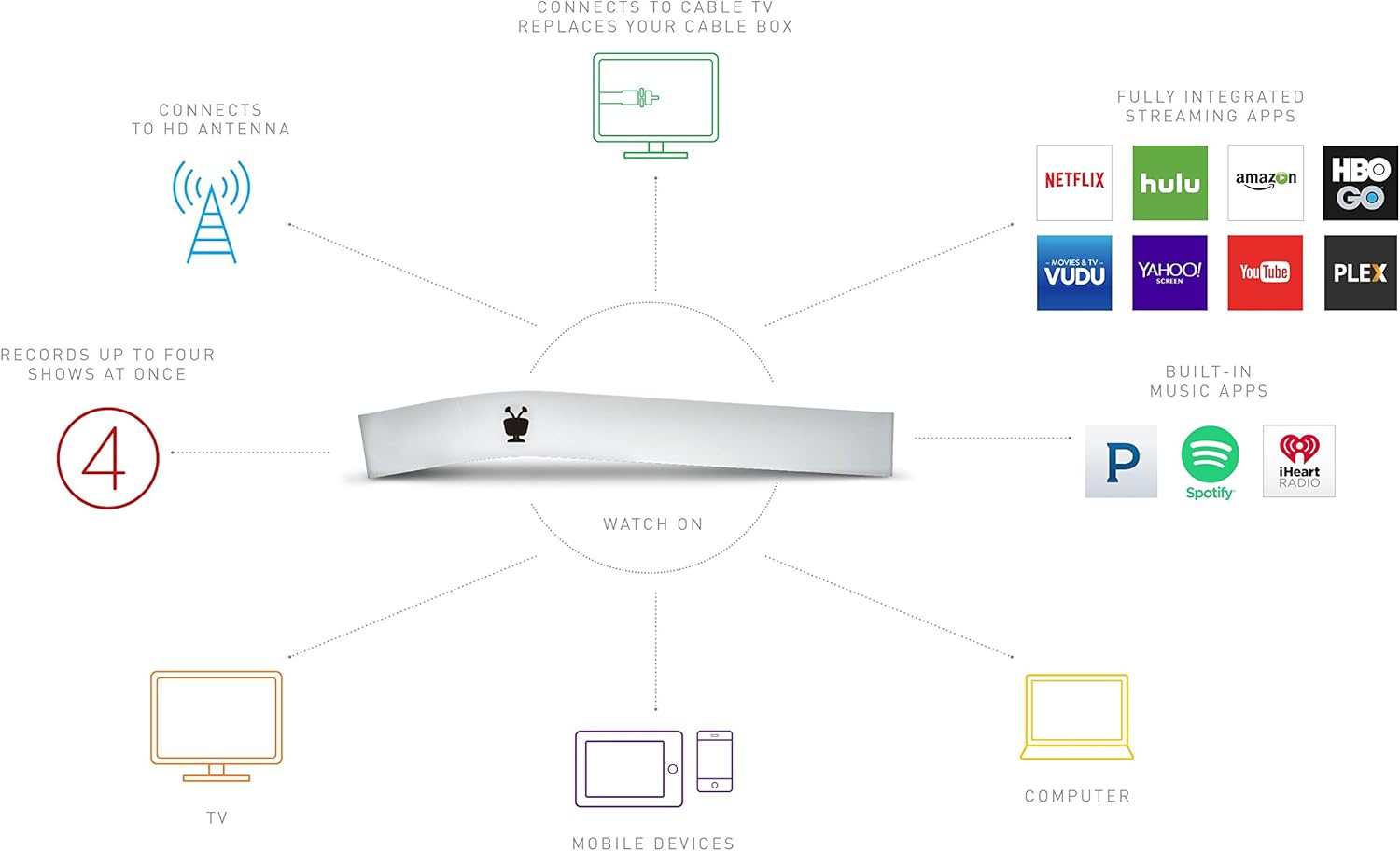

Figure 1.1: The TiVo Bolt 1000 GB DVR device, showcasing desain unik na.
2. Setélan
2.1 Unboxing jeung Eusi Paket
Carefully unpack your TiVo Bolt DVR and ensure all components are present:
- TiVo BOLT DVR (Model R84900)
- IR/RF Remote
- Adaptor AC
- Kabel HDMI
- Gancang Mimitian Guide
Figure 2.1: The retail packaging of the TiVo Bolt 1000 GB DVR.
2.2 Connecting Your TiVo Bolt
- Nyambung ka TV: Use the provided HDMI cable to connect the TiVo Bolt to an available HDMI input on your television.
- Connect to Cable or Antenna:
- For Digital Cable: Insert your CableCARD (required, not included) into the TiVo Bolt. Connect your cable line to the TiVo Bolt's cable input.
- For HD Antenna: Connect your HD antenna to the TiVo Bolt's antenna input.
- Sambungkeun Kakuatan: Plug the AC adapter into the TiVo Bolt's power input, then plug the adapter into a wall outlet. The device will power on automatically.
- Setup Awal: Follow the on-screen instructions to complete the guided setup process, including connecting to your home network (Wi-Fi or Ethernet), activating your TiVo service subscription, and scanning for channels.
Video 2.1: Sakeudeungview of the TiVo Bolt's features and connectivity options.
3. Operating Your TiVo Bolt
3.1 Fungsi Dasar
- Ngarékam: The TiVo Bolt can record up to four shows simultaneously. Use the on-screen guide to select programs and set recordings.
- Playback: Access your recorded shows from the 'My Shows' menu. Use SkipMode to bypass commercials and QuickMode to speed through content.
3.2 Layanan streaming
The TiVo Bolt integrates popular streaming apps directly into its interface, eliminating the need to switch inputs or devices.
- Access apps like Netflix, Amazon Prime, HBO Go, Hulu, VUDU, and Pandora directly from the TiVo menu.
- Paké OneSearch to find content across all integrated platforms simultaneously.
Figure 3.1: The TiVo Bolt's user interface with integrated streaming applications.
3.3 Mobile Access
The free TiVo app allows you to extend your entertainment experience beyond your TV:
- Stream live or recorded shows to your mobile devices within your home.
- Download recorded shows to your mobile device for offline viewing.
- Schedule new recordings from anywhere using the app.
4. Pangropéa
4.1 Perawatan Umum
- Keep the TiVo Bolt in a well-ventilated area to prevent overheating.
- Bersihkeun alatna nganggo lawon anu lemes sareng garing. Hindarkeun cairan pembersih.
- Pastikeun sadaya kabel disambungkeun aman.
4.2 Apdet parangkat lunak
The TiVo Bolt periodically receives software updates to improve performance and add new features. These updates typically download and install automatically. Ensure your device is connected to the internet for timely updates.
5. Cara ngungkulan
If you encounter issues with your TiVo Bolt, try the following steps:
- Taya Gambar/Sora: Check all HDMI and audio connections. Ensure your TV is on the correct input.
- Masalah Rekaman: Verify your CableCARD is properly inserted and activated, or that your HD antenna is correctly connected and positioned. Check your TiVo service subscription status.
- Sinyal lemah: If using an HD antenna, try adjusting its position for better reception. Obstructions like buildings or trees can affect signal quality.
- App Not Loading/Freezing: Ensure your internet connection is stable. Try restarting the TiVo Bolt by unplugging it from power for 15 seconds and plugging it back in.
- Jauh Teu Ngabales: Replace the batteries (2 AA batteries are included with the device). Ensure there are no obstructions between the remote and the TiVo Bolt.
6. Spésifikasi
| Fitur | Rincian |
|---|---|
| merek | TiVo |
| Nomer modél | R84900 |
| Item Beurat | 11.2 ons |
| Dimensi produk | 8 x 2.7 x 4.3 inci |
| Batré | 2 batré AA (kaasup) |
| Fitur husus | Kompak |
| Resolusi | 3840x2160 (4K UHD) |
| Tipe Panyambung | HDMI |
| Téhnologi konektipitas | Wifi |
| Mode Kaluaran Audio | Stereo, Dolby Digital 5.1 (Optical) |
7. Jaminan & Dukungan
For warranty information, technical support, or to inquire about extended protection plans, please refer to the official TiVo website or contact TiVo customer service directly. Keep your purchase receipt as proof of purchase for warranty claims.
- Rencana panyalindungan: Optional 2-Year and 3-Year protection plans may be available for purchase.
- Kabijakan pamulangan: Standard 30-day refund/replacement policy applies from the date of purchase.
