Koolatron KTCF50 Rolling Alat Dada jeung Mini Kulkas Pamaké Manual

1. Émbaran Kasalametan penting

Please read all safety instructions carefully before operating the Koolatron KTCF50 Rolling Tool Chest with Mini Fridge. Failure to follow these instructions may result in property damage or personal injury.

• Always secure the unit in place when in use to prevent accidental movement.
• Handle drawers carefully to avoid pinch points.
• Ensure proper ventilation for the compressor unit at the rear of the appliance. Do not block air vents.
• Avoid contact with cooling components inside the refrigerator compartment.
• Ulah nyimpen bahan ngabeledug sapertos kaléng aerosol kalayan propelan anu gampang kaduruk dina alat ieu.
• Alat ieu henteu dimaksudkeun pikeun dianggo ku jalma (kalebet murangkalih) anu ngirangan kamampuan fisik, indrawi atanapi mental, atanapi kirang pangalaman sareng pangaweruh, kecuali aranjeunna dipasihan pangawasan atanapi petunjuk ngeunaan panggunaan alat ku jalma anu tanggung jawab kana kasalametanana.
• Bantahan Hukum: Produk tiasa ngandung bahan anu diawaskeun ku California Proposition 65.

2. Produk Langkungview

The Koolatron KTCF50 is a compact, heavy-duty rolling tool chest integrated with a 1.8 cubic foot (50L) mini fridge. Designed for garage and workshop environments, it combines tool storage with convenient refrigeration.

Gambar 2.1: Hareupeun view of the Koolatron KTCF50 unit.

Fitur konci:

• Panyimpen Alat: Three spacious, easy-glide drawers with aluminum handles for organizing hand tools.
• Mini Fridge: 1.8 cu ft (50L) capacity refrigerator with an interior light and an adjustable/removable wire shelf.
• Mobilitas: Durable heavy-duty 3-inch swivel casters allow for easy movement and secure locking.
• Sistim cooling: Efficient compressor technology with adjustable temperature control (32°F to 50°F / 0°C to 10°C) and a magnetic door seal.
• Desain: Space-saving flat-back design with enclosed evaporator coils.

3. Setup jeung Instalasi

3.1 Ngabongkar bungkusan

1. Kaluarkeun unit tina bungkusna kalayan ati-ati. Simpen bahan bungkus pikeun transportasi atanapi panyimpenan engké.
2. Inspect the unit for any shipping damage. Contact your retailer immediately if damage is found.
3. Remove all internal packing materials, including any tape or protective film.

3.2 Nempatkeun

• Place the unit on a firm, level surface capable of supporting its weight when fully loaded.
• Ensure adequate air circulation around the back and sides of the unit for proper compressor cooling. Maintain at least 4 inches (10 cm) of space from walls or other objects.
• Avoid direct sunlight or proximity to heat sources (e.g., heaters, stoves) to optimize cooling efficiency.
• The unit is designed for indoor use in environments like garages or workshops.

3.3 Caster Installation and Use

The unit comes with pre-installed heavy-duty swivel casters for mobility.

• To move the unit, ensure the caster locks are disengaged.
• Once the unit is in its desired position, engage the caster locks by pressing down on the lever on each wheel to prevent unintended movement.

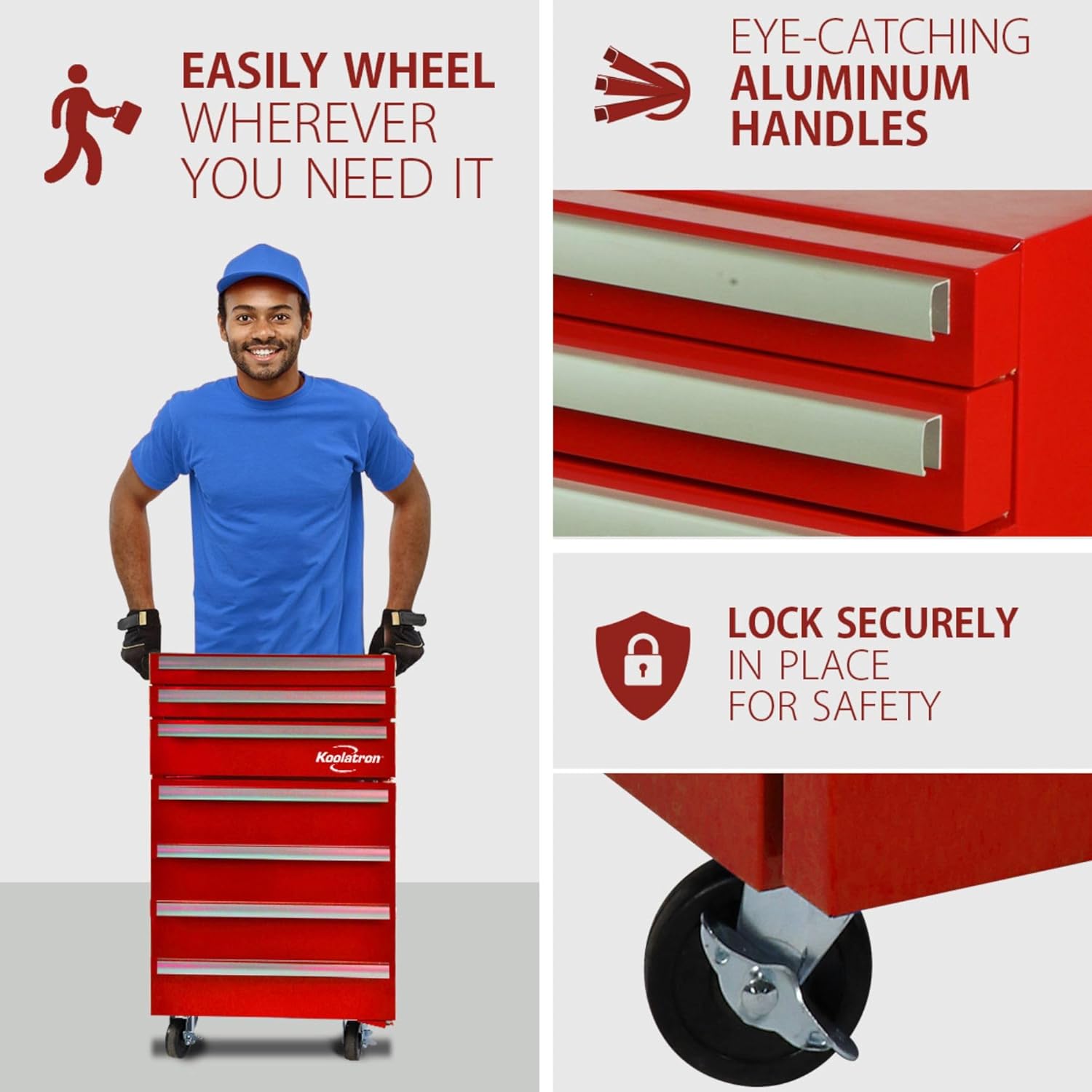

Figure 3.1: Detail of the unit's swivel wheels and aluminum handles.

4. Operasi

4.1 Refrigerator Operation

1. Colokkeun unit kana stop kontak listrik anu di grounded.
2. Panggihan kenop kontrol suhu di jero kompartemen kulkas.
3. Turn the dial to your desired cooling level. The temperature range is typically between 32°F (0°C) and 50°F (10°C). A higher number usually indicates a colder setting.
4. Allow several hours for the refrigerator to reach the set temperature before storing items.
5. The interior light will illuminate when the refrigerator door is opened.
6. The wire shelf can be adjusted to different heights or removed to accommodate various item sizes.

Gambar 4.1: View of the open drawers and the refrigerator compartment with adjustable shelf.

4.2 Pamakéan Laci

• The three drawers are designed for tool storage. Pull them out smoothly using the aluminum handles.
• Ulah ngeusian laci sacara kaleuleuwihi pikeun mastikeun operasi anu lancar sareng nyegah karusakan kana slide.
• Close drawers completely after use to maintain a tidy and safe workspace.

5. Pangropéa

5.1 beberesih

• Luar: Lap beungeut luar ku lawon lemes sareng deterjen hampang. Hindarkeun pembersih atanapi pelarut anu abrasif.
• Interior (Refrigerator): Unplug the unit before cleaning. Wipe the interior with a solution of mild soap and water. Rinse with clean water and dry thoroughly.
• Laci: Remove tools and wipe drawers with a damp lawon.
• Coil kondensor: Periodically clean the condenser coils at the back of the unit with a soft brush or vacuum cleaner to ensure efficient operation. Ensure the unit is unplugged before cleaning coils.

Gambar 5.1: Tukangeun view of the unit, highlighting the compressor area and ventilation.

5.2 Defrosting

This unit features manual defrost. Frost buildup on the evaporator can reduce cooling efficiency.

1. Cabut colokan unit tina stop kontak listrik.
2. Remove all contents from the refrigerator compartment.
3. Leave the refrigerator door open to allow frost to melt naturally. Place a towel at the bottom to absorb water.
4. Ulah nganggo barang seukeut atawa alat pemanas pikeun miceun ibun, sabab ieu bisa ngaruksak sistem pendingin.
5. Once defrosted, clean and dry the interior before plugging the unit back in.

6. Cara ngungkulan

Review masalah sareng solusi umum di handap ieu sateuacan ngahubungi dukungan palanggan.

7. Spésifikasi

Detailed technical specifications for the Koolatron KTCF50.

Figure 7.1: Product dimensions of the Koolatron KTCF50.

8. Garansi jeung Rojongan

For warranty information, technical support, or to inquire about spare parts, please contact Koolatron customer service.

• Durasi Kasadiaan Suku Cadang EU: 5 Taun
• Tingali dokuméntasi pameseran anjeun pikeun syarat sareng katangtuan garansi anu khusus.
• For assistance, visit the official Koolatron websitus atanapi ngahubungan garis rojongan customer maranéhanana.
