Insignia 10-inch Digital Photo Frame (Model NS-DPF10WW-16) User Manual

Bubuka

Hatur nuhun pikeun meuliasing the Insignia 10-inch Digital Photo Frame. This device allows you to display your favorite digital photos and videos in a high-quality format. This manual provides detailed instructions for setup, operation, maintenance, and troubleshooting to ensure you get the most out of your new digital photo frame.

Eusi pakét

Before you begin, please check that all items are present in the package:

• Insignia 10-inch Digital Photo Frame
• Adaptor kakuatan
• Kadali jauh
• Manual pangguna (dokumén ieu)

Disetél

1. Nyambungkeun Power

Connect the included power adapter to the DC IN 9V port on the back of the digital photo frame. Plug the other end of the adapter into a standard wall outlet. The frame will typically power on automatically or can be turned on using the power switch.

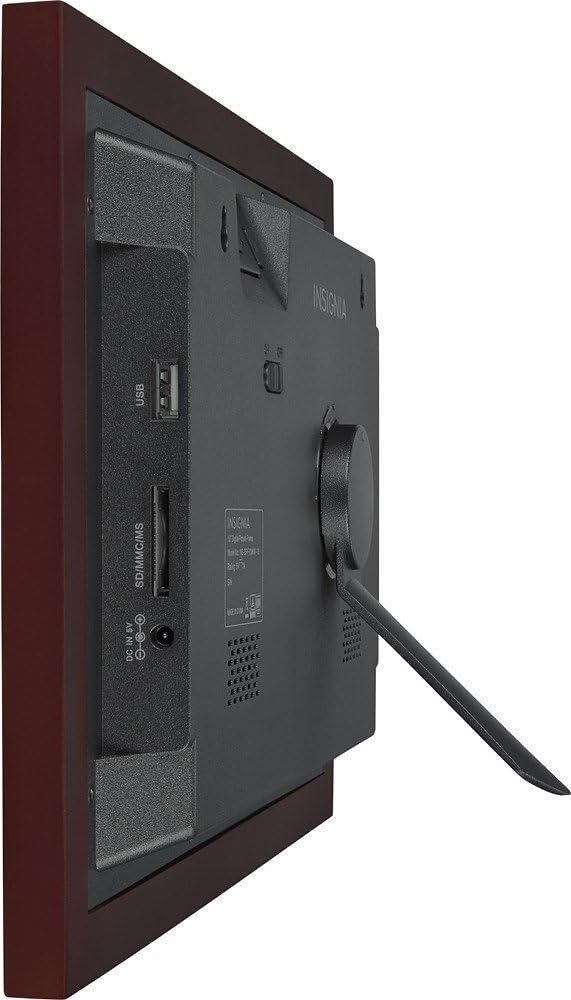

Gambar: Tukangeun view of the digital photo frame, highlighting the USB port, SD/MMC/MS card slot, and DC IN 9V power input.

2. Inserting Memory Cards or USB Drives

The frame supports SD, MMC, and MS memory cards, as well as USB flash drives. Insert your memory card into the appropriate slot or your USB drive into the USB port on the side/back of the frame. Ensure the card or drive is inserted correctly. The frame will automatically detect the storage device.

3. Setélan Awal

Upon first power-on, you may be prompted to set the language, time, and date. Use the navigation buttons on the frame or the remote control to make your selections and confirm.

Operating the Digital Photo Frame

1. Kontrol Leuwihview

Your digital photo frame can be operated using the buttons on the back of the frame or the included remote control.

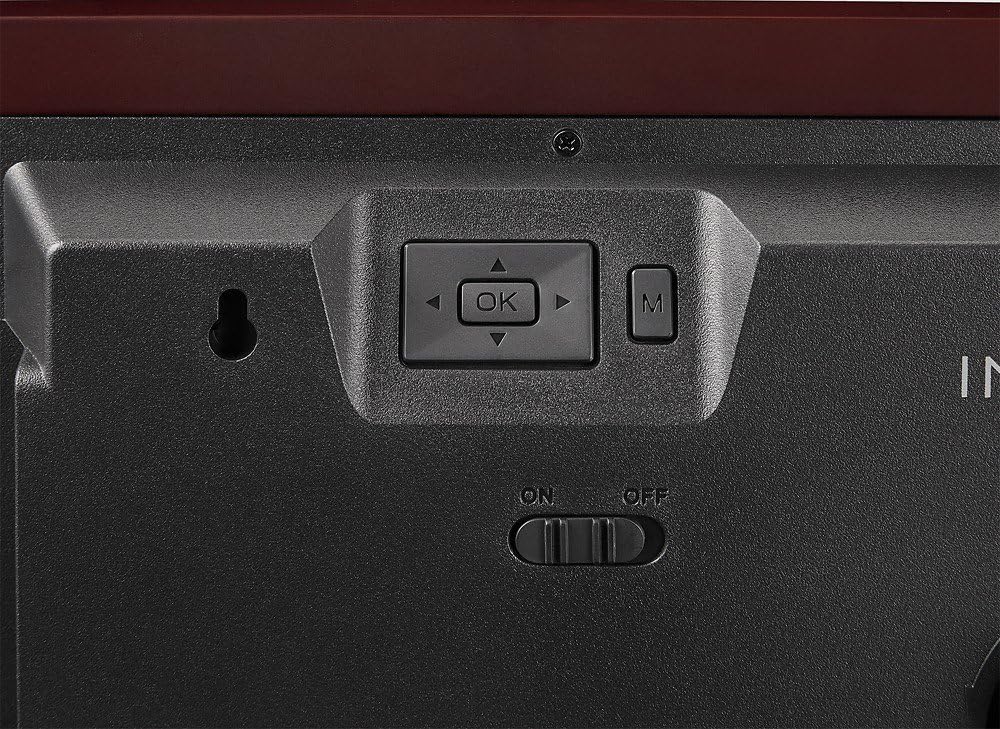

Image: Close-up of the control buttons located on the rear of the digital photo frame. These include directional arrows, an 'OK' button for selection, and an 'M' button for menu access, alongside the power switch.

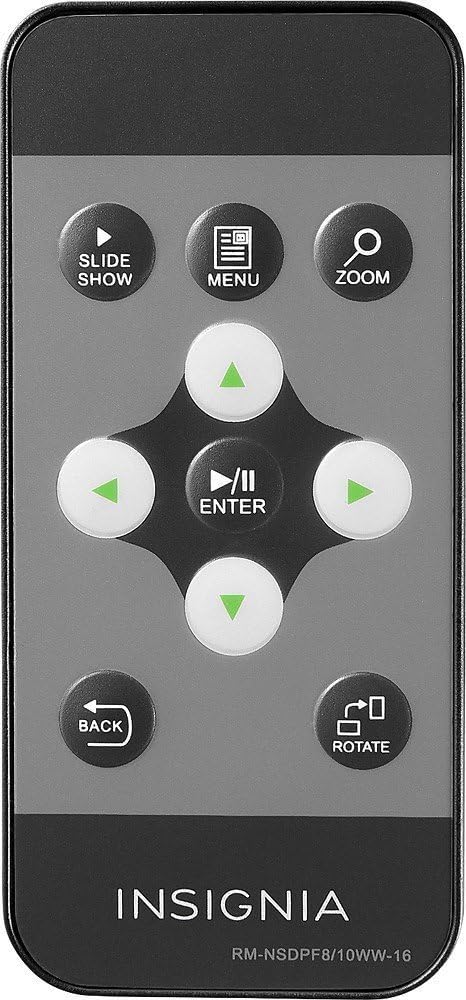

Image: The remote control for the digital photo frame, featuring dedicated buttons for slideshow, menu, zoom, directional navigation, enter, back, and image rotation functions.

2. Navigasi Menu

Pencét éta MENU button on the remote or the M button on the frame to access the main menu. Use the directional arrows (▲ ▼ ◀ ▶) to navigate through options and press Asupkeun or OK pikeun mastikeun pilihan Anjeun. Pencét BALIK pikeun balik deui ka layar samemehna atawa kaluar ti menu.

3. Viewing Poto sareng Pidéo

Once a memory card or USB drive is inserted, the frame will typically start a slideshow automatically. You can manually browse files by selecting the "Photo" or "Video" option from the main menu. Use the navigation buttons to select a file jeung pencét Asupkeun or OK ka view éta.

4. Setélan Slideshow

From the main menu, navigate to "Settings" or "Slideshow Settings" to customize your slideshow. Options may include:

• Modeu tampilan: Adjust how photos fit the screen (e.g., original, fit to screen, crop).
• Waktos interval: Setel durasi unggal poto dipidangkeun.
• Pangaruh transisi: Pilih tina rupa-rupa gaya transisi antara poto.
• Modeu Ngulang: Loop the slideshow continuously.

5. Clock and Calendar

Your frame may include a clock and calendar function. Access these features through the main menu. You can set the time and date in the settings menu.

Pangropéa

Ngabersihkeun pigura

Pikeun ngabersihkeun layar, usap lembut nganggo kaen anu lemes sareng teu aya serat. Pikeun tanda nekad, rada dampen the cloth with water or a non-abrasive screen cleaner. Avoid using harsh chemicals or abrasive materials, as these can damage the screen and frame finish. Ensure the frame is powered off and unplugged before cleaning.

Panyimpenan

When not in use for extended periods, store the digital photo frame in a cool, dry place, away from direct sunlight and extreme temperatures. It is recommended to keep the original packaging for storage.

Pamérésan masalah

spésifikasi

Garansi sareng Rojongan

For warranty information, please refer to the warranty card included with your product or visit the official Insignia website. If you encounter issues not covered in this troubleshooting section, please contact Insignia customer support for assistance.

Dukungan Online: www.insigniaproducts.com/support
