Omega Products Corporation 14" x 24" x 63" Chrome Baker's Rack with Wine Storage Instruction Manual

Bubuka

This instruction manual provides detailed guidance for the assembly, operation, and maintenance of your Omega Products Corporation Chrome Baker's Rack with Wine Storage. Please read this manual thoroughly before assembly and retain it for future reference. This unit is designed to provide versatile storage for your kitchen or pantry, featuring adjustable shelves and integrated wine storage.

Émbaran Kasalametan

• Always assemble the unit on a soft, clean surface to prevent scratching.
• Pastikeun sadaya komponén parantos dipasang pageuh sateuacan neundeun barang-barang dina rak.
• Do not exceed the maximum weight capacity of 600 lbs per shelf. Distribute weight evenly.
• Tetep bagian leutik jauh ti barudak salila assembly.
• Use caution when moving the assembled unit to prevent injury or damage.
• Pariksa sadaya sambungan sacara berkala pikeun mastikeun éta tetep pageuh.

Eusi pakét

Sateuacan ngamimitian perakitan, pastikeun sadaya bagian anu didaptarkeun di handap ieu aya. Upami aya bagian anu leungit atanapi ruksak, mangga ngahubungi dukungan palanggan.

• Shelf Units (Wire Shelves, Wine Rack Shelves)
• Support Poles (Upper and Lower)
• Shelf Clips (Plastic)
• Leveling Kaki
• Wooden Top (for baker's rack surface)
• Grid Back Panel (optional, for upper section)
• Hooks (optional, for grid back panel)

Setup sareng Majelis

Follow these steps carefully to assemble your baker's rack.

1. Ngagantelkeun Leveling Feet: Screw the leveling feet into the bottom of the lower support poles. Ensure they are tightened securely. These feet allow for minor adjustments to stabilize the unit on uneven surfaces.


   Image: Leveling foot attached to a support pole.
2. Pasang Tiang Handap: Connect the upper and lower support poles by screwing them together. The poles have threaded ends for this purpose.
3. Pasang Klip Rak: Determine the desired height for your first shelf. Snap the two halves of a plastic shelf clip around each pole at the same height, ensuring the arrow on the clip points upwards. Repeat for all four poles for the first shelf.


   Image: Shelf clips being installed on a support pole.

4. Place First Shelf: Slide the first wire shelf down over the poles until it rests firmly on the installed shelf clips. Gently tap the shelf corners with a rubber mallet (not included) to ensure it is fully seated and level.
5. Install Wine Rack Shelves: For the wine storage section, install the specialized wine rack shelves using the same shelf clip method. Ensure the wine bottle cradles are facing upwards.


   Image: Wine rack shelves in use, showing bottle placement.

6. Pasang Sésa Rak: Continue installing shelf clips and shelves at your desired heights. The shelves are adjustable in 1-inch increments.
7. Add Wooden Top: Place the wooden top onto the designated shelf, typically the main work surface. Ensure it is centered and stable.

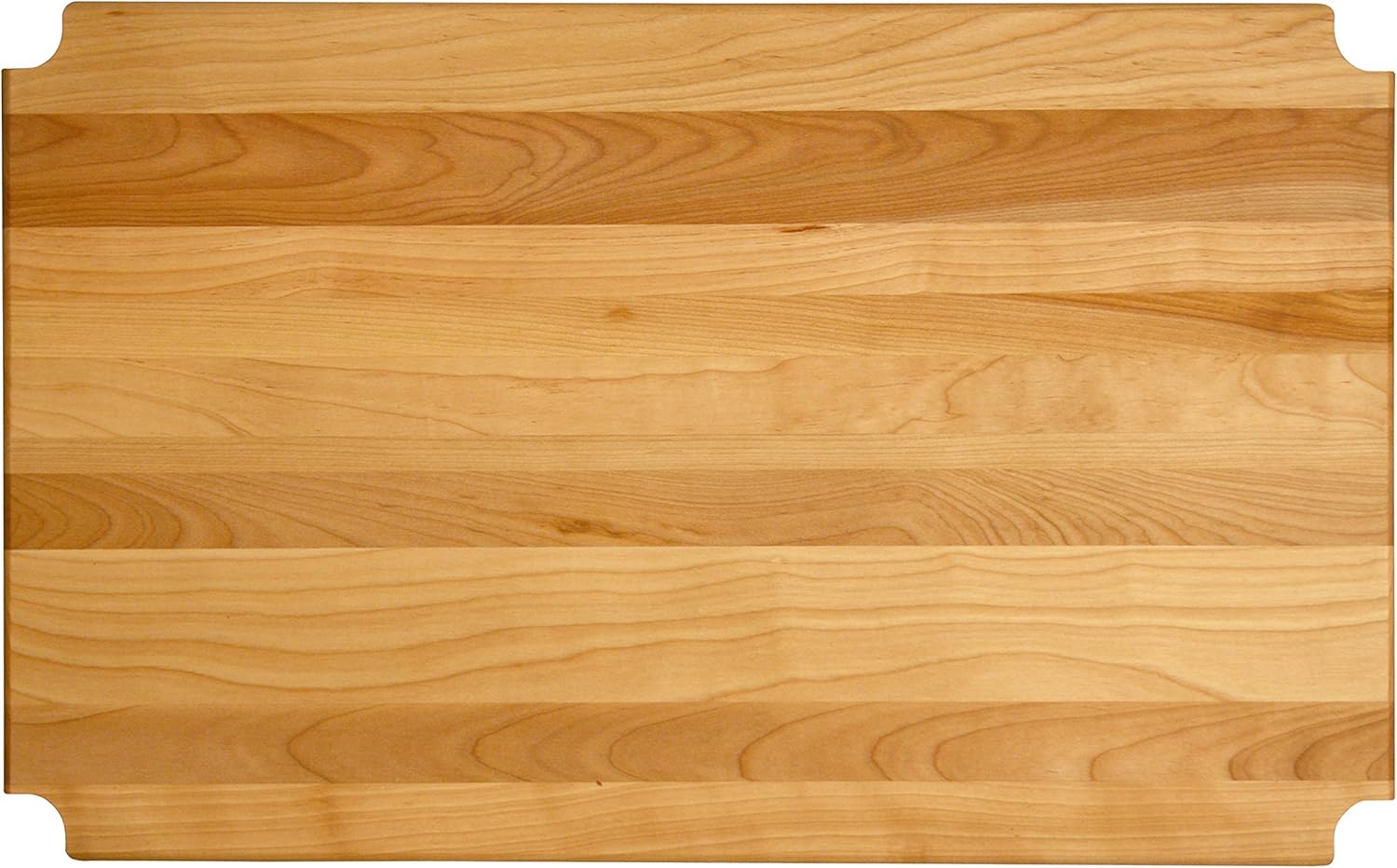

   Image: Wooden top surface for the baker's rack.
8. Attach Grid Back Panel and Hooks (Optional): If your model includes a grid back panel, attach it to the rear poles of the upper section. Then, hang the provided hooks onto the grid panel for utensil storage.


   Image: Chrome wire grid back panel.




   Image: Chrome hooks for hanging utensils.

9. Cék ahir: Once assembled, gently rock the unit to ensure stability. Adjust the leveling feet as needed to eliminate any wobbling.


   Image: Fully assembled baker's rack.

Parentah Operasi

• Penyesuaian rak: To adjust shelf height, remove all items from the shelf. Lift the shelf off the clips, remove the clips, reposition them at the desired height, and then re-seat the shelf.
• Distribusi beurat: For optimal stability and to prevent tipping, distribute heavy items on lower shelves and lighter items on upper shelves.
• Panyimpenan Anggur: The specialized wine rack shelves are designed to hold standard wine bottles horizontally, keeping corks moist.
• Beungeut Gawé: The wooden top provides a durable and convenient work surface for kitchen tasks.

Pangropéa

• beberesih: Wipe chrome surfaces with a soft, damp cloth and mild detergent. Avoid abrasive cleaners or scouring pads, which can damage the finish. Dry thoroughly to prevent water spots.
• Wooden Top Care: Clean the wooden top with a damp cloth. For stubborn stains, use a wood-safe cleaner. Periodically condition the wood with a food-safe mineral oil to maintain its appearance and prevent drying.
• Pamariksaan: Regularly inspect the unit for any loose connections or signs of wear. Tighten any loose parts immediately.

Pamérésan masalah

• Unitna teu stabil/goyang: Ensure all shelf clips are securely snapped onto the poles at the same height for each shelf. Adjust the leveling feet on the bottom of the poles to compensate for uneven flooring.
• Shelf Not Sitting Level: Check that all four shelf clips for that particular shelf are at the exact same height marking on the poles. Ensure the shelf is fully seated onto the clips.
• Difficulty Assembling Poles: Ensure the threaded ends are aligned correctly before twisting. Do not force connections.

spésifikasi

Garansi sareng Rojongan

Omega Products Corporation stands behind the quality of its products. For warranty information, replacement parts, or technical assistance, please refer to the contact information provided with your purchase or visit the official Omega Products Corporation websitus. Mangga sayogikeun nomer modél sareng tanggal pameseran anjeun nalika ngahubungi dukungan.
