1. Produk Langkungview
The Geberit CleanLine60 Shower Channel Grille, model 154.458.00.1, is designed for efficient drainage in floor-level showers. This extra-flat grille is suitable for installation in the room or directly on the wall, and is compatible with thin-bed mortar and composite waterproofing systems. Its design allows for precise adjustment in height, inclination, and offset, ensuring seamless integration with various tile constructions ranging from 4 to 40mm.
The shower channel can be cut to length to fit specific installation requirements, and its quality is monitored according to EN 1253-3 standards. The product is made from durable stainless steel, ensuring longevity and easy cleaning.
2. Parentah Kasalametan penting
- Salawasna baca sareng pahami sadaya pitunjuk sateuacan dipasang sareng dianggo.
- Ensure all local building codes and plumbing regulations are followed during installation.
- Anggo alat pelindung diri (APD) anu merenah sapertos sarung tangan sareng pelindung panon nalika pamasangan.
- Upami anjeun henteu yakin ngeunaan bagian mana waé tina prosés pamasangan, konsultasi ka profésional anu mumpuni.
- Jauhkeun bagian leutik ti barudak pikeun nyegah bahaya choking.
3. Eusi Paket
Pariksa yén sadaya komponén aya sateuacan ngamimitian pamasangan:
- Geberit CleanLine60 Shower Channel Grille (1 unit)
- Comb insert
- Inlet connection piece with compensation ring
Catetan: The rough construction set for CleanLine series shower channels must be ordered separately.
4. Setup jeung Instalasi
Proper installation is crucial for the optimal performance and longevity of your Geberit CleanLine60 shower channel grille. This section outlines the general steps for installation.
4.1. Persiapan
- Ensure the installation area is clean, level, and prepared according to the rough construction set instructions.
- Confirm that the floor-level shower area is ready for drainage system integration.
- Measure the required length for the shower channel. The CleanLine60 grille can be cut to length (30-90cm) to fit specific dimensions.
4.2. Léngkah Instalasi
- Posisi: Determine the exact location for the shower channel, either in the room or against the wall, considering the desired inclination for water flow.
- Rough Construction Set Integration: Install the rough construction set (ordered separately) according to its specific instructions, ensuring it is securely fixed and properly sealed for composite waterproofing.
- Grille Adjustment: Place the CleanLine60 grille into the rough construction set. Adjust its height, inclination, and offset to align perfectly with the surrounding tile construction (4-40mm).
- Sambungan: Connect the inlet connection piece with the compensation ring to the drainage system, ensuring a watertight seal.
- Penempatan ahir: Secure the grille in its final position. The design allows for easy cleaning access.

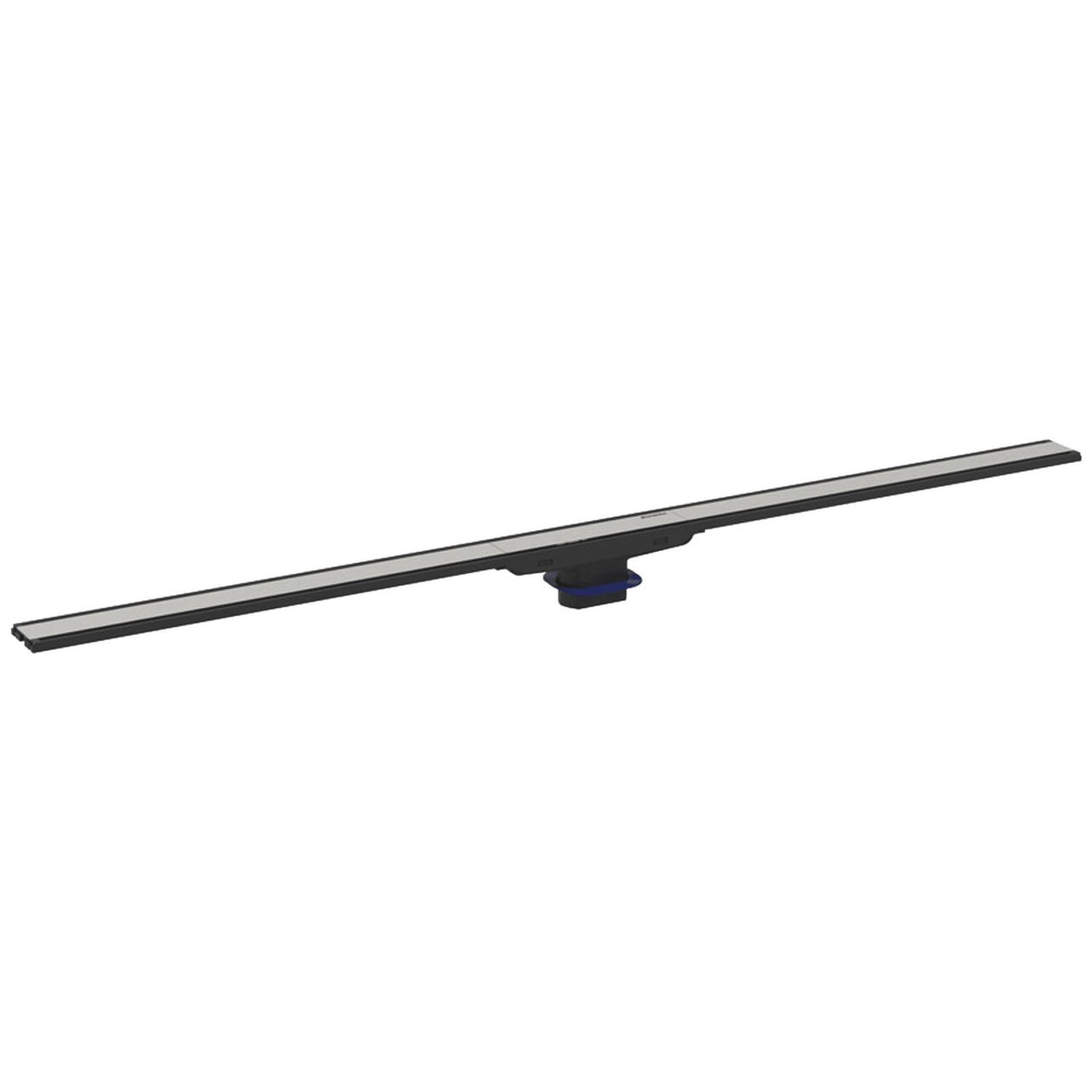

Gambar 1: Geberit CleanLine60 Shower Channel Grille. This image illustrates the design and appearance of the extra-flat grille, suitable for modern shower installations.
5. Parentah Operasi
The Geberit CleanLine60 Shower Channel Grille functions as a passive drainage component. Once installed, it efficiently collects and channels water from the shower area into the plumbing system. No active operation is required from the user. Ensure the grille remains clear of large debris to maintain optimal drainage performance.
6. Pangropéa
The Geberit CleanLine60 shower channel grille is designed for simple cleaning to ensure hygiene and prevent blockages.
- Ngabersihan rutin: Periodically remove the grille and the comb insert. Clean them with warm water and a mild, non-abrasive cleaning agent.
- Ngaleungitkeun puing: Remove any hair, soap residue, or other debris that may accumulate in the channel or on the comb insert.
- Reassembly: After cleaning, ensure all components are correctly reinserted.
- Hindarkeun Bahan Kimia Kasar: Do not use harsh chemicals, abrasive cleaners, or scouring pads, as these can damage the stainless steel finish.
7. Cara ngungkulan
If you encounter issues with your Geberit CleanLine60 shower channel grille, consider the following:
- Drainase lambat: Check for blockages in the comb insert or the channel. Remove and clean as described in the Maintenance section. Ensure the outlet pipe is not obstructed.
- Bocor: If water is leaking around the channel, this indicates an issue with the waterproofing or the seal of the rough construction set. This typically requires professional inspection and repair.
- Grille Misalignment: If the grille is not sitting flush, check for debris underneath or ensure it was properly installed and adjusted during the initial setup.
For persistent issues, contact Geberit customer support or a qualified plumber.
8. Spésifikasi Téknis
| Spésifikasi | Rincian |
|---|---|
| Nomer modél | 154.458.00.1 |
| Bahan | Beusi sténless |
| Warna | Chrome |
| Bérés | Herang |
| Wangun | Sagi opat |
| Panjang adjustable | 30-90 cm (can be cut to length) |
| Tile Construction Floor | 4 - 40 mm |
| Item Beurat | 1.36 Kilogram (2.99 pon) |
| Dimensi produk | 11.81 x 7.87 x 15.75 inci (kira-kira) |
| Package Dimensions (L x B x H) | 93 x 10 x 7 cm |
| Item Paket Kuantitas | 1 |
| Standar Kualitas | Monitored according to EN 1253-3 |
9. Garansi jeung Rojongan
Geberit products are manufactured to high-quality standards. For specific warranty information, please refer to the documentation provided with your purchase or visit the official Geberit website. In case of technical questions, installation assistance, or warranty claims, please contact Geberit customer support through their official channels.
