1. Bubuka
This manual provides essential information for the safe and efficient operation, setup, and maintenance of your Festool CTL SYS Dust Extractor. Please read these instructions thoroughly before using the device to ensure proper function and to prevent potential hazards. Keep this manual for future reference.
Image 1.1: The Festool CTL SYS Dust Extractor shown with its attached hose and a floor nozzle, illustrating its compact design and readiness for use.
2. Émbaran Kasalametan
Always observe the following safety precautions when operating the Festool CTL SYS Dust Extractor:
- Kasalametan listrik: Pastikeun catu daya cocog sareng voltage specified on the device. Do not operate with damaged cords or plugs. Disconnect from power before performing any maintenance or cleaning.
- Bahaya Lebu: This extractor is designed for dry dust. Do not use for flammable liquids, explosive dust, or hot materials. Always wear appropriate personal protective equipment (PPE), such as dust masks and safety glasses, especially when emptying the dust bag.
- Pamakéan ditangtoskeun: Do not use the extractor as a step stool or seat. Keep children and unauthorized persons away from the operating area. Ensure all filters and dust bags are correctly installed before operation.
- Pangropéa: Only perform maintenance as described in this manual. For repairs, contact authorized Festool service personnel.
3. Eusi Paket
Verify that all components are present upon unpacking your Festool CTL SYS Dust Extractor:
- Festool CTL SYS Dust Extractor Unit
- Selang vakum
- Hose reservoir
- Sys-Dock
- Pelapis pelapis
- Novel gabungan
- Mawa tali
- Filter (dipasang sateuacana)
- Dust bag (pre-installed or included separately)

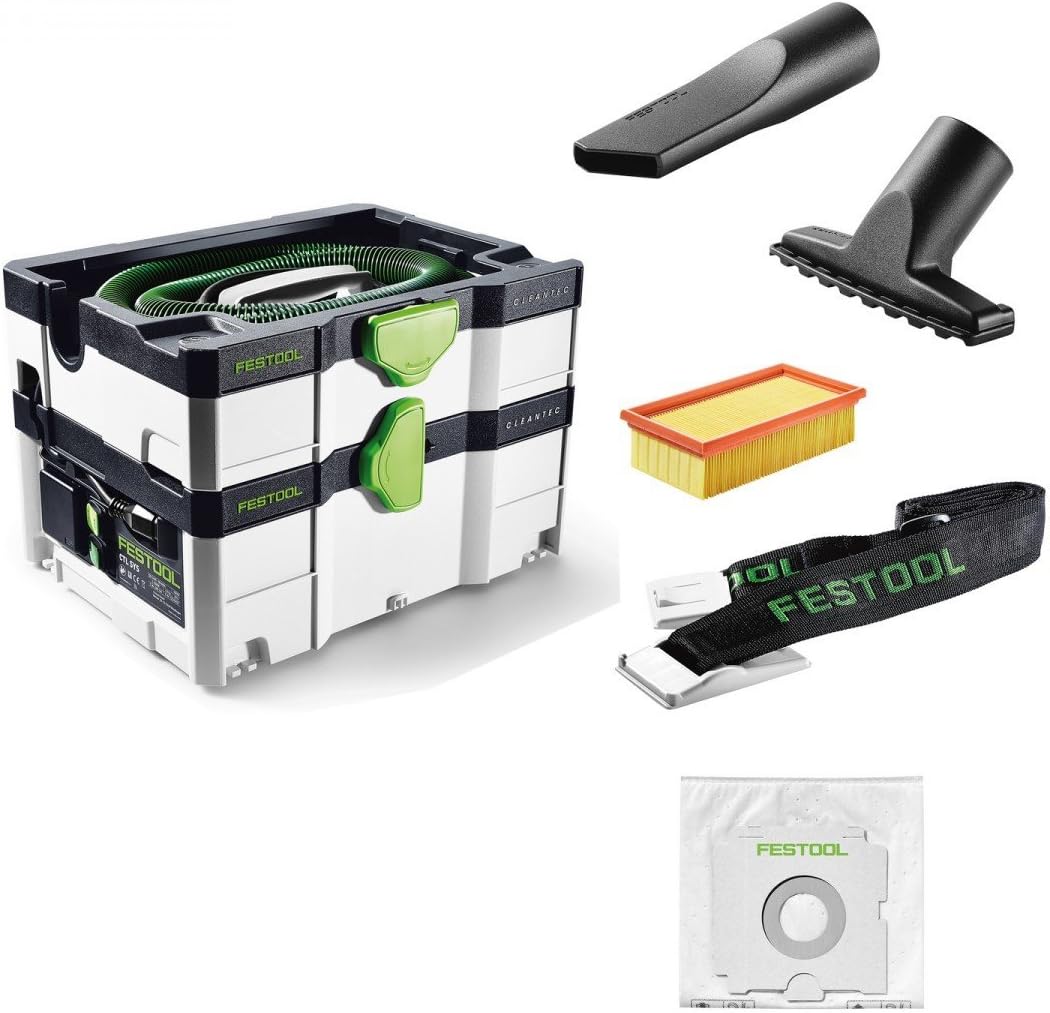

Gambar 3.1: Ngaliwatanview of the Festool CTL SYS Dust Extractor and its included accessories, such as various nozzles, a filter, a dust bag, and a carry strap.
4. Setélan
Follow these steps for initial setup of your dust extractor:
- Ngabongkar bungkusan: Sacara saksama miceun sadaya komponén tina bungkusan.
- Filter and Dust Bag Installation: Ensure the main filter and dust bag are correctly seated within the unit. Refer to the maintenance section for detailed instructions on filter and bag replacement.
- Sambungan selang: Connect the vacuum hose to the designated port on the extractor. Ensure a secure fit to maintain optimal suction.
- Sambungan Daya: Colokkeun kabel listrik kana stop kontak listrik anu cocog.
- Mobility Options: The CTL SYS is designed for portability. Use the included carry strap for shoulder transport or integrate it with a Festool SYS-Cart (sold separately) for wheeled transport.

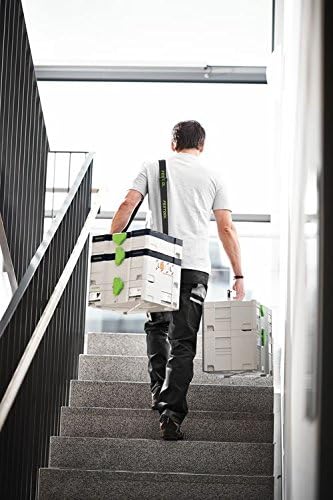

Image 4.1: A person carrying the Festool CTL SYS Dust Extractor using the provided shoulder strap, demonstrating its portability for transport up stairs or in confined spaces.

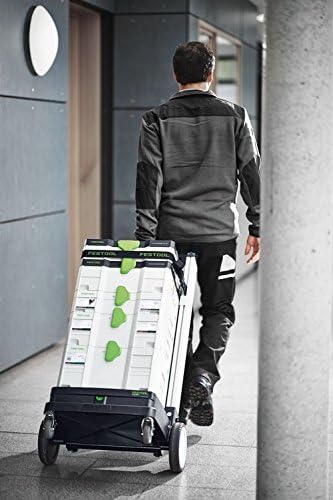

Image 4.2: A person pulling the Festool CTL SYS Dust Extractor on a wheeled cart, highlighting an optional method for easy transportation across flat surfaces.
5. Operasi
Operating the Festool CTL SYS Dust Extractor is straightforward:
- Hurungkeun/Pareuman: Use the main power switch located on the unit to turn the extractor on or off.
- Connecting to Power Tools: For dust extraction during power tool operation, connect the vacuum hose to the dust port of your compatible Festool power tool. The extractor can be placed directly on top of a Systainer stack for integrated workflow.
- Aplikasi beberesih: Attach the appropriate nozzle (upholstery, joint, or floor nozzle) to the end of the vacuum hose for general cleaning tasks.
- Automatic Tool Activation: If connected to a power tool with an automatic start feature, the extractor will power on when the tool is activated and power off shortly after the tool is switched off.

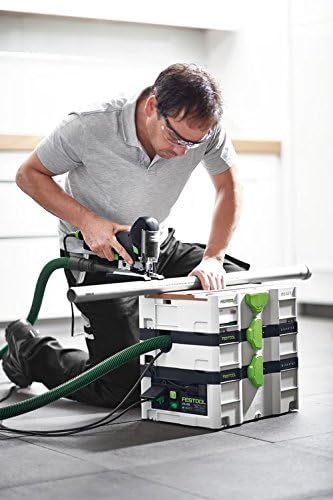

Image 5.1: A person operating a jigsaw while the Festool CTL SYS Dust Extractor is connected, demonstrating effective dust collection during woodworking tasks.
Image 5.2: A person using a sander with the Festool CTL SYS Dust Extractor connected, illustrating its use for dust-free sanding operations.

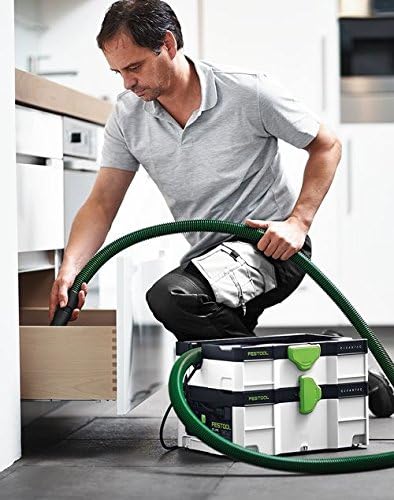

Image 5.3: A person using the Festool CTL SYS Dust Extractor to clean dust from a drawer, showcasing its utility for small-scale and detailed cleaning.

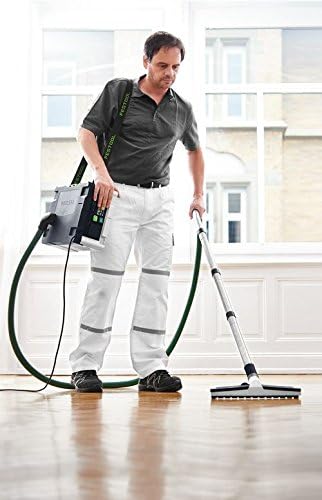

Image 5.4: A person using the Festool CTL SYS Dust Extractor with a floor wand and nozzle for general floor cleaning, demonstrating its versatility.
6. Pangropéa
Regular maintenance ensures the longevity and performance of your dust extractor:
- Ngaganti Kantong Debu: Replace the dust bag when it is full or when suction power noticeably decreases. Always use genuine Festool replacement bags to maintain filtration efficiency.
- Saringan beberesih / ngagantian: The main filter should be regularly inspected. Depending on usage and dust type, it may require cleaning or replacement. Refer to the filter compartment for specific instructions on removal and installation.
- Pabersihan Selang sareng Nozzle: Periodically check the hose and nozzles for blockages and clean them as needed to ensure unobstructed airflow.
- Bersihan Luar: Usap bagian luar unit nganggo iklanamp lawon. Ulah make bahan kimia kasar atawa cleaners abrasive.
7. Cara ngungkulan
If you encounter issues with your Festool CTL SYS Dust Extractor, refer to the following common problems and solutions:
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Taya kakuatan | Power cord unplugged, faulty outlet, tripped circuit breaker | Check power connection, test outlet, reset circuit breaker |
| kakuatan nyeuseup low | Full dust bag, clogged filter, blocked hose/nozzle, improperly sealed lid | Replace dust bag, clean/replace filter, clear blockages, ensure lid is securely closed |
| Sora teu biasa | Foreign object in hose/fan, motor issue | Inspect hose for objects. If noise persists, contact Festool service. |
| Lebu nu kaluar ti unit | Damaged filter, improperly installed filter/dust bag, damaged housing seal | Inspect and correctly install filter/dust bag, replace damaged components. |
If the problem persists after attempting these solutions, please contact Festool customer support or an authorized service center.
8. Spésifikasi
Key technical specifications for the Festool CTL SYS Dust Extractor:
| Fitur | Spésifikasi |
|---|---|
| Ngaran modél | CTL SYS |
| Konsumsi Daya | 1000 W |
| Maximum Depression | 20000 Pa |
| Laju aliran maksimum | 3000 l / mnt |
| Container/Filter Bag Volume | 4.5 L / 3.5 L |
| Jenis Filter | Kartrid |
| Tingkat Noise | 67 dB |
| Ukuran produk (L x W x H) | 11.65 x 15.59 x 10.63 inci |
| Item Beurat | 15.21 pon |
| Dianjurkeun Mangpaat | Power tools, small work, final cleaning, narrow spaces |
9. Garansi jeung Rojongan
Festool products are manufactured to high-quality standards and come with a manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation included with your purchase or visit the official Festool website. For technical support, spare parts, or service inquiries, please contact your authorized Festool dealer or Festool customer service directly.
You can find more information and support resources on the official Festool websitus: www.festool.com
