WEB W-108 10-inch Woofer Speaker User Manual

1. Bubuka

Hatur nuhun pikeun milih éta WEB W-108 10-inch Woofer Speaker. This manual provides essential information for the safe and optimal use of your new woofer. Please read it thoroughly before installation and operation, and retain it for future reference.

The WEB W-108 is a powerful and compact 10-inch (25 cm) woofer designed for a wide range of audio applications, including home audio systems, DJ setups, discos, Dolby Surround systems, and car audio installations. Its robust construction and balanced performance ensure clear and impactful bass reproduction.

2. Émbaran Kasalametan

To prevent damage to the woofer and ensure user safety, observe the following precautions:

• Penanganan kakuatan: Do not exceed the recommended power ratings (75 Watts RMS, 150 Watts Max). Overpowering can cause irreversible damage to the speaker coil.
• AmpCocogkeun liifier: Pastikeun Anjeun amplifier is appropriately matched to the woofer's impedance (8 Ohms). Using an amplifier with an incorrect impedance can lead to overheating and damage to both the amplifier jeung woofer nu.
• Ventilasi: Ensure adequate ventilation around the woofer, especially if installed in an enclosed space, to prevent overheating.
• Pamasangan: If installing in a vehicle, ensure all wiring is secure and properly insulated to prevent short circuits and electrical hazards. Consult a professional for complex installations.
• Tingkat volume: Prolonged exposure to high volume levels can cause hearing damage. Use responsible listening levels.
• Uap: This woofer is not waterproof. Avoid exposure to water or excessive moisture.

3. Produk Langkungview

The WEB W-108 woofer features a durable design optimized for clear bass reproduction. Key components and features include:

• kerucut: Yellow cellulose cone for responsive and accurate sound.
• Suspensi: Rigid triple-roll suspension for enhanced durability and excursion control.
• Voice Coil: 1.5-inch (3.75 cm) aluminum voice coil.
• Magnét: Powerful 10 cm diameter magnet, weighing 1.23 kg.
• Ventilated Pole Plate: Rear pole plate is ventilated to improve heat dissipation and power handling.
• Impedansi: 8 Ohms, suitable for various audio setups.
• kakuatan: 75 Watts RMS, 150 Watts Max.

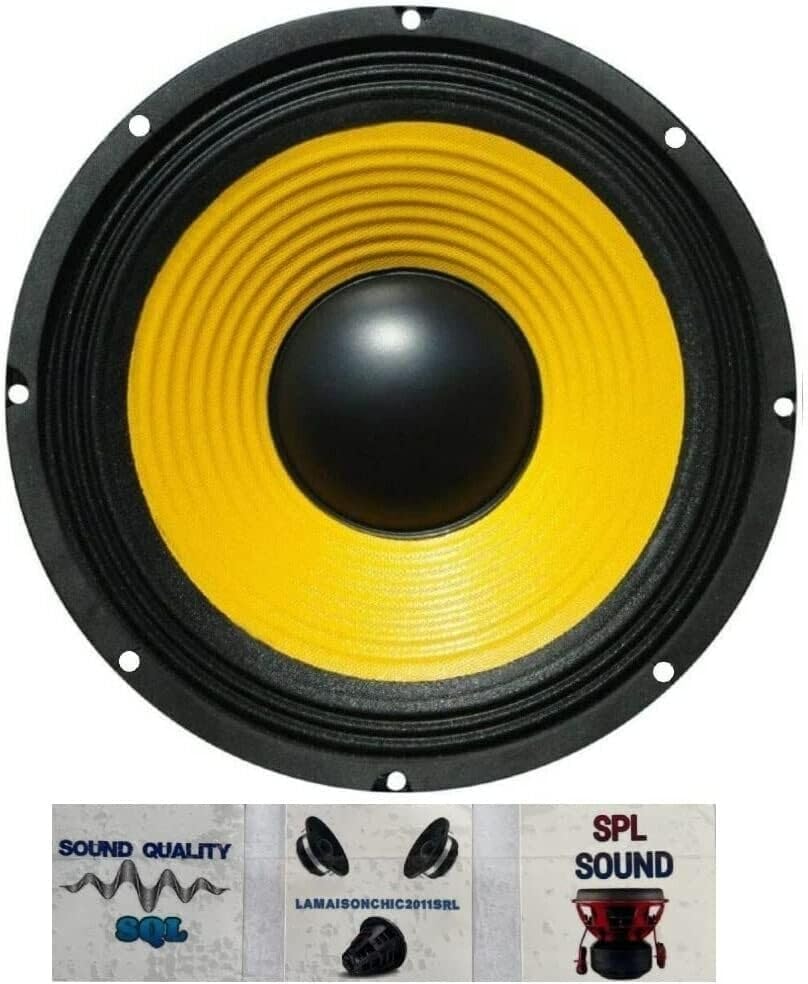

Gambar 3.1: Top view tina WEB W-108 woofer, highlighting the yellow cellulose cone and the WEB W-108 150Wmax branding on the magnet cover.

Gambar 3.2: Sisi view tina WEB W-108 woofer, illustrating its overall depth and the location of the speaker terminals for wiring connections.

4. Setup jeung Instalasi

Proper installation is crucial for optimal performance and longevity of your woofer. This section provides general guidelines.

4.1. Ngabongkar bungkusan

Carefully remove the woofer from its packaging. Inspect for any signs of damage during transit. Retain the packaging for future transport or storage.

4.2. Pamasangan Pertimbangan

• Kandang: The woofer is designed for use in a suitable enclosure (e.g., sealed, ported, bandpass) depending on desired bass characteristics. Ensure the enclosure volume is appropriate for a 10-inch woofer.
• jerona dipasang: The mounting depth is 9.5 cm. Ensure your chosen mounting location or enclosure has sufficient depth.
• Diaméter cutout: The total diameter is 25.5 cm. Ensure the cutout for mounting is precise to ensure a secure fit.
• Geter: Mount the woofer securely to prevent vibrations and rattling. Use appropriate screws and gaskets.

4.3. Sambungan Wiring

The WEB W-108 has an impedance of 8 Ohms. Connect the woofer to your amplifier using high-quality speaker wire. Observe correct polarity (+ to + and - to -) to ensure proper phase and sound reproduction.

1. Identify the positive (+) and negative (-) terminals on the woofer and your amppangagung.
2. Connect the positive terminal of the woofer to the positive output terminal of your amppangagung.
3. Connect the negative terminal of the woofer to the negative output terminal of your amppangagung.
4. Ensure all connections are tight and free from stray wire strands that could cause short circuits.

Rekomendasi: It is advisable to apply 60-90 Watts RMS per channel from a traditional Class AB amplifier to achieve the best results. Do not exceed the maximum recommended power of 150 Watts to avoid irreparable damage.

5. Parentah Operasi

Once installed and connected, operating your WEB W-108 woofer is straightforward:

1. Daya Hurung: Hurungkeun anjeun amplifier atawa sumber audio.
2. Kontrol volume: Start with the volume at a low level. Gradually increase the volume to your desired listening level.
3. Sumber Audio: Play audio from your connected source (e.g., MP3 player, desktop computer, laptop, smartphone, tablet).
4. AmpSetélan Lifier: Saluyukeun amplifier settings such as bass boost, crossover frequency, and gain to fine-tune the woofer's performance to your preference and the acoustics of your listening environment. Ensure the crossover is set to filter out high frequencies, allowing the woofer to reproduce only bass frequencies.
5. Tingkat Dengekeun: Avoid prolonged listening at extremely high volumes to prevent speaker damage and hearing fatigue.

6. Pangropéa

The WEB W-108 woofer requires minimal maintenance to ensure long-term performance:

• beberesih: Use a soft, dry cloth to gently wipe the cone and frame. Do not use harsh chemicals or abrasive cleaners. Avoid applying pressure to the cone.
• Lebu: Keep the woofer free from dust and debris, especially around the voice coil and magnet assembly.
• Lingkungan: Store and operate the woofer in a dry environment, away from direct sunlight, extreme temperatures, and high humidity.
• Pamariksaan: Periodically check speaker wire connections for tightness and corrosion.

7. Cara ngungkulan

Upami anjeun mendakan masalah sareng anjeun WEB W-108 woofer, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, contact customer support or a qualified audio technician.

8. Spésifikasi Téknis

spésifikasi lengkep pikeun WEB W-108 10-inch Woofer Speaker:

9. Garansi jeung Rojongan

Kanggo inpormasi garansi sareng dukungan palanggan, mangga tingali dokuméntasi anu disayogikeun dina waktos pameseran atanapi hubungi pangecér anjeun. Simpen bukti pameseran anjeun pikeun klaim garansi naon waé.

For technical assistance or further inquiries, please visit the official WEB merek websitus atanapi ngahubungan departemén layanan palanggan maranéhna.
