1. Bubuka
This manual provides detailed instructions for the installation, operation, and maintenance of your Orca Single Lever Bath Mixer Oakland SM1003. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product. This bath mixer is designed for efficient hot and cold water mixing and features a durable brass construction with a chrome-mirror finish.
2. Komponén Kaasup
The Orca Single Lever Bath Mixer Oakland SM1003 package includes the following:
- Orca Single Lever Bath Mixer Unit
- Fitting Accessories (e.g., wall flanges, washers, nuts)
Mangga pastikeun sadaya komponén aya sareng henteu ruksak sateuacan neraskeun pamasangan.
3. Émbaran Kasalametan
Salawasna perhatikeun pancegahan kaamanan di handap ieu:
- Pastikeun suplai cai utama dipareuman sateuacan ngamimitian pamasangan atanapi pangropéa.
- If you are unsure about any part of the installation process, it is recommended to consult a qualified plumber.
- Anggo alat pelindung pribadi anu pas, sapertos sarung tangan sareng panyalindungan panon, nalika dipasang.
- Do not use excessive force when tightening connections to avoid damaging the product or plumbing.
4. Pitunjuk Instalasi
Follow these steps for proper installation of your bath mixer:
- Nyiapkeun Area Instalasi: Ensure the wall surface is clean and flat. Identify the hot and cold water supply lines.
- Attach Wall Flanges: Screw the provided wall flanges onto the hot and cold water supply pipes extending from the wall. Ensure they are securely tightened and properly aligned.
- Connect the Mixer: Carefully align the mixer unit with the wall flanges. Connect the hot water inlet of the mixer to the hot water supply and the cold water inlet to the cold water supply. Use the provided washers and nuts to secure the connections. Tighten firmly but do not overtighten.
- Pariksa bocor: Once the mixer is securely installed, slowly turn on the main water supply. Inspect all connections for any signs of leakage. If leaks are detected, turn off the water supply and re-tighten the connections.
- Cék ahir: Ensure the mixer is firmly mounted to the wall and does not wobble.

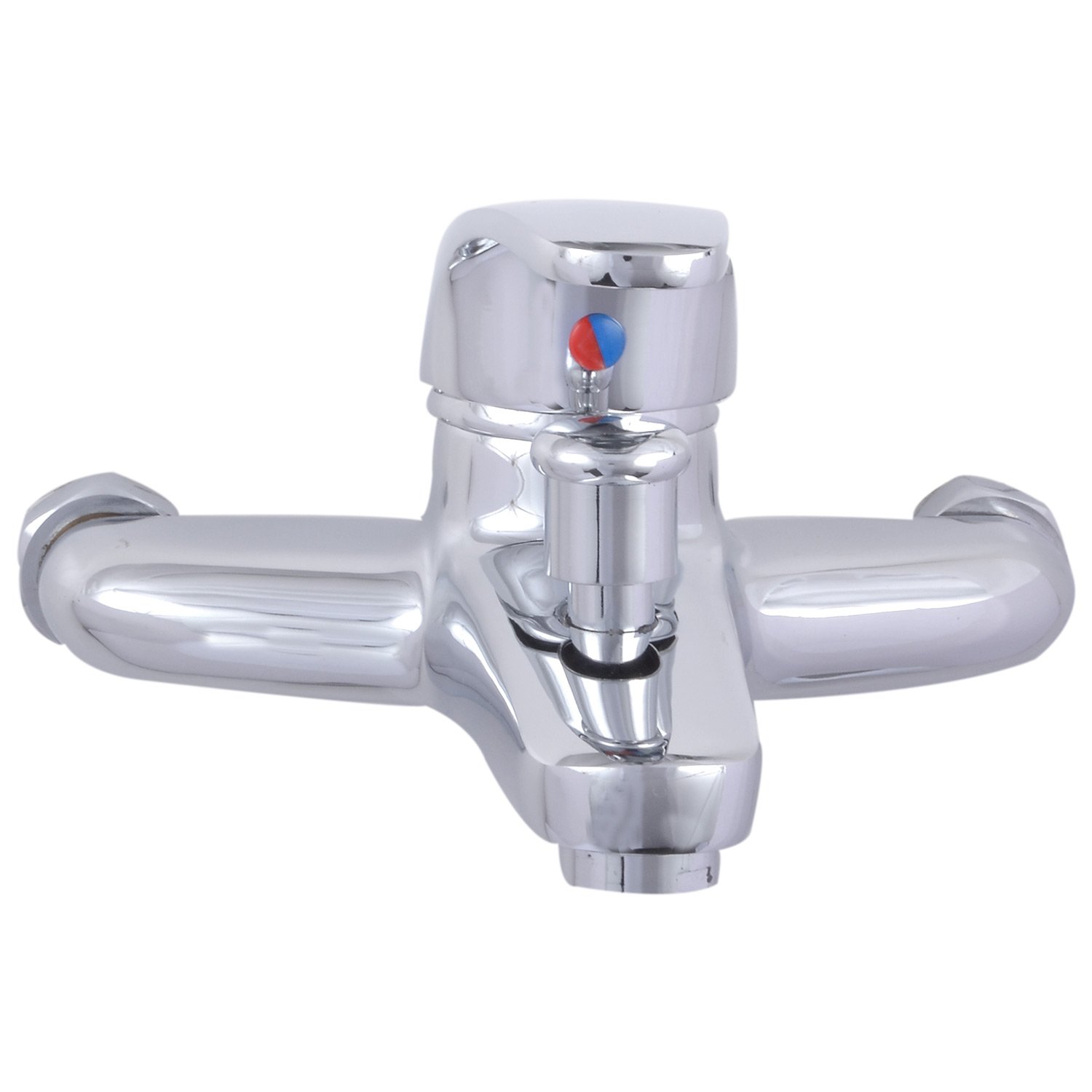

Gambar: Hareupeun view of the Orca Single Lever Bath Mixer Oakland SM1003, showing the lever and diverter knob.
5. Parentah Operasi
The Orca Single Lever Bath Mixer is designed for ease of use:
- Aliran Cai sareng Kontrol Suhu: The single lever controls both water flow and temperature.
- Pikeun Ngahurungkeun/Pareuman: Lift the lever upwards to turn on the water flow. Push the lever downwards to turn off the water flow.
- Pikeun Saluyukeun Suhu: Move the lever to the left for hot water and to the right for cold water. Adjust the position between left and right to achieve the desired water temperature.
- Hand Shower Diversion (Tiptone): The mixer features a tiptone diverter for hand shower functionality. Pull the small knob located below the main lever upwards to divert water flow to a connected hand shower. Push it down to return water flow to the main spout.
6. Pangropéa
Proper maintenance will ensure the longevity and appearance of your bath mixer:
- beberesih: Clean the mixer regularly with a soft cloth and mild soap or a non-abrasive cleaner specifically designed for chrome finishes.
- Hindarkeun Bahan Kimia Kasar: Do not use abrasive cleaners, scouring pads, or chemical solvents as these can damage the chrome finish.
- Pariksa bocor: Pariksa sadaya sambungan sacara berkala pikeun ningali aya tanda-tanda bocor. Atasi bocorna gancang-gancang pikeun nyegah karusakan ku cai.
- Pembersih Aerator: If water flow becomes restricted, the aerator at the spout may be clogged. Unscrew the aerator, clean any debris, and reattach it.
7. Cara ngungkulan
Tingali tabel di handap ieu pikeun masalah umum sareng solusina:
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Aliran Cai Lemah | Aerator tersumbat; stopcock sawaréh ditutup; tekanan cai low. | Ngabersihan aerator; mastikeun stopcocks pinuh kabuka; pariksa tekanan cai rumah tangga. |
| Cai bocor tina Sambungan | Loose connections; worn washers. | Tighten connections; replace washers if damaged. |
| Masalah Kontrol Suhu | Improper hot/cold water supply; cartridge issue. | Verify hot and cold water supply is connected correctly; if issue persists, contact support. |
8. Spésifikasi
| Nomer modél | SM1003 |
| merek | ORCA |
| Bahan | Kuningan |
| Warna / Rengse | Chrome-Mirror Finish |
| Item Beurat | 900 g |
9. Émbaran jaminan
The Orca Single Lever Bath Mixer Oakland SM1003 comes with a 1 Taun Garansi Standar from the date of purchase. This warranty covers manufacturing defects under normal use and service. It does not cover damage resulting from improper installation, misuse, abuse, accident, or unauthorized repairs. Please retain your purchase receipt as proof of purchase for warranty claims.
10. Rojongan Palanggan
For any questions, technical assistance, or warranty claims regarding your Orca Single Lever Bath Mixer Oakland SM1003, please contact ORCA customer service. Refer to your product packaging or the ORCA official websitus pikeun inpo kontak panganyarna.
