IK Multimedia iRig Mic Field Instruction Manual

1. Produk Langkungview

The IK Multimedia iRig Mic Field is a high-quality stereo condenser microphone designed for use with iPhone, iPod touch, and iPad devices. It connects directly via the Lightning port, offering superior audio capture compared to built-in device microphones. Ideal for both audio and video applications, it features two high-quality capsules in an XY stereo configuration and a 24-bit A/D converter for pristine sound. A built-in headphone jack allows for real-time monitoring of your recordings.

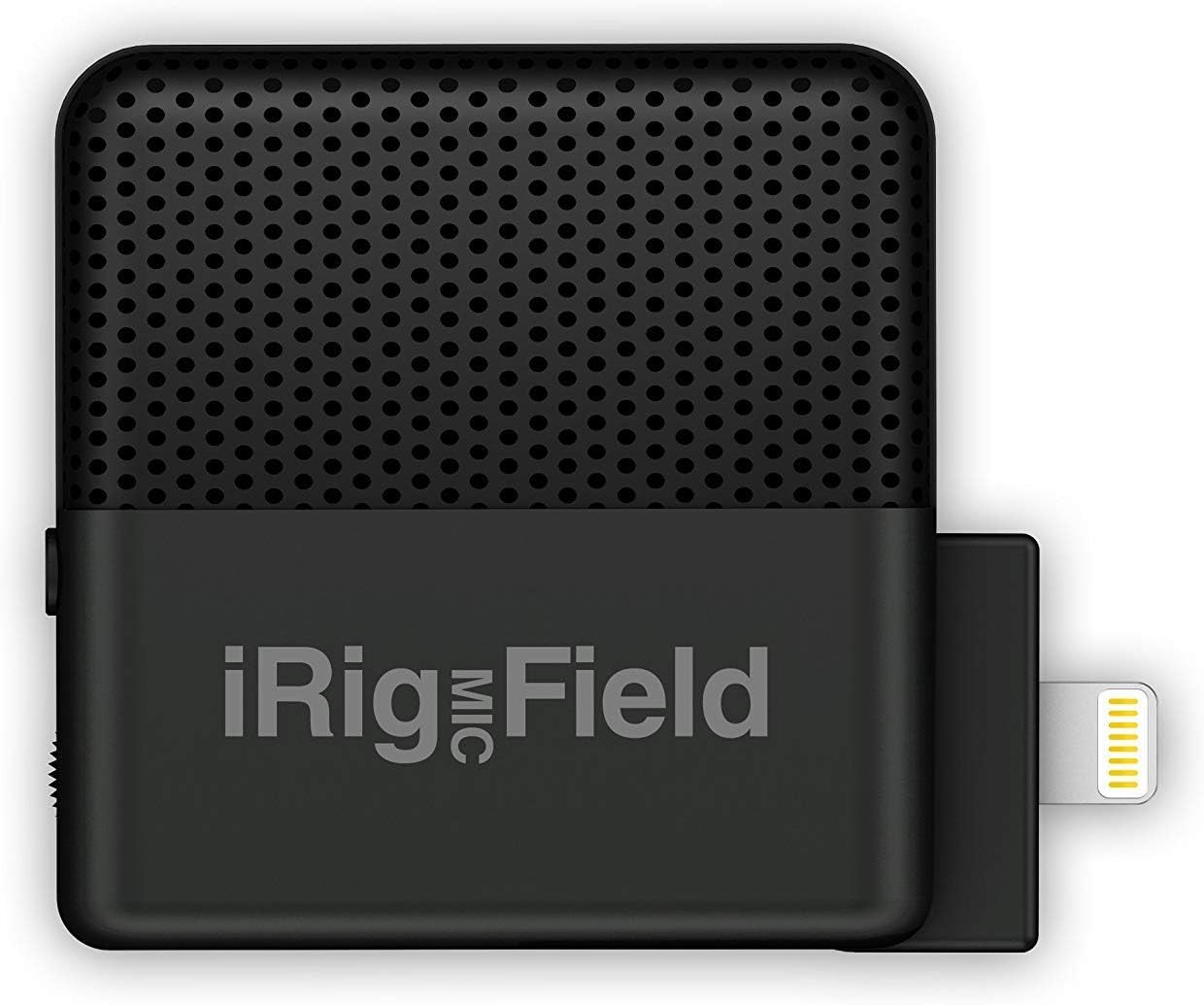

Gambar 1.1: Hareupeun view of the iRig Mic Field microphone.

2. Fitur konci

• Digital stereo field recording microphone for iPhone and iPad.
• Rotates 90 degrees for optimal positioning in both landscape and portrait mode.
• Excellent for recording music and capturing high-definition audio for video.
• Features 24-bit, 48 kHz analog/digital conversion for high fidelity.
• Includes a headphone output for real-time monitoring during recording.

3. Naon dina Box

• iRig Mic Field Stereo Microphone

Figure 3.1: The iRig Mic Field retail packaging.

4. Setélan

1. Nyambung ka Alat: Carefully insert the Lightning connector of the iRig Mic Field into the Lightning port of your iPhone, iPod touch, or iPad. Ensure a secure connection.
2. Penyesuaian Orientasi: The iRig Mic Field features an exclusive rotating connection. You can rotate the microphone 90 degrees to adjust its left/right orientation, which is particularly useful for maintaining accurate stereo imaging when recording video in either landscape or portrait mode. Lock it in place once the desired orientation is achieved.
3. Pangimeutan Headphone: For real-time audio monitoring, connect your headphones to the 3.5mm headphone jack located on the iRig Mic Field. This allows you to hear the audio being recorded without latency.
4. Kasaluyuan Aplikasi: The iRig Mic Field is compatible with any CoreAudio app on the iOS platform that supports digital audio recording via the Lightning port. This includes popular applications such as iRig Recorder 2 FREE (stereo compatible), GarageBand, Voice Memos, and iMovie, as well as hundreds of other audio and video recording applications.

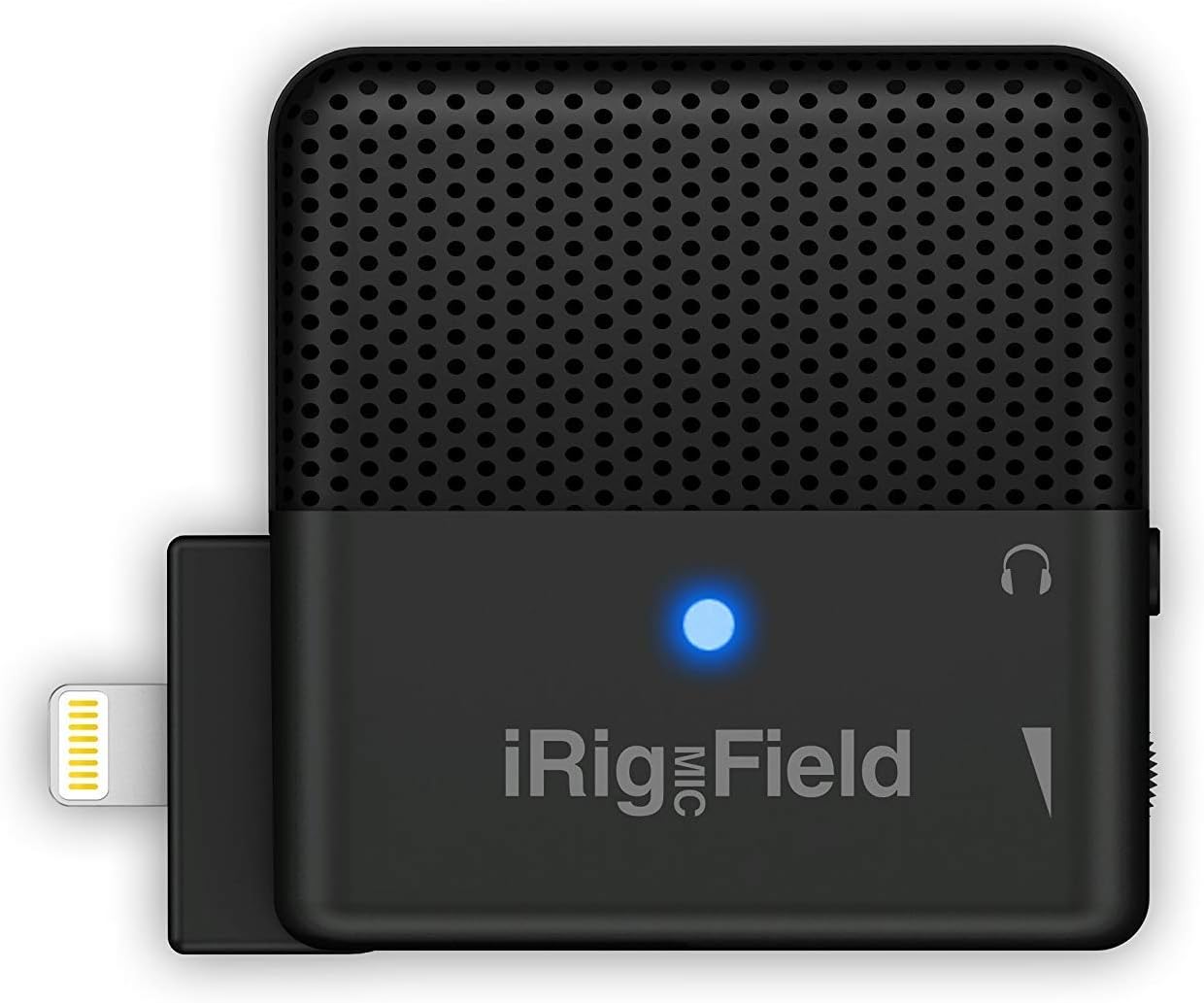

Figure 4.1: iRig Mic Field with active blue LED.

Figure 4.2: iRig Mic Field connected to an iPad, showing a recording waveform.

5. Parentah Operasi

Once connected and your preferred recording application is open, the iRig Mic Field is ready to capture high-quality stereo audio. Its compact size and robust design make it suitable for various recording scenarios.

• Rékam audio: Open your chosen audio recording app (e.g., iRig Recorder, GarageBand). The app should automatically recognize the iRig Mic Field as the input source. Adjust input levels within the app if necessary to prevent clipping or distortion.
• Ngarékam pidéo: When recording video, ensure the iRig Mic Field is oriented correctly (using its rotating connection) to capture the desired stereo field. Open your video recording app (e.g., iMovie, Camera app) and begin recording. The microphone will provide enhanced audio for your video content.
• Pamakéan serbaguna: The iRig Mic Field is designed for a wide range of applications, including capturing live music performances (bands, concerts), recording acoustic and electric instruments, vocals, interviews, field recordings, and more. Its stereo capability provides a more immersive and natural sound experience.

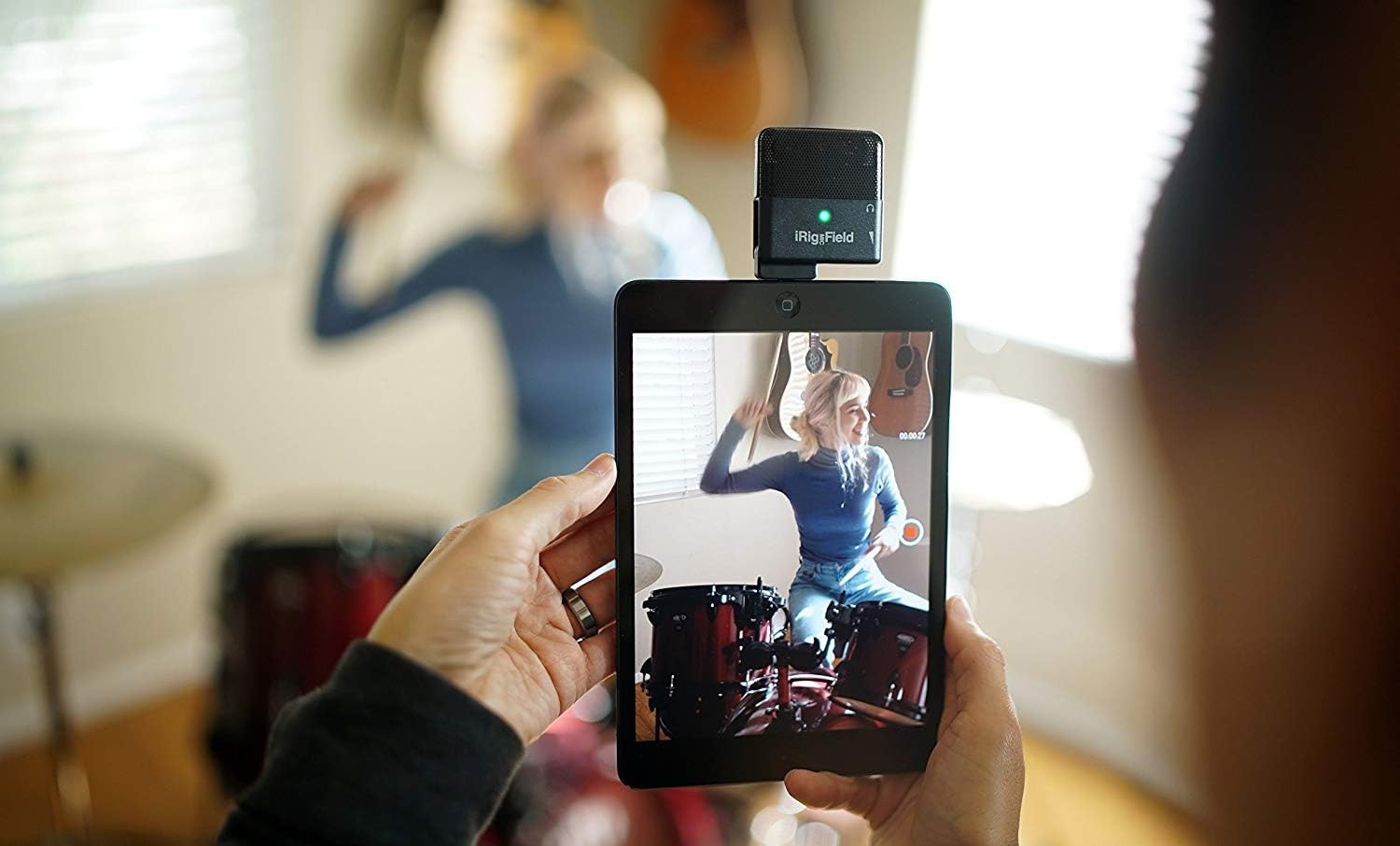

Figure 5.1: Recording drums using iRig Mic Field and an iPad.

Figure 5.2: Recording guitar using iRig Mic Field and an iPhone.

6. Pangropéa

To ensure the longevity and optimal performance of your iRig Mic Field, follow these maintenance guidelines:

• beberesih: Use a soft, dry cloth to clean the exterior of the microphone. Do not use liquid cleaners or aerosols, as they may damage the internal components.
• Panyimpenan: Simpen mikropon dina tempat anu tiis sareng garing jauh tina sinar panonpoé langsung sareng suhu anu ekstrim.
• Perlindungan: Avoid dropping the microphone or subjecting it to strong impacts, which can damage the sensitive internal components and microphone capsules.
• Perawatan Konektor: Keep the Lightning connector clean and free of dust or debris to ensure a reliable connection to your iOS device.

7. Cara ngungkulan

If you encounter issues with your iRig Mic Field, consider the following common troubleshooting steps:

• Henteu aya Input Audio:
  • Ensure the iRig Mic Field is securely plugged into the Lightning port of your iOS device.
  • Check your recording app's settings to confirm the iRig Mic Field is selected as the audio input source.
  • Verify that the input level in your app is not set to zero or muted.
  • Restart your iOS device and the recording application.
• Poor Audio Quality/Static:
  • Ensure there is no physical obstruction or damage to the microphone grilles.
  • Adjust the input gain in your recording app to avoid overdriving the microphone, which can cause distortion.
  • Minimalkeun gangguan latar tukang dina lingkungan rékaman anjeun.
  • If using a protective case on your iOS device, ensure it does not interfere with the microphone's connection or performance.
• Masalah Pemantauan Headphone:
  • Ensure your headphones are fully plugged into the iRig Mic Field's headphone jack.
  • Check the volume settings on your iOS device and within the recording application.
• Kasaluyuan alat: Ensure your iOS device is running a compatible version of iOS and supports digital audio input via the Lightning port.

8. Spésifikasi

9. Garansi jeung Rojongan

For detailed warranty information and further support, please refer to the official documentation provided by IK Multimedia. You can also find additional resources and product information on the IK Multimedia website or their official Amazon store.

• Pituduh pamaké: A User Guide (PDF) and User Manual (PDF) are available for download. Please refer to these documents for comprehensive information.
• Dukungan Online: Nganjang ka IK Multimedia Store on Amazon for product updates, FAQs, and customer service contact information.
